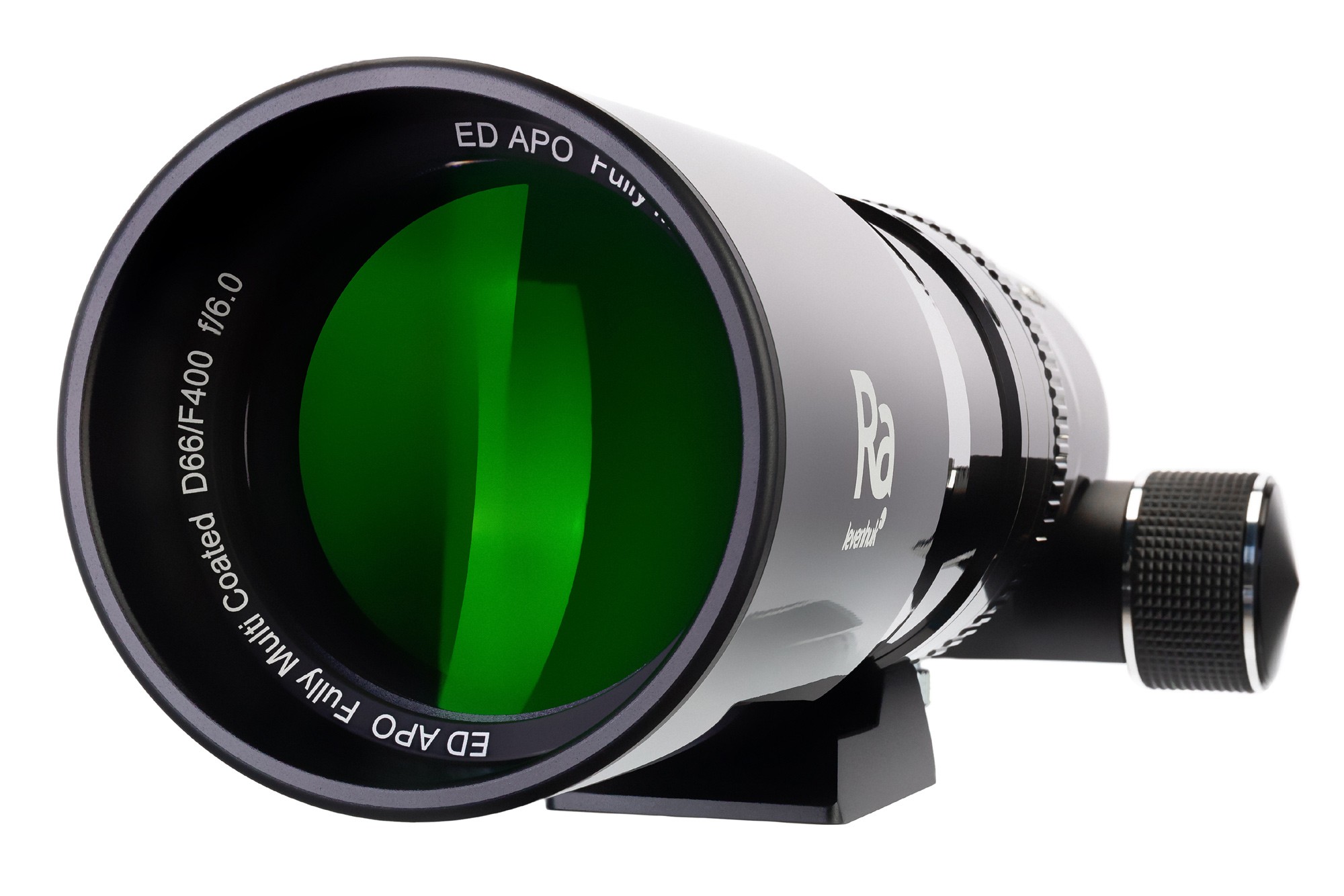

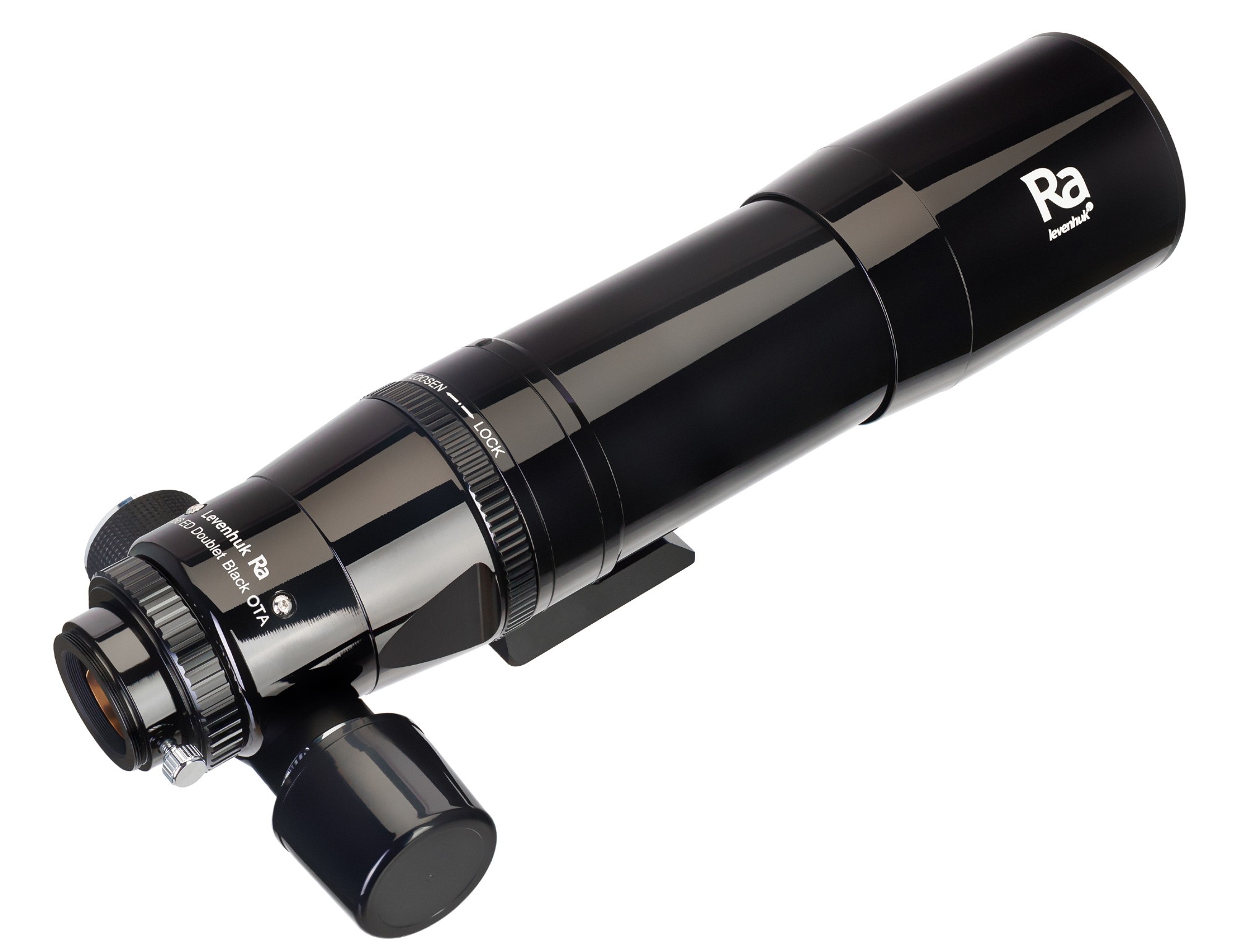

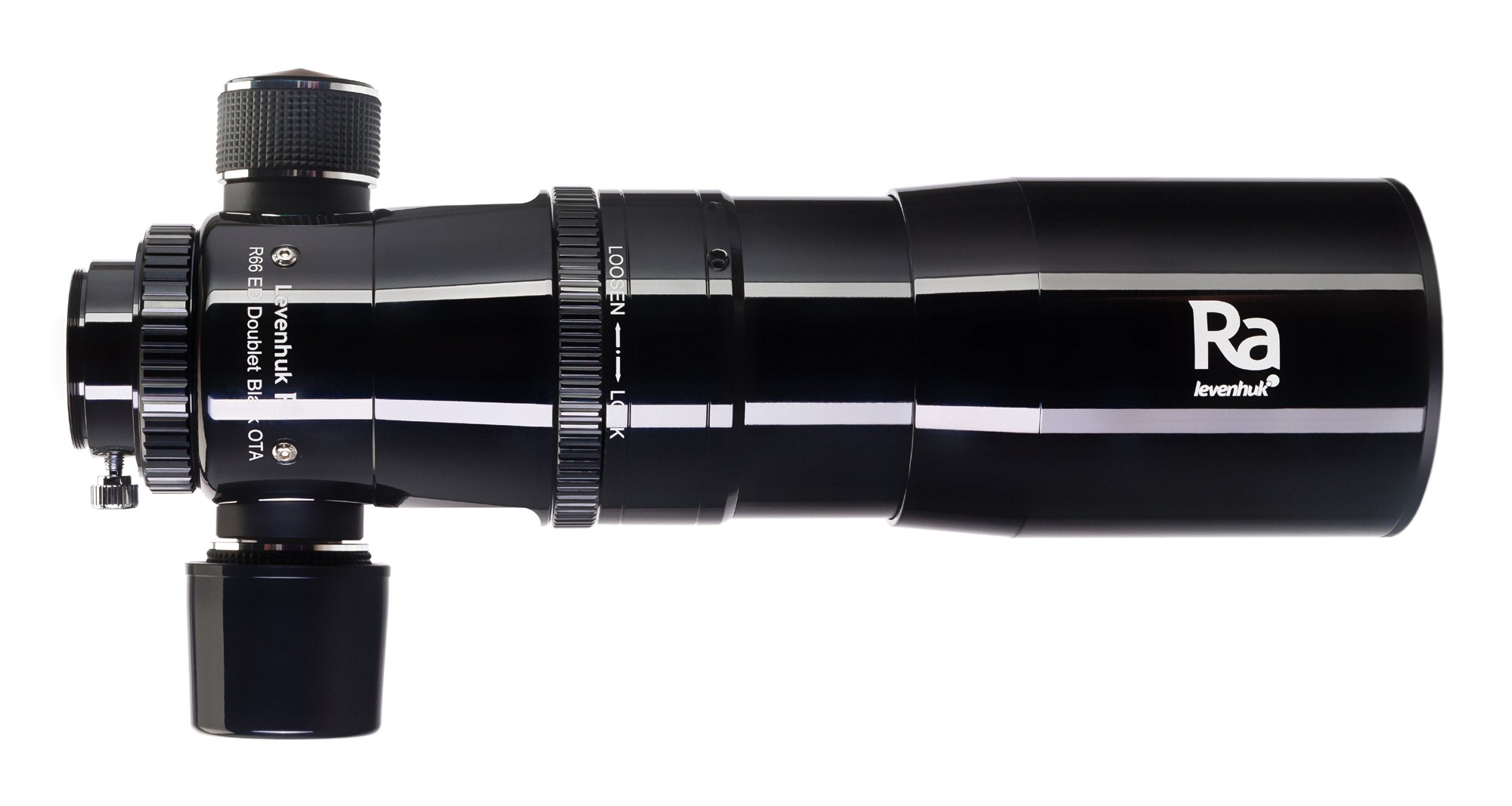

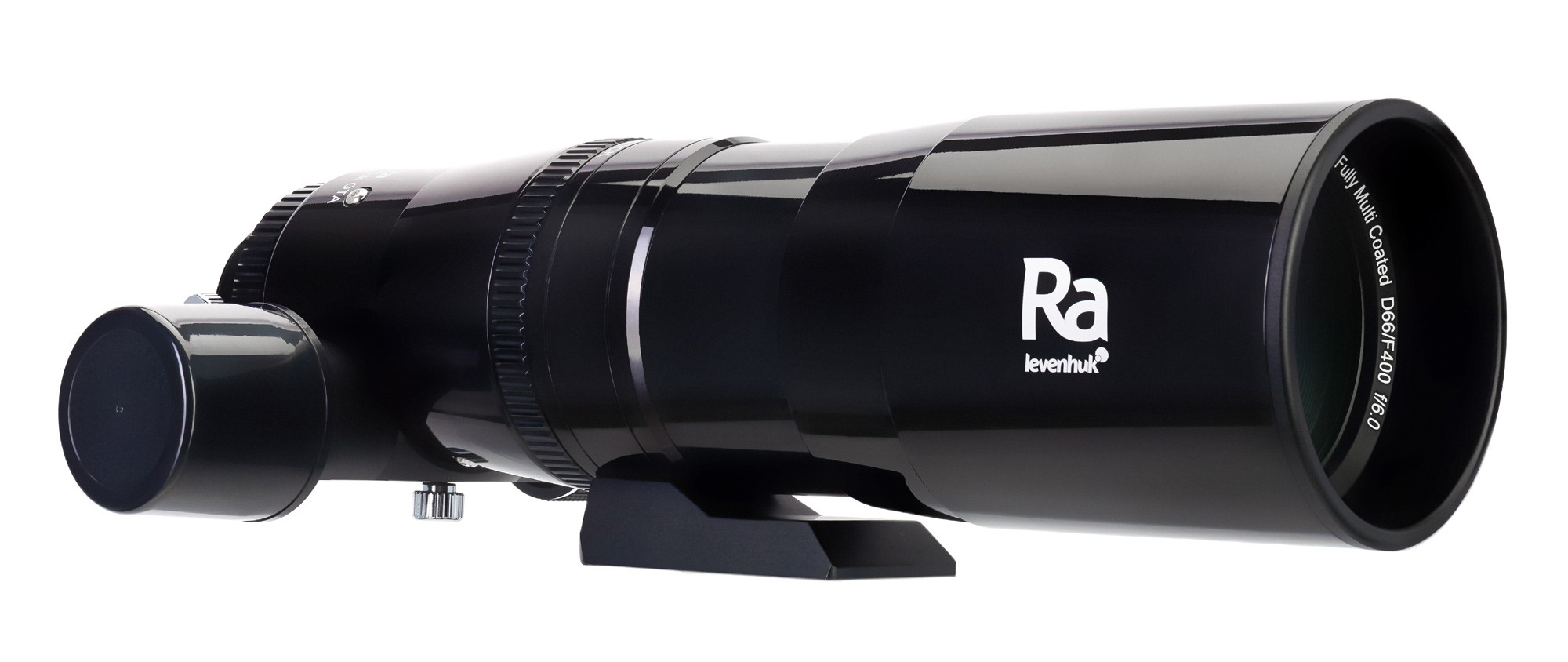

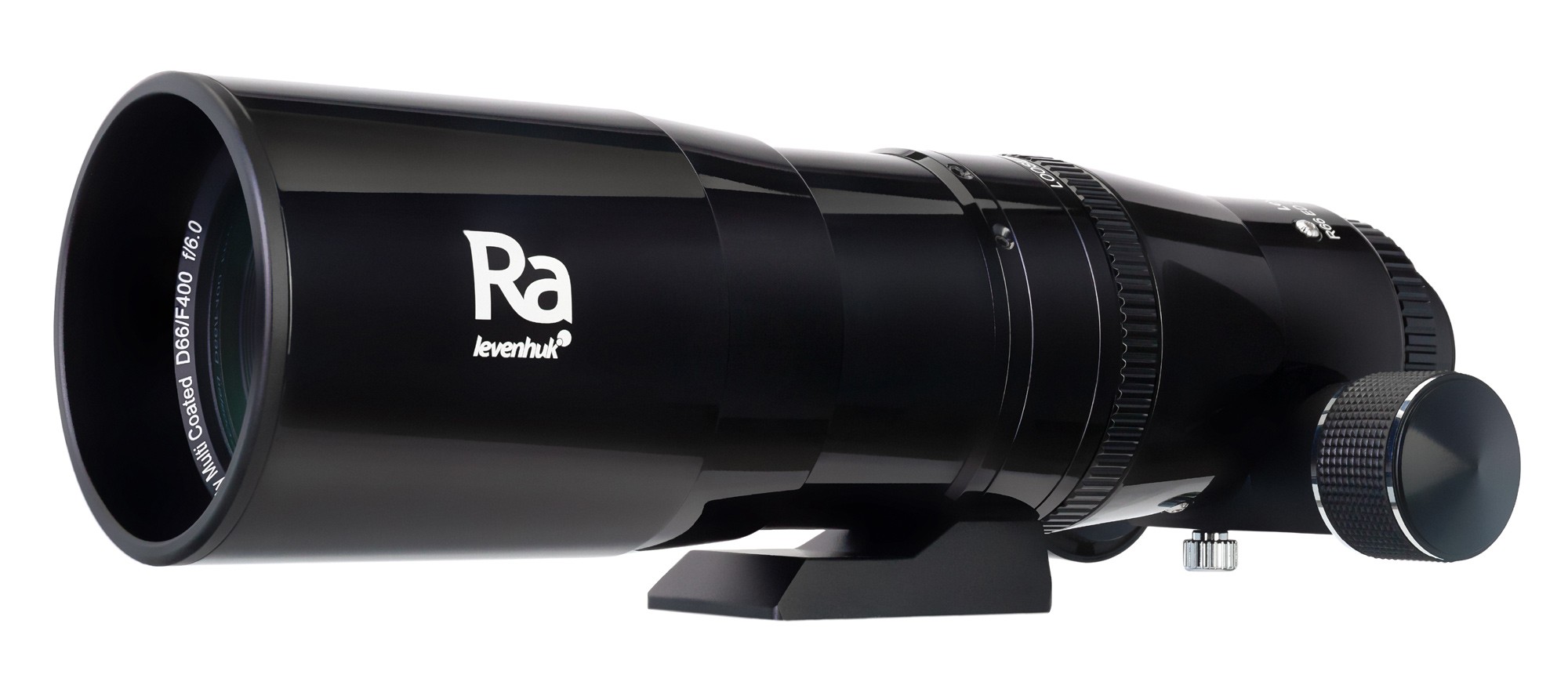

The Levenhuk Ra R66 ED Black doublet optical tube is a short-focal-length apochromatic refractor that allows you to get a glimpse of objects in the Messier and NGC catalogues, as well as to observe the lunar surface in detail. It is possible to observe planets as well as deep-sky objects. However, the primary use of this optical tube assembly (OTA) is astrophotography. Photographs taken using this telescope’s optics are rich in contrast and feature exceptionally sharp detail.

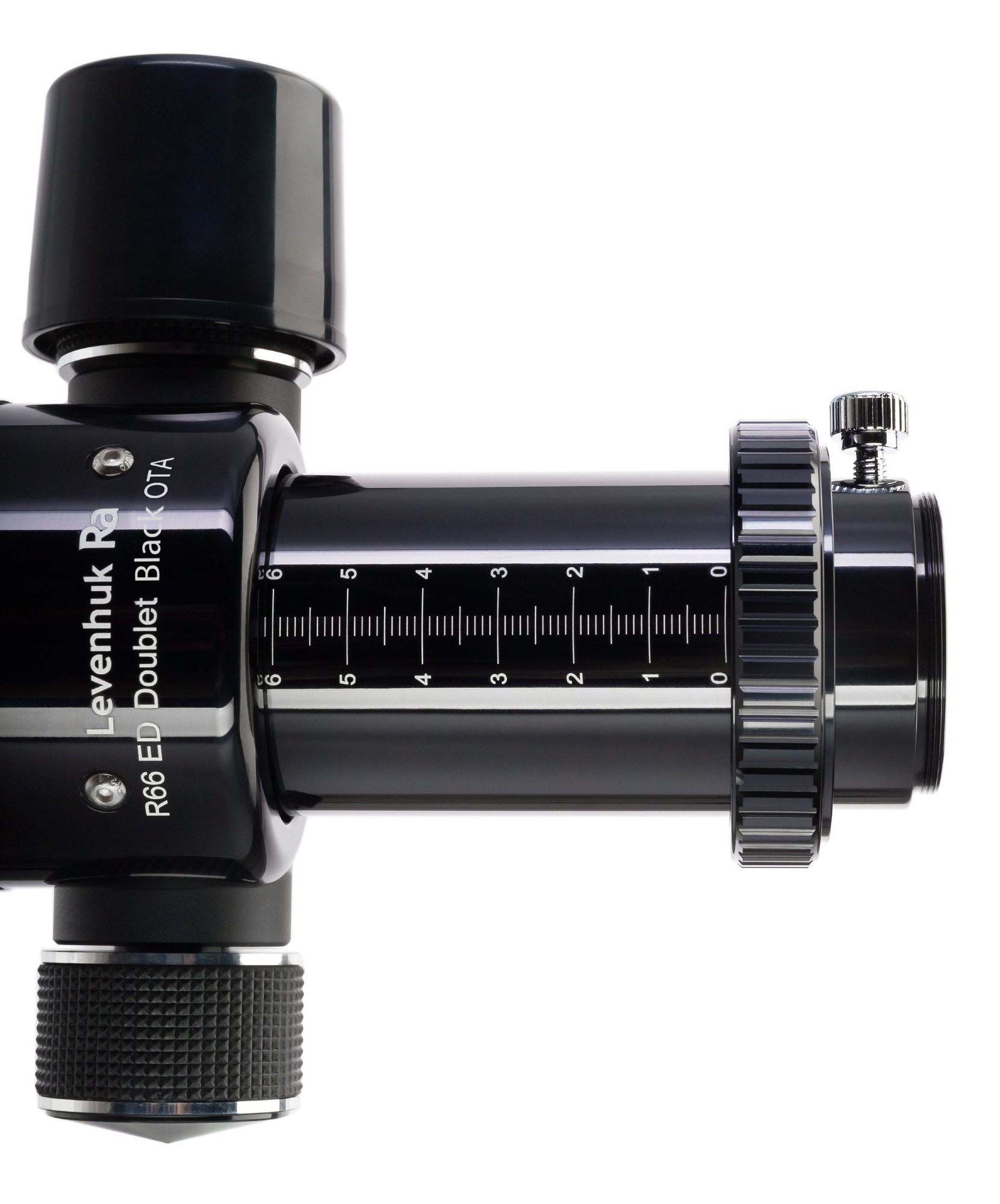

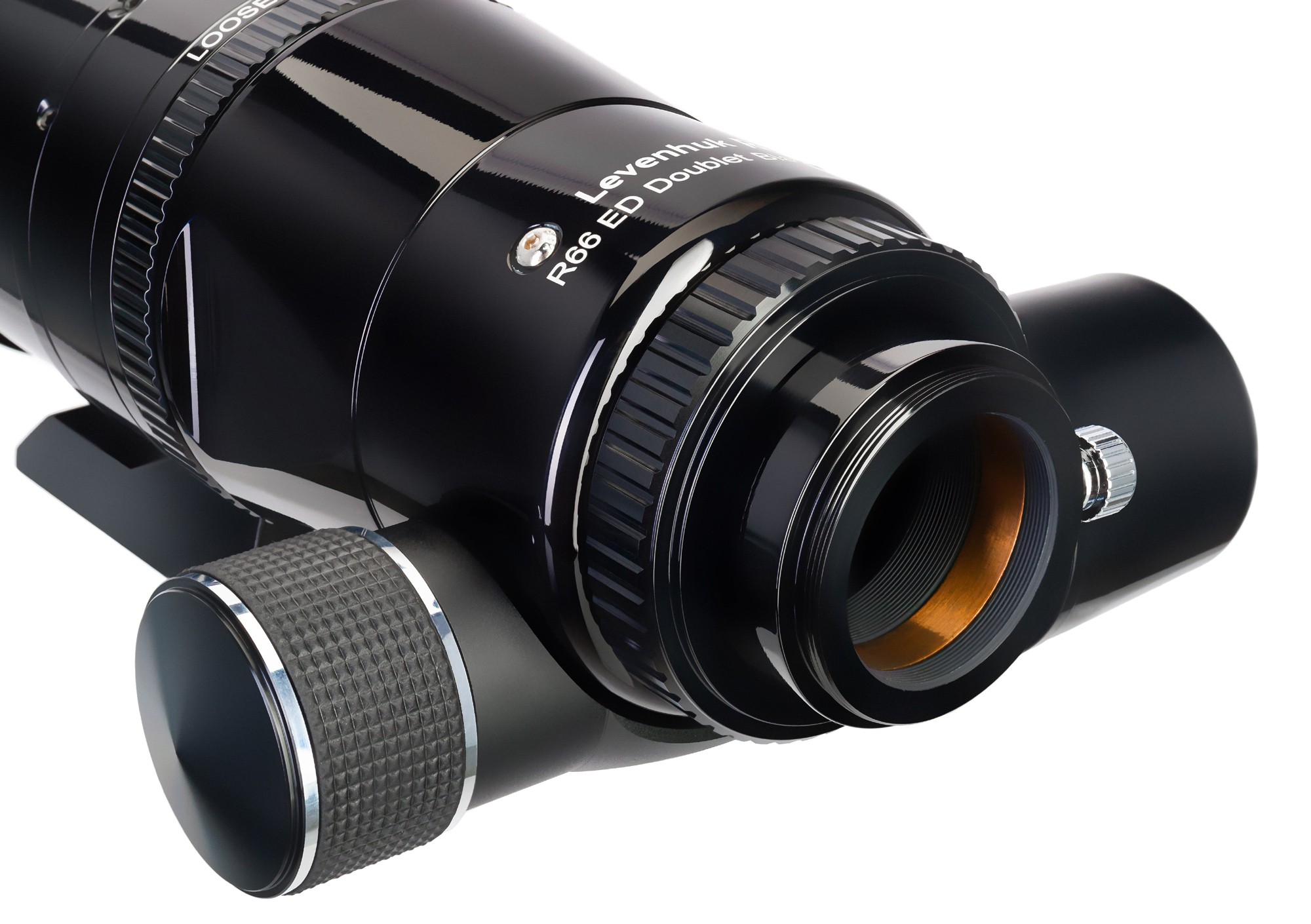

The lenses are made from extra-low dispersion glass, which effectively minimises chromatic aberrations, particularly second-order aberrations and spherical aberration. The wide field of view makes it practical for studying larger areas of the sky. The telescope is fitted with a dual-speed Crayford focuser, which ensures smooth and extremely accurate focusing in all conditions.

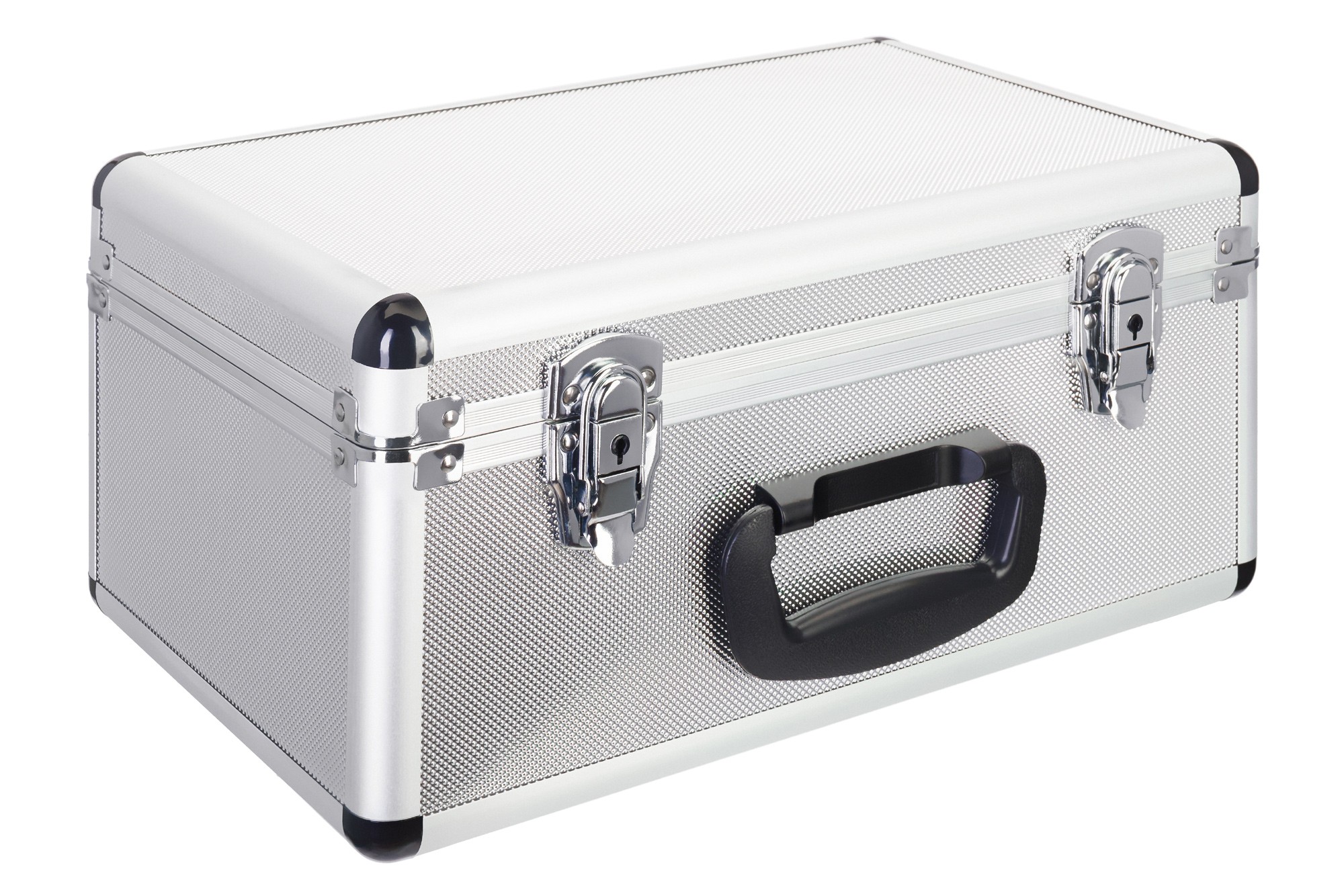

The optical tube assembly (OTA) is made from anodised aluminium and can be mounted on most modern mounts. As this OTA is fairly light and compact, it is an excellent choice for trips out of town. The kit also includes a handy aluminium case for protecting and transporting the telescope.
Please note: the mount, tripod and optical accessories are not included.
Features:
- Compact and lightweight apochromatic refractor
- Fully multi-coated ED glass lenses
- Dual-speed Crayford focuser for precise focus adjustment
- Excellent image clarity and contrast, with minimal chromatic aberration
- An excellent choice for astrophotography, suitable for direct observation
The kit includes:
- Telescope optical tube
- Cleaning cloth
- Aluminium case
- Protective caps
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| EAN | 0785104921818 |
| Package dimensions (WxDxH), cm | 40.5 x 29.5 x 21 |
| Shipping weight, kg | 4.37 |
| Optical design | refractor |
| Optical configuration | apochromatic |
| Optical material | ED |
| Lens coating | fully multi-coated |
| Objective lens diameter (aperture), mm | 66.0 |
| Focal length, mm | 400 |
| Maximum usable magnification, x | 132.0 |
| Aperture ratio | f/6 |
| Resolution threshold, arcseconds | 1.75 |
| Limiting apparent magnitude | 11.2 |
| Focuser | 1.25”, Crayford, dual-speed |
| Telescope control | Manual |

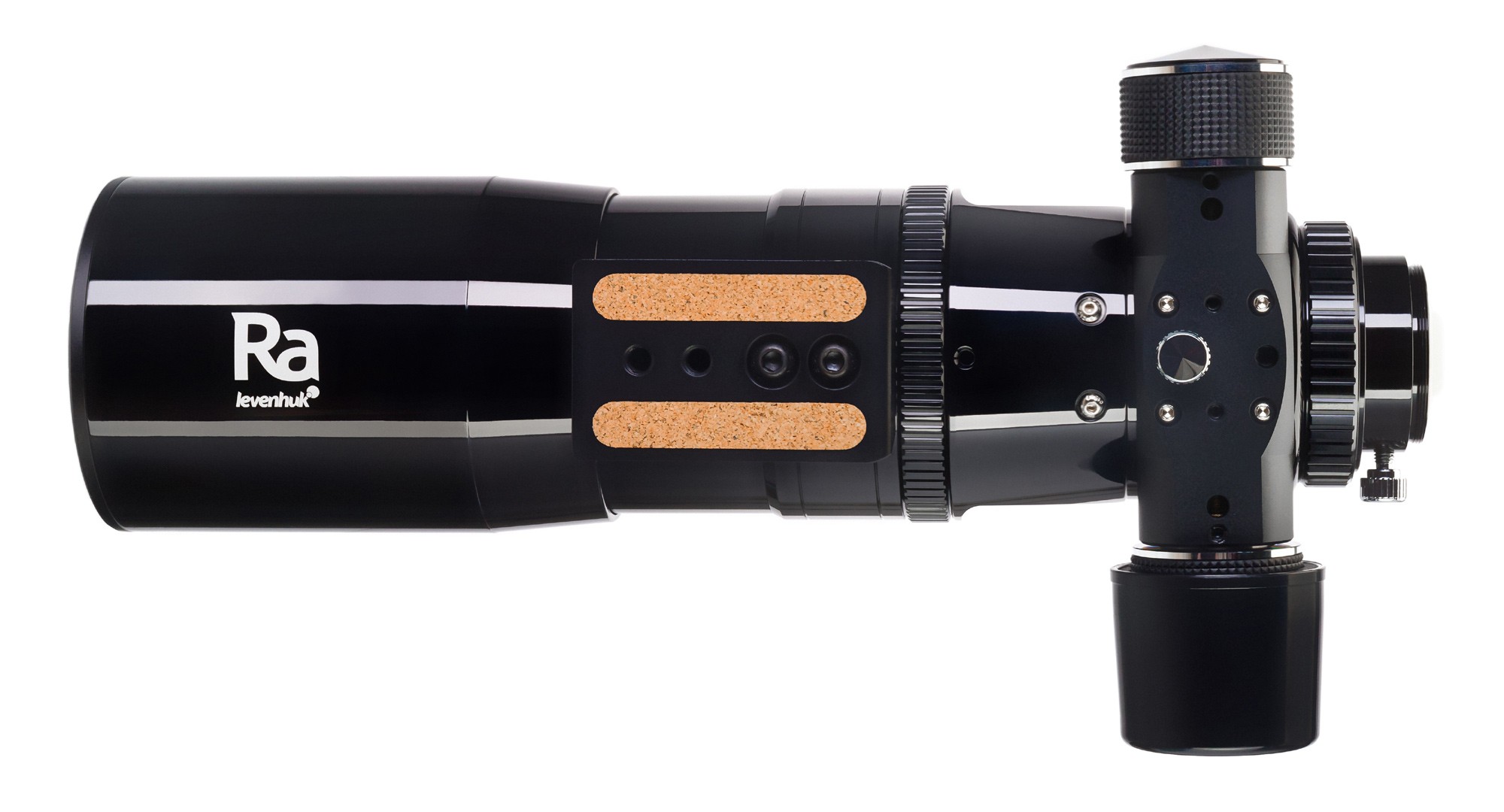

| Optical tube mounting method | 1/4” quick-release wing nut |
| Optical tube material | anodised aluminium |
| User level | Experienced users, professionals |
| Level of difficulty for assembly and installation | easy |
| Object observed | planets of the Solar System |
