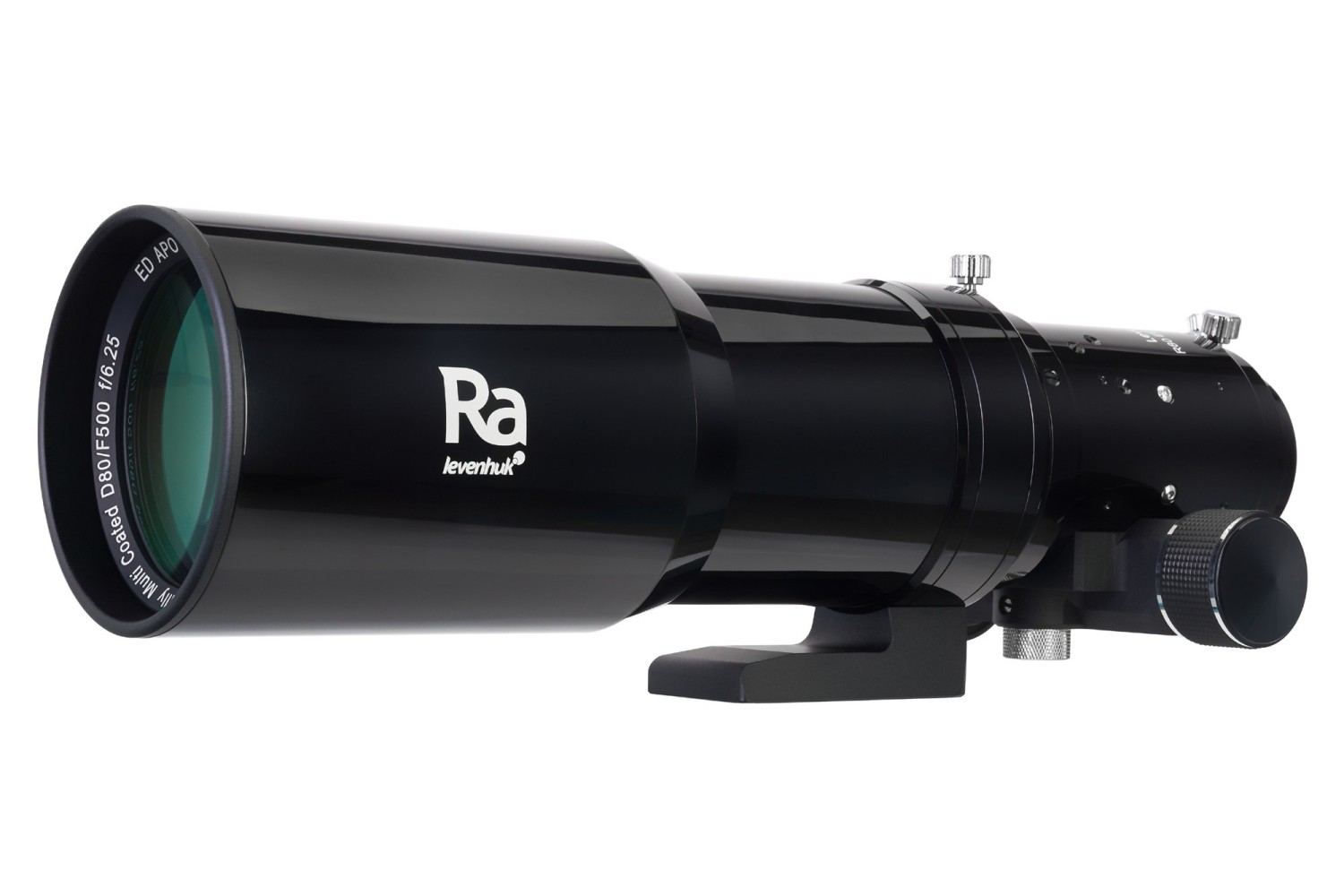

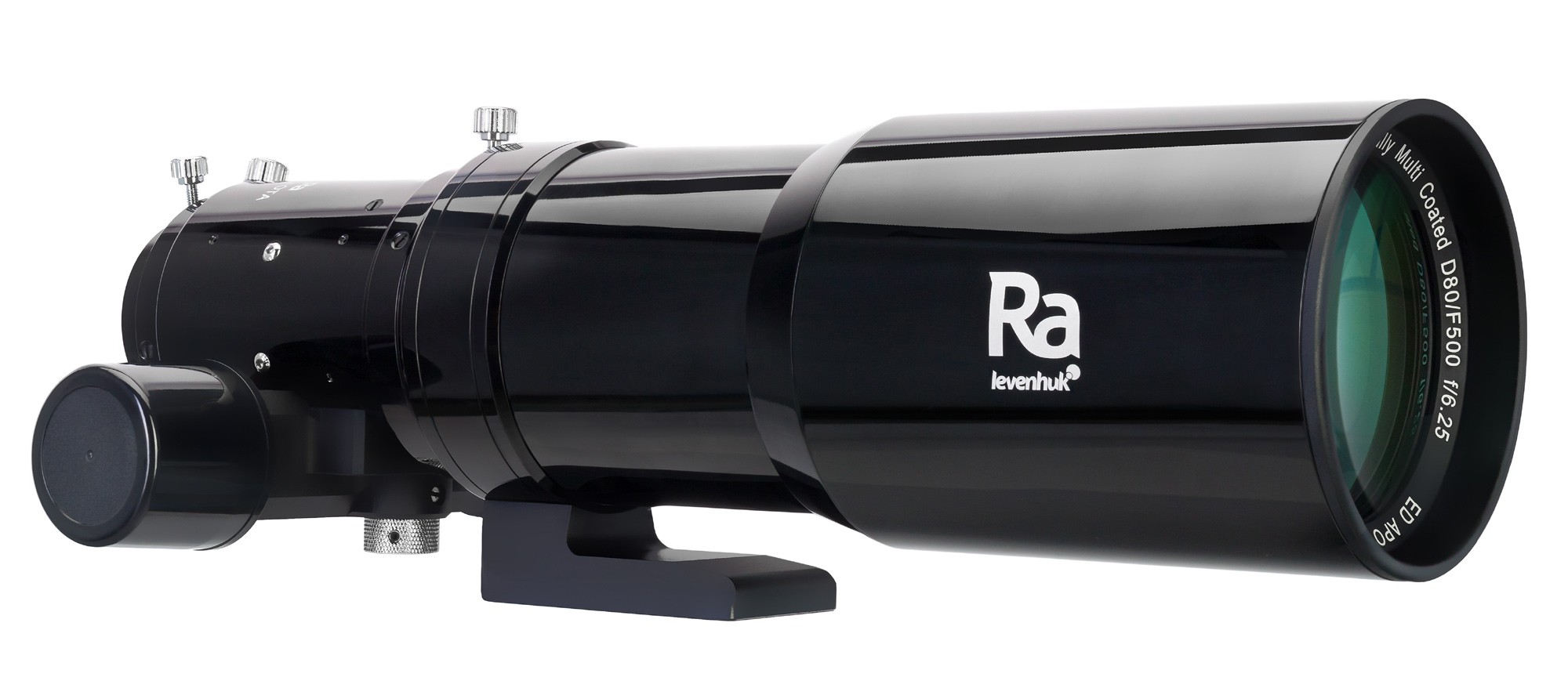

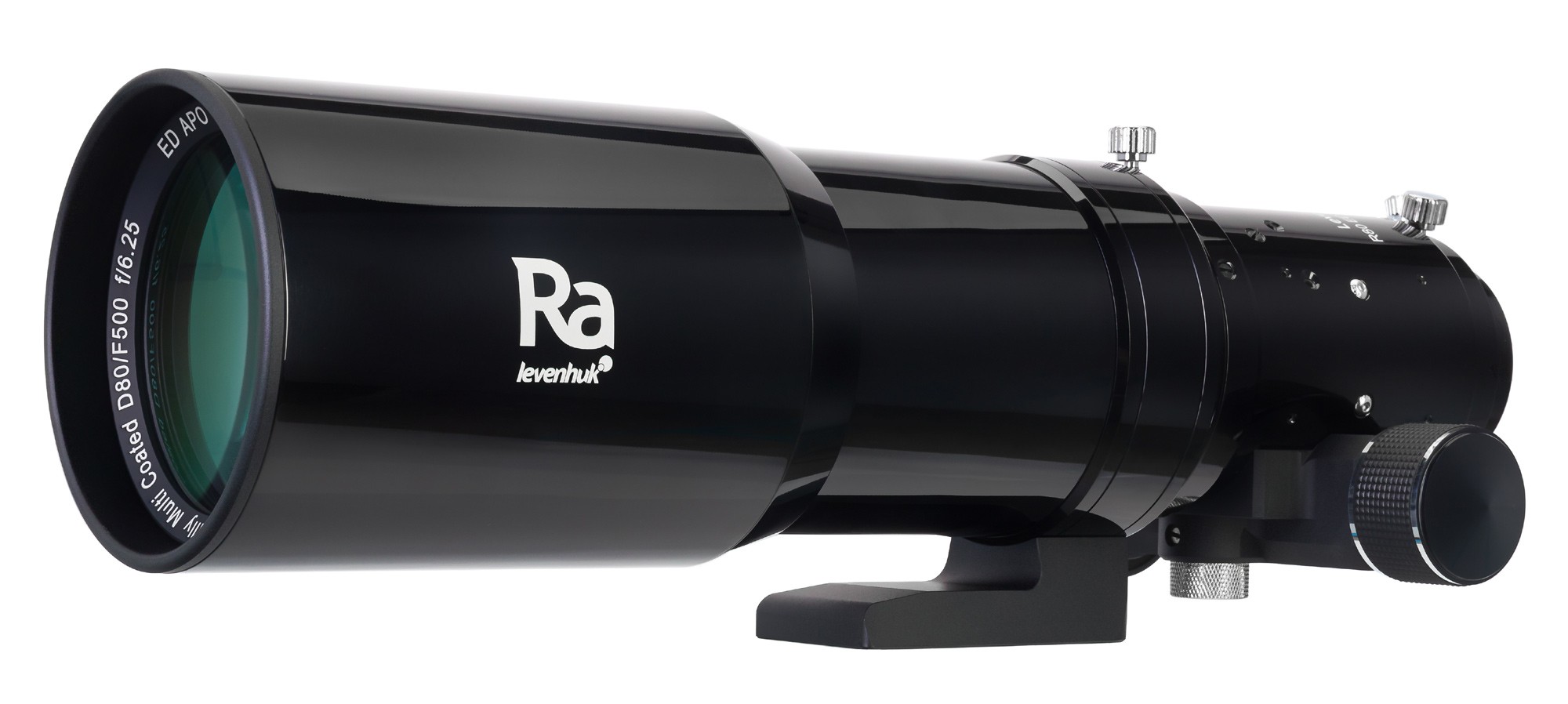

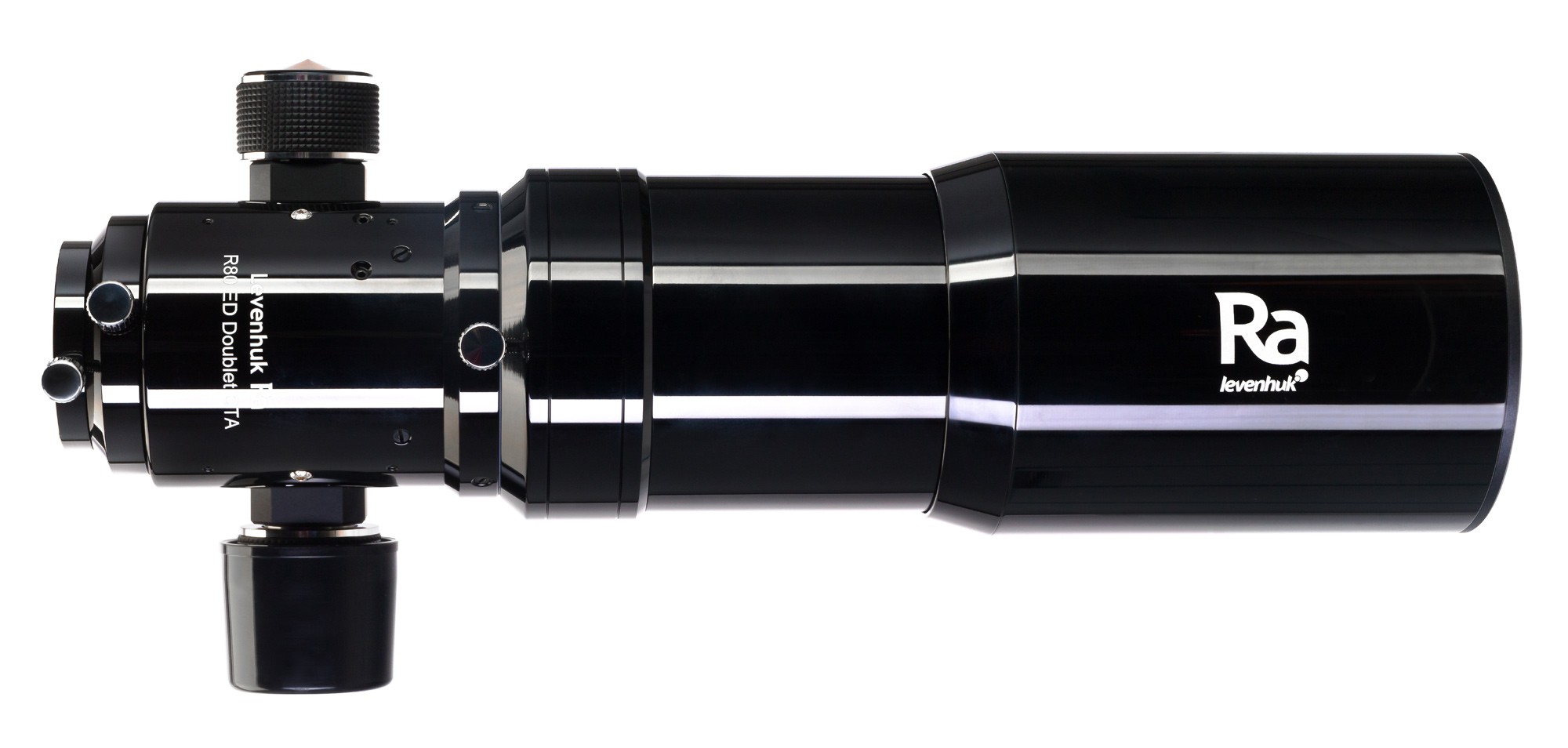

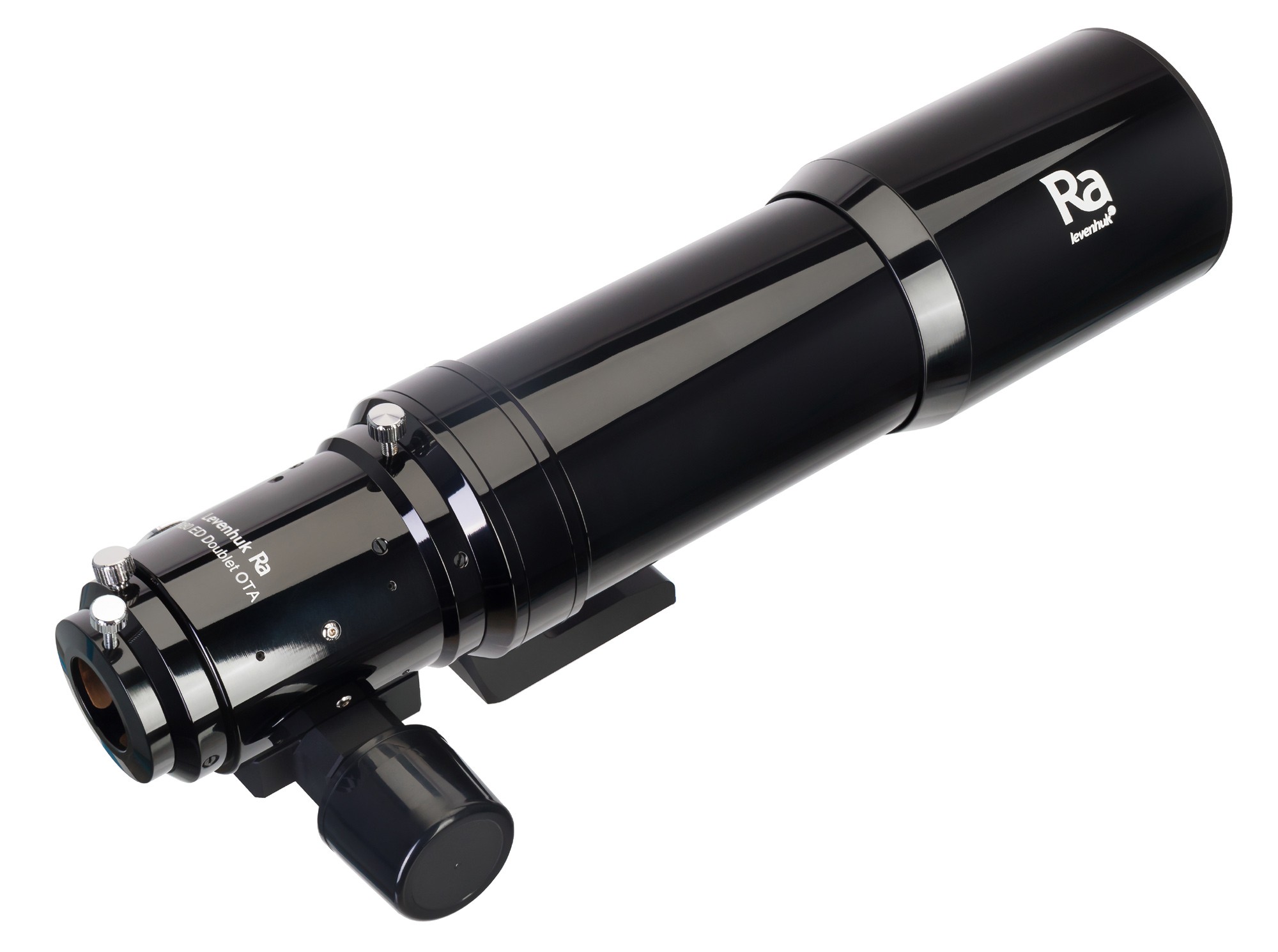

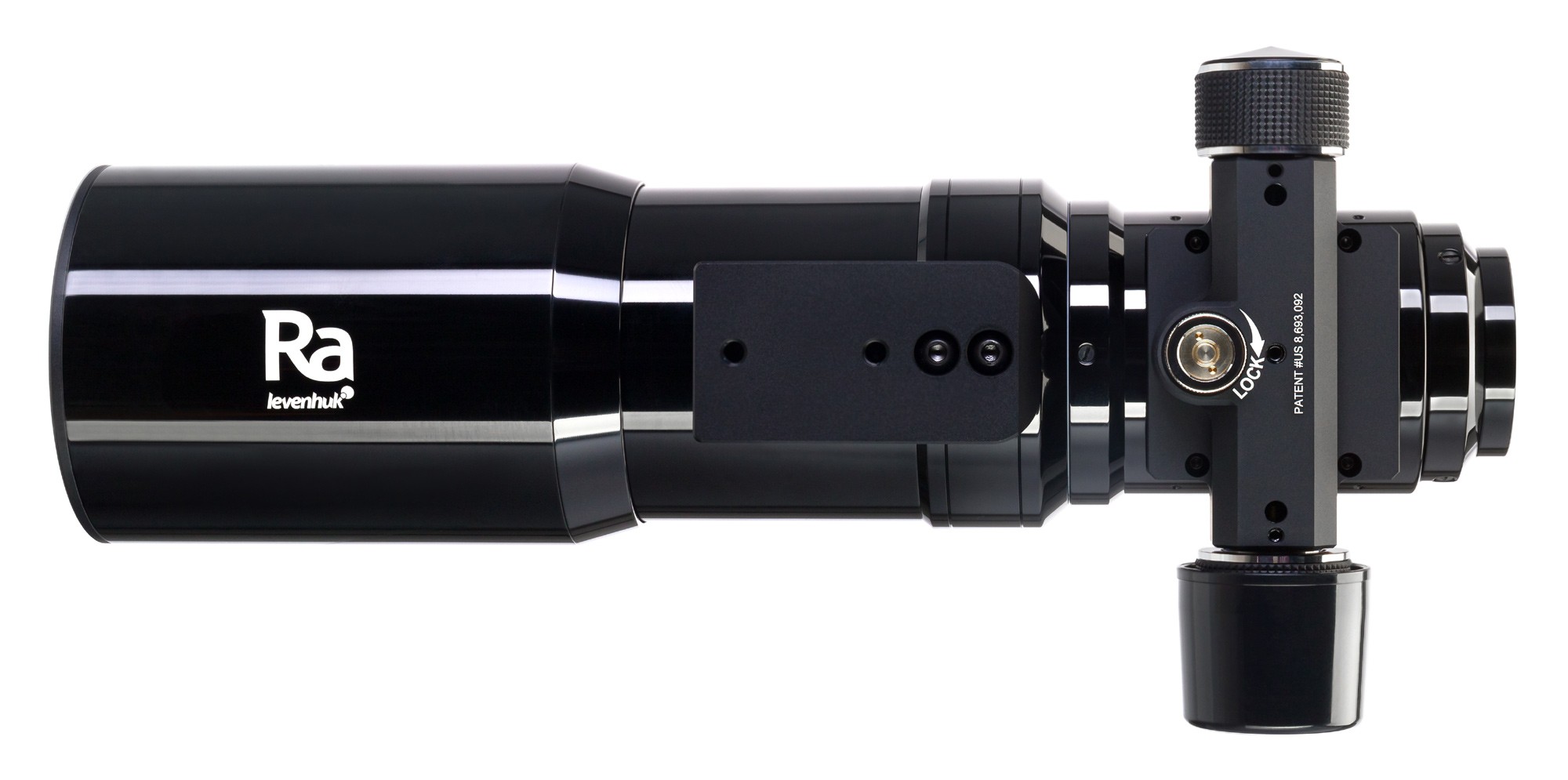

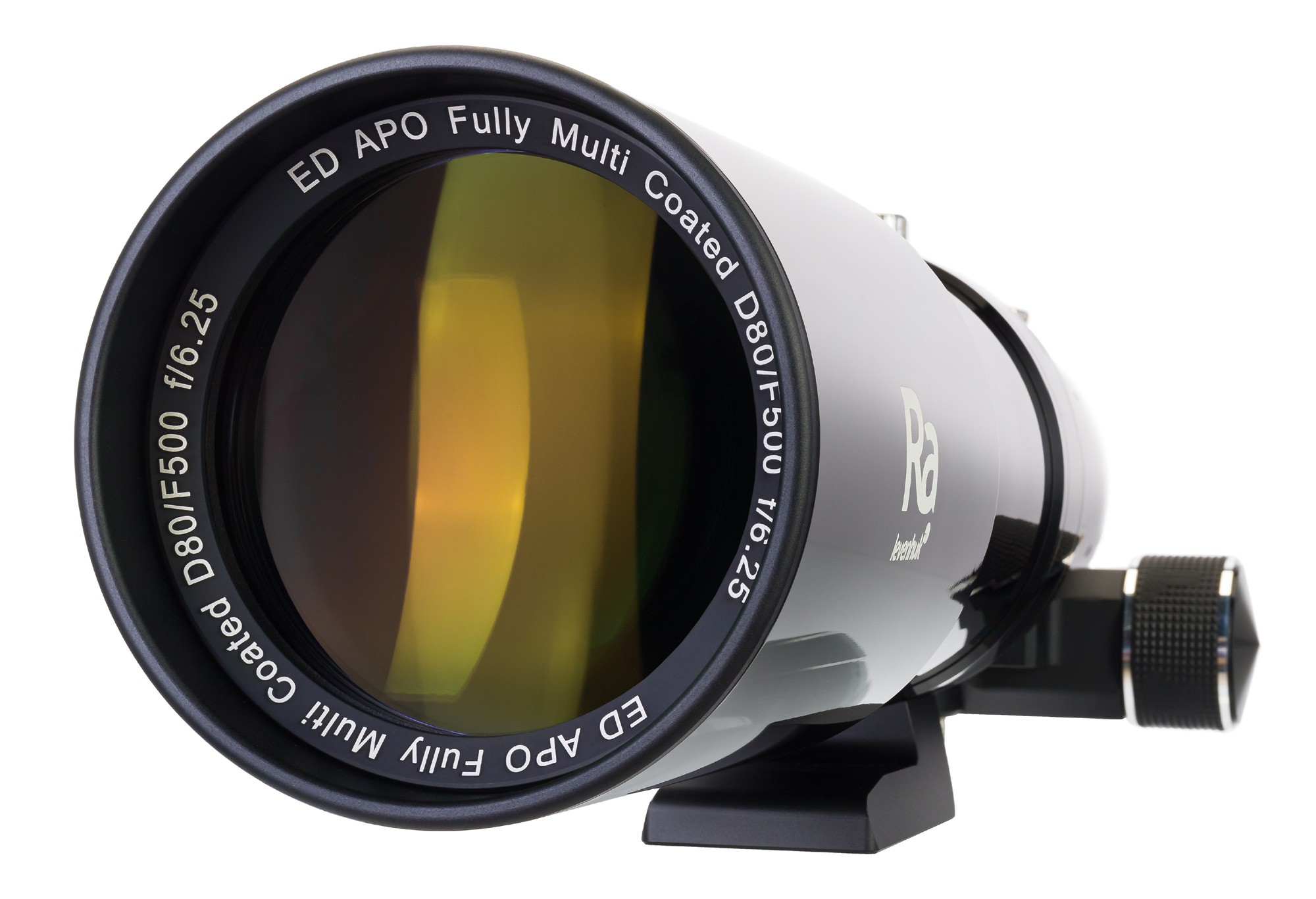

The Levenhuk Ra R80 ED doublet optical tube is a two-lens apochromatic refractor with extra-low dispersion optics. This optical tube is perfect for astrophotography, particularly of large objects, and is also suitable for direct observation. It features a wide field of view, high resolution and excellent mechanics. Thanks to its compact size and light weight, this telescope proves indispensable on excursions. In addition, the kit includes a sturdy aluminium case for protection and transport.

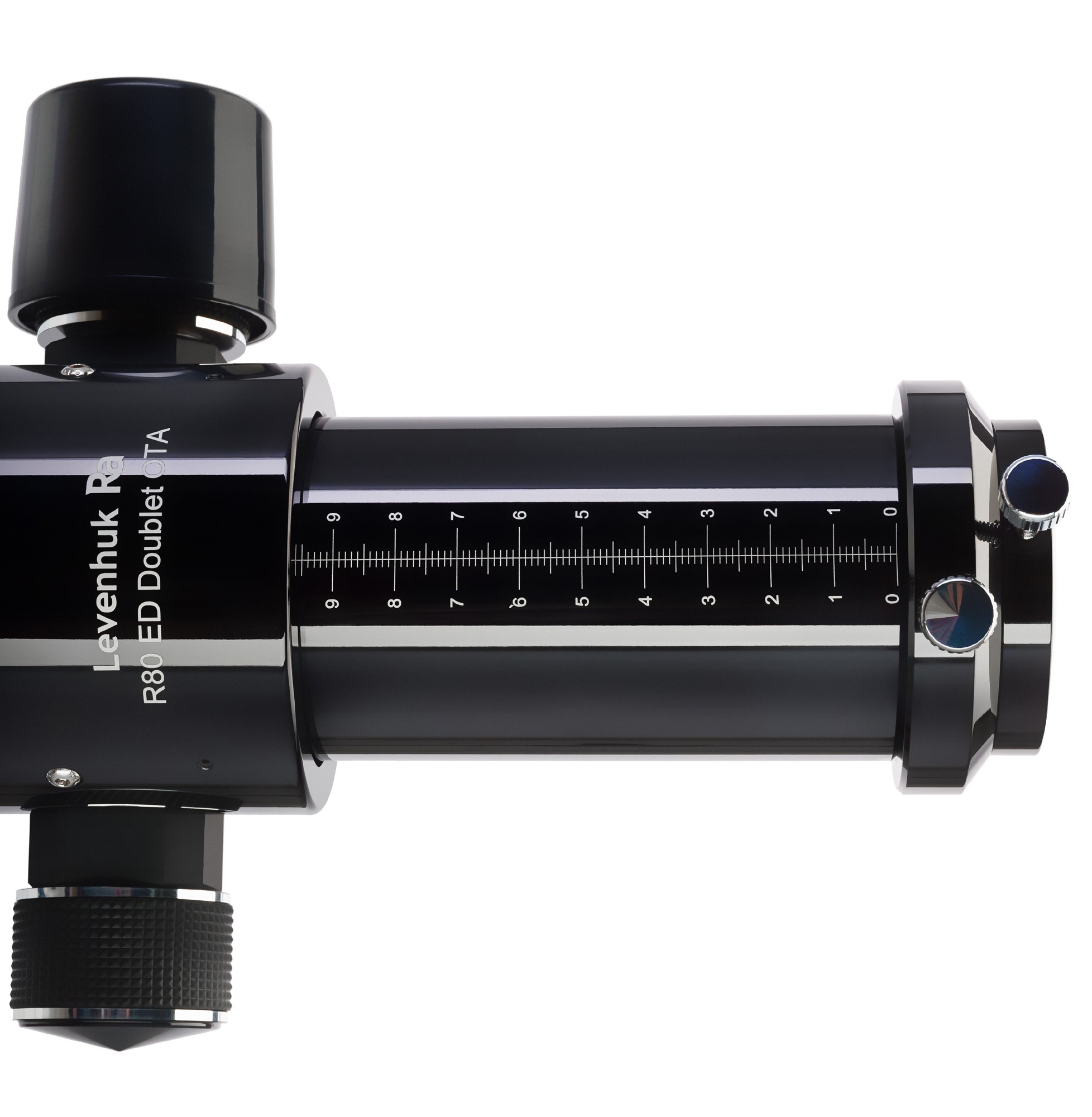

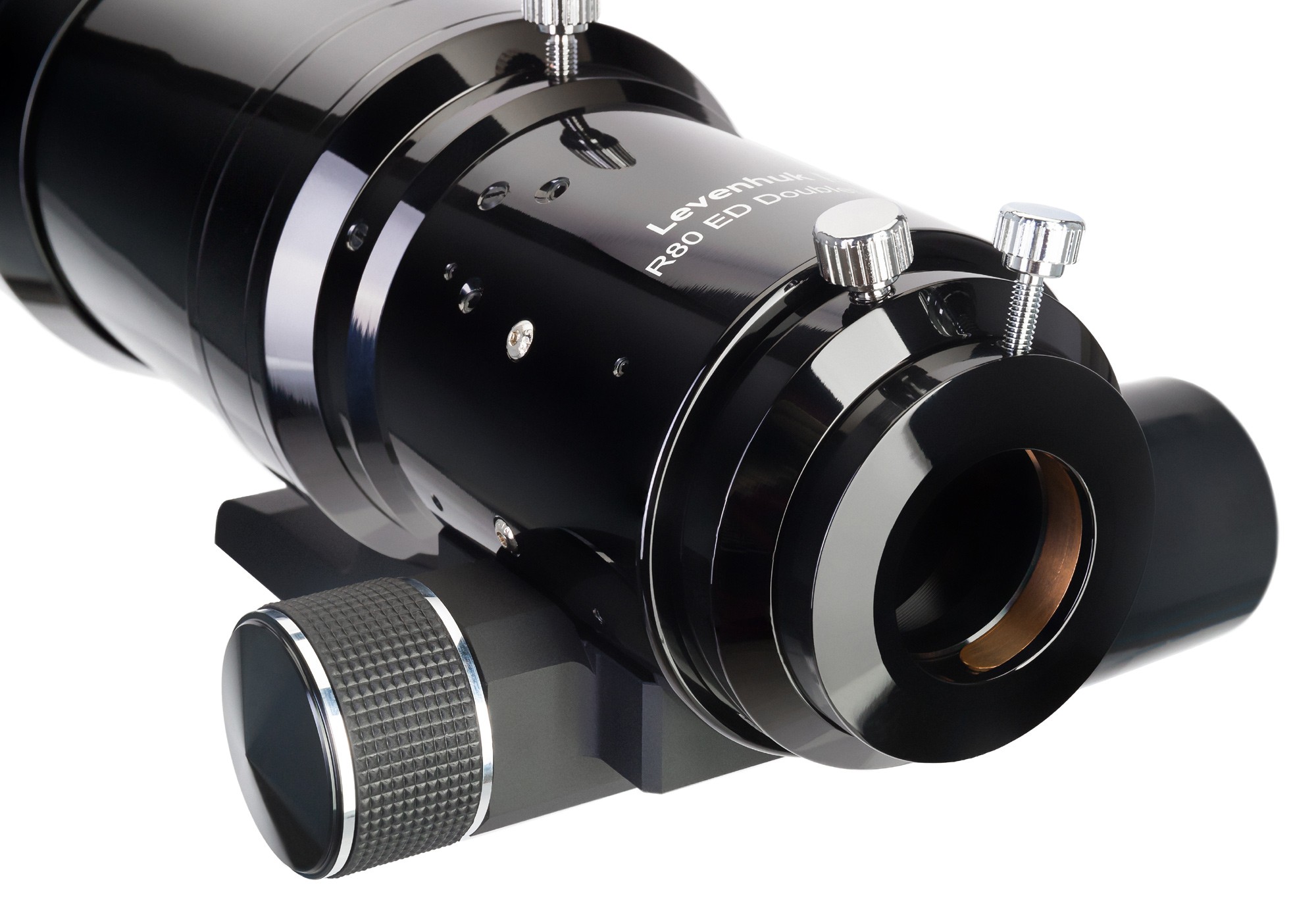

This telescope effectively reduces chromatic aberrations and delivers clear, high-contrast images. The fully multi-coated optics allow you to observe even the faintest stars. You can observe both the deep sky and cosmic space. Thanks to the dual-speed focuser, 2-inch accessories can be fitted. The focuser ensures extremely precise focus adjustment.
This OTA is made from anodised aluminium and features high-quality internal blackening. The quick-release wing screw allows this OTA to be mounted on most modern mounts.
Please note: mount, tripod and optical accessories are not included.
Features:
- Short-focal-length, wide-field apochromatic refractor
- Fully multi-coated optics made from ED glass
- The dual-speed focuser allows the fitting of 2-inch accessories
- High image contrast with minimised optical distortion
- Perfect for direct observation and astrophotography
The kit includes:
- Telescope tube
- Cleaning cloth

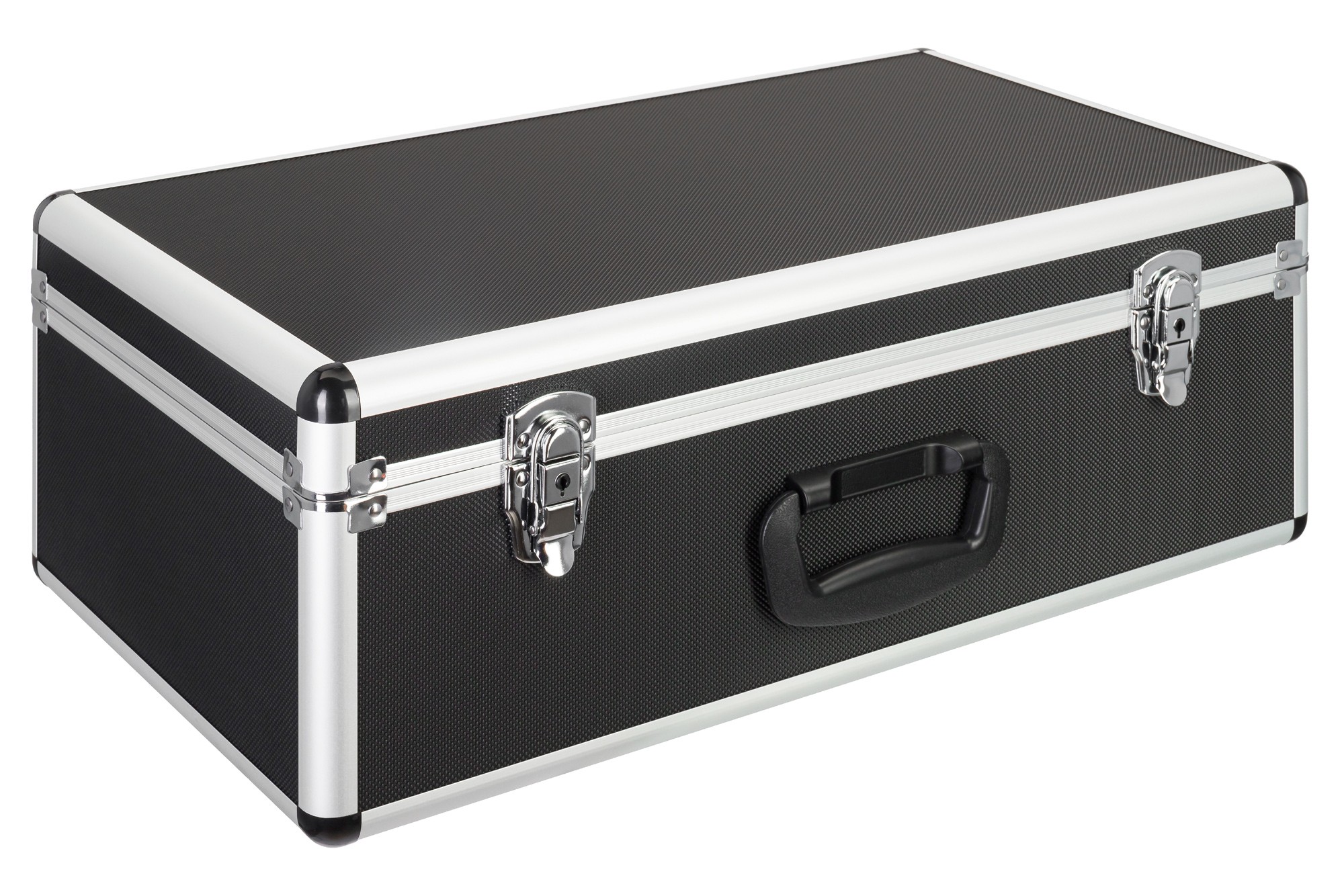

- Aluminium case
- Protective caps
- User manual and lifetime warranty
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| EAN | 0785104921795 |
| Package dimensions (WxDxH), cm | 80x37.5x22.5 |
| Shipping weight, kg | 7.04 |
| Optical design | refractor |
| Optical design | apochromatic |
| Optical material | ED |
| Lens coating | fully multi-coated |
| Objective lens diameter (aperture), mm | 80.0 |
| Focal length, mm | 500 |
| Maximum usable magnification, x | 160.0 |
| Aperture ratio | f/6.25 |
| Resolution threshold, arcseconds | 1.45 |
| Limiting apparent magnitude | 11.62 |
| Focuser | 2”, 2-speed, rack and pinion |
| Telescope control | Manual |
| Optical tube mounting method | 1/4” quick-release wing screw |
| Optical tube material | anodised aluminium |
| User level | Experienced users, professionals |
| Level of difficulty for assembly and installation | easy |
| Object observed | planets of the Solar System |
