DISCOVERY ARTISAN 64 DIGITAL MICROSCOPE

Reference code: 78161

€ 139.95

VAT included

USB microscope for practical applications. 4.3" LCD screen. Magnification: 20–600x. USB digital microscope with 0.3 MP camera

The Discovery Channel informs, entertains and inspires its audience around the world about the wonders of our planet, its diversity and its surprises. By offering millions of people the chance to make new discoveries and satisfy their curiosity, Discovery provides an engaging mix of storytelling across a range of genres: science and technology, exploration, adventure, history, and a behind-the-scenes look at the people, places and organisations that shape the world we live in.

We are proud to present the Discovery range of optical instruments, manufactured by Levenhuk and sponsored by Discovery.

€ 139.95

VAT included

EASY AND FAST RETURNS

up to 14 days

WARRANTY INCLUDED

purchase insured
up to €2,500

Description

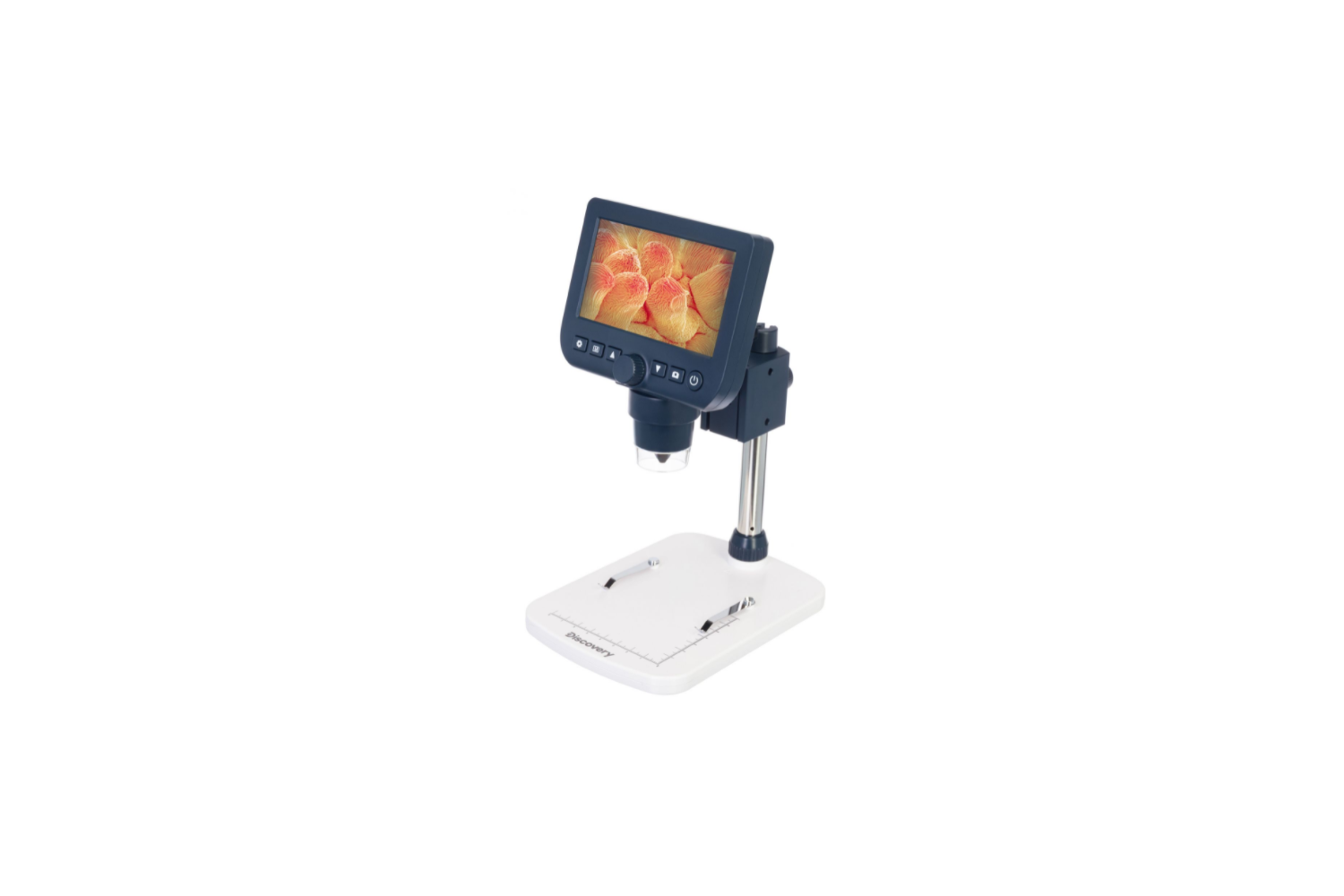

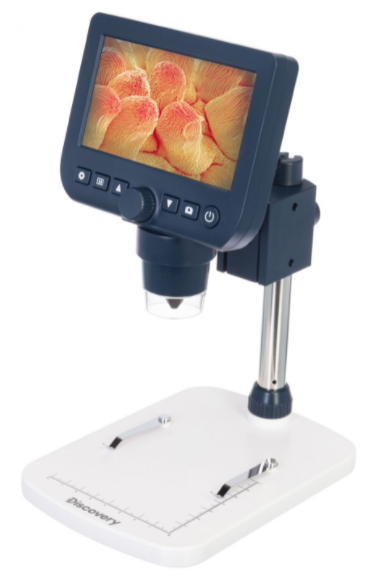

The Discovery Artisan 64 digital microscope is easy to use as it features a built-in LCD screen. Thanks to this feature, there is no need to connect the microscope to a PC, though it can still be used with a computer, as it is compatible with Windows and Mac OS (connection via USB cable). This microscope has a wide range of applications: repairing small components, soldering microcircuits, studying metals, sharpening blades, verifying the authenticity of old coins, restoring works of art and much more. It is fitted with top lighting, so this device can only be used to examine opaque objects.

The magnification is adjustable and ranges from 20x to 600x. Focusing is manual within a range of 5 to 80 mm. The microscope features 8 LED lights around the camera lens. The camera serves as the sole objective lens and is responsible for image reproduction. Its 0.3 MP sensor (up to 8 MP via interpolation) produces a sharp and detailed image of the samples under observation; it is possible to carry out real-time observations and, if necessary, save photos and videos to a memory card (included). The specialised software (included) allows you to measure the linear and angular dimensions of the samples.

The microscope is mounted on a professional support arm fitted with a stage featuring graduated scales and clamps. The microscope is powered by a built-in battery that can be recharged via a USB cable.

Features:

Magnification: 20–600x; focus range: 5–80 mm
0.3 MP camera with up to 8 MP resolution via interpolation
4.3” LCD screen
Photo and video capture, with object measurement functionality
8 white LEDs with adjustable brightness
Professional support arm and worktable with graduated scales and clamps
Powered by a built-in battery or via a computer’s USB port
Compatible with Windows and Mac OS; supports microSD cards

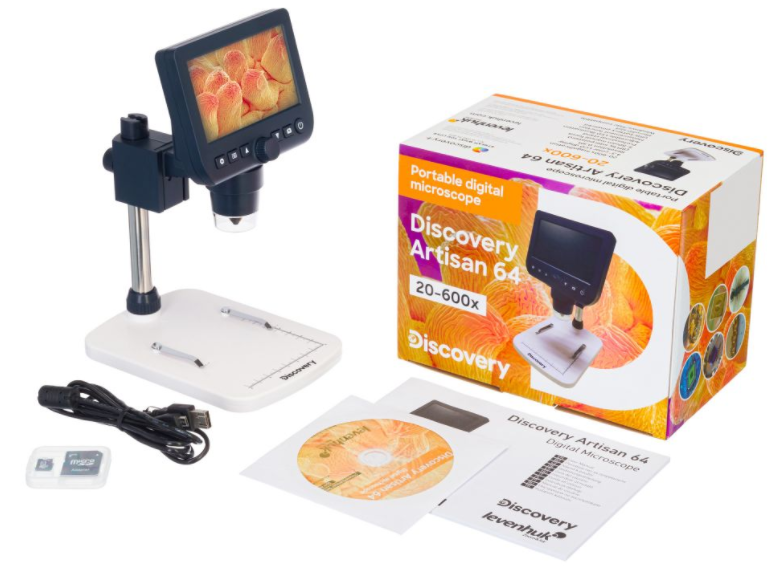

The kit includes:

Digital microscope
Stand
USB cable
1 GB microSD card
Software CD
User manual and warranty card

Tips for using the software:

To ensure the programme works correctly, only launch the installed application when the microscope is connected to the PC and ready for observation.

Note: Please bear in mind that the mains voltage in the United States and Canada is 110 V, whilst in most European countries it is 220–240 V. For information on the correct mains voltage, please refer to the specifications table. Never attempt to connect a 110 V device to a 220 V mains socket, or vice versa, without using a voltage converter.

The Discovery Artisan 64 digital microscope is not compatible with external digital cameras.
