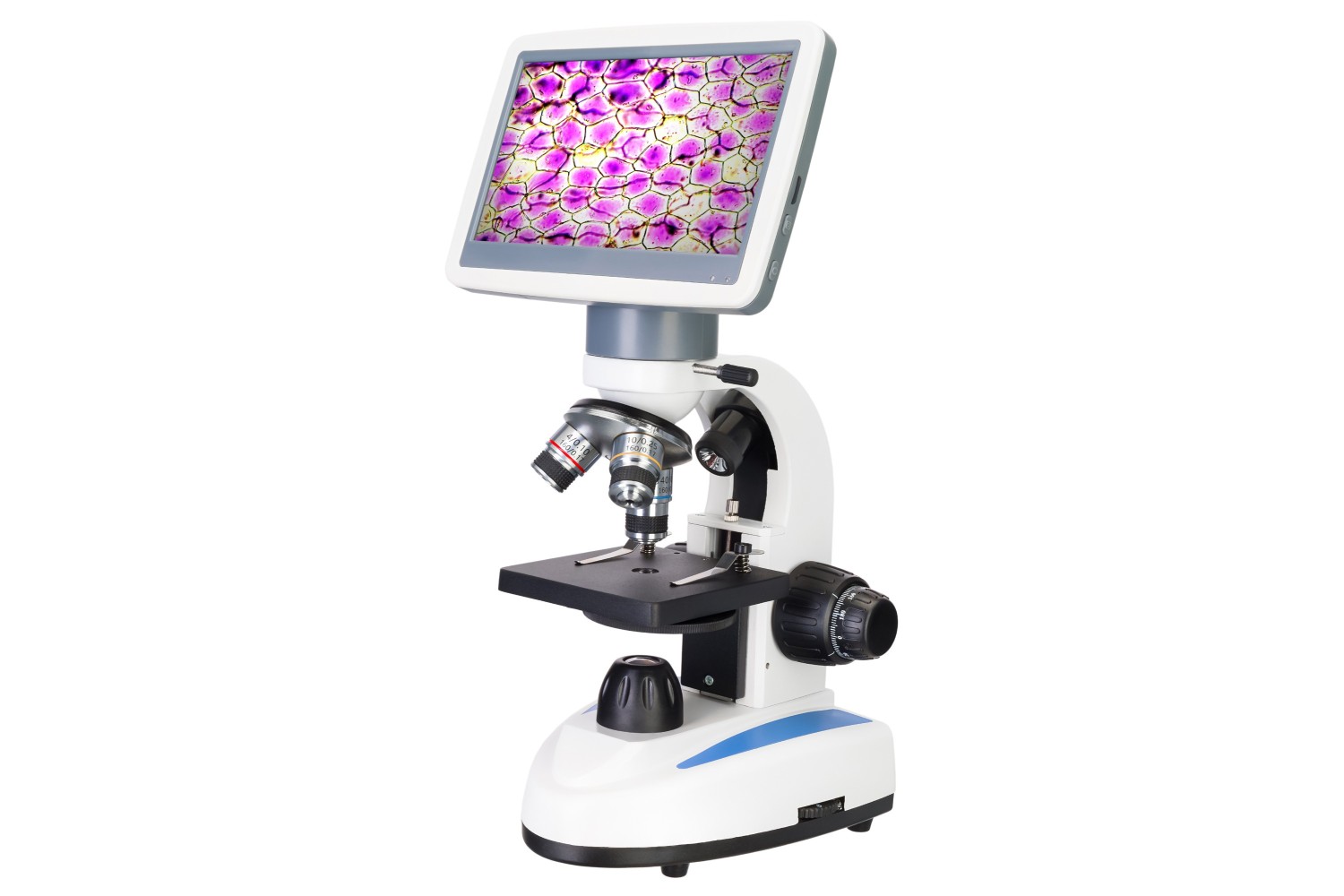

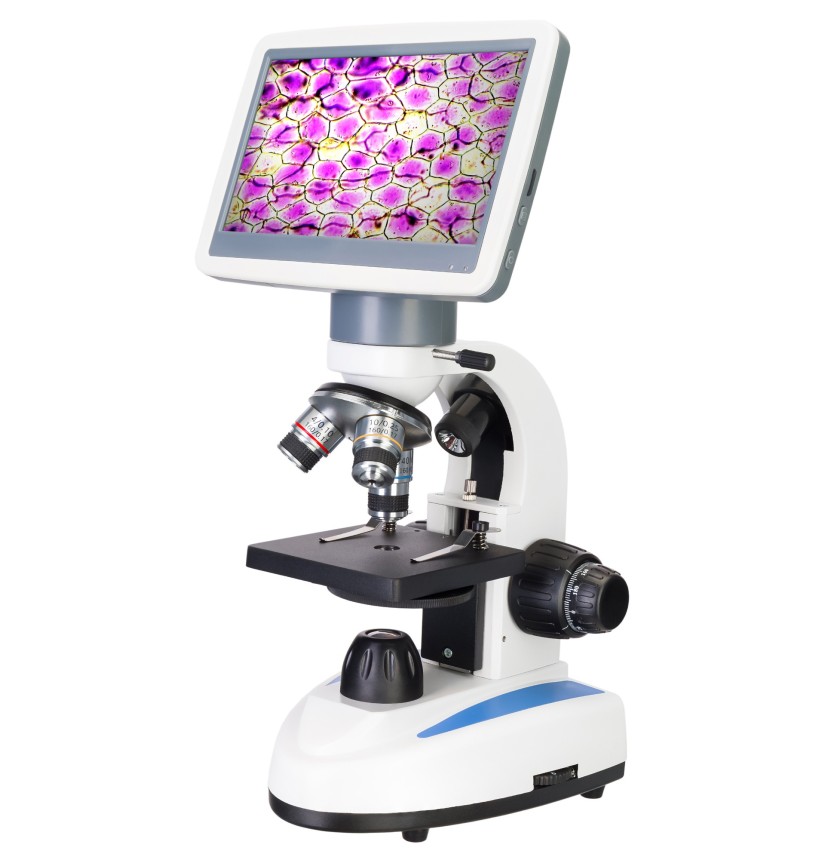

The Levenhuk D85L LCD microscope is designed to examine slides containing samples with varying degrees of transparency at magnifications ranging from 40x to 1600x. This microscope is also equipped with a 2 MP camera that can take photographs of samples and record videos of the observations made. The data is stored on a memory card. Another distinctive feature of this model is its large 7-inch LCD screen, which is perfect for a detailed and comprehensive examination of samples.
The optical system comprises achromatic objective lenses with different magnification factors. The total optical magnification ranges from 40x to 400x; digital magnification extends up to 1600x. The image is displayed on the screen in real time and in high resolution, allowing any microstructure to be identified. The control buttons positioned on the side panel and at the rear give the instrument a simple, streamlined appearance. Focus adjustment is both macrometric and micrometric.
Specimens are secured to the stage using a specimen holder and a disc diaphragm. The illumination is combined: there are LEDs positioned on both sides of the stage. A brightness adjustment function is provided. The illumination can be powered either from the AC mains or by batteries.
The microscope body is made of metal; the optical components are made of glass.
Key features:
- For visual observations and for capturing photos and videos
- Optical magnification (40x–400x) and digital magnification (up to 1600x)
- The head tube terminates in a 7-inch diagonal LCD screen
- Achromatic optics; combined and adjustable illumination
- For observing specimens in brightfield mode
The kit includes:
- Microscope with a 2 MP digital camera and LCD screen
- 4x, 10x and 40x achromatic objective lenses
- Condenser with N.A. 0.65 and disc diaphragm
- Power cable
- 16 GB SD memory card
- Camera power adapter and cable
- Dust cover
- User manual and warranty certificate
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| EAN | 0785104927322 |
| Package dimensions (WxDxH), cm | 38x33x27 |
| Shipping weight, kg | 3.23 |
| Type | organic, light/optical, digital |
| Head | digital screen/PC monitor |
| Optical material | optical glass |
| Nozzle | 7” colour swivel LCD screen |
| Magnification, x | 40–1600 |
| Lenses | Achromatic: 4x, 10x, 40xs (spring-loaded) |
| Objective turret | for 3 objectives |
| Stage, mm | 90x90 |
| Stage travel range, mm | 70/30 |
| Table features | with clamps |
| Capacitor | N.A. 0.65 |
| Diaphragm | disc diaphragm (6 apertures) |
| Focus | coaxial; coarse (15 mm) and fine (0.002 mm) |
| Body | metal |
| Illumination | LED |
| Brightness adjustment | True |
| Power supply | 3 AA batteries (not included) or 110–240 V via AC adaptor (included) |
| Power supply: batteries/built-in battery | yes |
| Light source type | 0.2 W LED with collector |
| Megapixel | 2.0 |
| Sensor element | 1/2.8 |
| Pixel size, µm | 2.9 × 2.9 |
| Sensitivity, V/lux-sec@550 nm | 2.0 |
| Video recording | yes |
| Frame rate | 30 frames per second |
| Position for use | microscope stand |
| Image format | *.jpg |
| Spectral range, nm | 380–700 |
| White balance | automatic/manual |
| Exposure control | automatic/manual |
| Software, drivers | included |
| Output | SD card slot, power supply slot |
| Camera power supply | 5 V, 1 A with mains adapter |
| Ability to connect additional equipment | Does not support connection to an external screen or a PC |
| User level | beginners, experienced users |
| Level of difficulty for assembly and installation | easy |
| Video format | *.mp4 |
| Application | school/educational |
| Lighting position | combined |
| Search method | field-of-view |
| Maximum resolution | 1920x1080 pixels |
