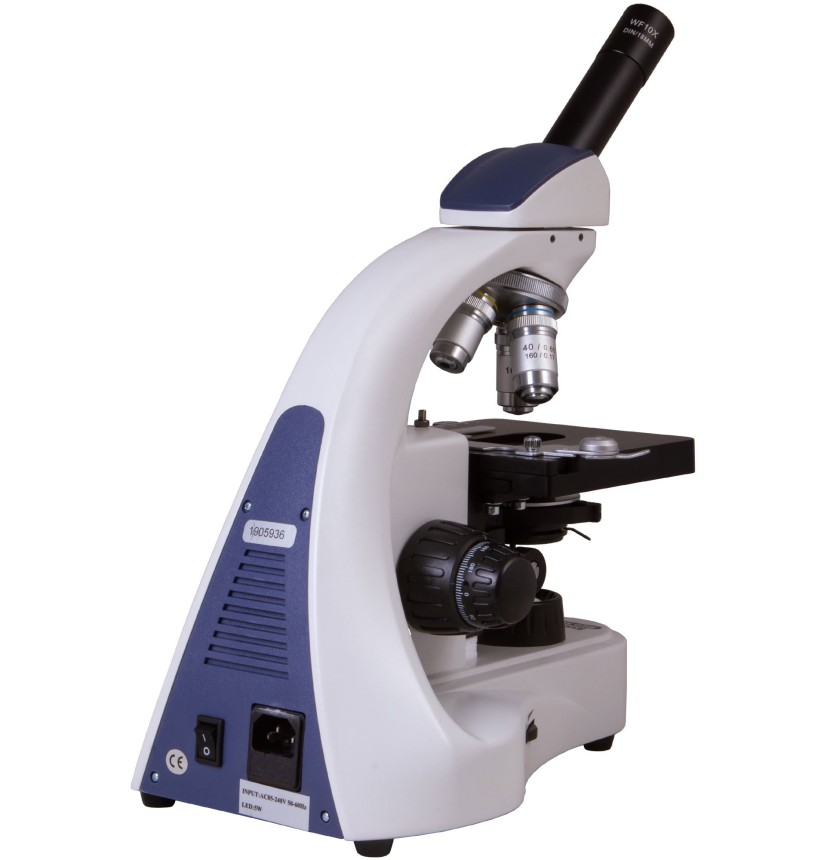

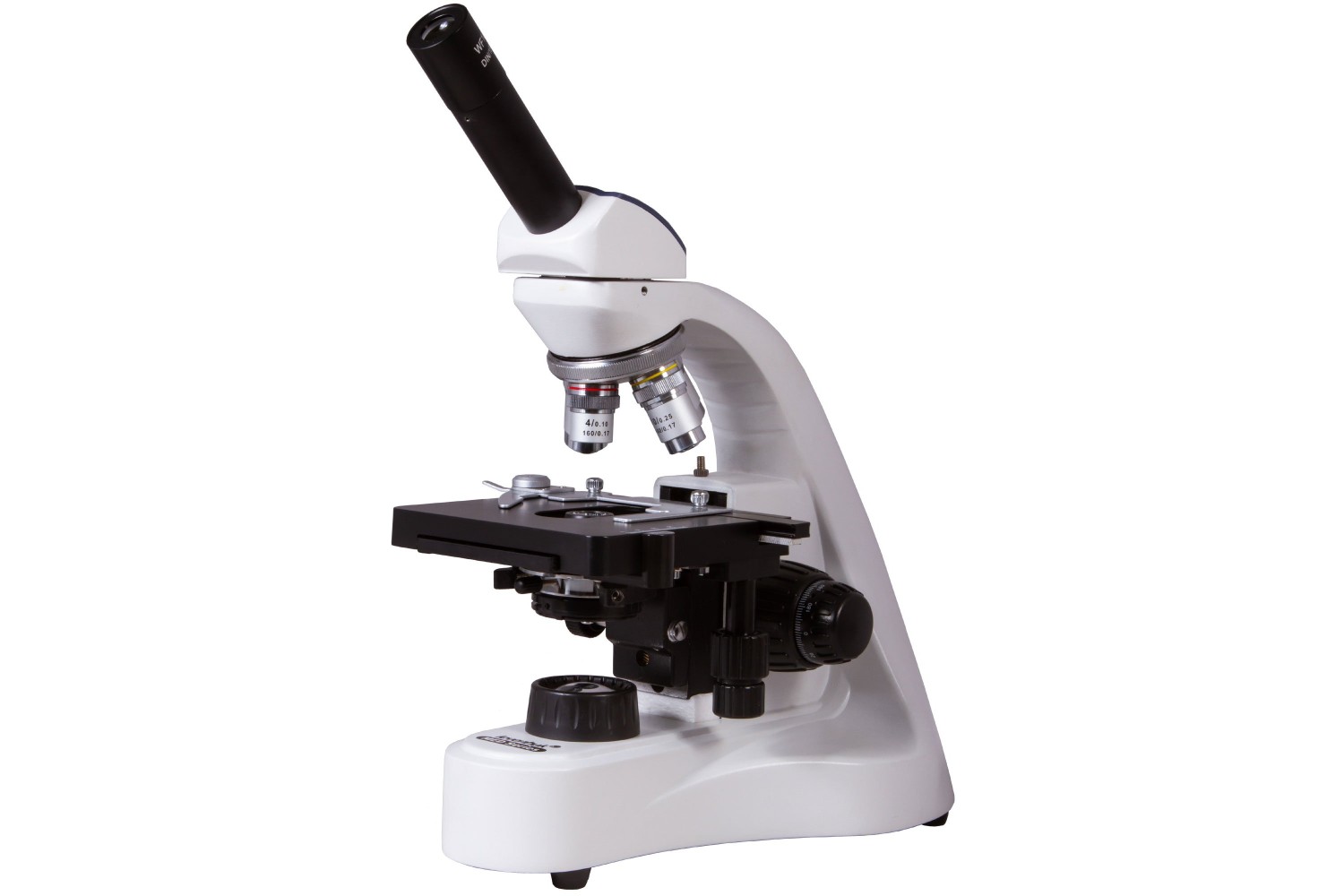

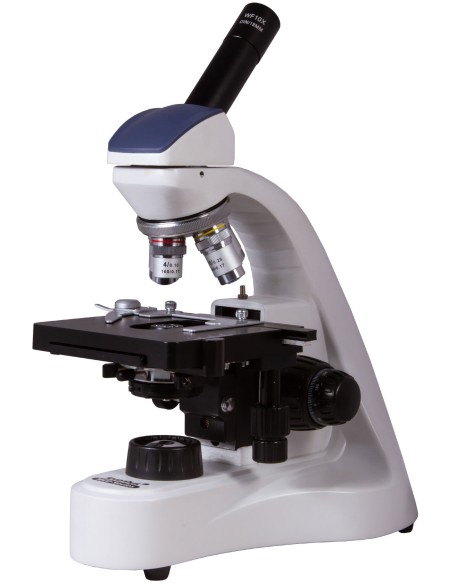

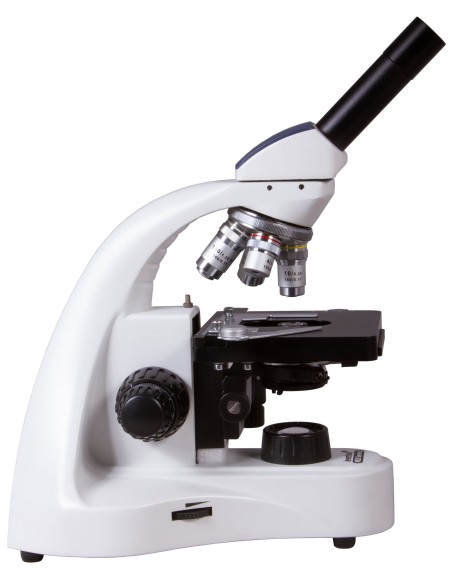

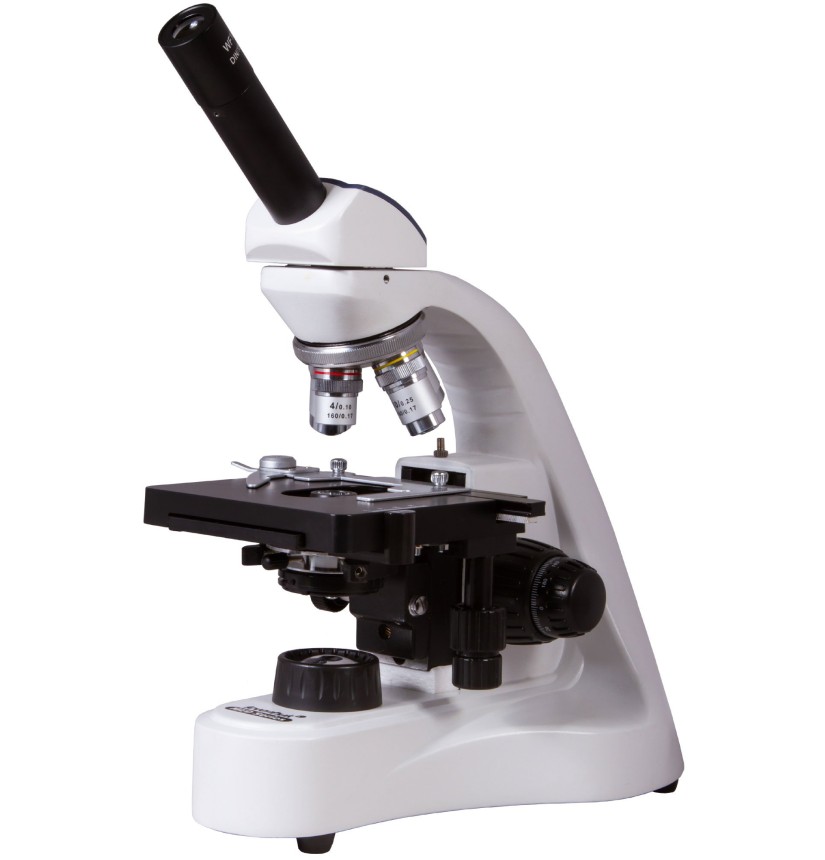

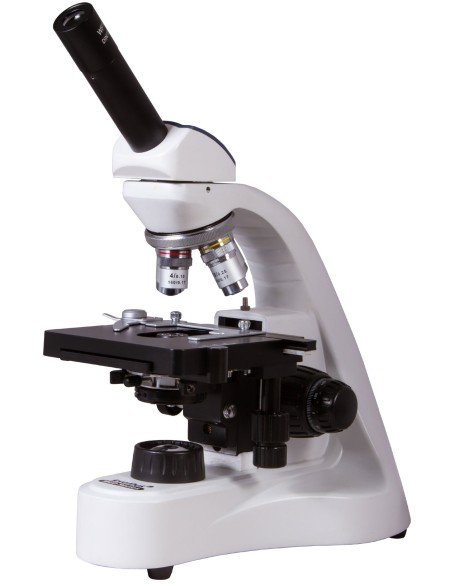

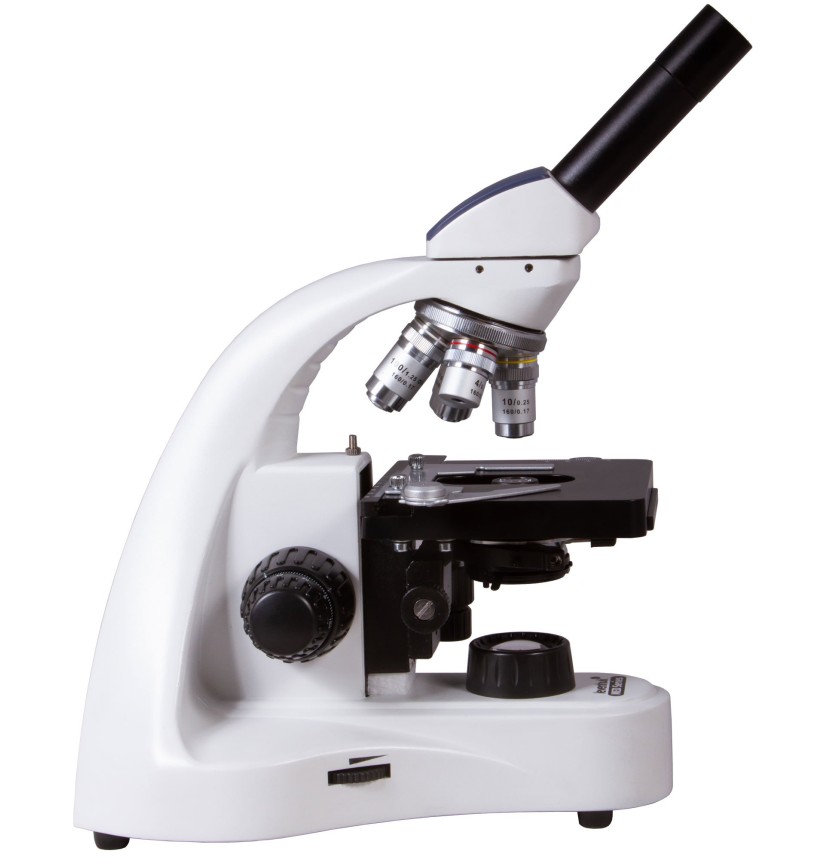

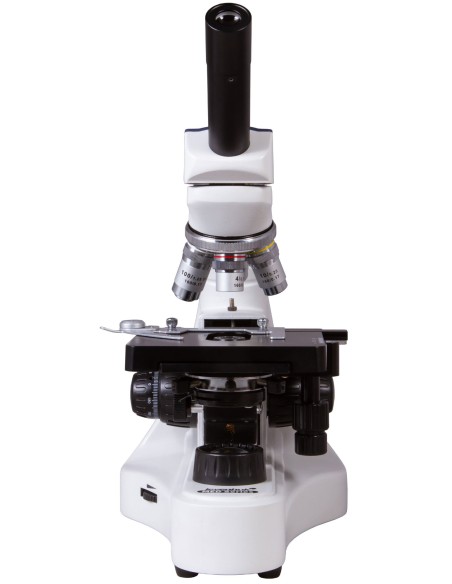

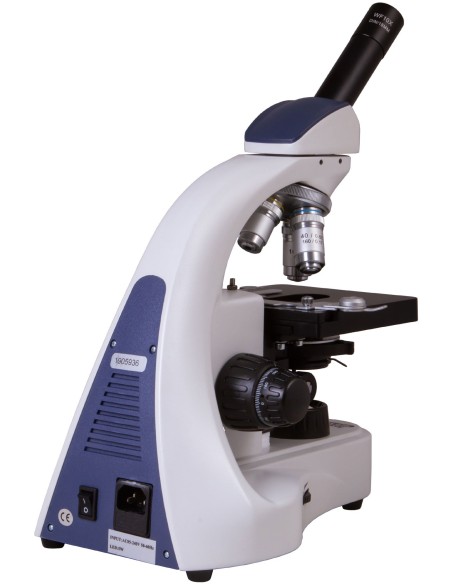

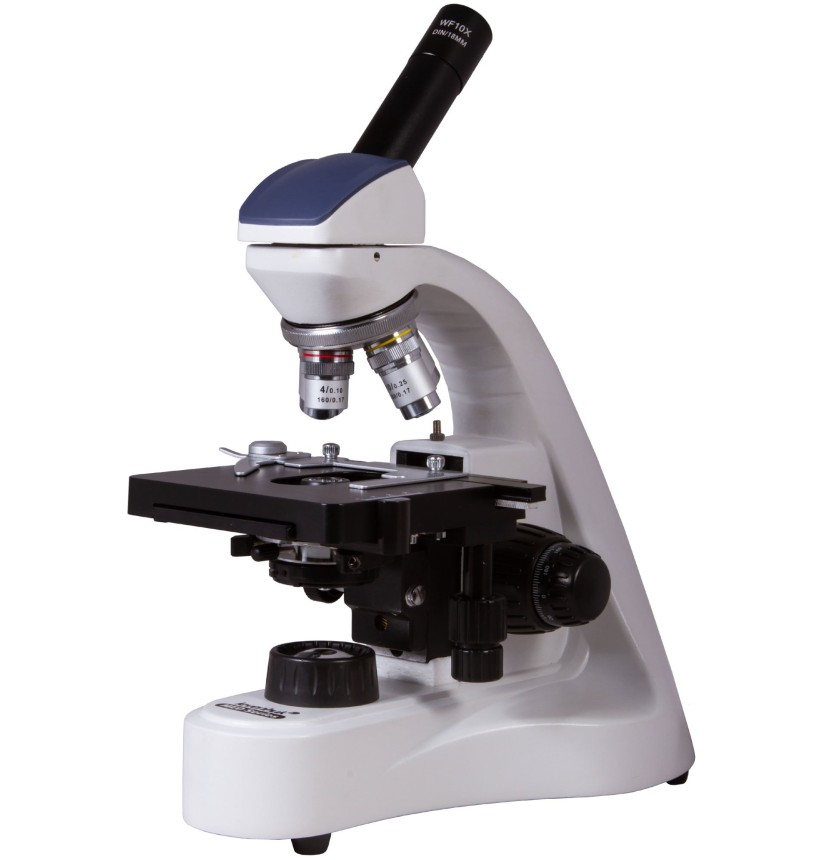

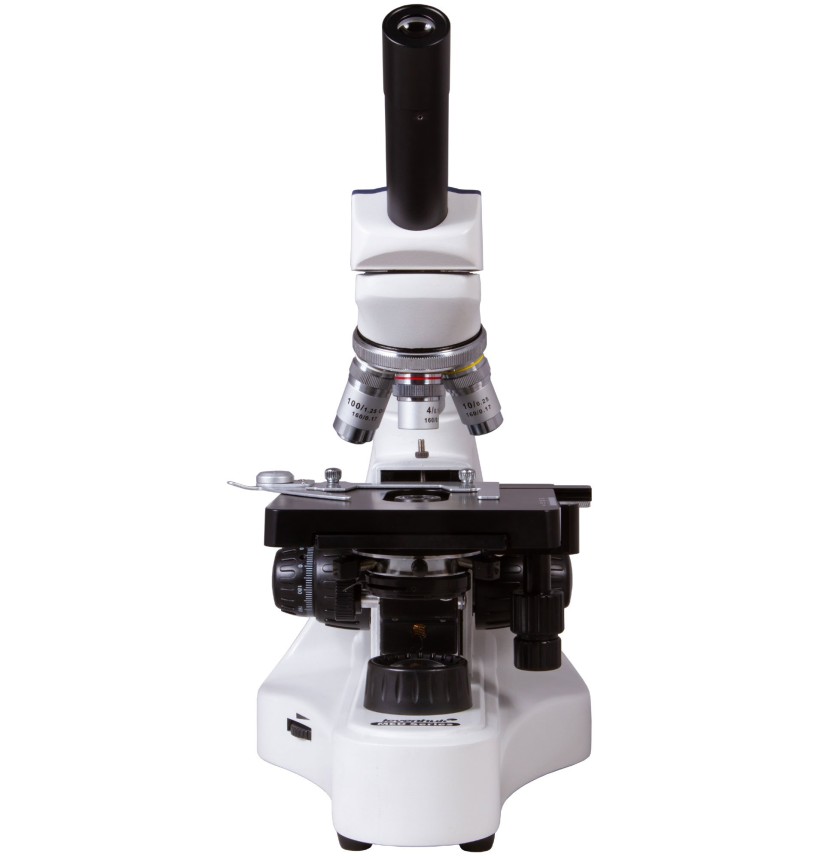

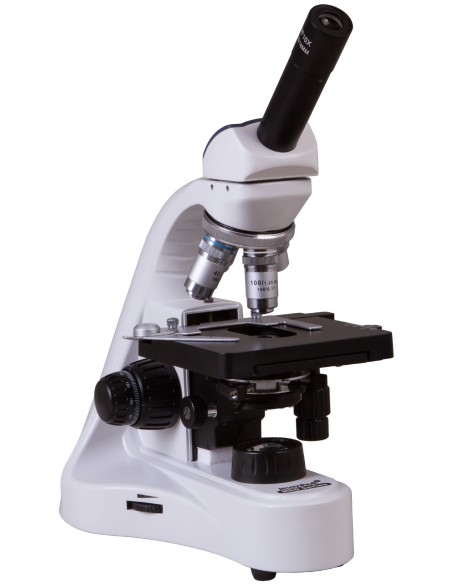

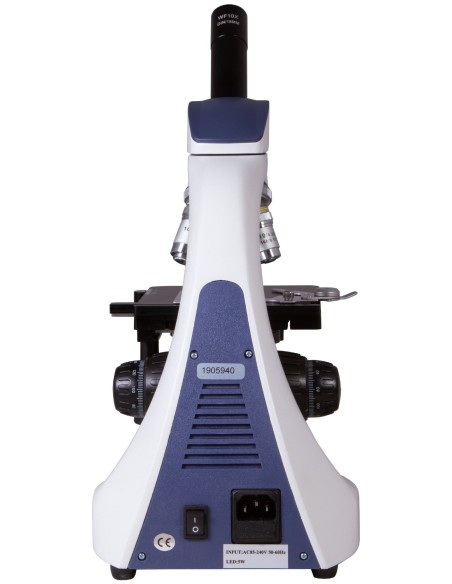

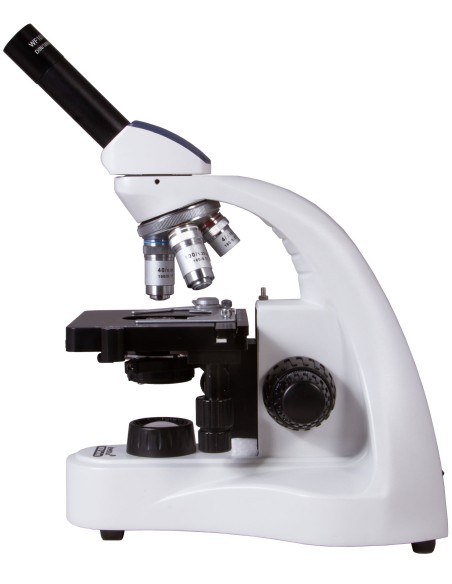

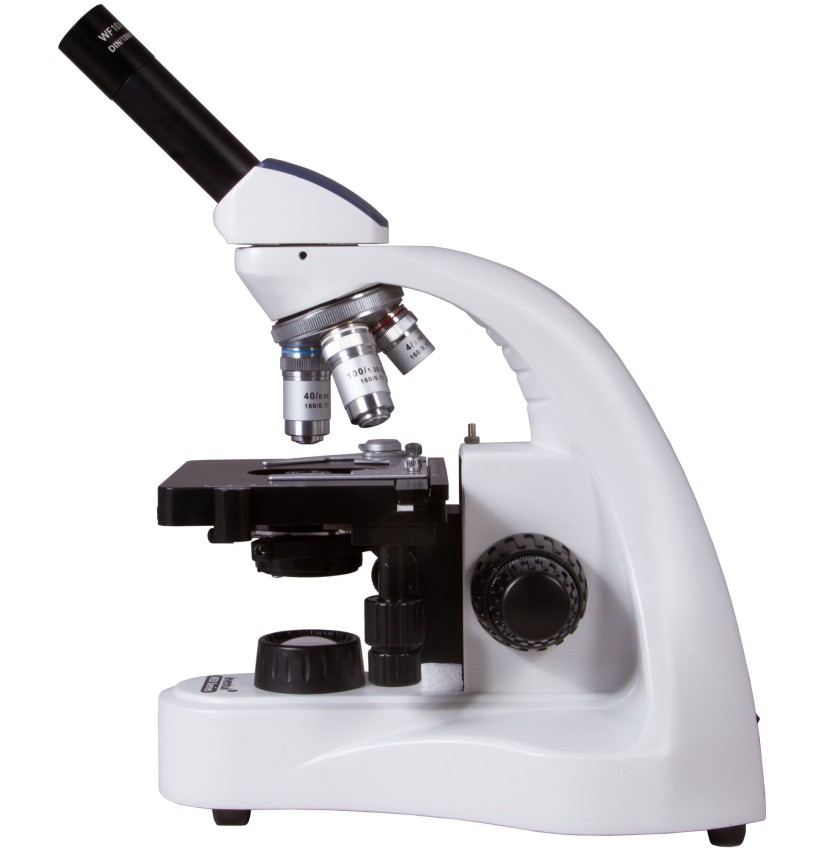

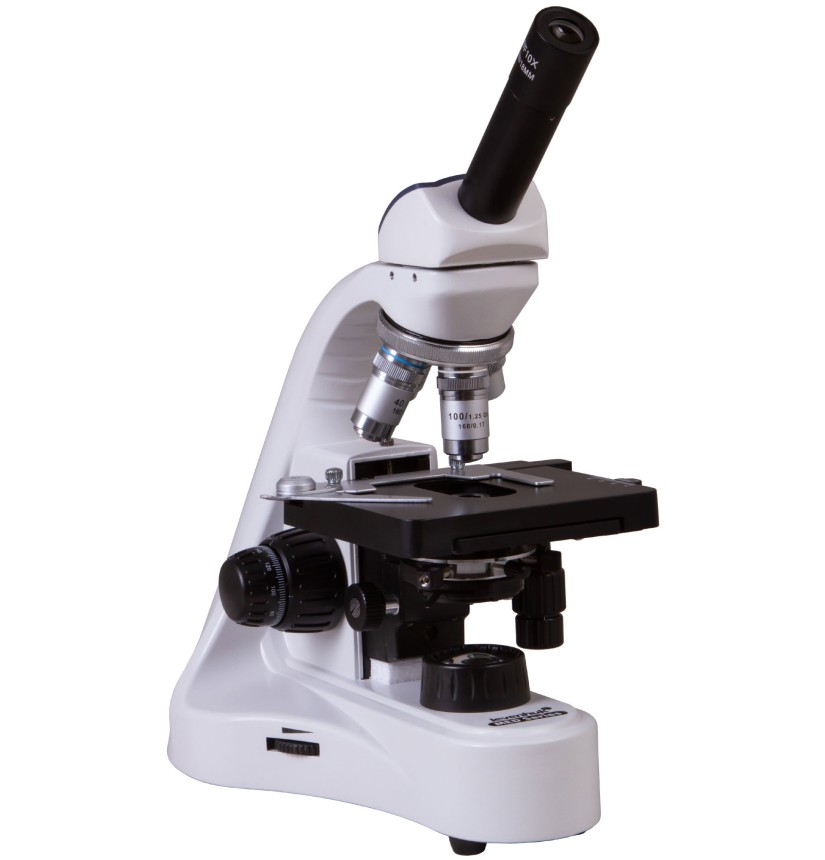

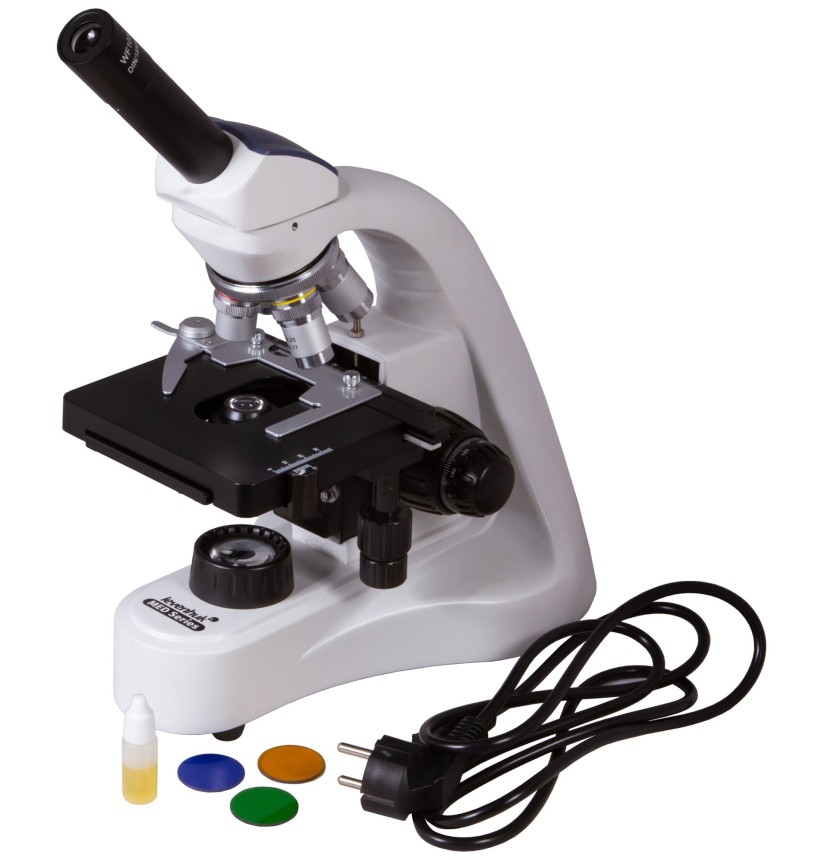

Levenhuk MED 10M Monocular Microscope

The Levenhuk MED 10M monocular microscope is designed for carrying out laboratory research on samples at magnifications of up to 1000x. This professional optical instrument features achromatic optics and fine focus adjustment for any bright-field observation. The Levenhuk MED 10M microscope is an excellent choice for equipping a medical centre, a scientific research centre, a clinical and diagnostic laboratory, or a university microbiology department.

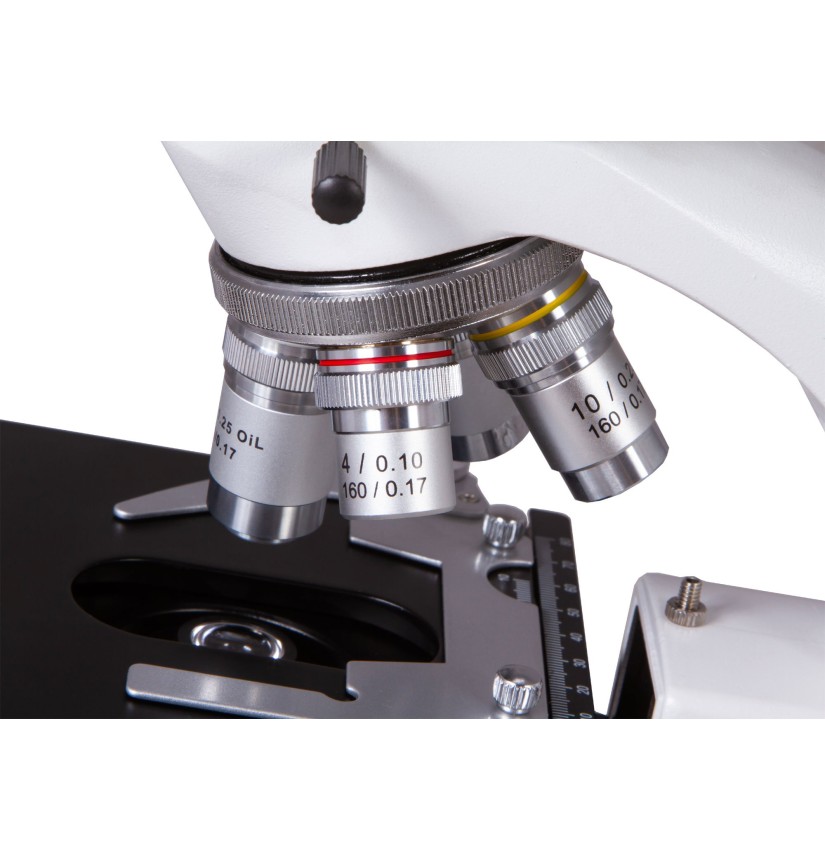

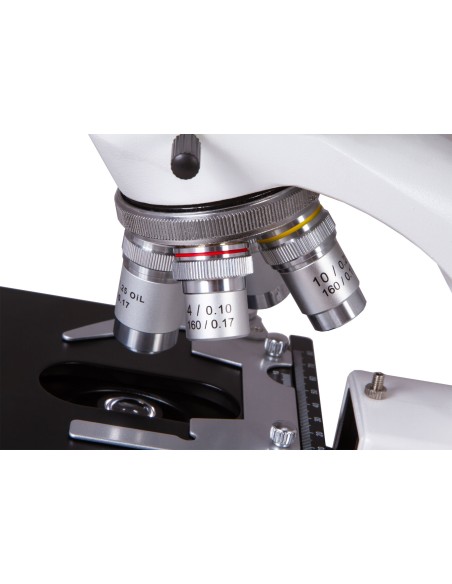

The microscope has a monocular head with a practical 45° tilt angle, which allows for comfortable, extended observations. The 360° rotatable head enables this microscope to be used for group research. The optical system utilises achromatic elements with an anti-fungal coating. The objective lenses and one eyepiece are coated with this protective layer. The rotating objective holder contains four objective lenses, two of which are spring-loaded. A 100x objective lens can be used for observations employing an immersion method (a bottle of immersion oil is included in the kit). An eyepiece provides a clear field of view and features dioptre adjustment.

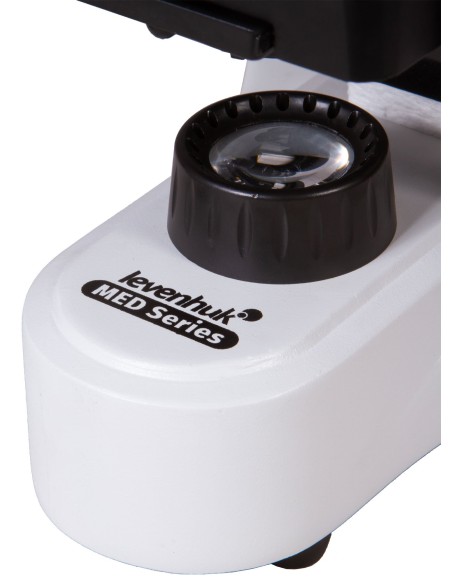

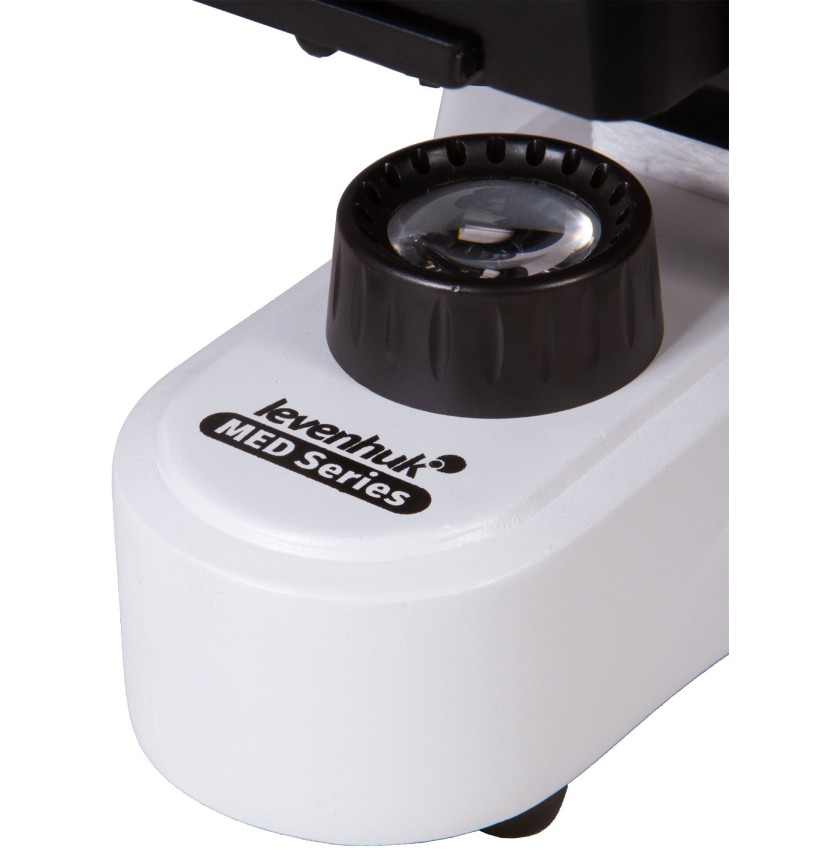

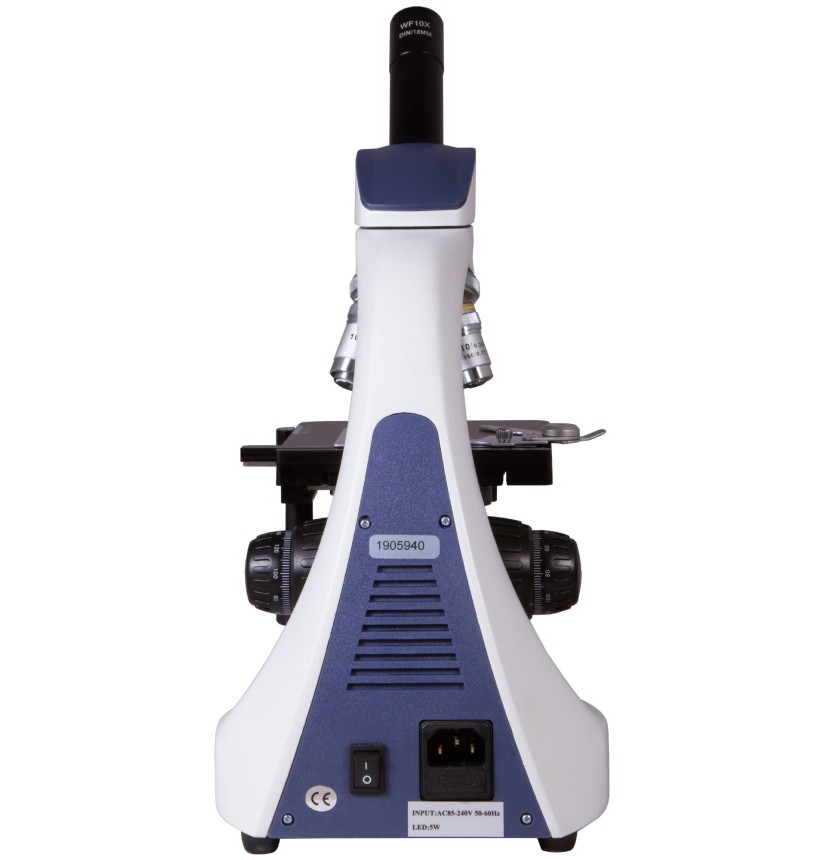

Coarse and fine focus controls are used to adjust the sharpness. A mechanical stage is fitted with a mechanical scale and can be moved along two axes. Beneath it is an Abbe condenser with an iris diaphragm and a filter holder. Illumination is provided by a powerful 5W LED light. This is located at the base of the microscope. The illumination is powered by either a mains adapter or batteries. The illumination system also features brightness adjustment.

Features:

• Laboratory microscope with
40–1000x magnification• 360° rotatable,
45° inclined monocular head• Achromatic optics with anti-fungal coating•
5 W lower LED light with brightness control•
Powered via an AC
power supply

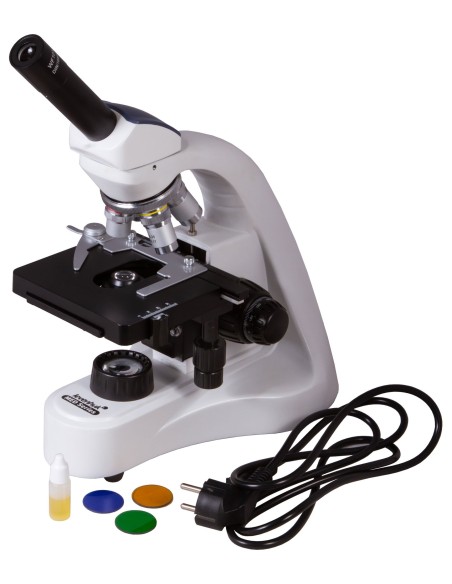

The kit includes:

• Microscope base with
stand• 360° rotatable monocular head•
Achromatic objective lenses: 4×, 10×, 40×s, 100×s (oil) with

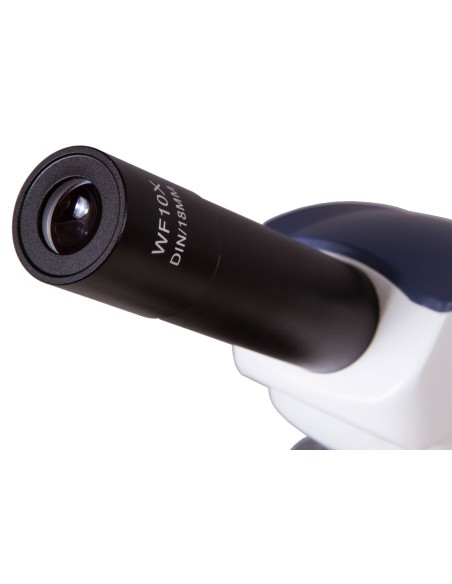

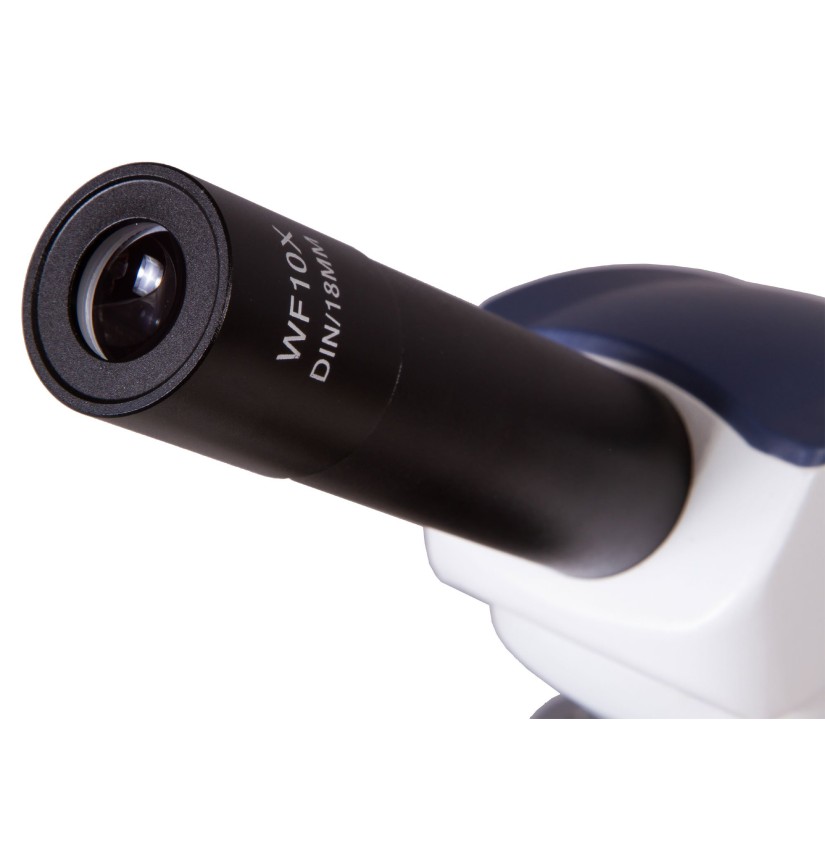

anti-fungal coating• Wide-field eyepiece: WF10x/18 mm with
anti-fungal coating• Abbe condenser, N.A. 1.25, with iris diaphragm and filter holder•
Filters: blue, green, yellow•
Bottle of immersion oil•
Fuses (2 pcs.)
•
Microscope power cable• Dust cover•
User manual and lifetime
warranty

Warning:

For information on the correct mains voltage, please refer to the specifications table; never attempt to connect a 110 V device to a 220 V mains socket, or vice versa, without using a converter. Please note that the mains voltage is 220–240 V in most European countries and 110 V in the United States and Canada.

Some things you can observe with a microscope:

The Levenhuk MED 10M monocular microscope is compatible with Levenhuk digital cameras (sold separately). Levenhuk cameras should be fitted onto the eyepiece tube in place of an eyepiece.
