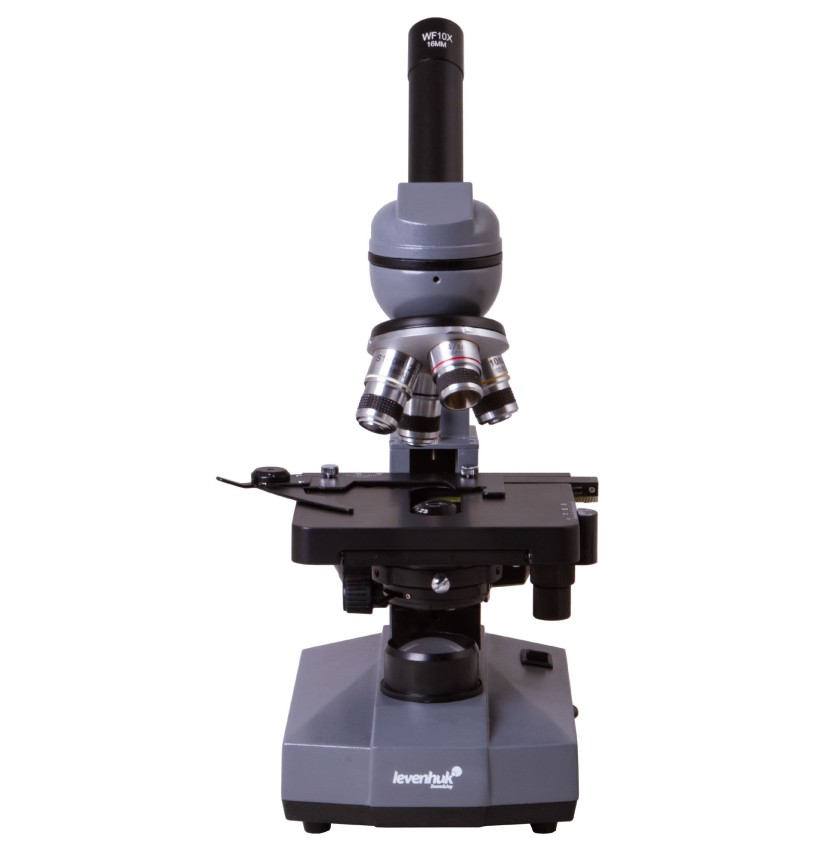

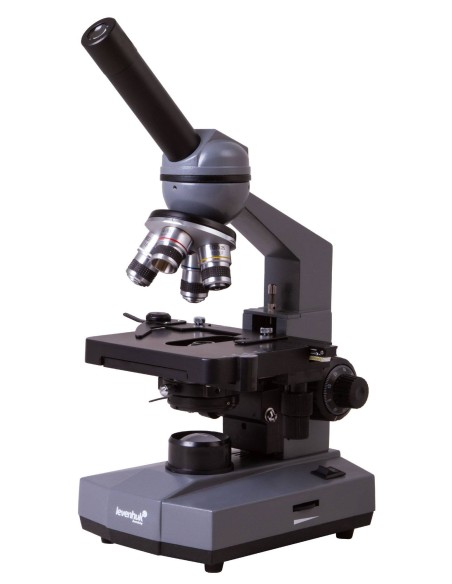

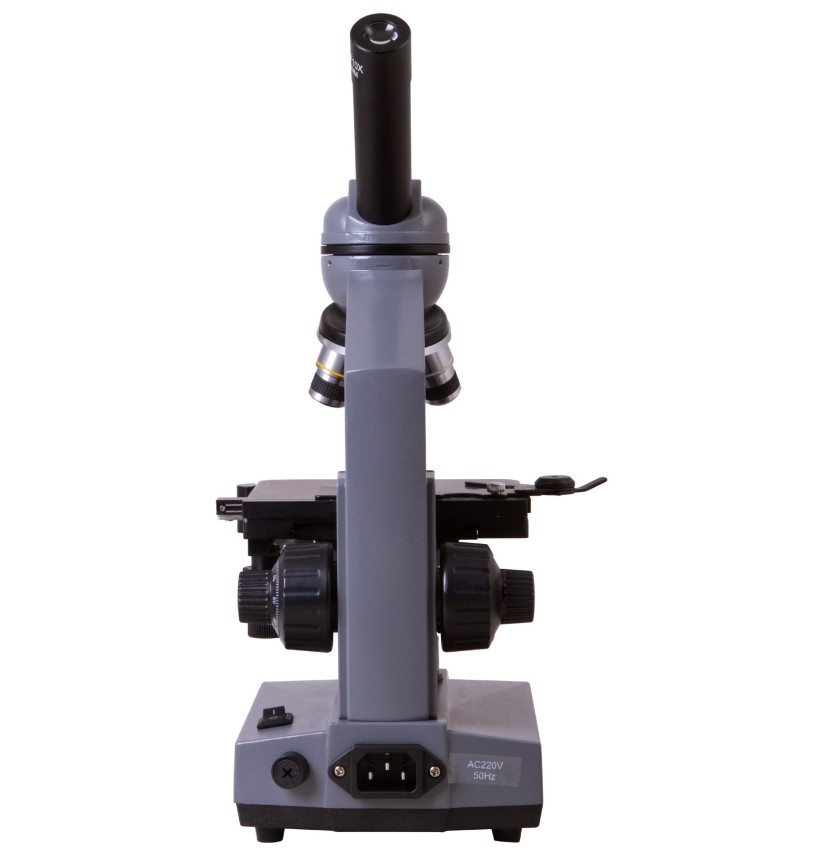

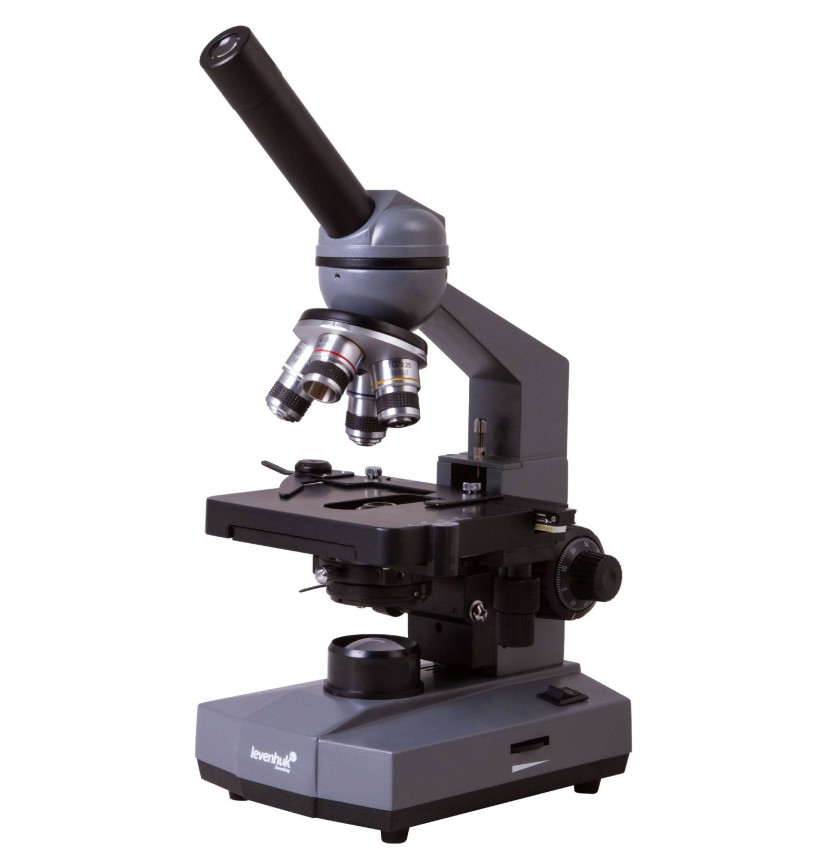

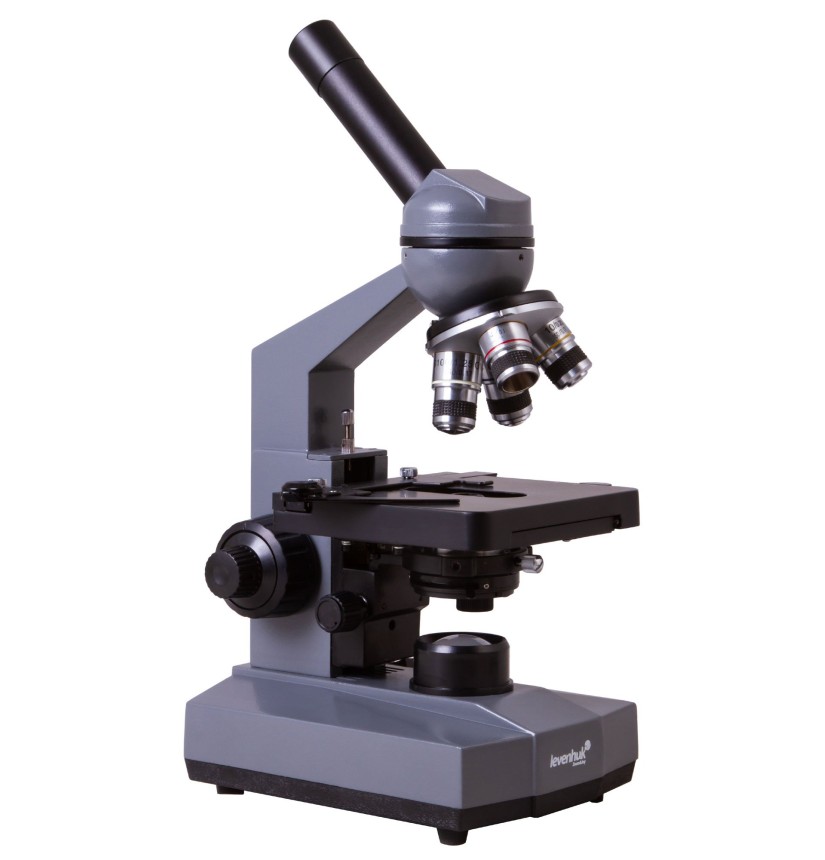

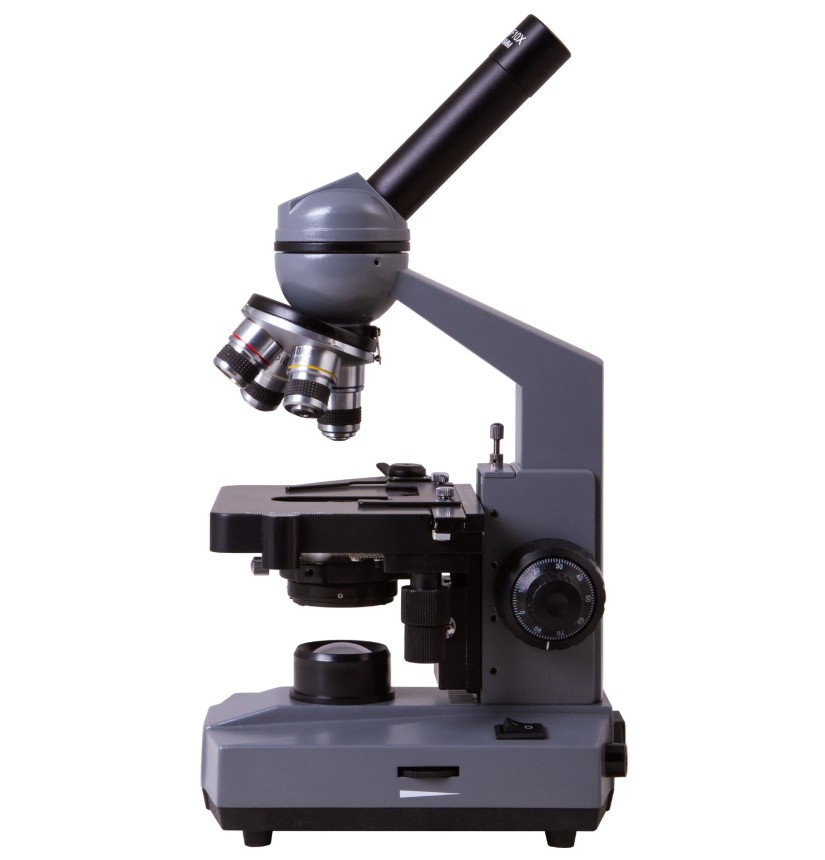

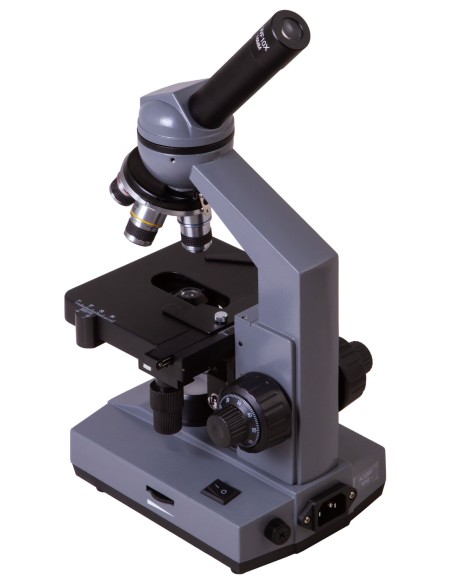

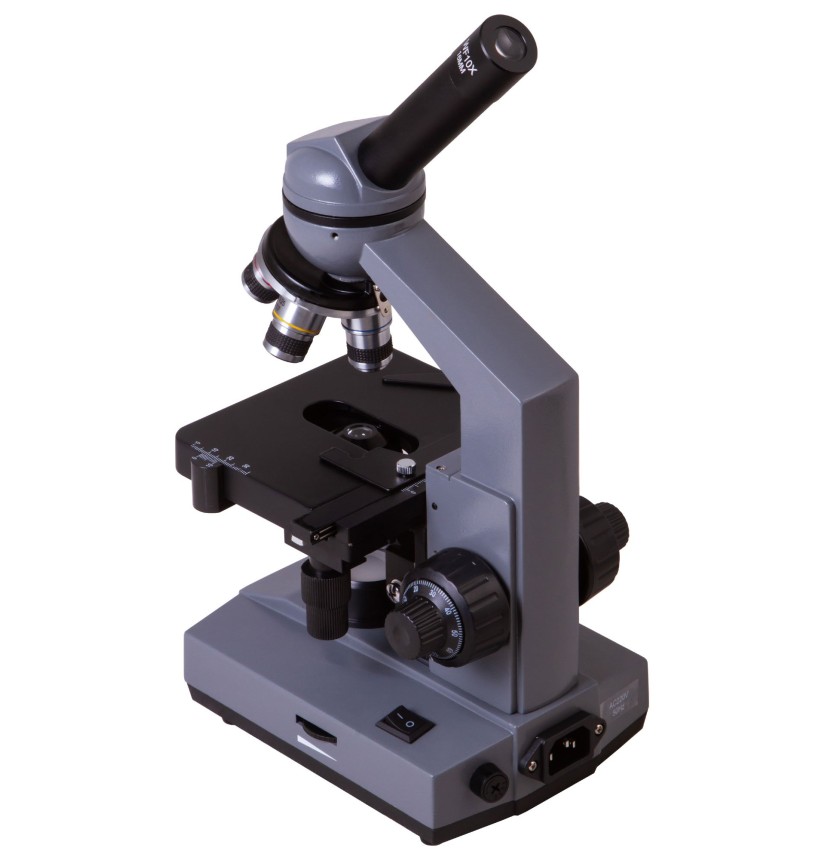

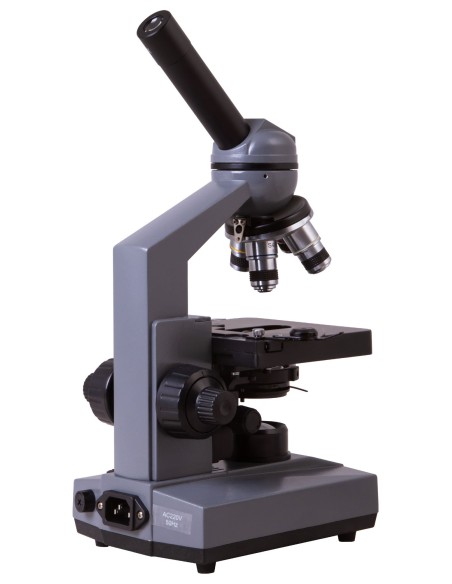

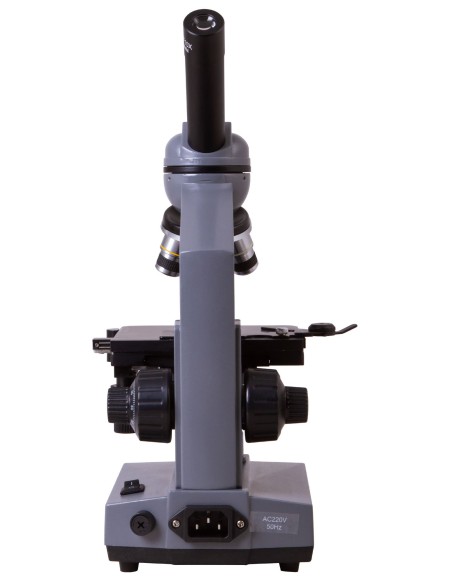

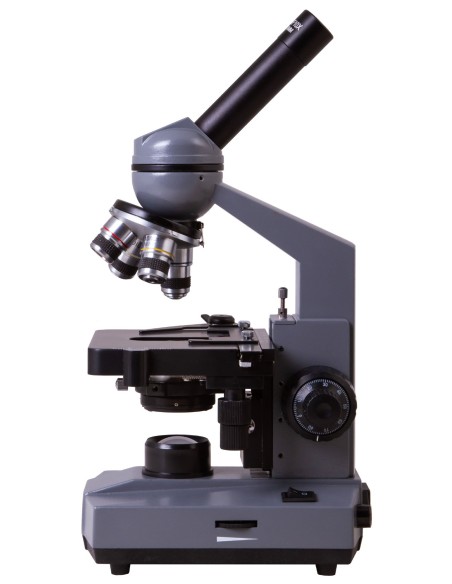

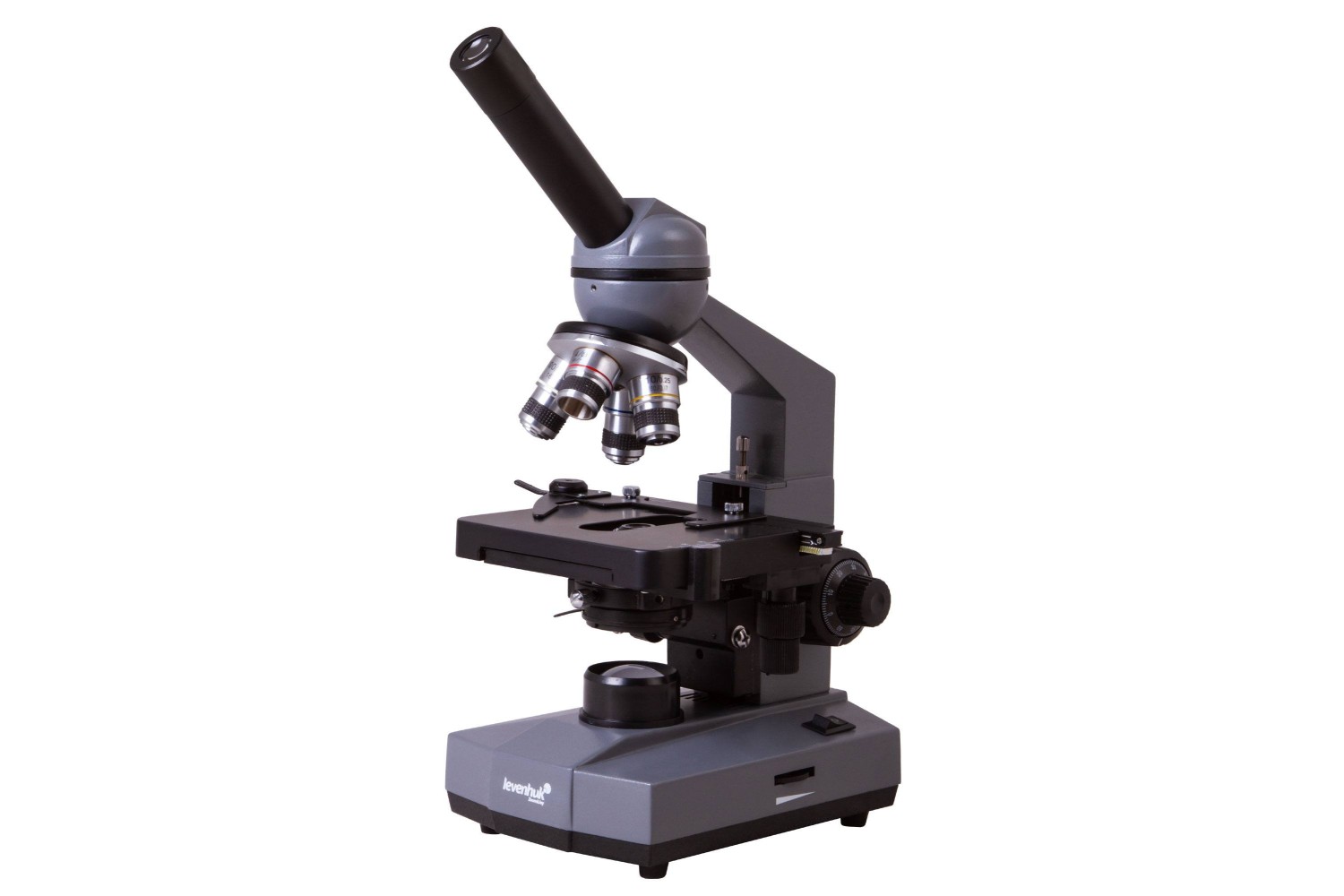

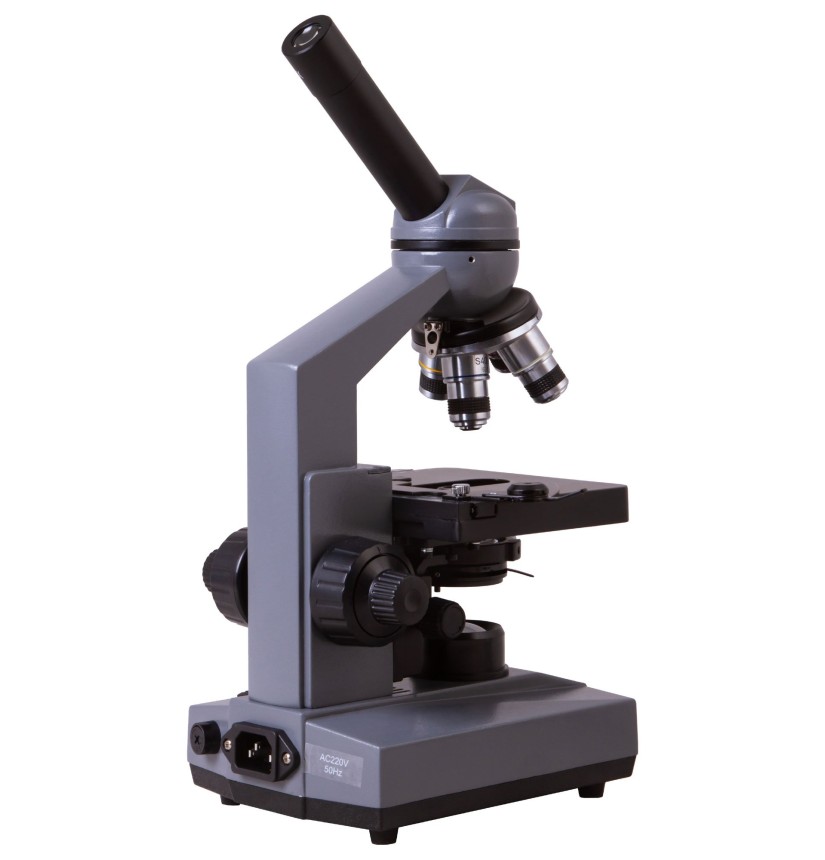

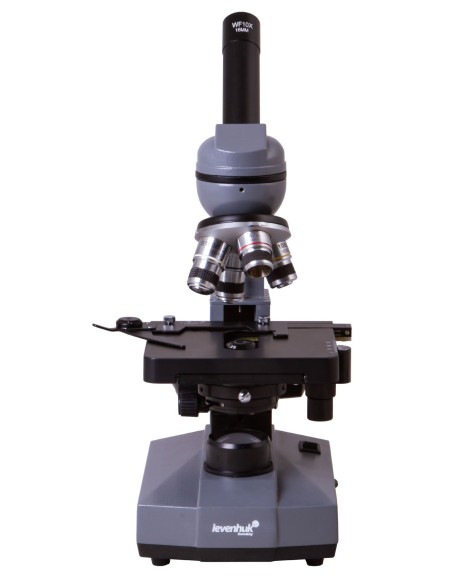

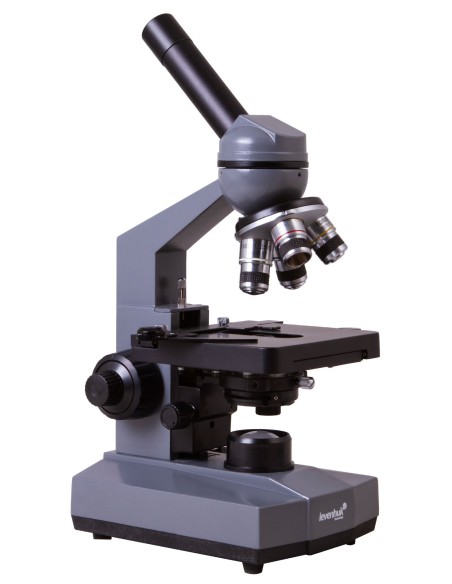

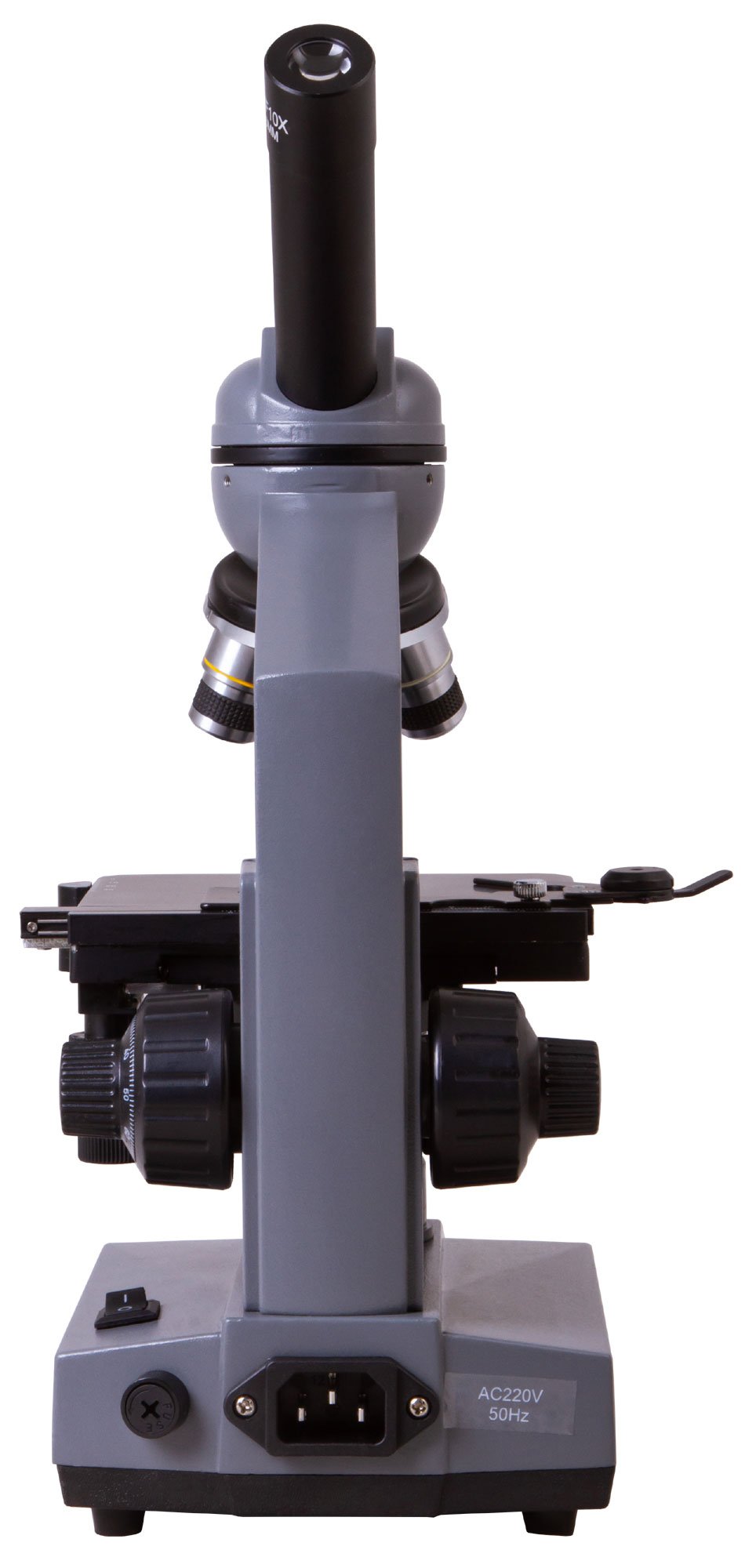

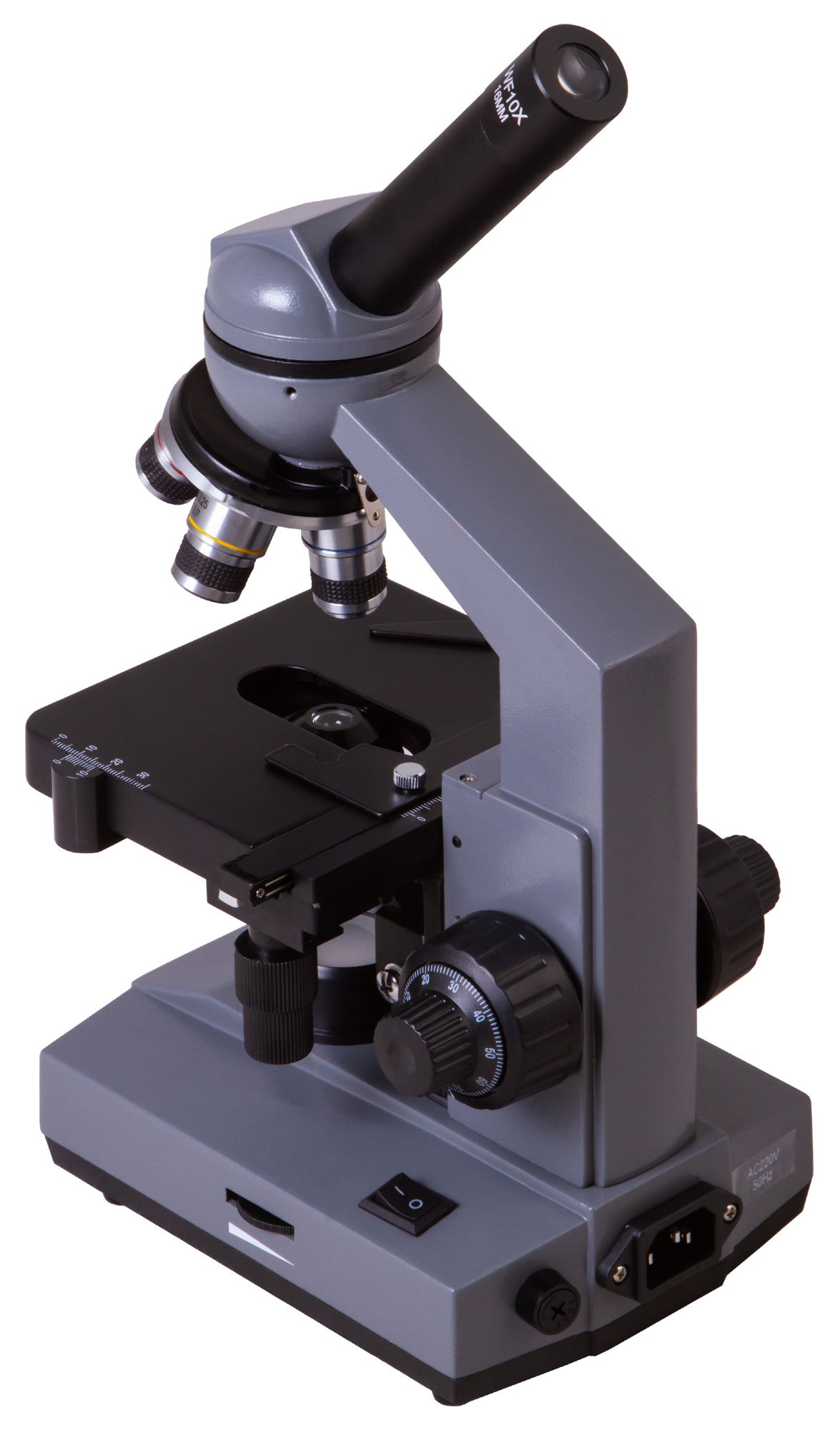

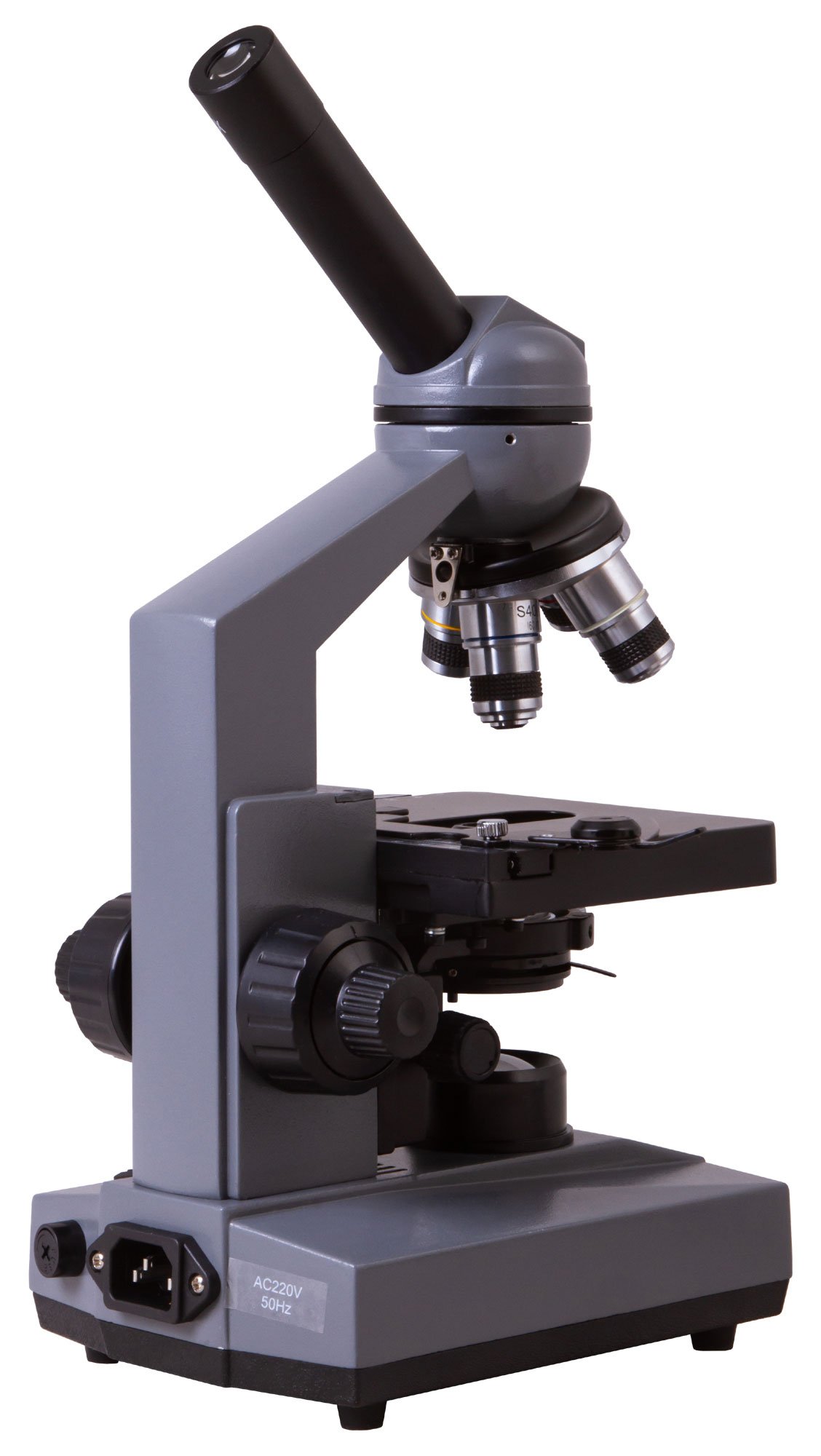

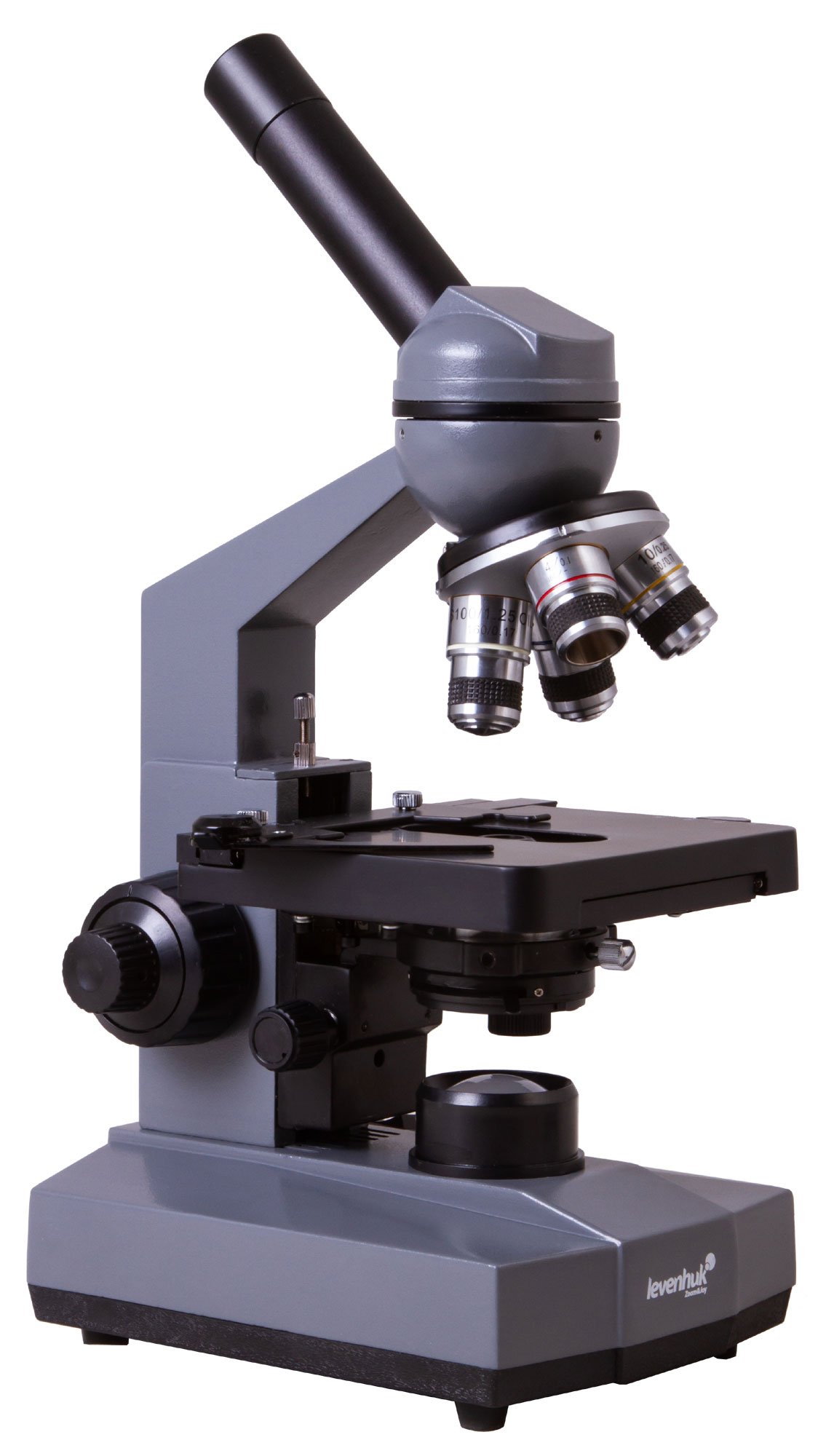

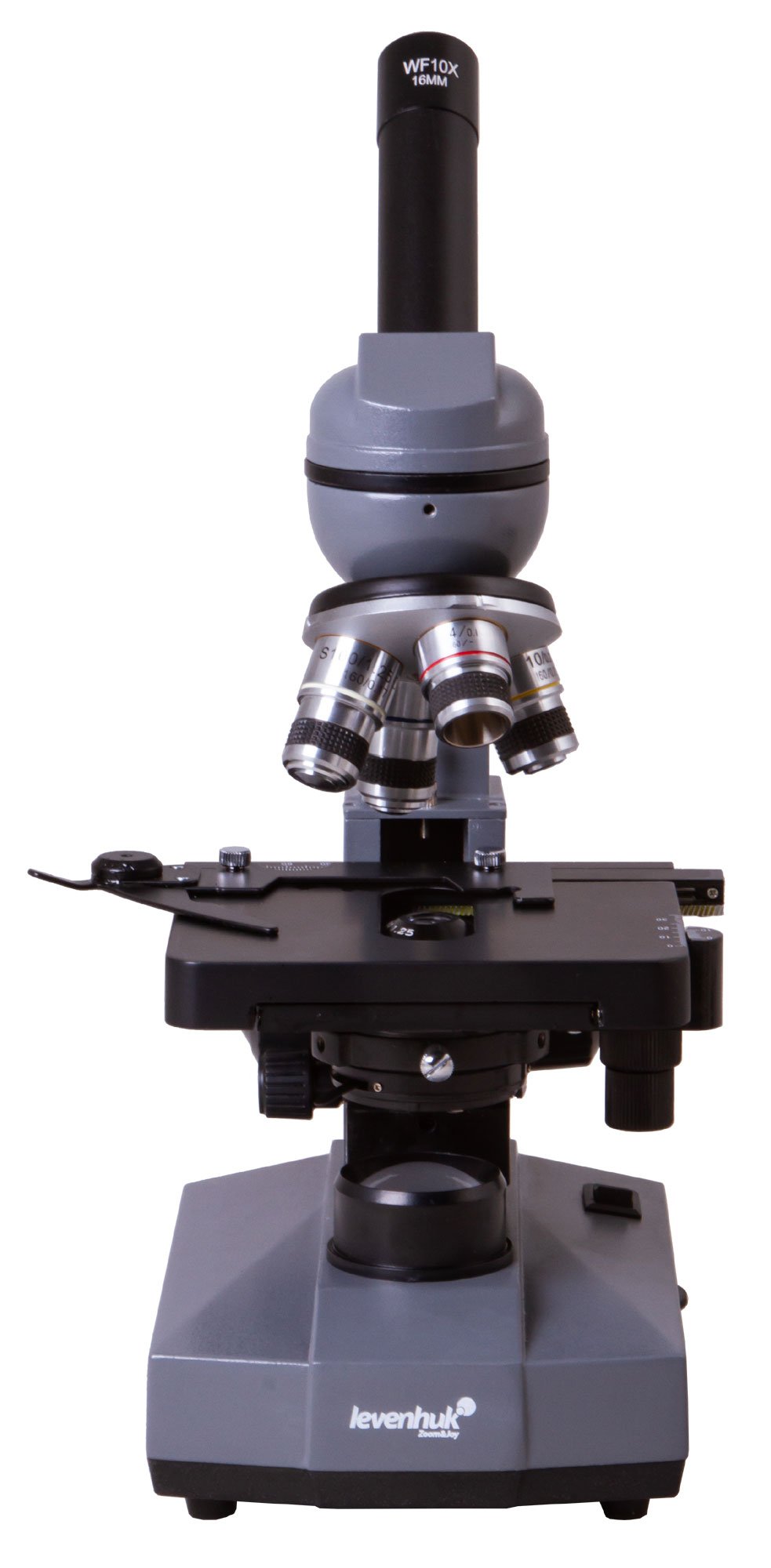

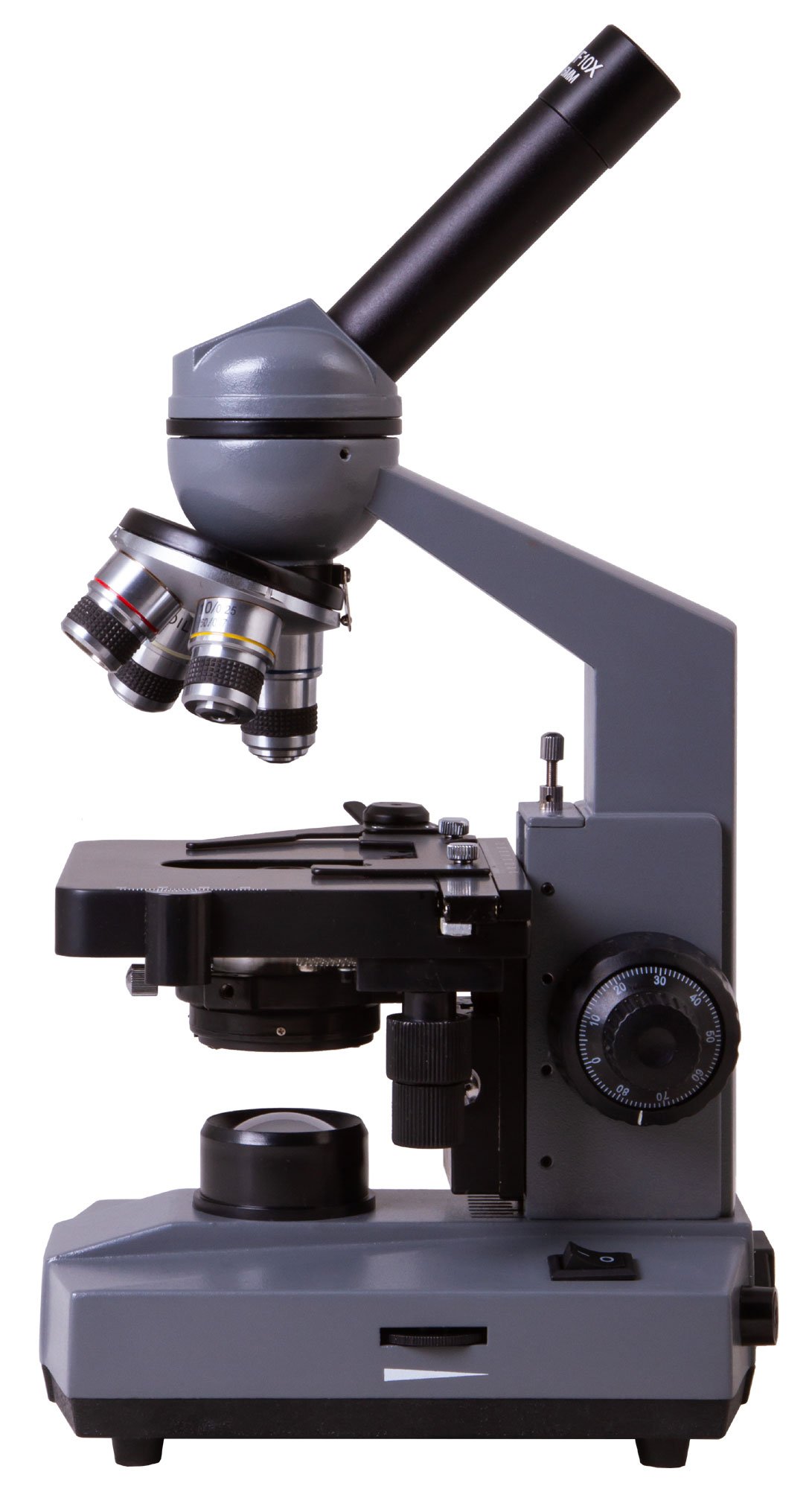

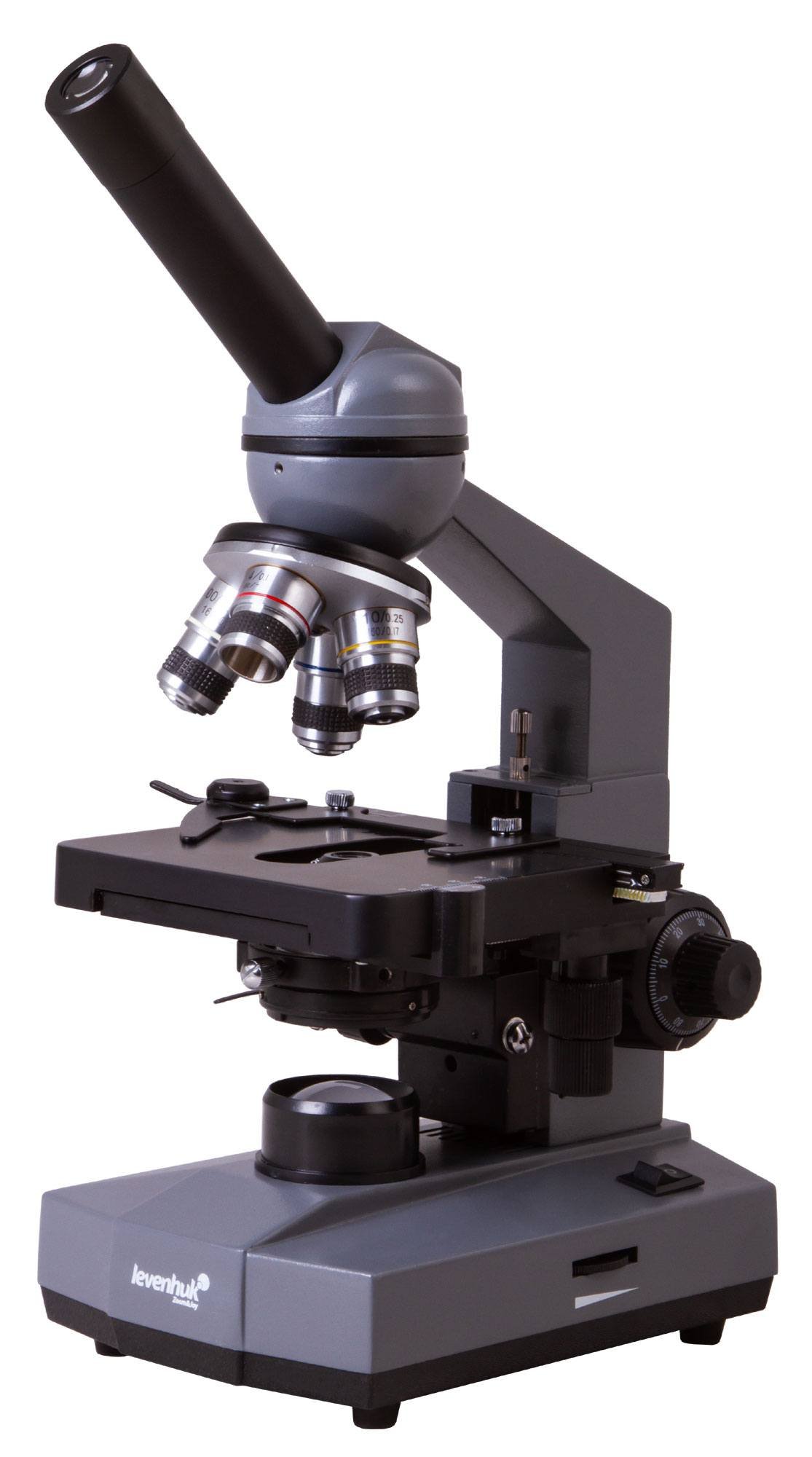

Levenhuk 320 BASE Monocular Biological Microscope

The Levenhuk 320 BASE is a laboratory microscope suitable for microscopic research in various fields. It is ideal for studying biochemical samples and can also be used for general clinical, morphological and pathological-anatomical analyses. The Levenhuk 320 BASE microscope is an excellent choice for scientific and educational institutions, clinics or laboratories.

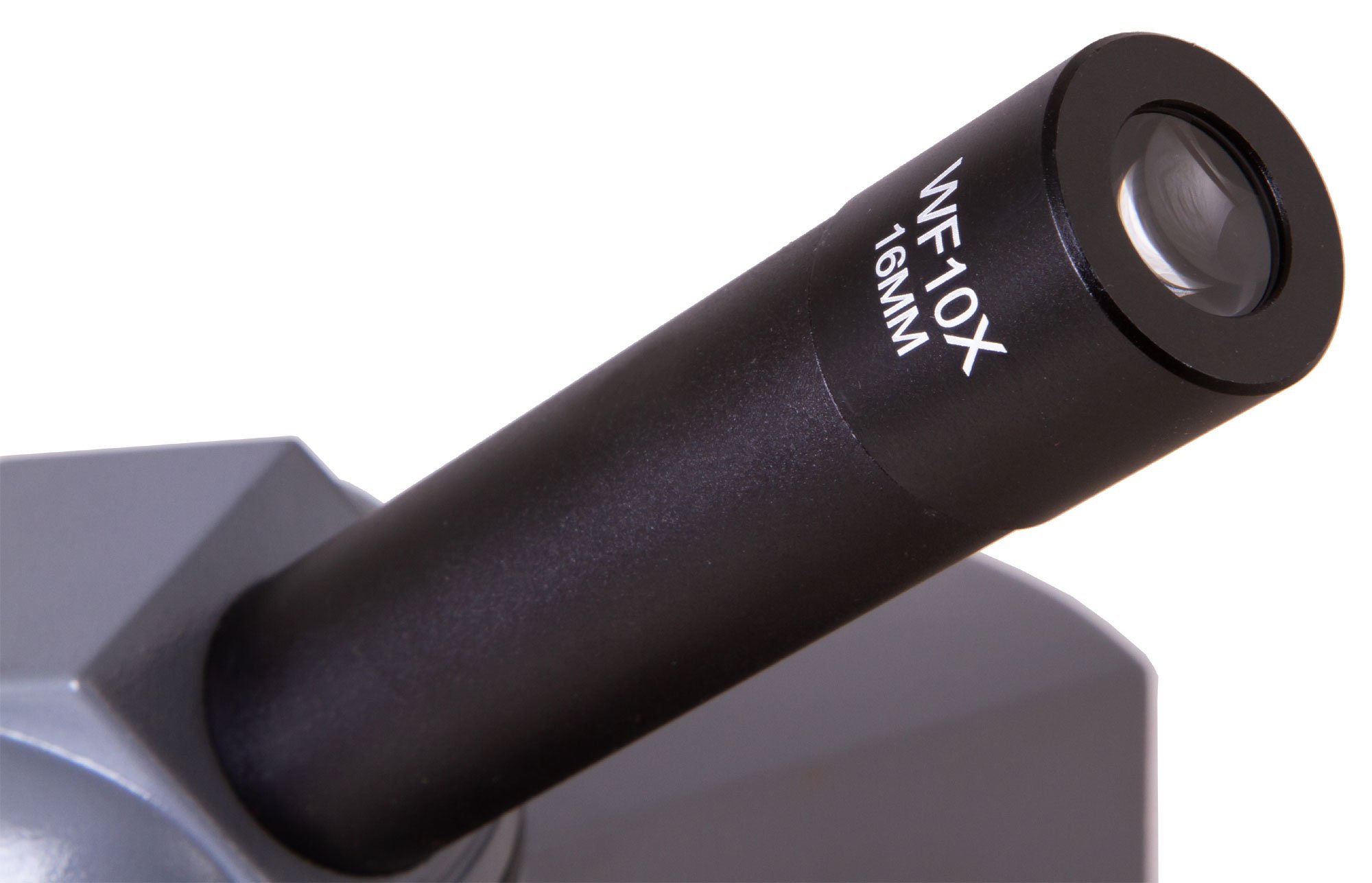

This microscope features a classic monocular head with a wide-angle eyepiece providing 10x magnification. The head can be rotated through 360°, with a tilt angle of 30°. This design is practical for group research and extended observations.

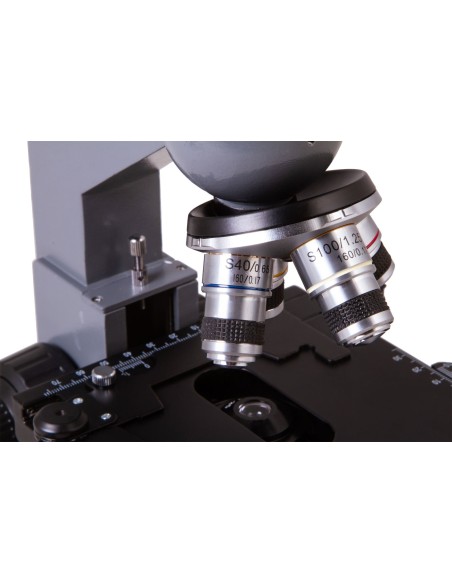

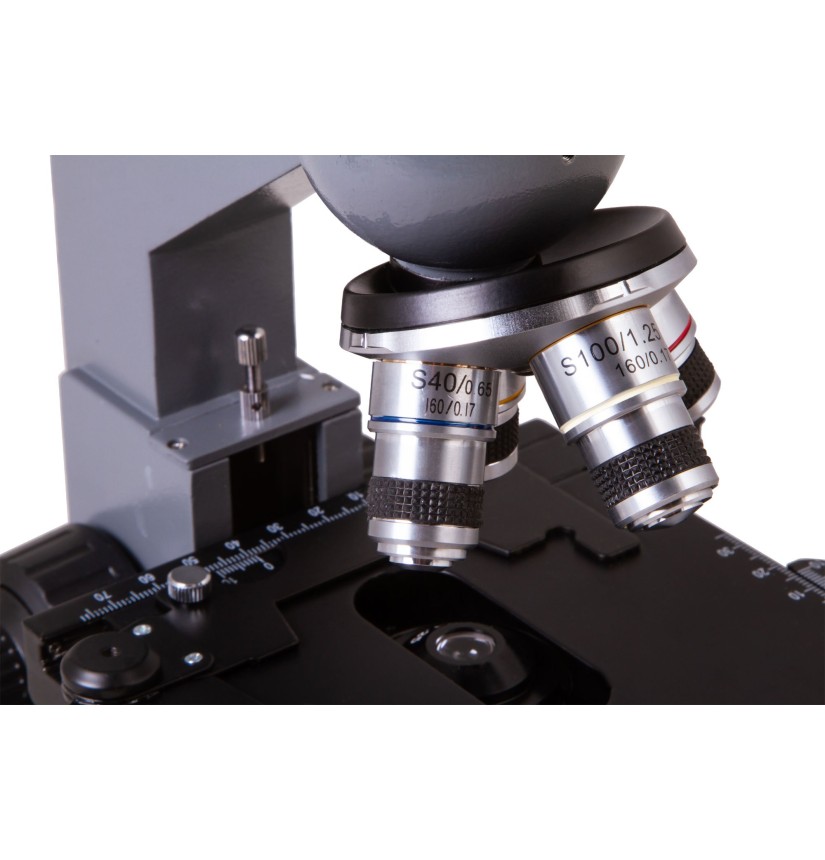

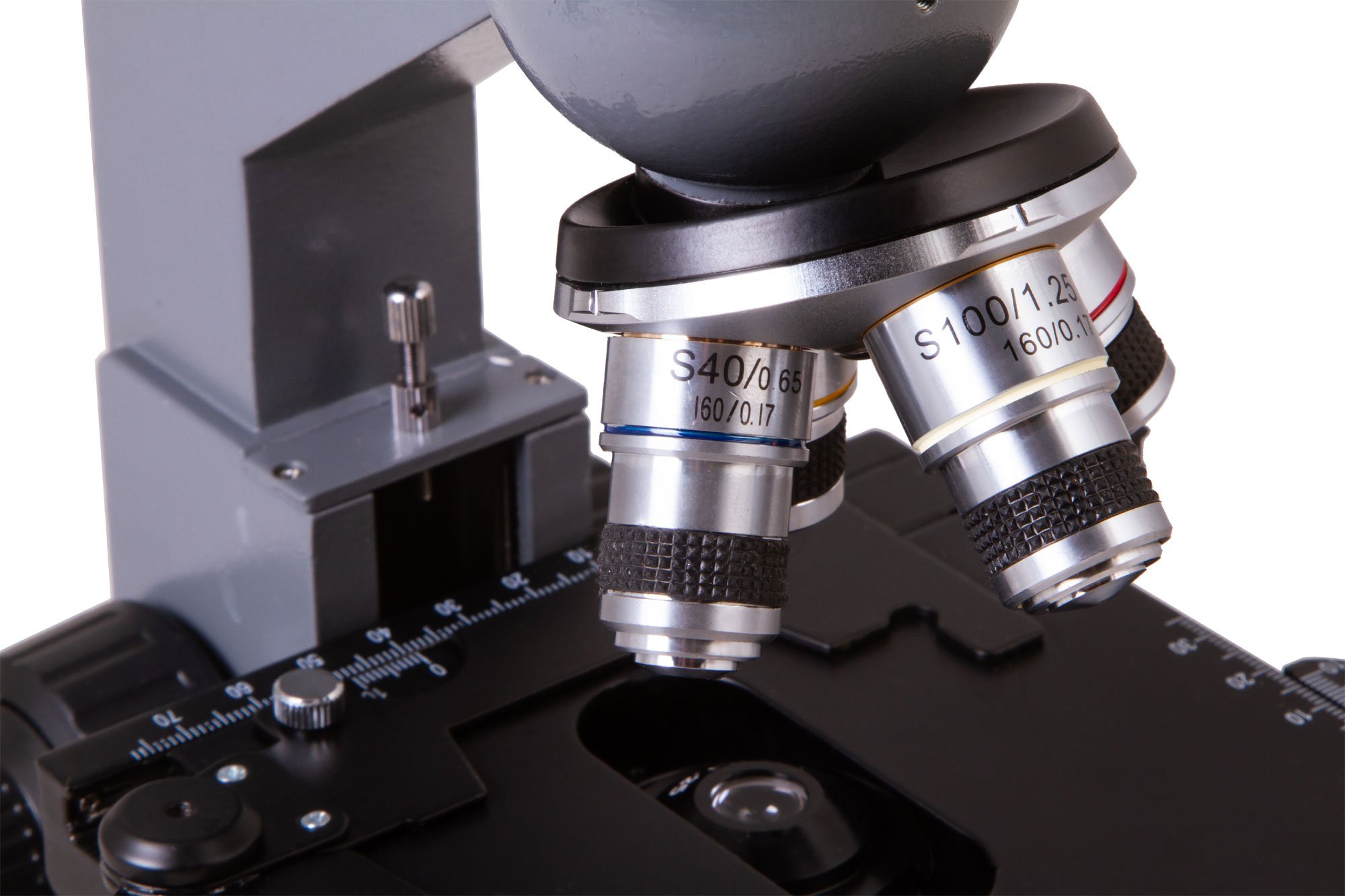

A rotating objective holder allows for the fitting of four objectives. Thanks to the achromatic optics, they provide a sharp, high-contrast image free from aberrations. A 100x objective lens can be used for oil-immersion observations. A bottle of immersion oil is included in the kit.

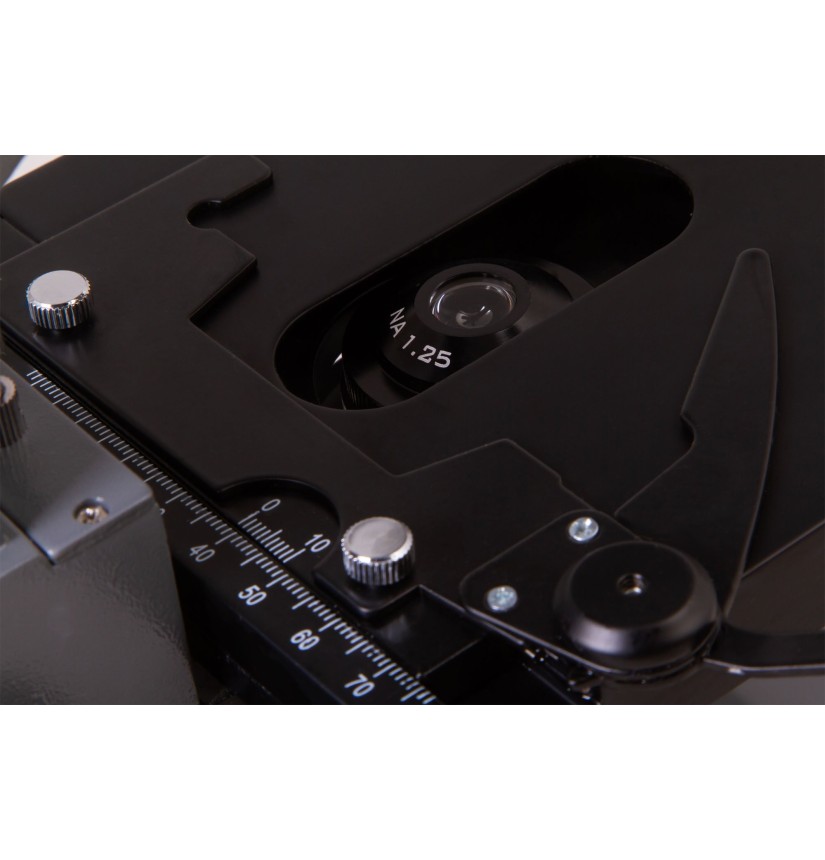

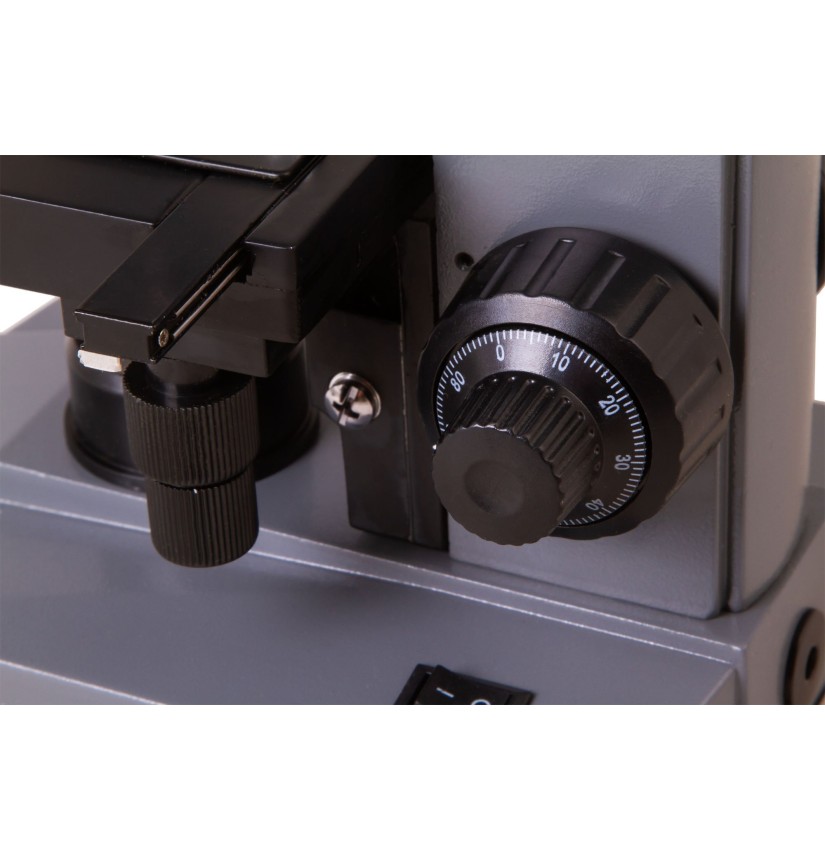

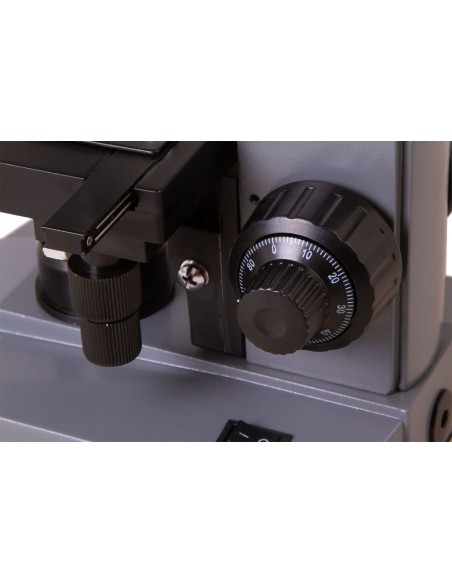

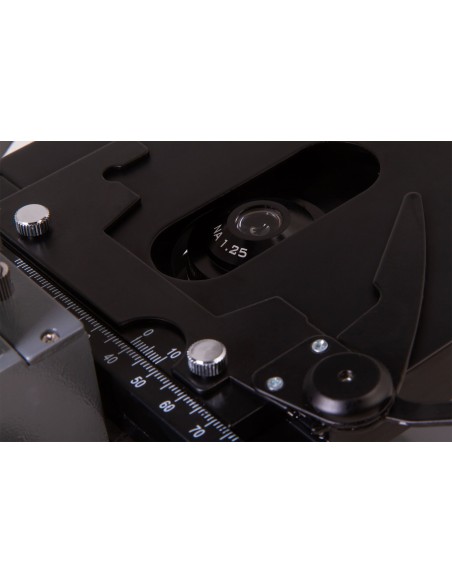

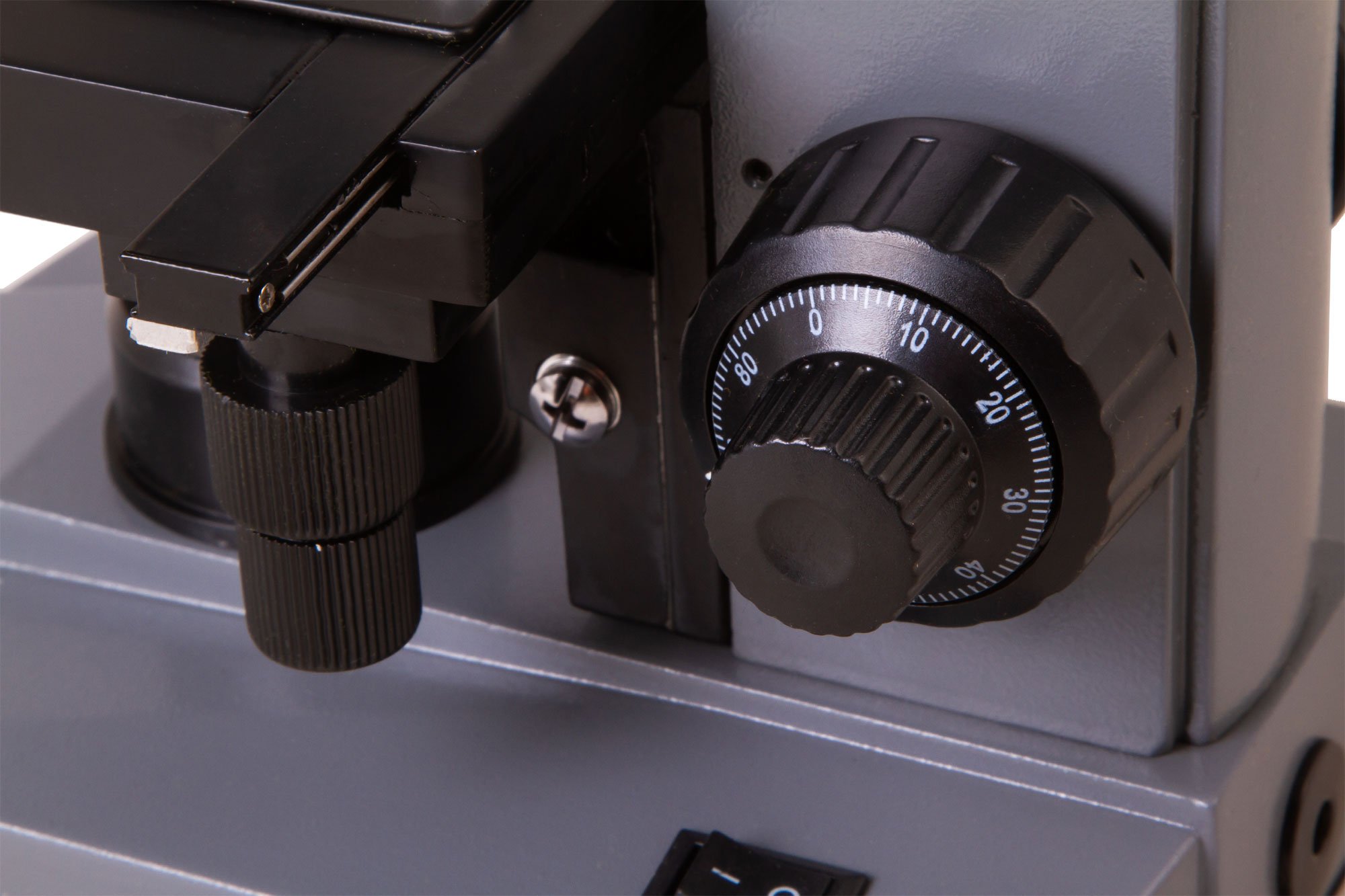

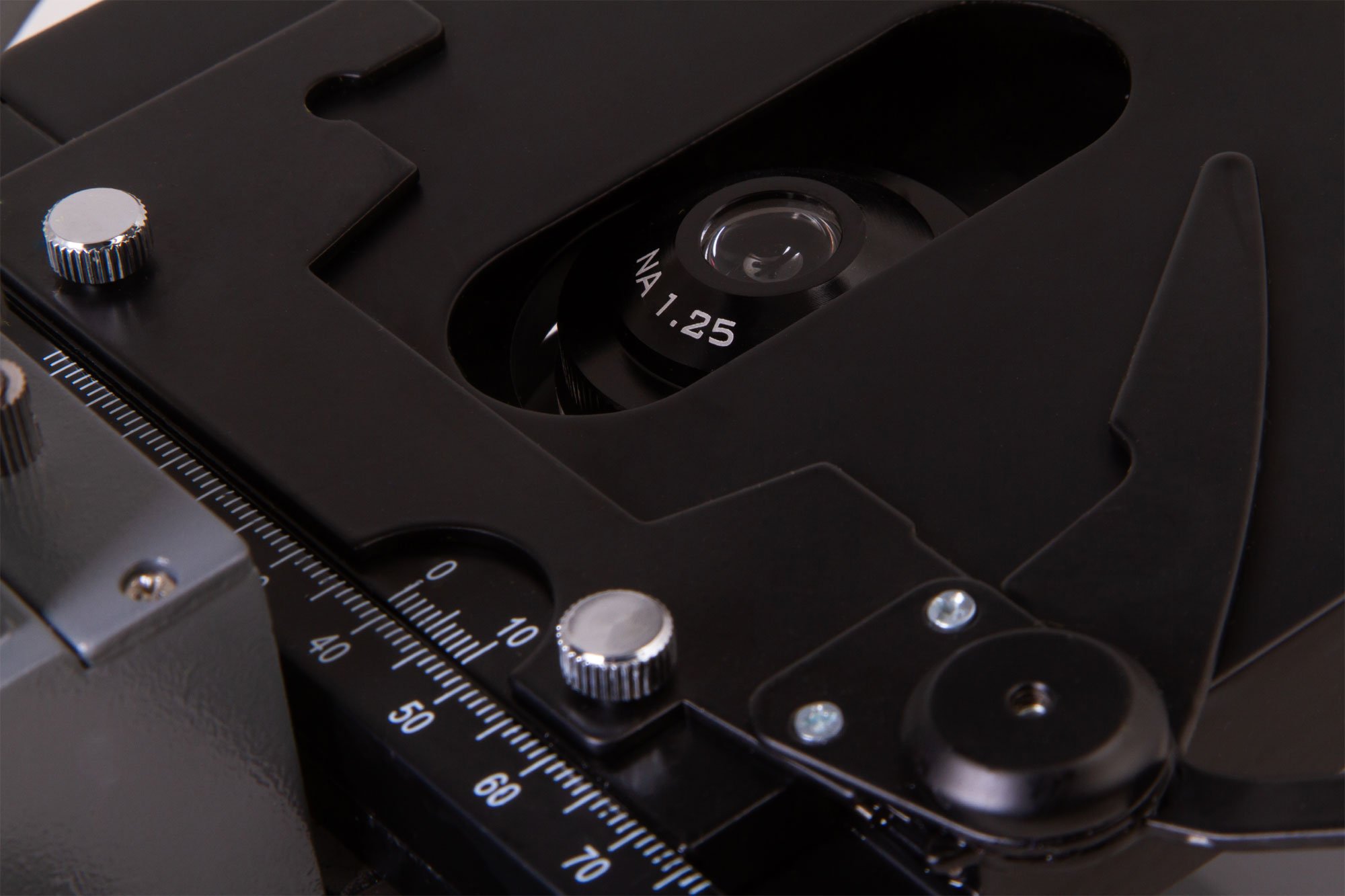

A mechanical stage is fitted with a handy mechanical scale for convenient work with microscope slides. The coarse and fine focus adjustment knobs are used to adjust the sharpness. They are located on the microscope body.

The illumination system consists of a halogen lamp beneath the stage and an Abbe condenser with an iris diaphragm. Light filters can be used to increase the contrast of the image. The kit includes a blue filter. The lighting is powered by an AC power supply; its brightness can be adjusted if necessary.

The Levenhuk 320 BASE is a powerful laboratory model designed for conducting microbiological research of varying levels of difficulty in medicine, biology and other scientific fields.

Features:

• Laboratory microscope with a rotatable monocular head
• Achromatic lenses and a wide-angle eyepiece
• Magnification range: 40–1000x
• 20 W halogen illumination with brightness control
• Mains power supply

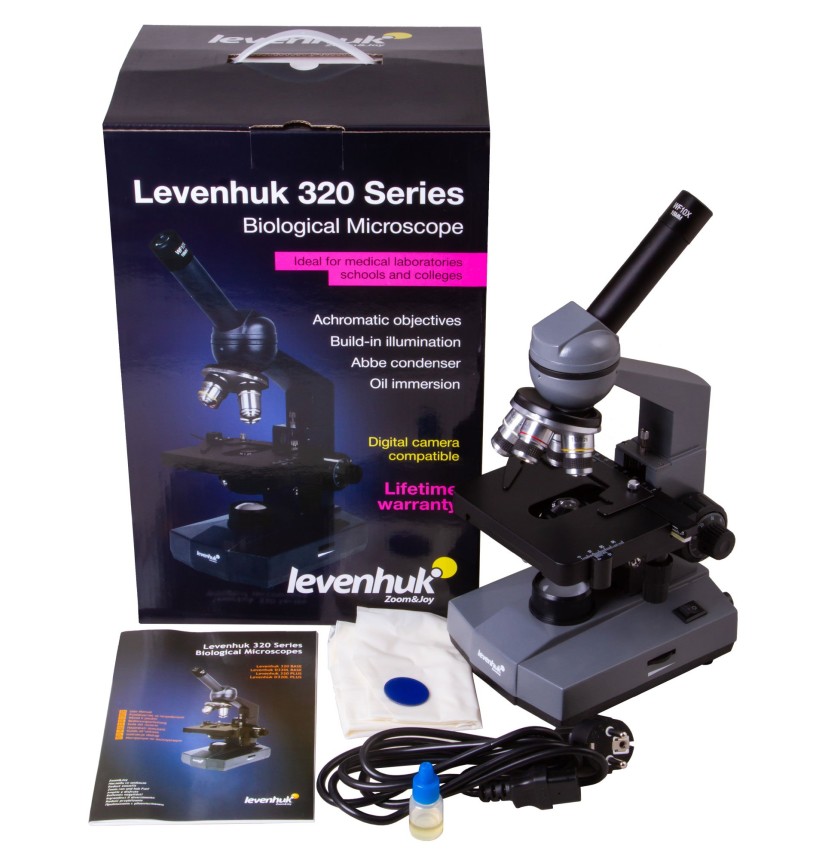

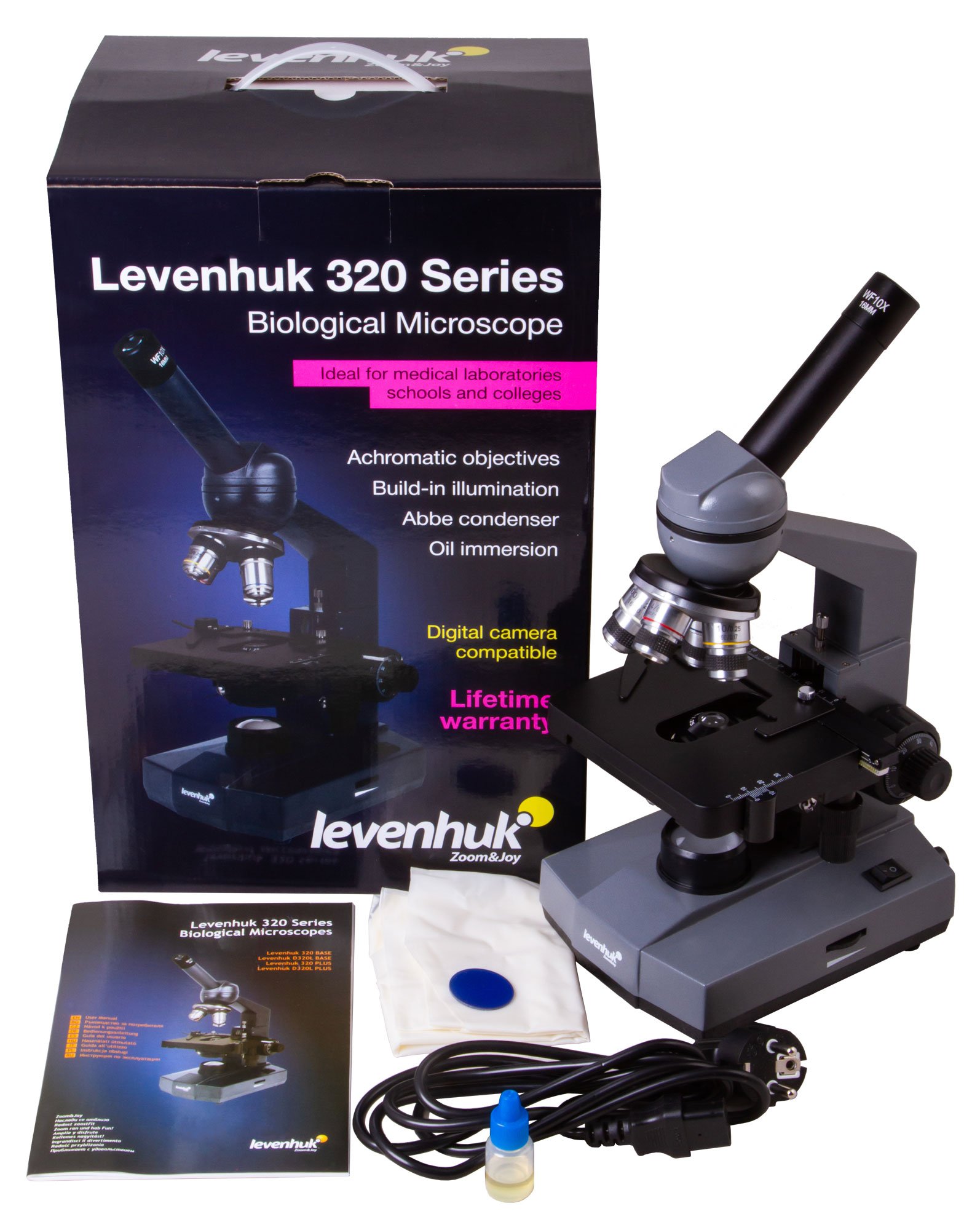

The kit includes:

• Microscope
• Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)

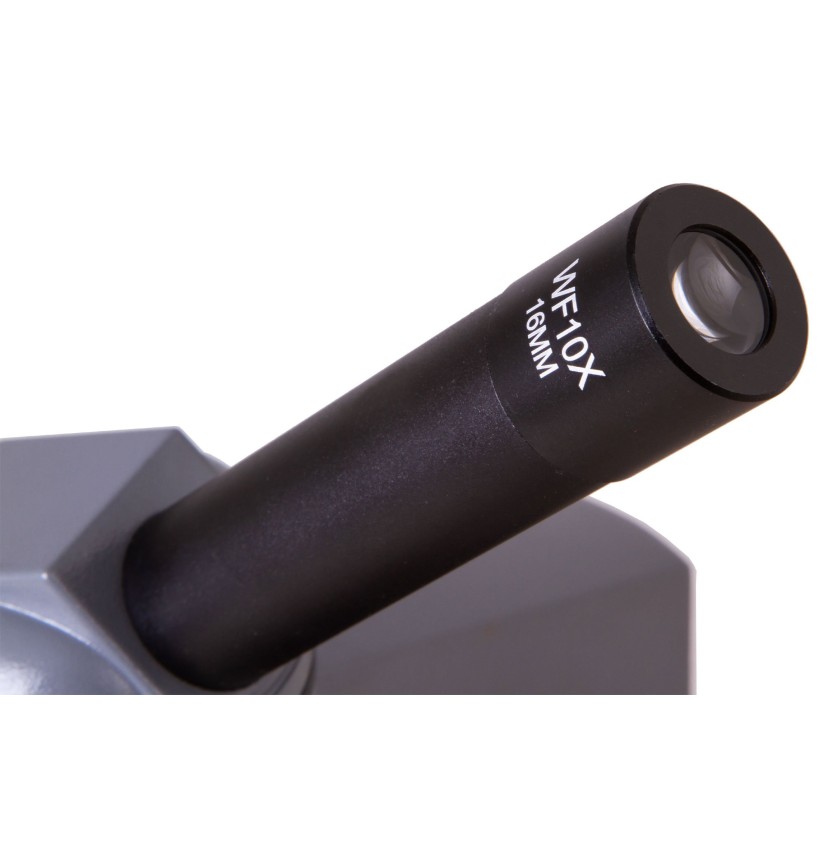

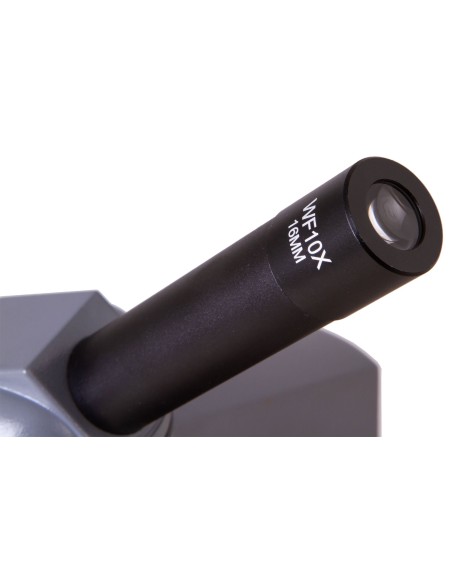

• WF10x wide-angle eyepiece
• Blue filter
• Bottle of immersion oil
• AC adapter
• Dust cover
• User manual and lifetime warranty

Warning: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110 V device into a 220 V socket, or vice versa, without using a converter. Please note that the mains voltage in the United States and Canada is 110 V, and 220–240 V in most European countries.

Some of the things you can observe under the microscope:

The Levenhuk 320 BASE microscope is also compatible with other Levenhuk digital cameras (additional cameras sold separately). Levenhuk cameras are fitted into the eyepiece tube in place of an eyepiece.
