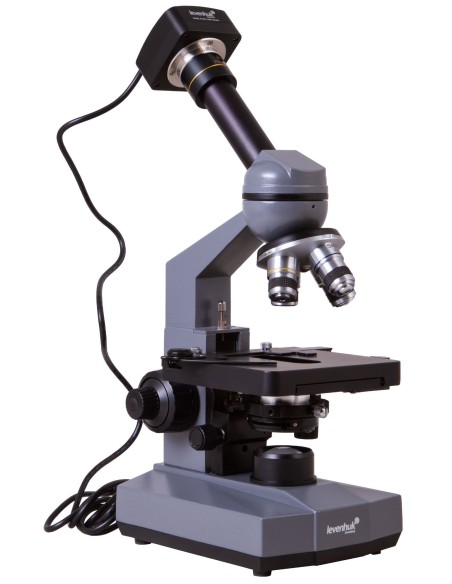

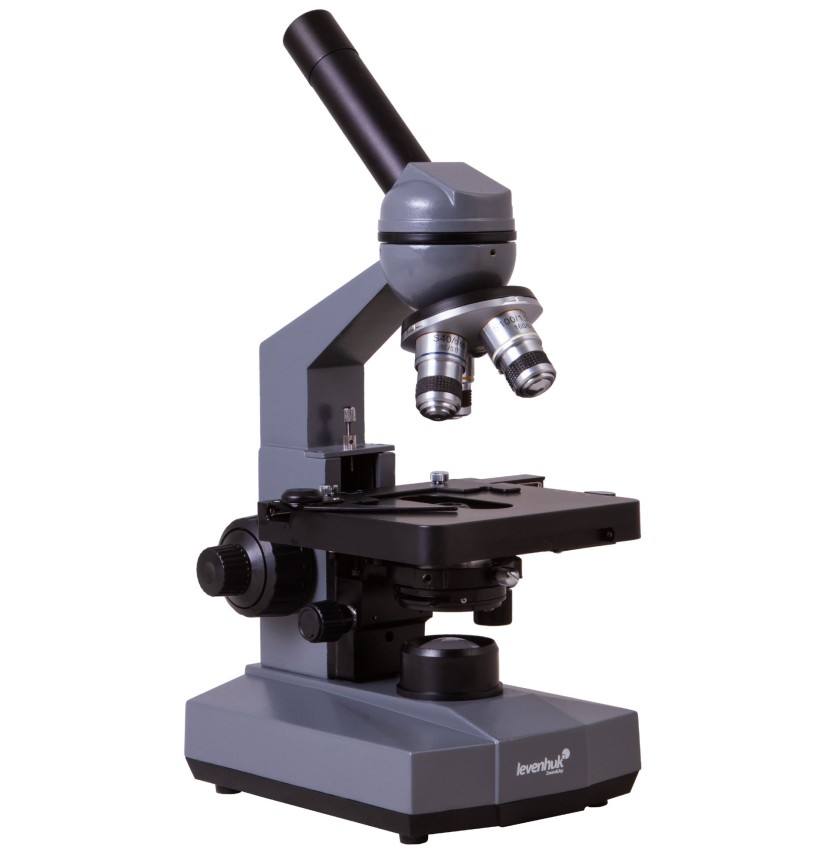

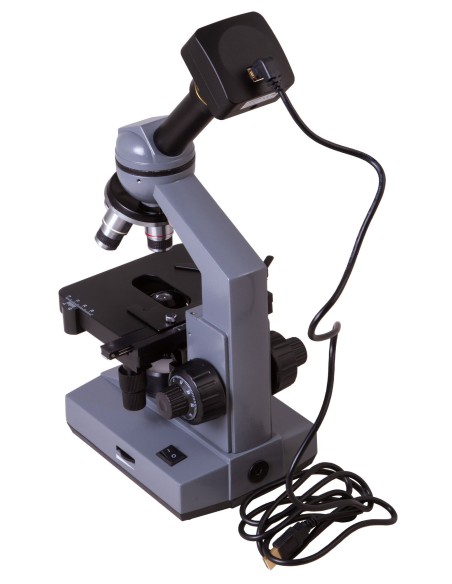

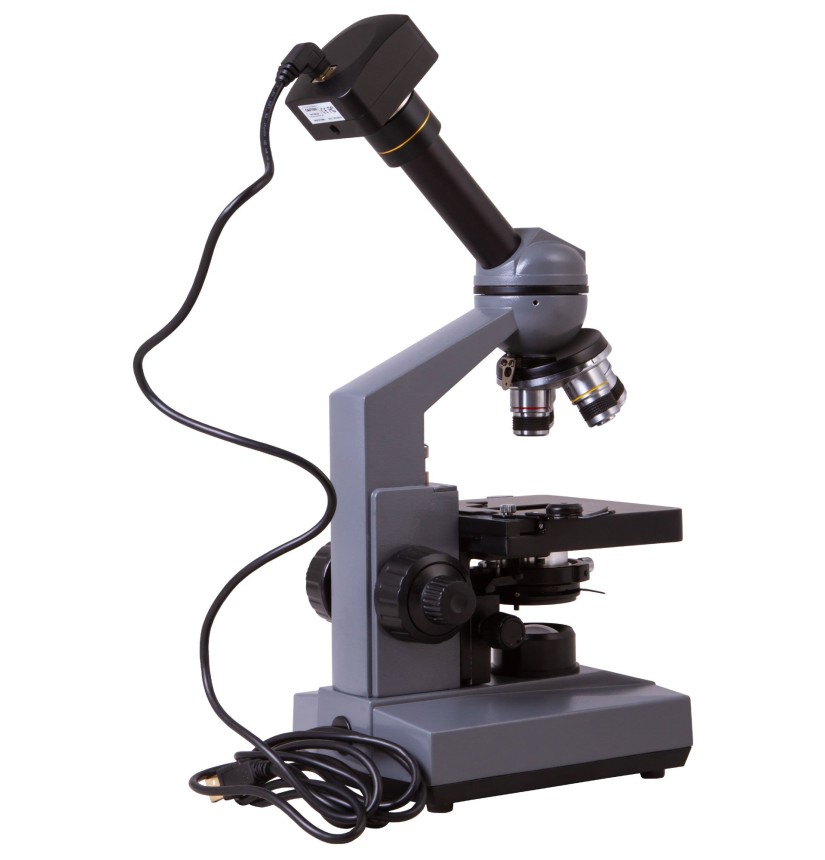

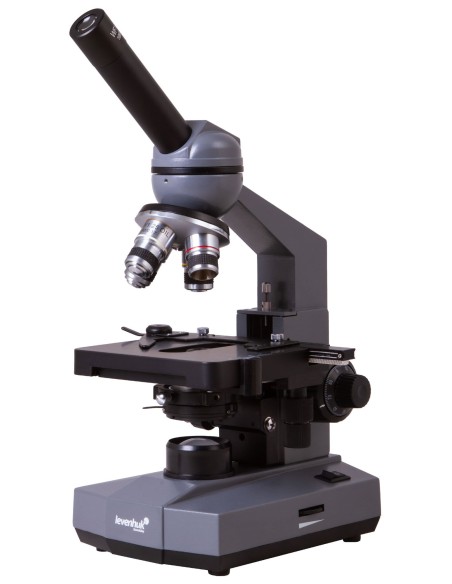

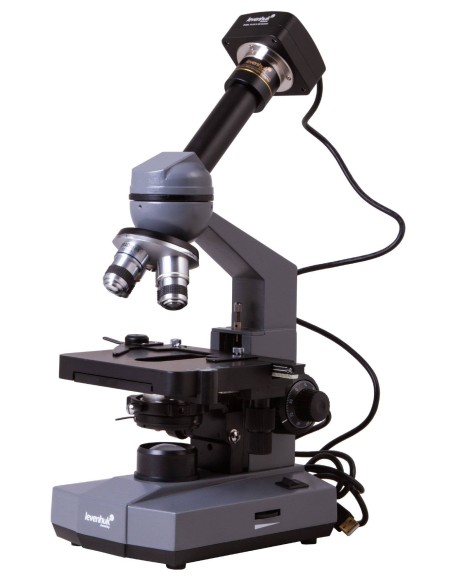

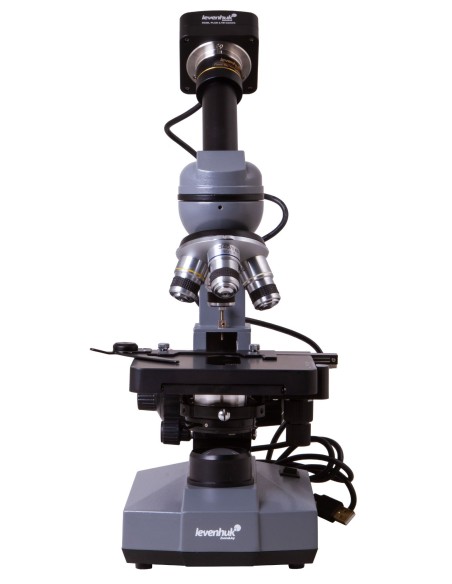

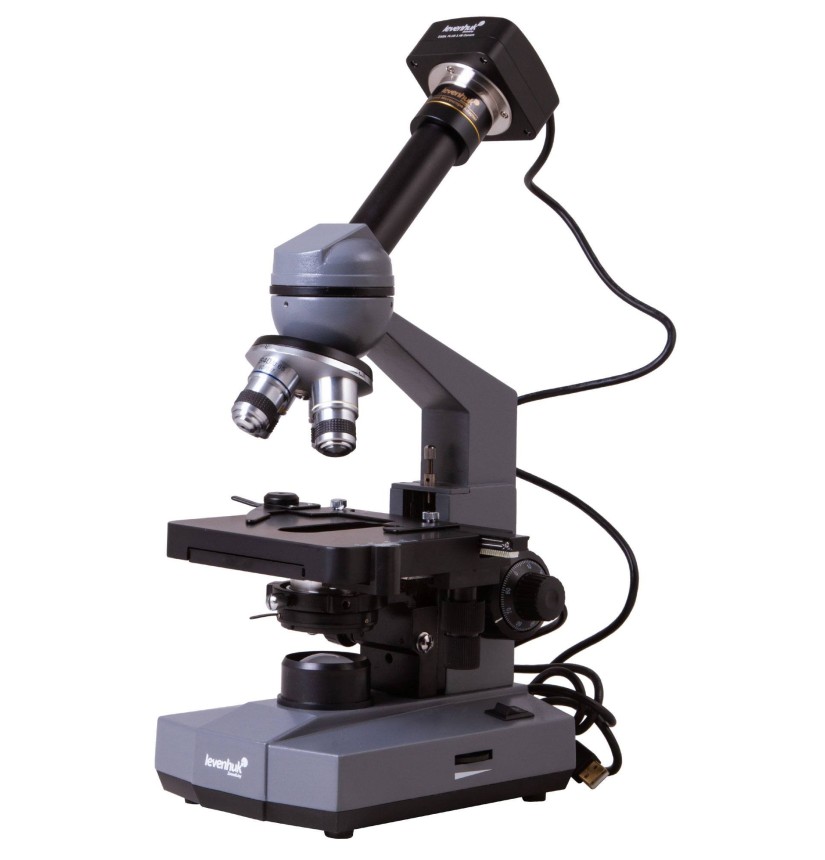

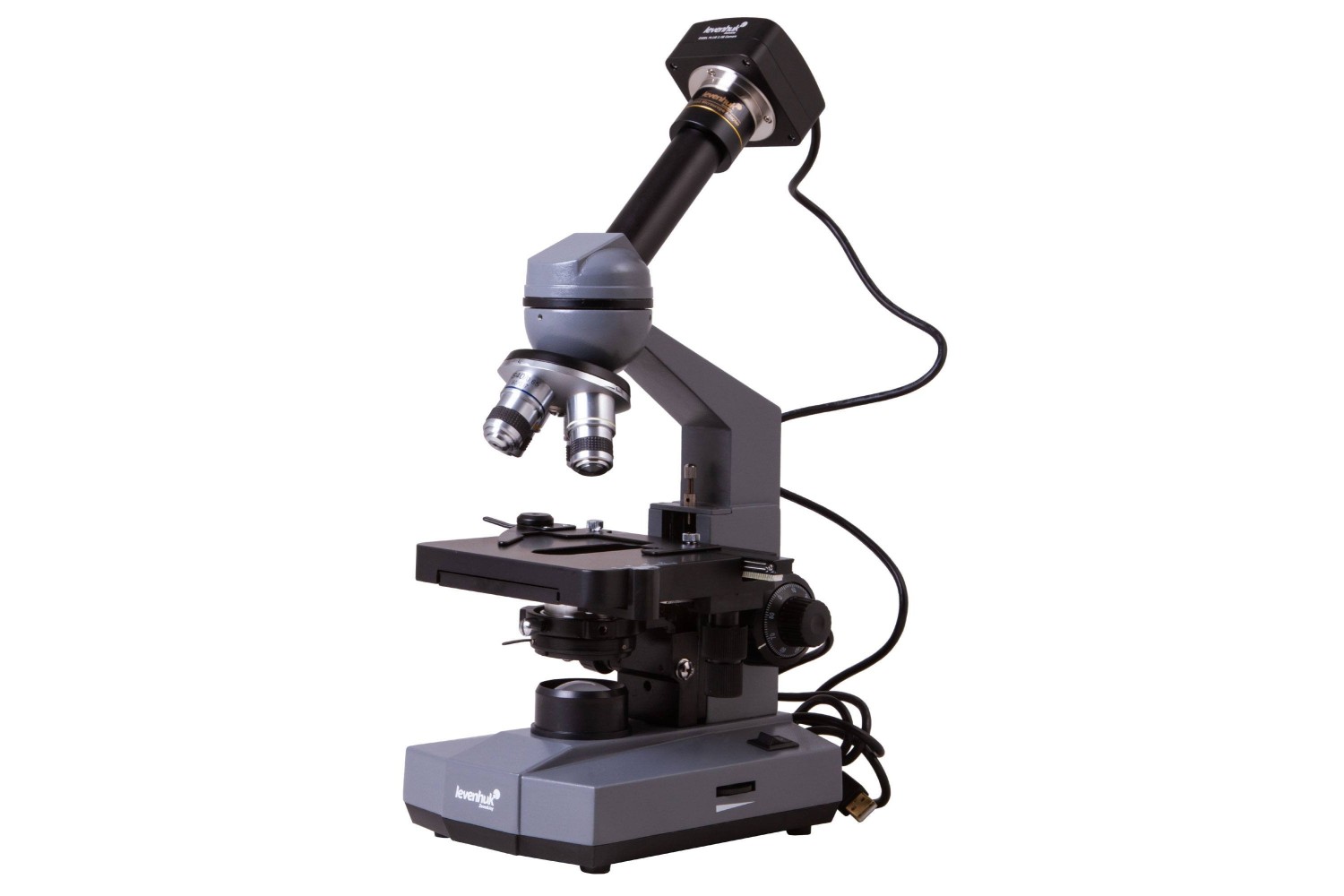

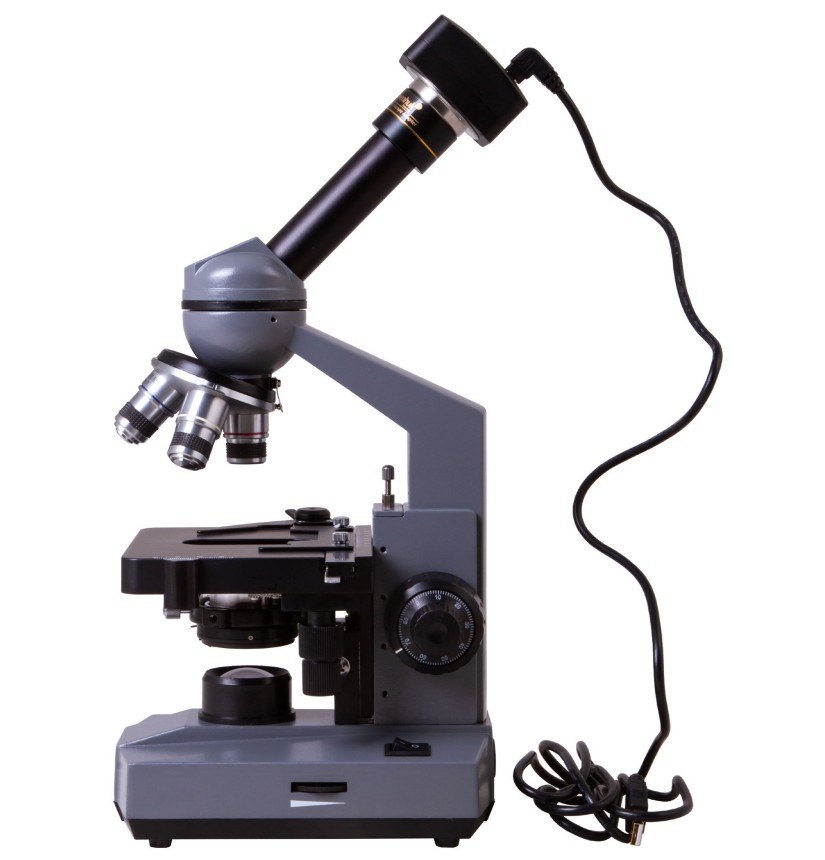

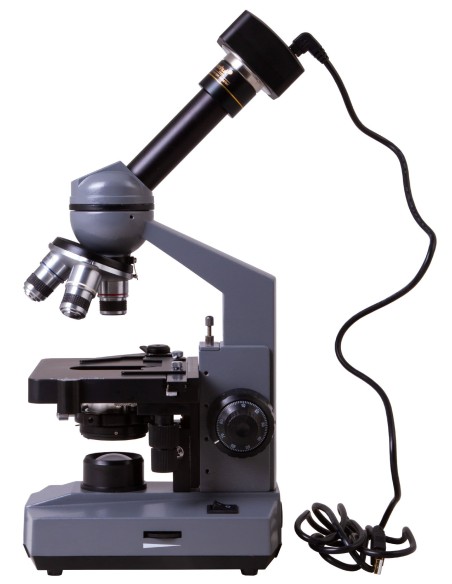

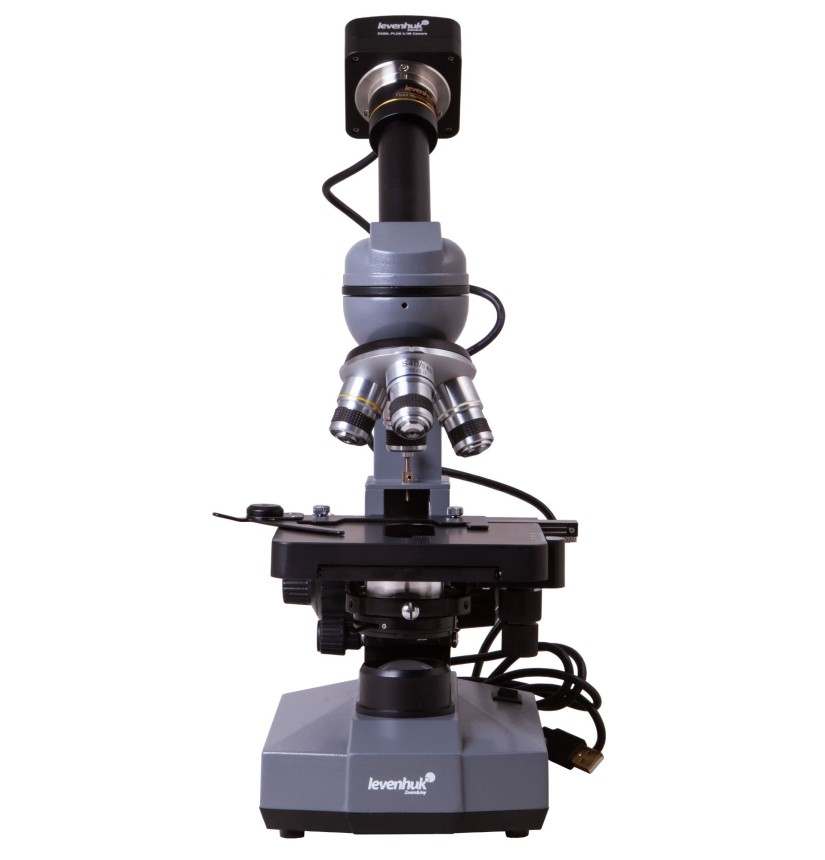

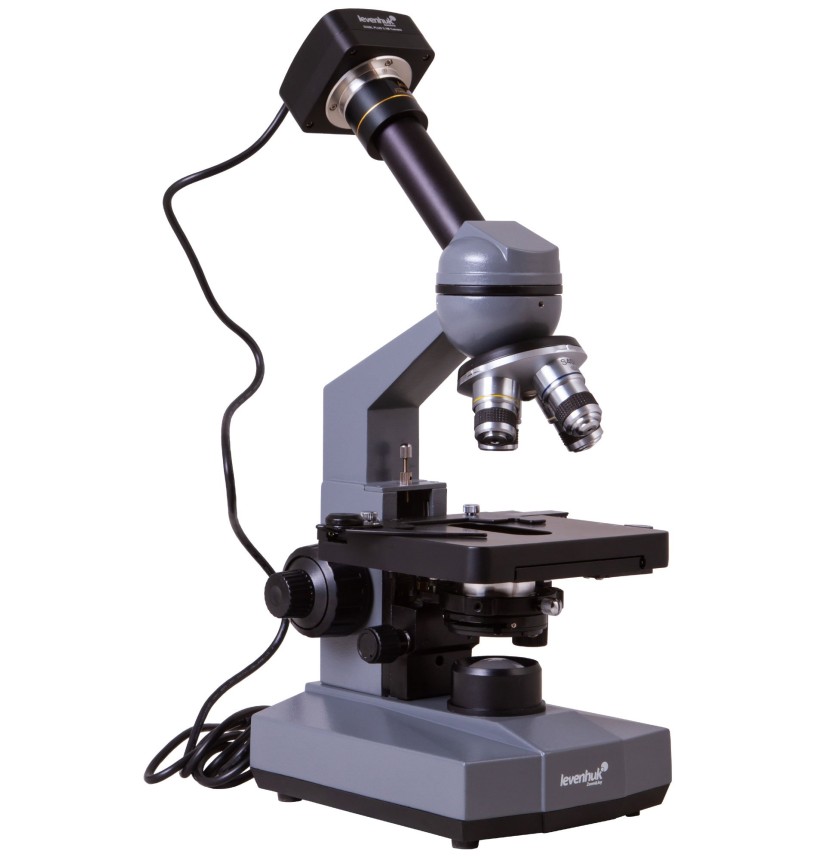

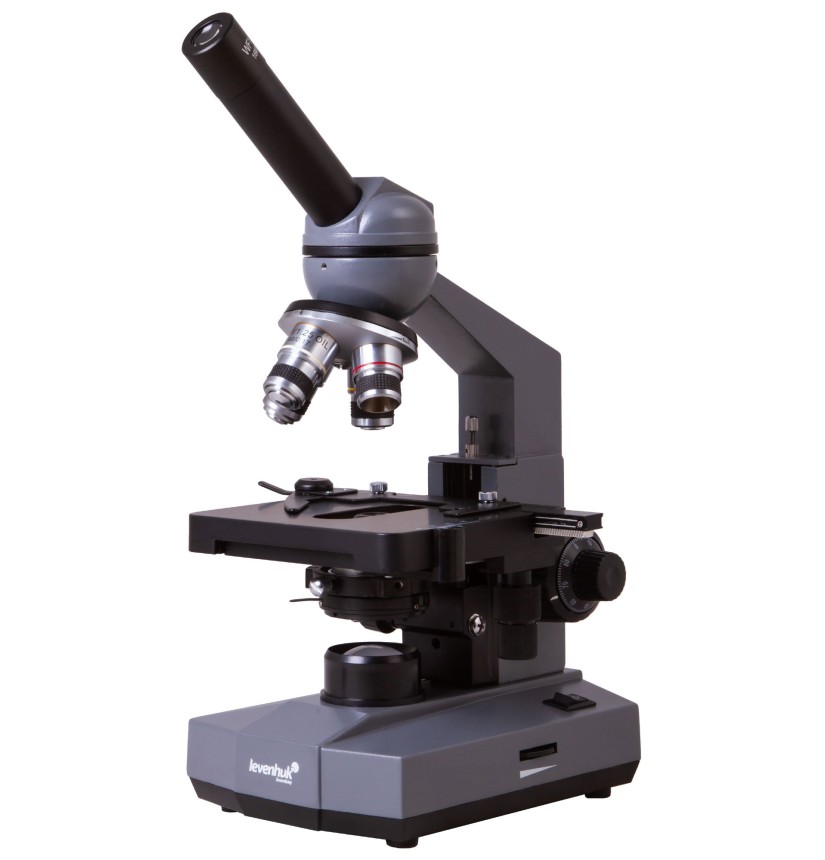

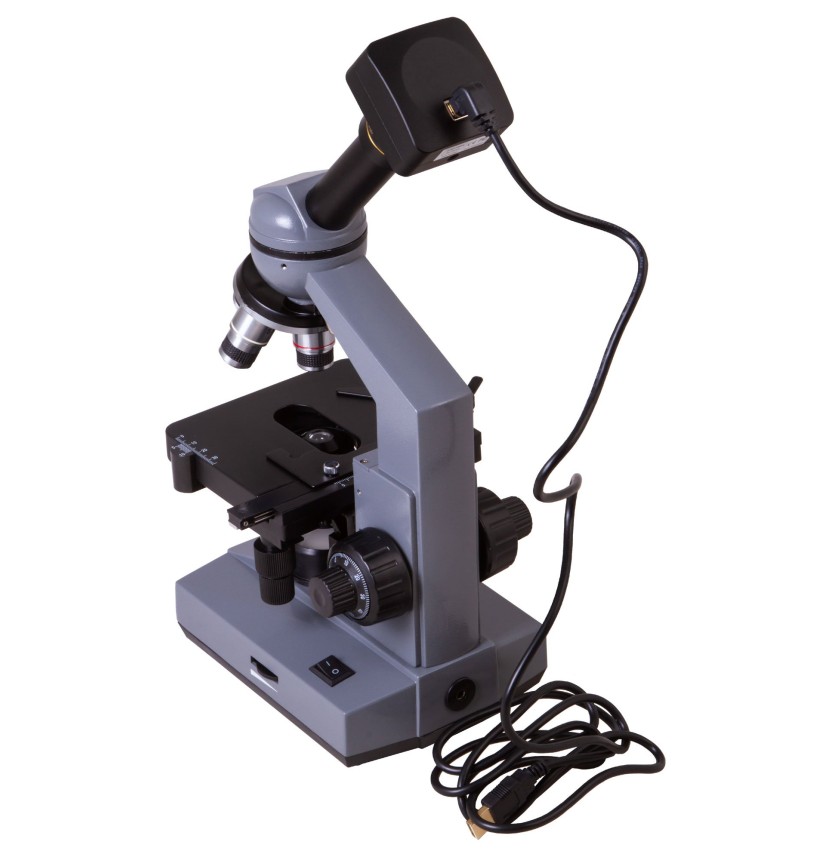

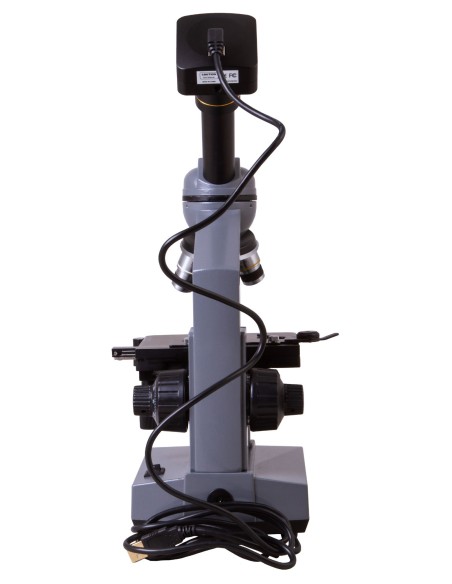

Levenhuk D320L PLUS 3.1M Digital Monocular Microscope

The Levenhuk D320L PLUS digital microscope is fitted with a 3.1 M video eyepiece, making it suitable not only for visual observations but also for creating digital archives of observations and for delivering seminars and lectures. This microscope is excellent for research in the fields of medicine, biochemistry and others. It will take its rightful place in a scientific laboratory or research institute. A digital camera makes this microscope practical for teaching students at colleges and universities.

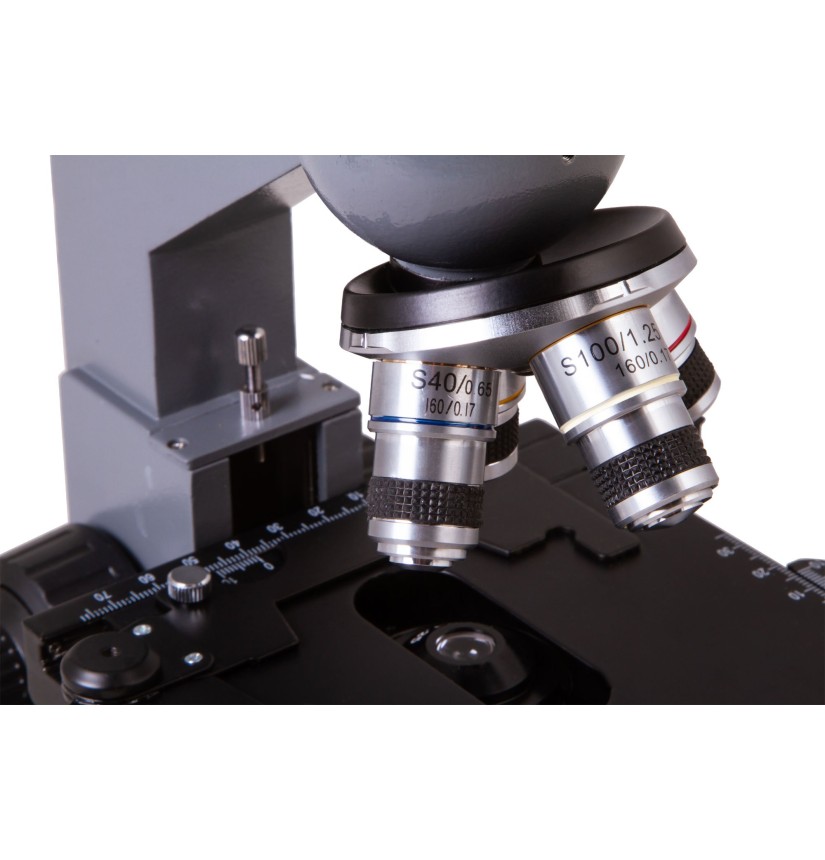

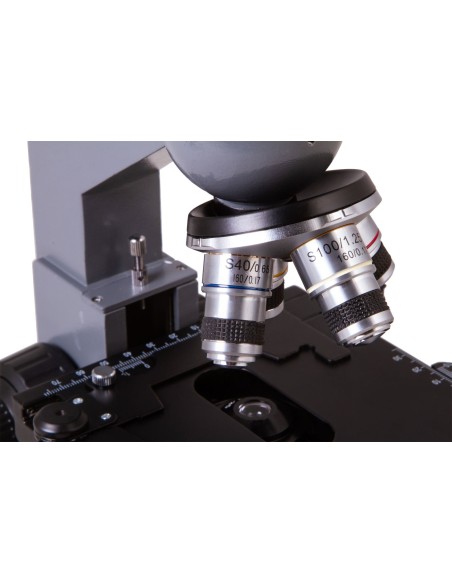

The magnification range is 40–1600x. The achromatic objectives provide a sharp and extremely detailed image without aberrations. At maximum magnification, when using a 100x objective, the oil immersion technique can be employed (a bottle of immersion oil is included in the kit). Two wide-angle eyepieces with a pointer allow you to examine samples with complex structures.

The stage is fitted with a mechanical scale, enabling samples to be positioned quickly and precisely under an objective lens. Coarse and fine adjustment knobs are used to optimally adjust the focus of the optics. Beneath the stage is an Abbe condenser with an iris diaphragm. Below this is the LED illumination with adjustable brightness. The illumination is powered by an AC mains supply or by rechargeable batteries (included in the kit). A single battery charge provides 10 hours of continuous operation.

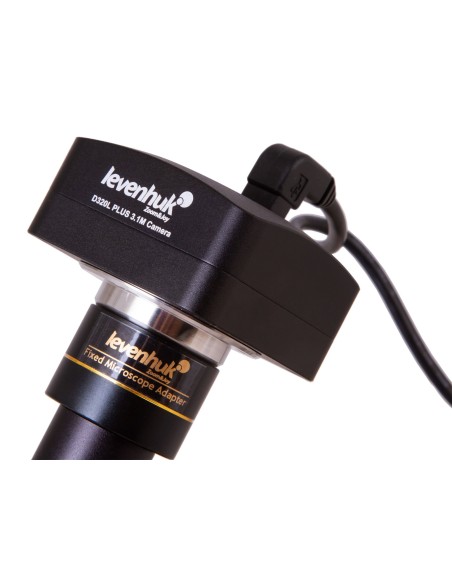

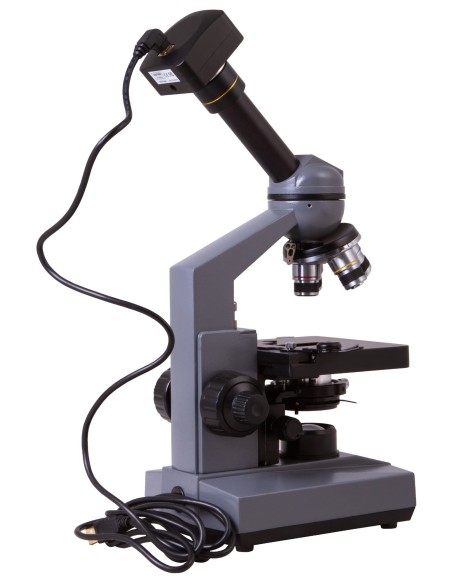

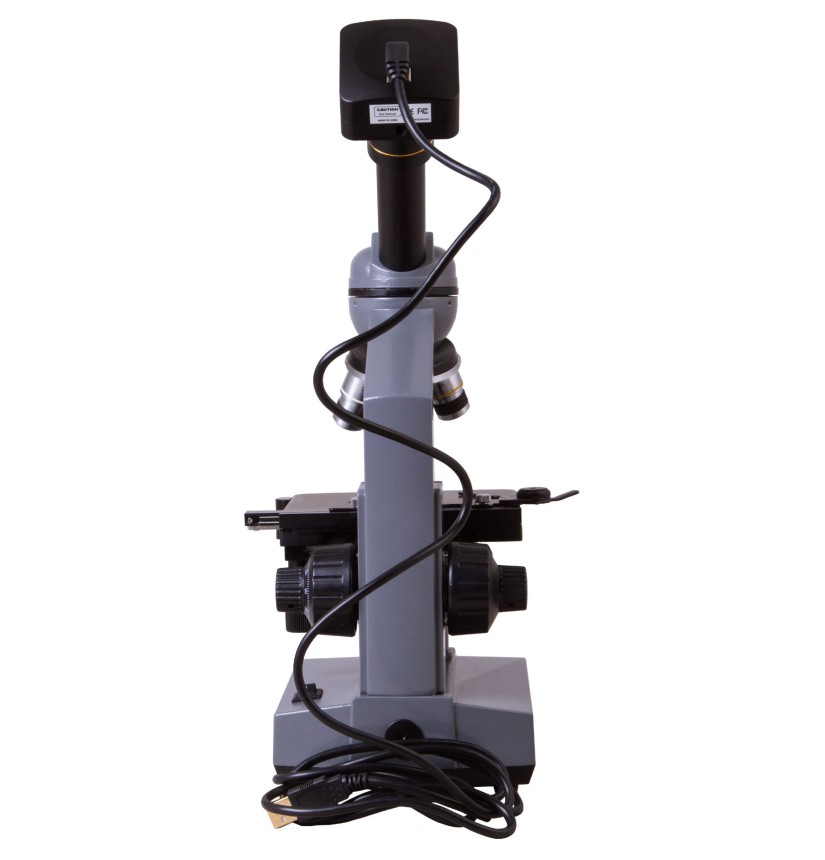

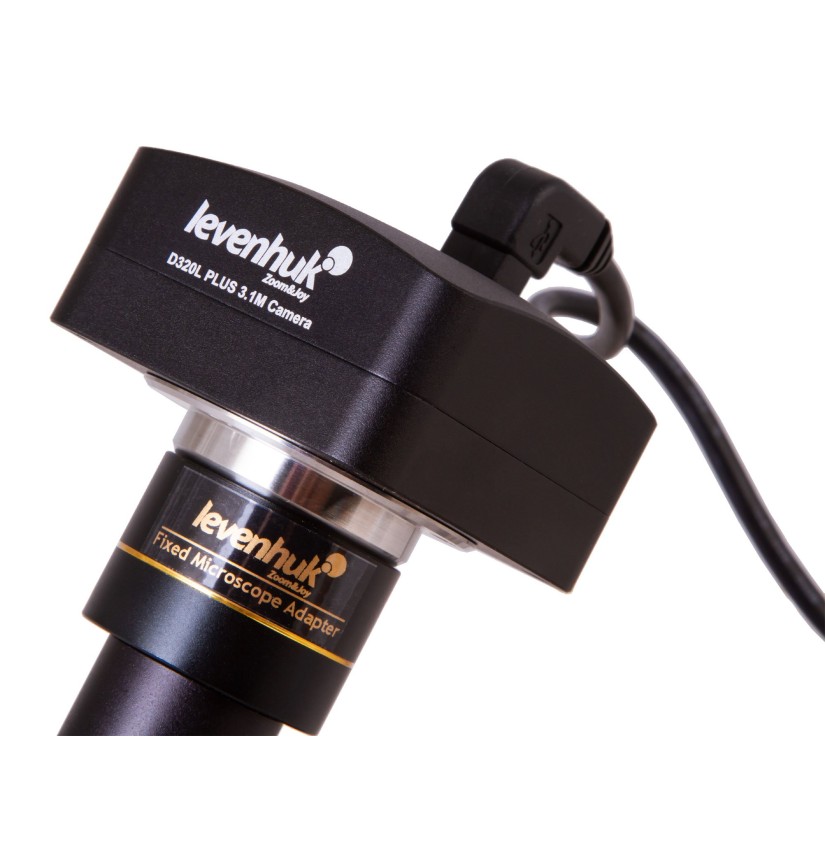

The microscope’s main feature is its digital camera. It is fitted into the optical tube in place of an eyepiece. A USB cable is used to connect the camera to a computer. The camera provides a real-time image with a resolution of up to 2048x1536 pixels. You can take photographs or record videos. The camera is an excellent solution for recording the key stages of research, creating presentations or video lessons. The digital camera comes with an installation CD, which contains the necessary software and drivers.

Features:

• Monocular laboratory microscope with a 3.1 M digital camera
• Magnification: 40–1600x
• Eyepiece with pointer, achromatic objectives
• 0.75 W LED illumination with brightness control
• Powered by mains supply or rechargeable batteries
• The battery lasts for approximately 10 hours

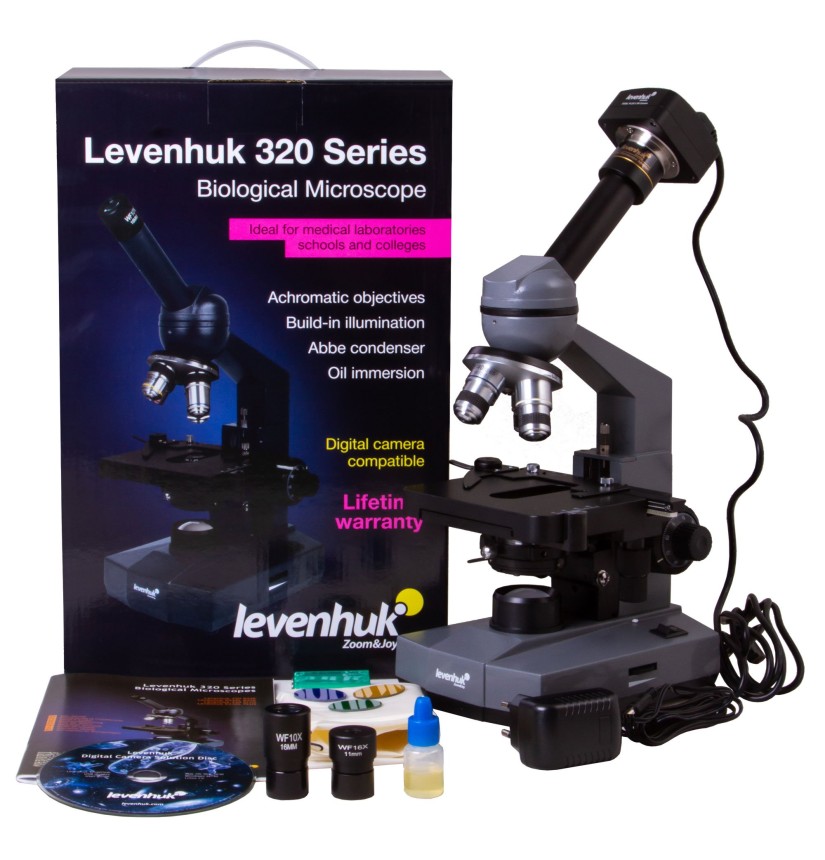

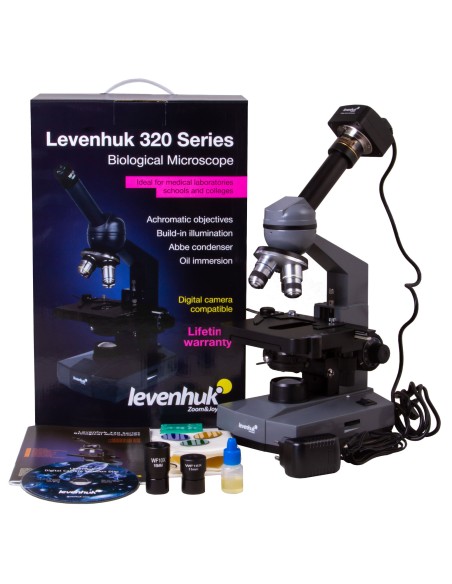

The kit includes:

• Microscope
• Achromatic objective lenses: 4x, 10x, 40x and 100x (oil immersion)
• Wide-angle eyepieces with reticle: WF10x and WF16x
• Filters: blue, green, yellow
• Bottle of immersion oil
• AC adaptor
• Rechargeable AA batteries (3 pcs)
• Dust cover
• Digital camera
• Camera adapter
• USB cable for camera
• Software CD
• User manual and lifetime warranty

Warning: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110 V device into a 220 V socket, or vice versa, without using a converter. Please note that the mains voltage in the United States and Canada is 110 V, and 220–240 V in most European countries.

Some of the things you can observe under the microscope:

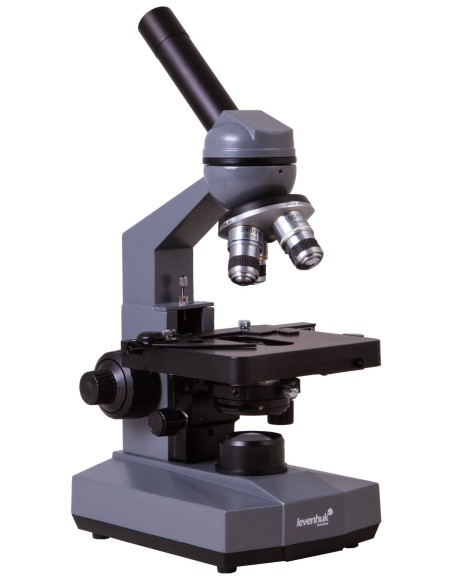

The Levenhuk D320L PLUS microscope is also compatible with other Levenhuk digital cameras (additional cameras sold separately). Levenhuk cameras are fitted into the eyepiece tube in place of an eyepiece.
