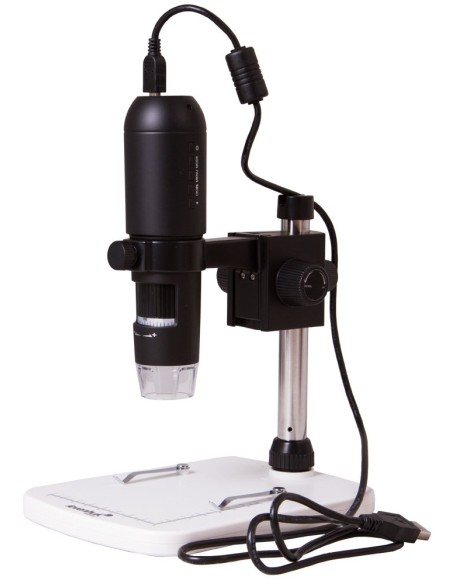

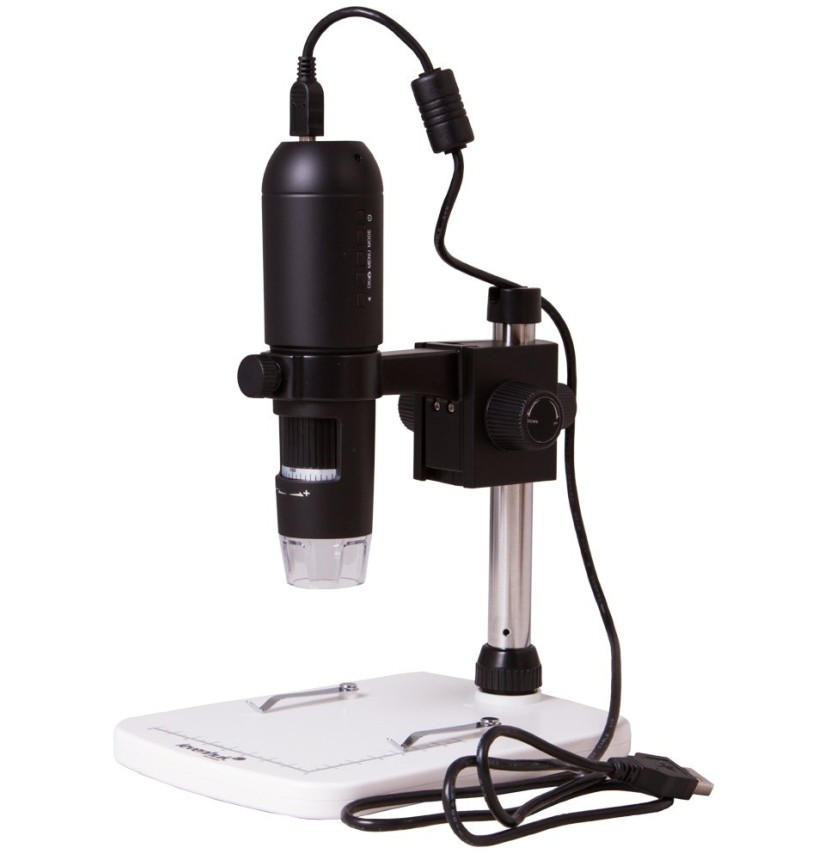

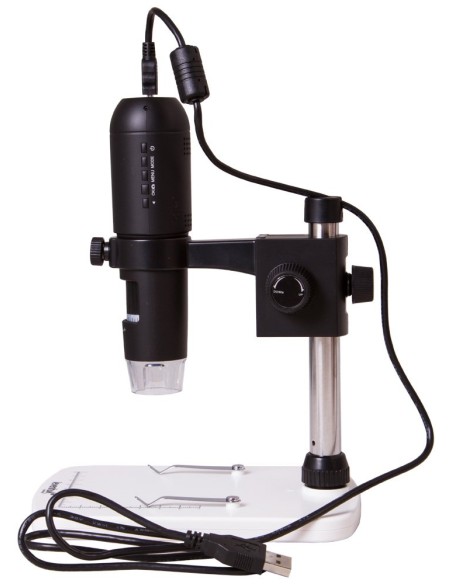

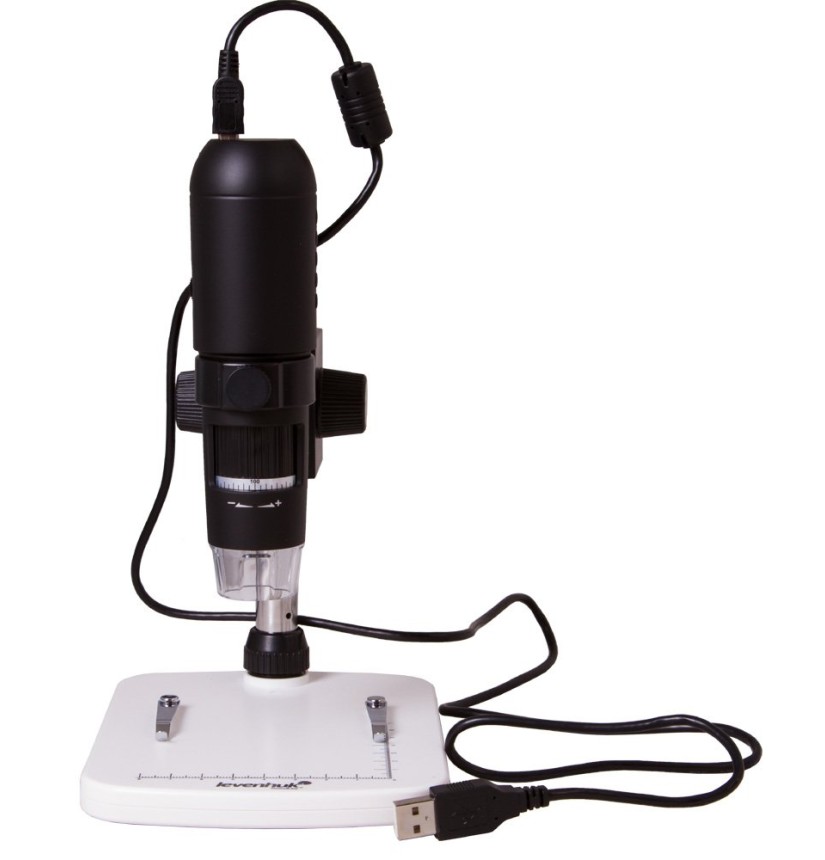

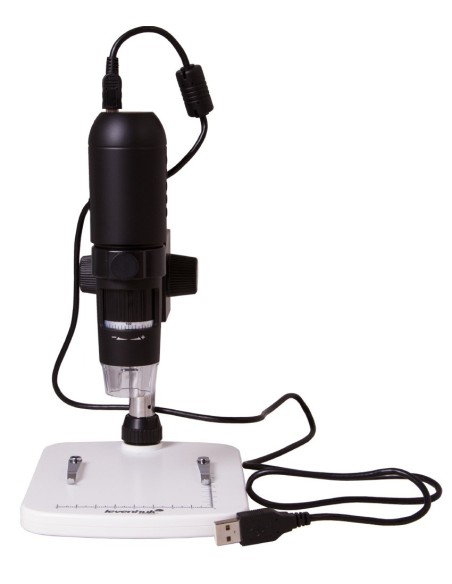

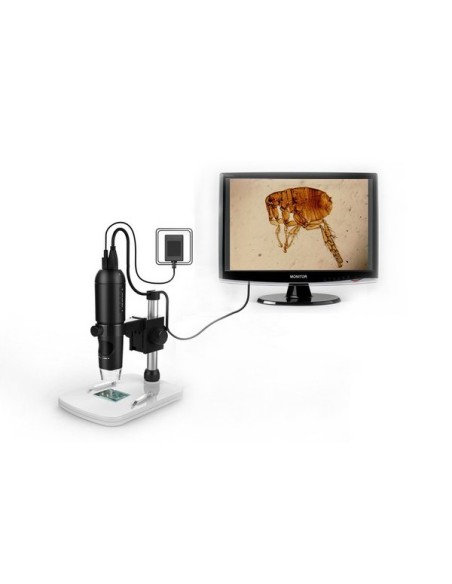

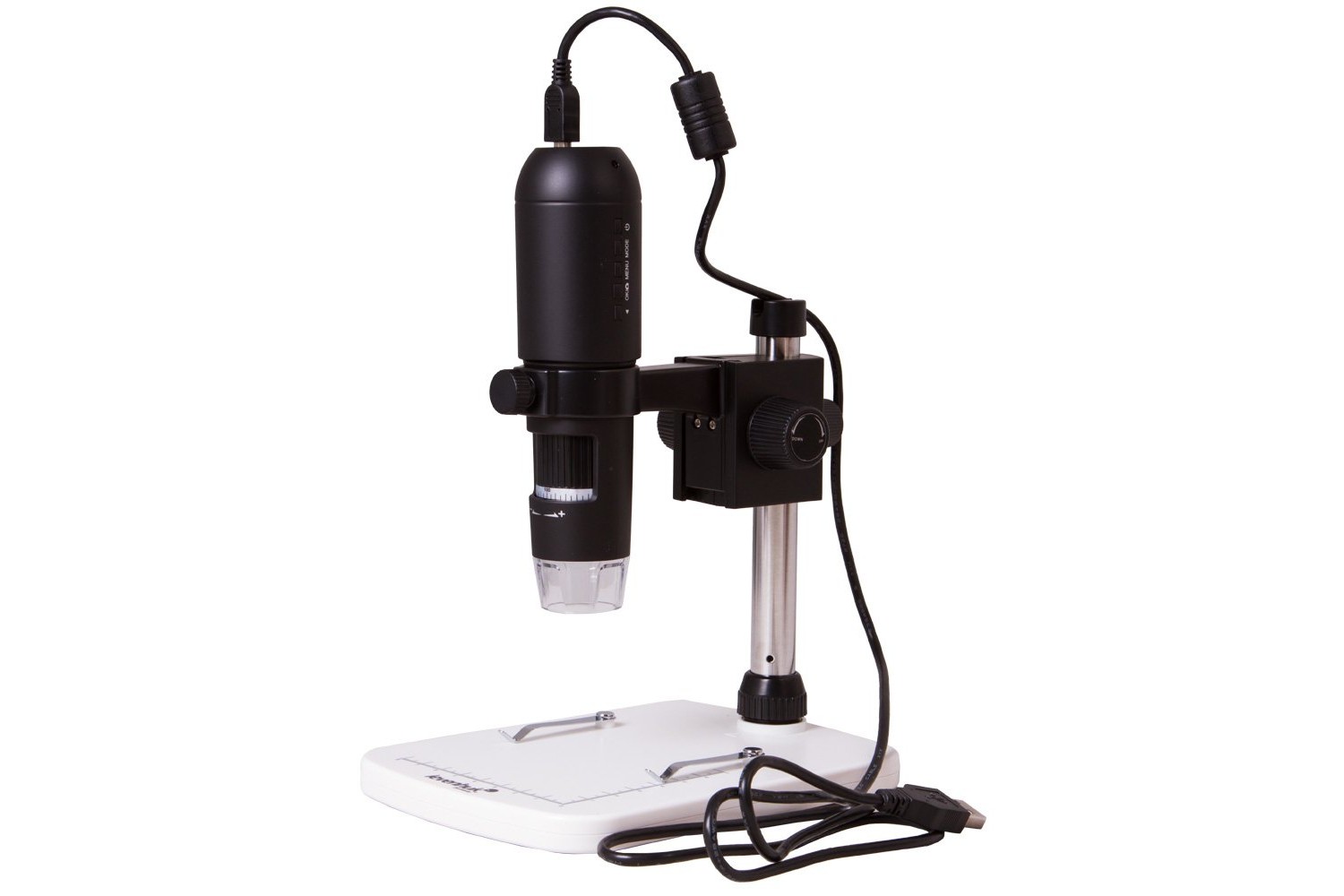

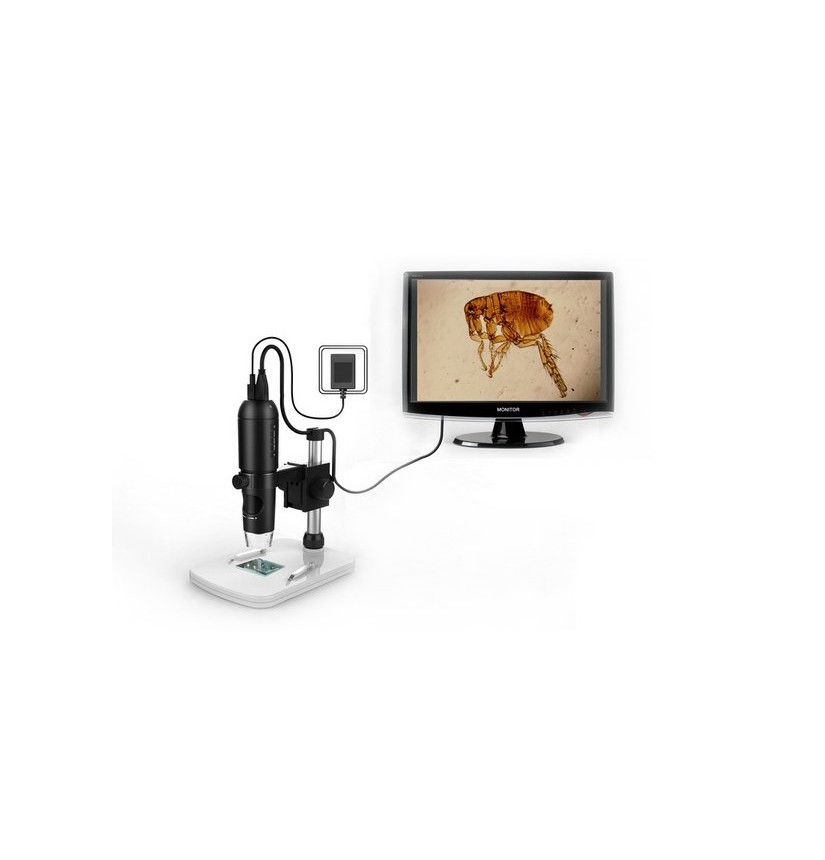

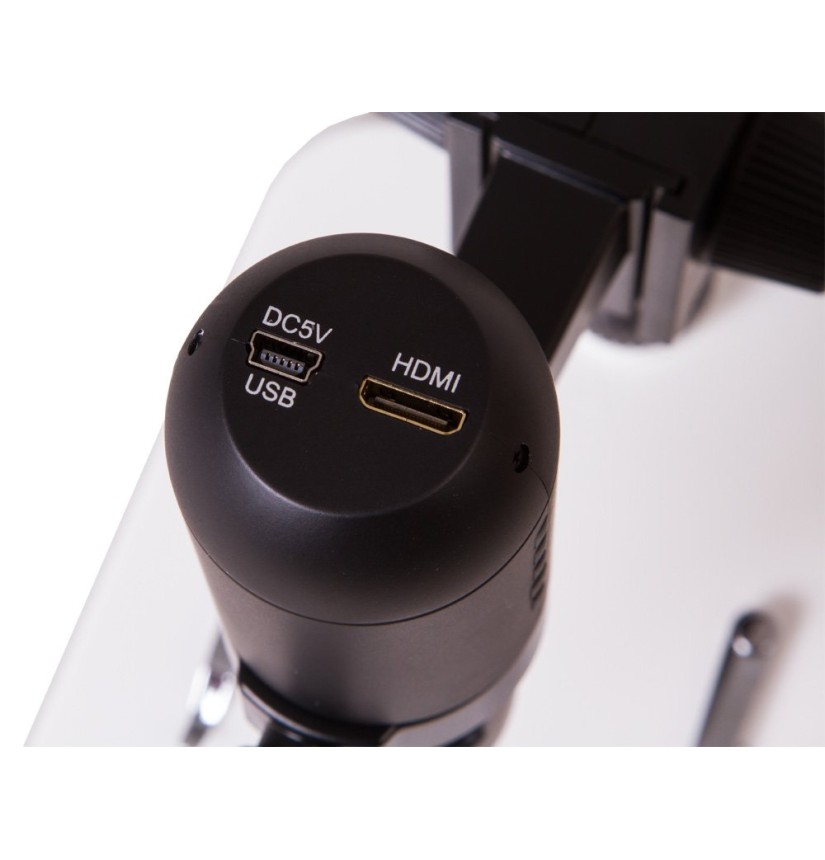

The Levenhuk DTX TV digital microscope can be connected to a PC or TV, provided that the external screen of the device has an HDMI connector. This allows the microscope to be used for presentations, conferences and training seminars. The microscope allows you to display images on a large screen to show colleagues and friends the various important ways of working with samples under the microscope.

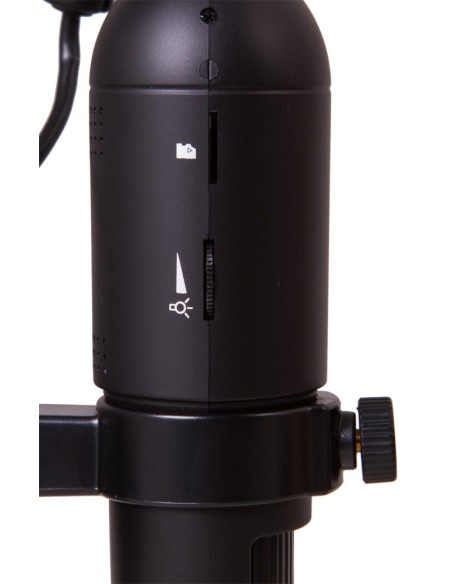

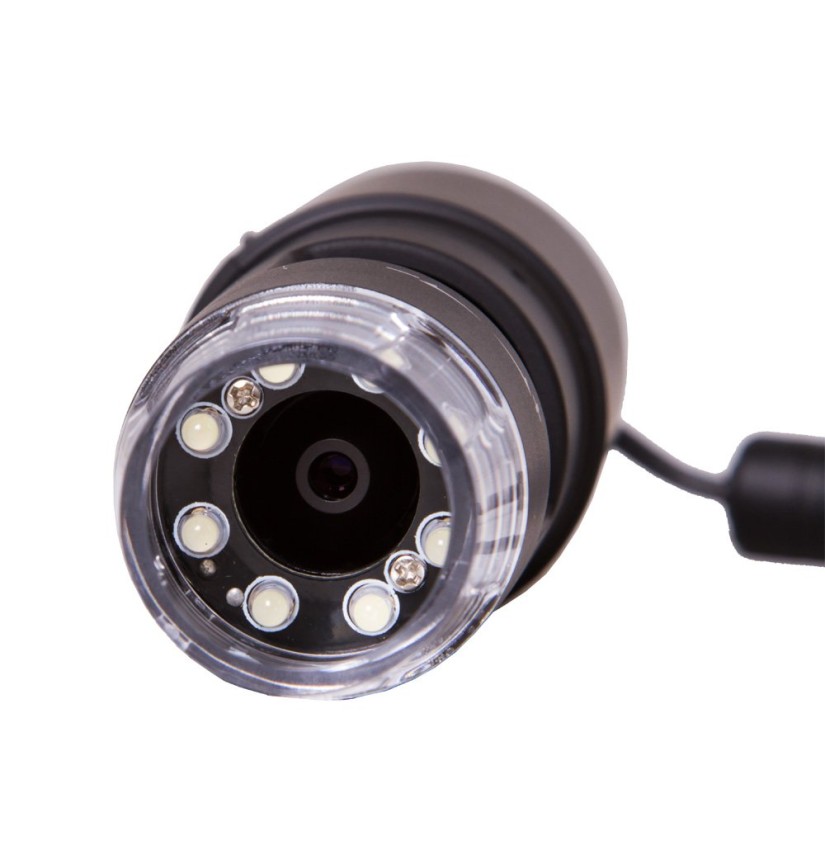

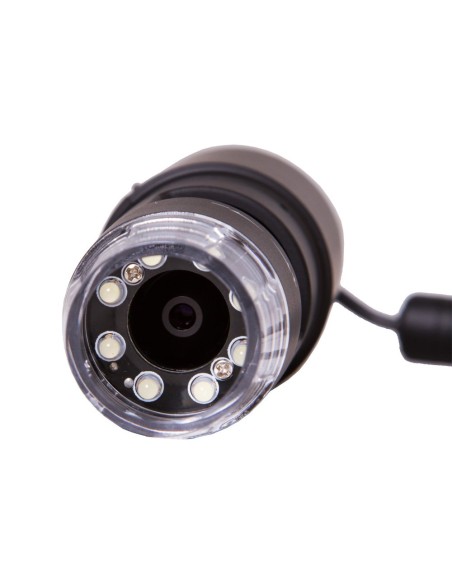

The microscope features stepless magnification adjustment ranging from 10x to 200x. At the lowest magnification, the microscope can function as a digital magnifier for examining small text and images. Higher magnification allows you to observe biological samples and minerals. The microscope is fitted with built-in LED lighting (8 bright lights), enabling it to be used in complete darkness. For more accurate results, we recommend mounting the microscope on a stand.

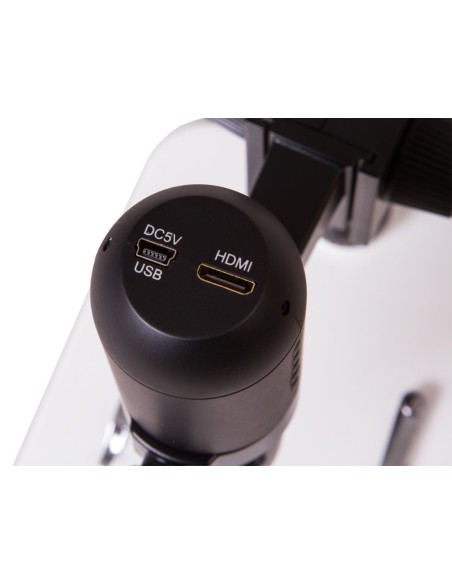

The microscope connects to a PC via a standard USB cable. To access all the microscope’s features, you need to install the special image-processing software (included in the kit), which allows you to take photographs of the samples under observation, record videos, adjust the image size, contrast and brightness, and measure objects.
The Levenhuk DTX TV digital microscope is a simple instrument that requires no special knowledge or skills to use, making it ideal for home study, educational purposes or hobbies.
Features:
- Digital microscope
- Connects to a PC or TV
- Built-in LED illumination

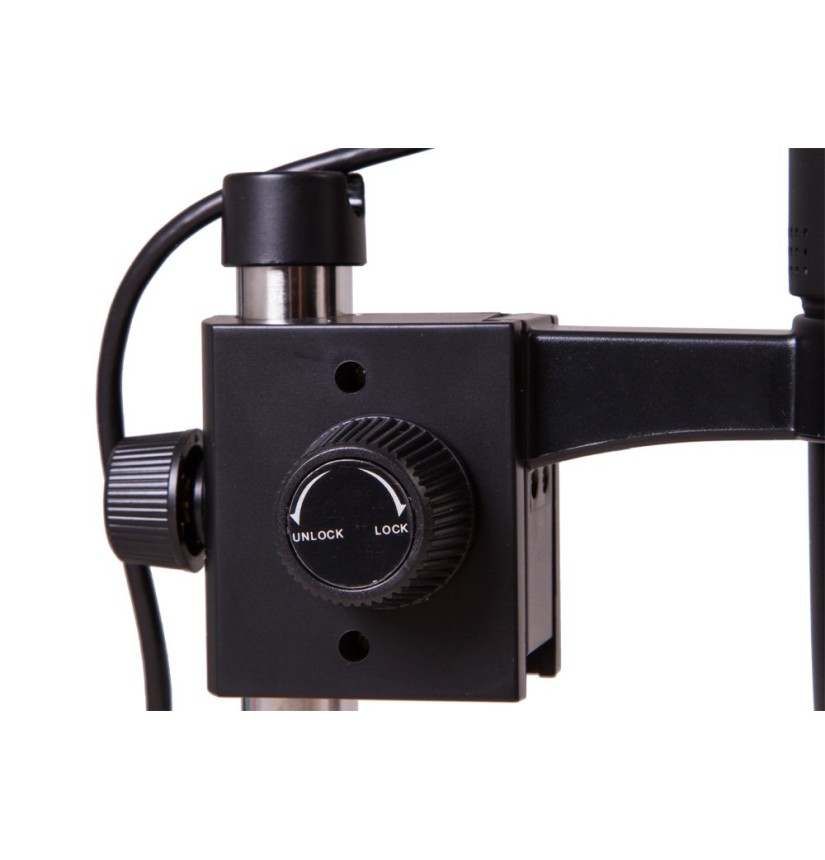

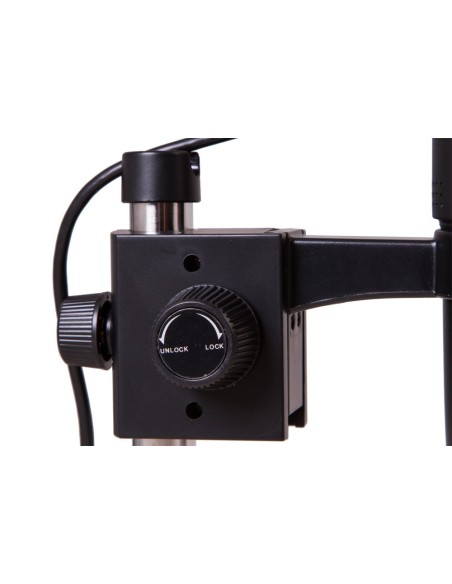

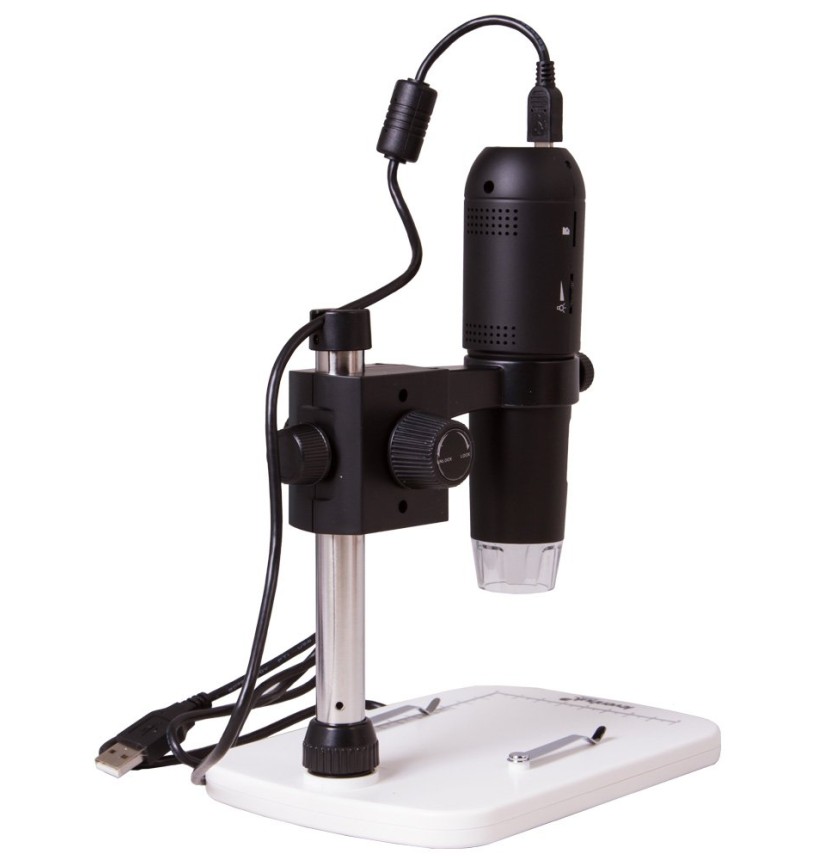

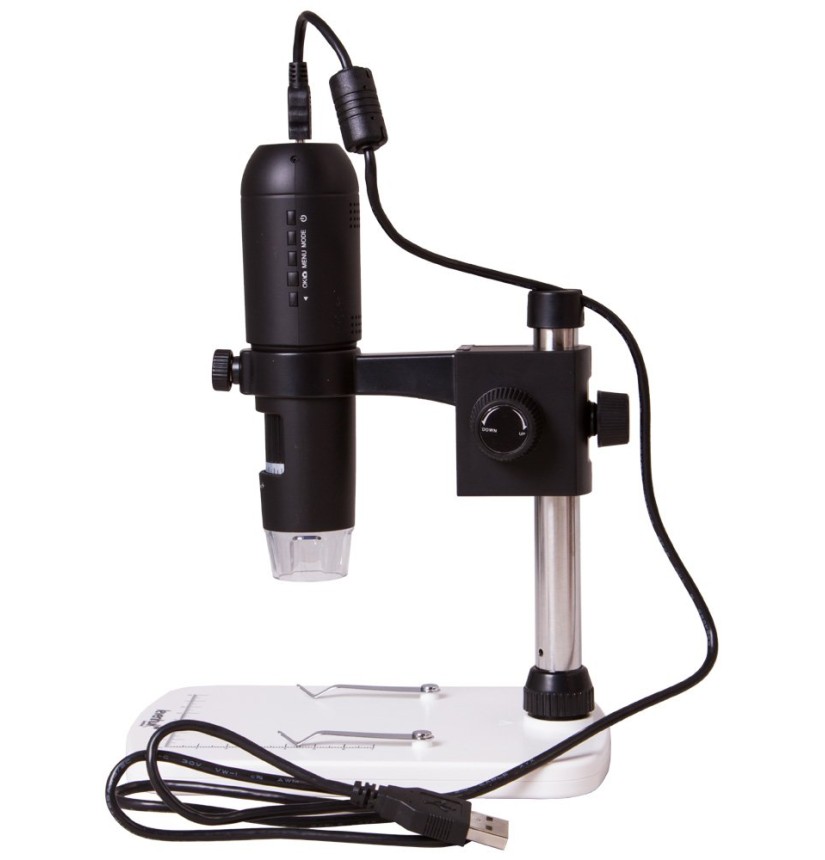

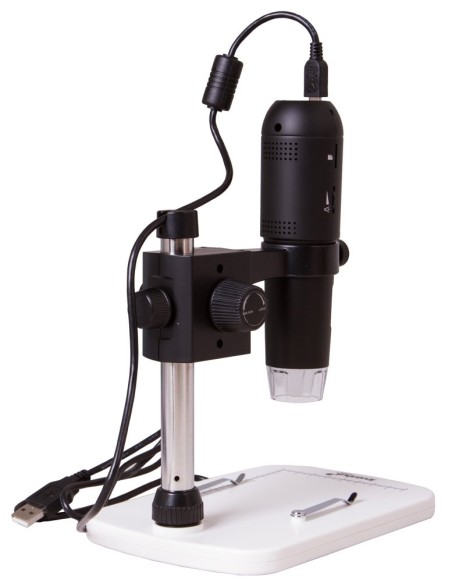

- Convenient stand
- 3 Mpx digital camera resolution
- Cables and software included

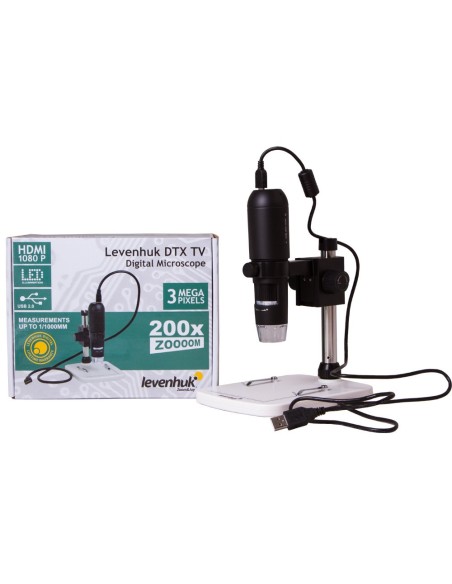

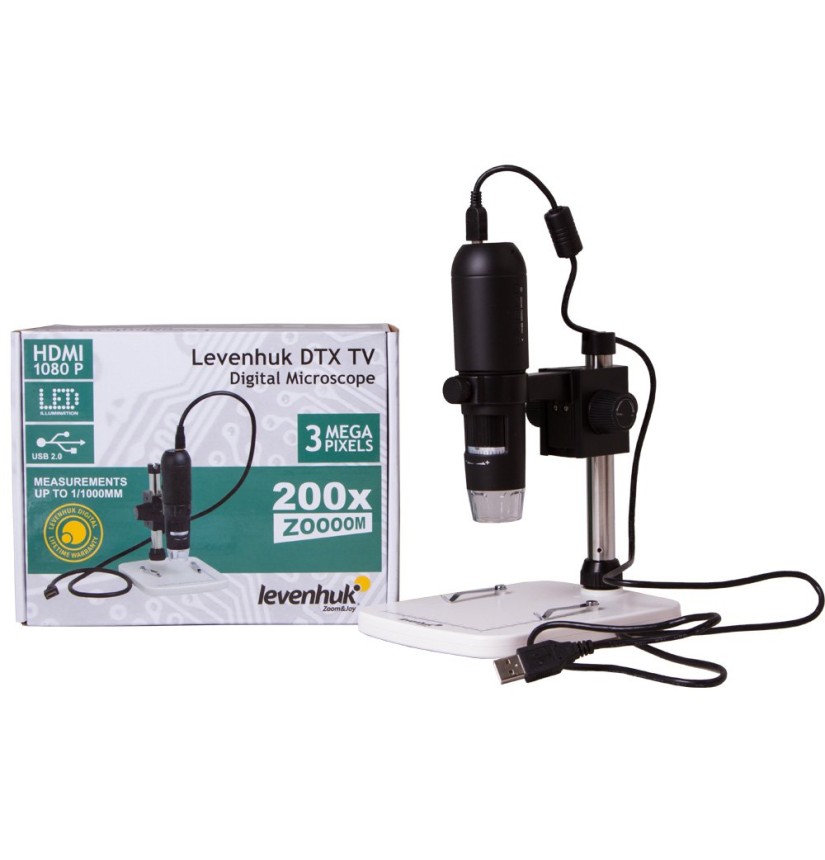

The kit includes:
- Digital microscope
- Stand
- Adapter*
- USB cable
- HDMI cable
- Calibration scale
- Software CD
- User manual and lifetime warranty
Advice on using the software:
To ensure the programme works correctly, only launch the installed application when the microscope is connected to a PC and you are ready to begin observations.
The Levenhuk DTX TV digital microscope is not compatible with external digital cameras.
* Warning: Please refer to the specifications table for the correct mains voltage and never attempt to connect a 110 V device to a 220 V socket, or vice versa, without using a converter. Please note that the mains voltage in the United States and Canada is 110 V, and 220–240 V in most European countries.
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| Package dimensions (LxWxH), cm | 14x22x17 |
| Shipping weight, | 1.05 |
| Type | digital |
| Head | digital display/PC monitor |
| Optical material | optical plastic |
| Magnification, x | 10–200 |

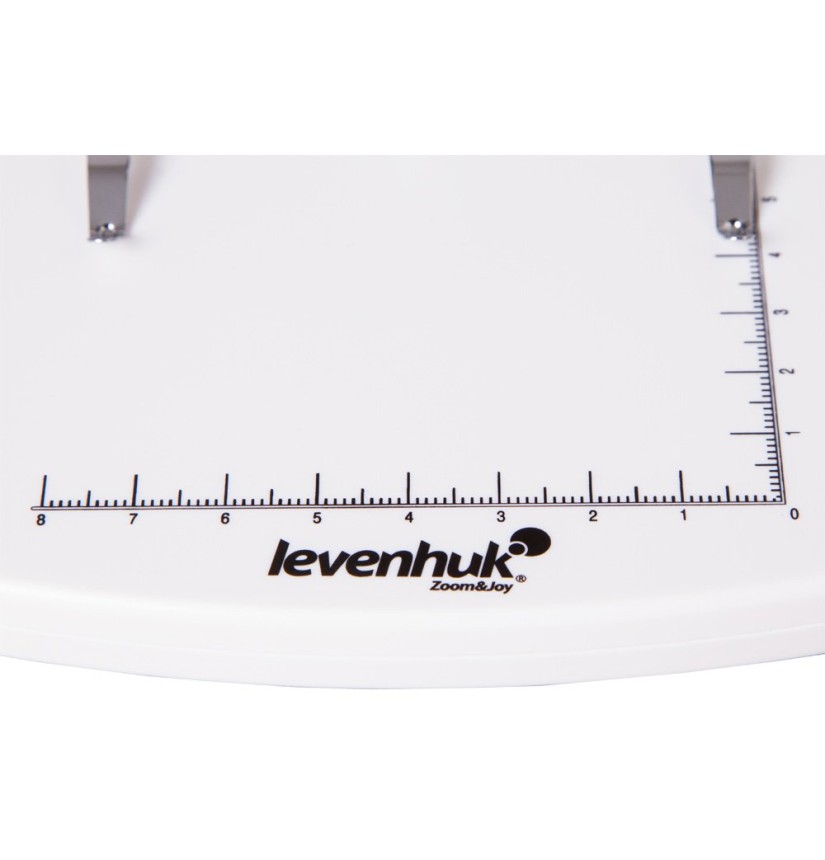

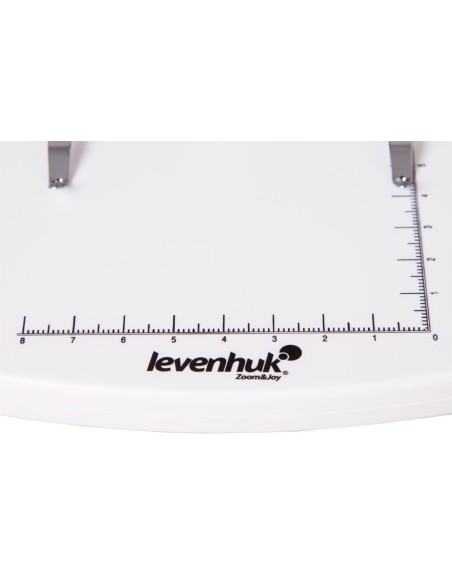

| Plate features | with clamps, with measuring scale and clamps, control knobs on the right-hand side |
| Focus | manual, ranging from 10 mm to 500 mm |
| Body | plastic |
| Lighting | LED |
| Power supply | 100–240 V, 50/60 Hz, 5 V |
| Operating temperature range, °C | -5…+50 |
| Additional | 8 LEDs |
| Megapixel | 3.0 |
| Video recording | Yes |
| Frame rate | 30 frames per second at 600 lux |
| Software, drivers | photo and video processing software with object measurement capabilities |
| System requirements | Windows XP/7/8/10, Mac 10.7 and later; 1.8 GHz Intel P4 or higher, 512 MB RAM, 64 MB graphics card, USB 2.0, CD-ROM, monitor with HDMI input |

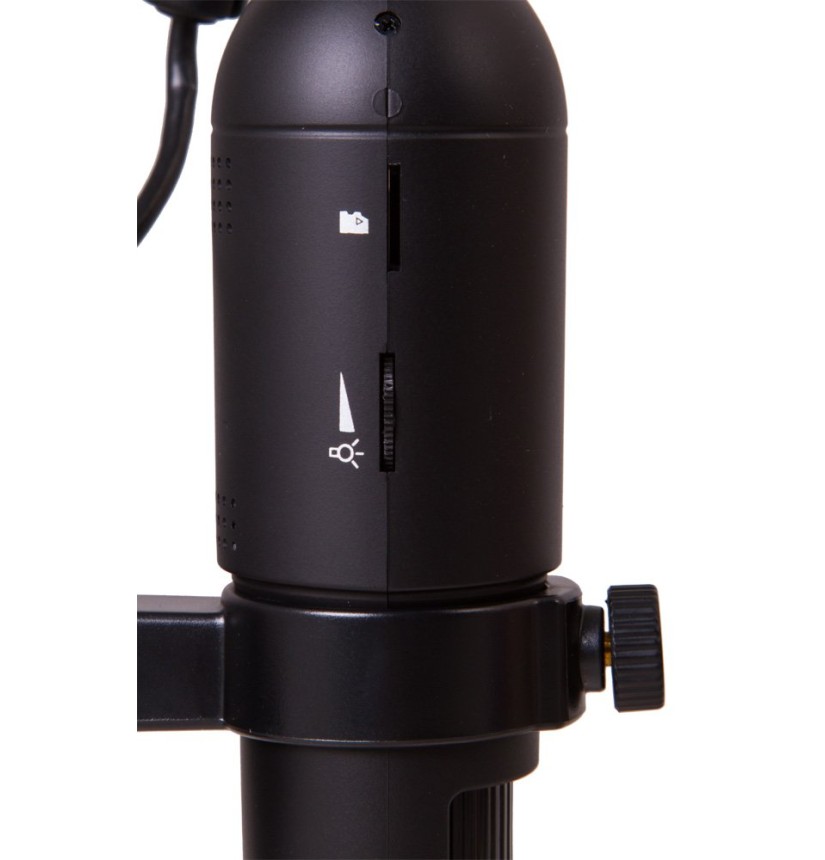

| Option to connect additional equipment | Supports MicroSD memory cards up to 32 GB (not included) |
| Image | *.jpeg, 14M, 8M, 5M, 3M, 2M, WVGA |
| Video format | HDMI: . h264; USB: . mjpeg; 1080p Full HD, 720p, VGA |
| Application | for applied research |
| Lighting position | top |
| Search method | bright-field |
