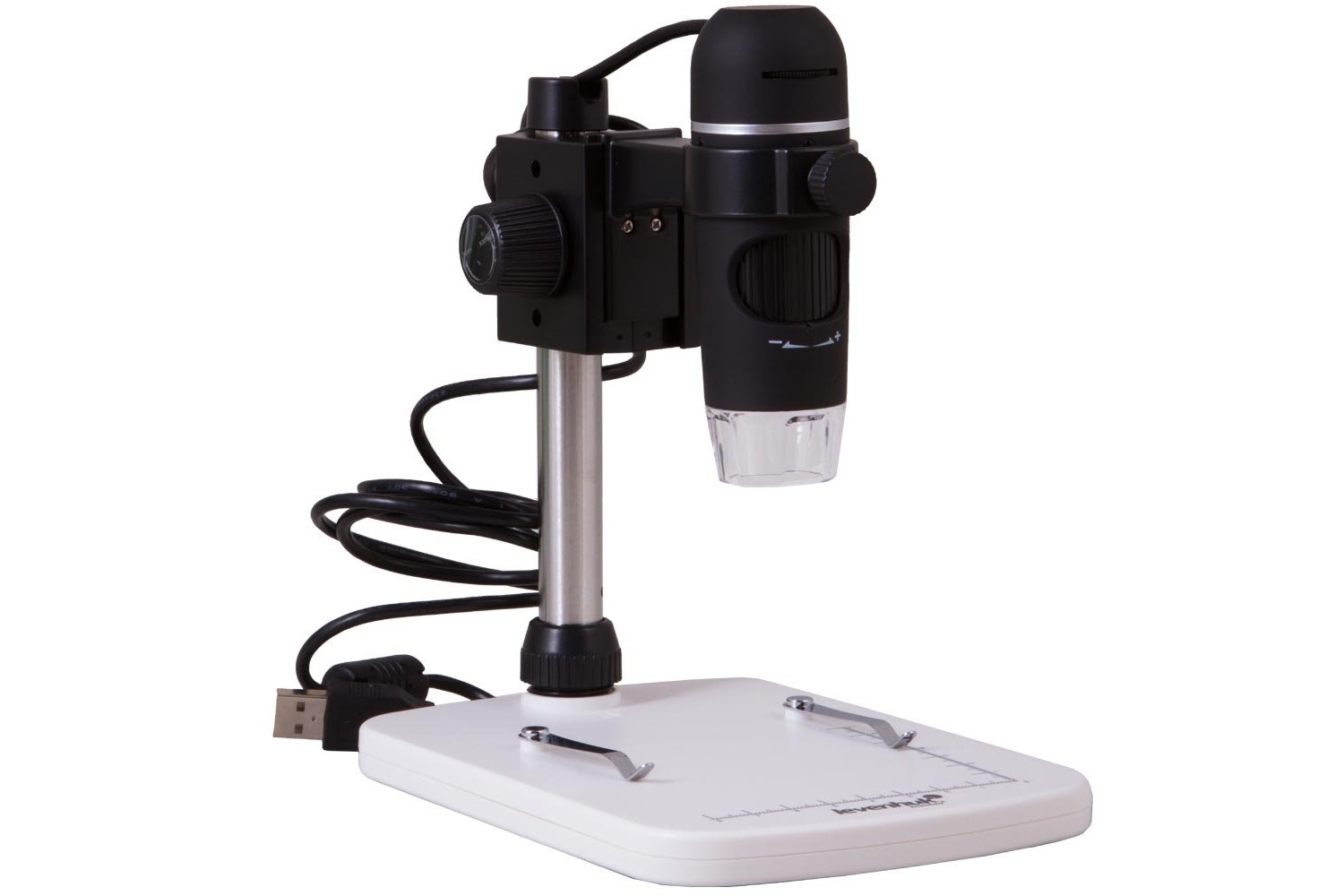

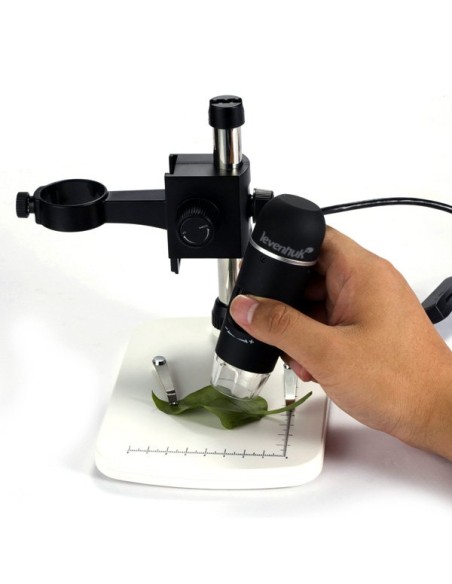

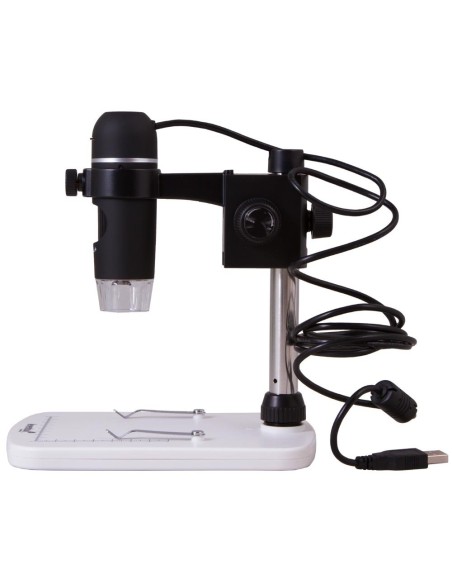

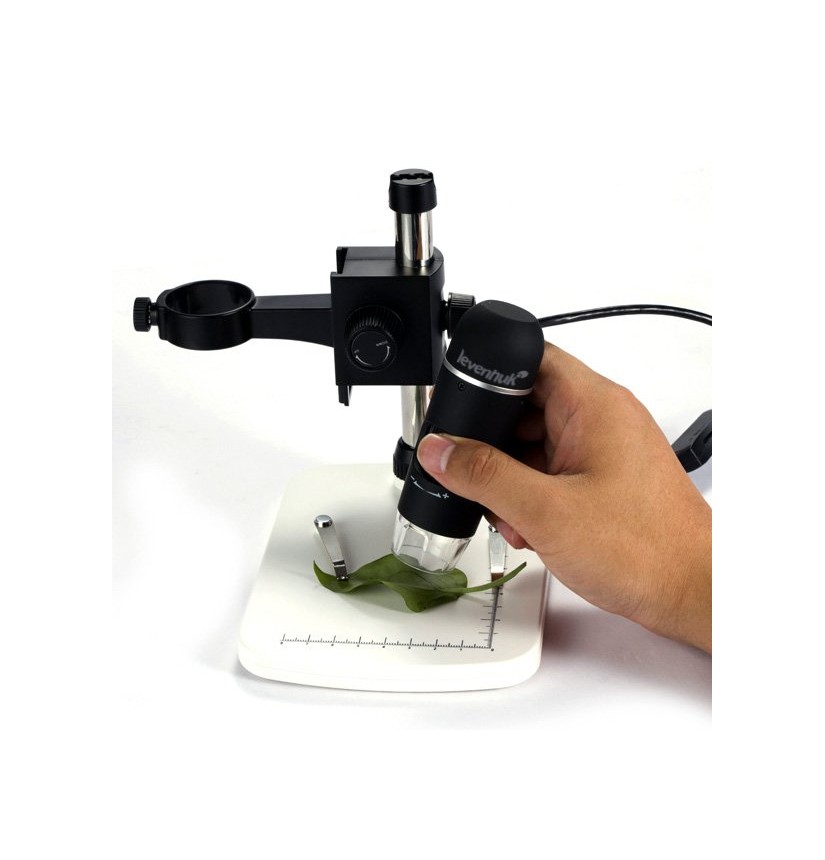

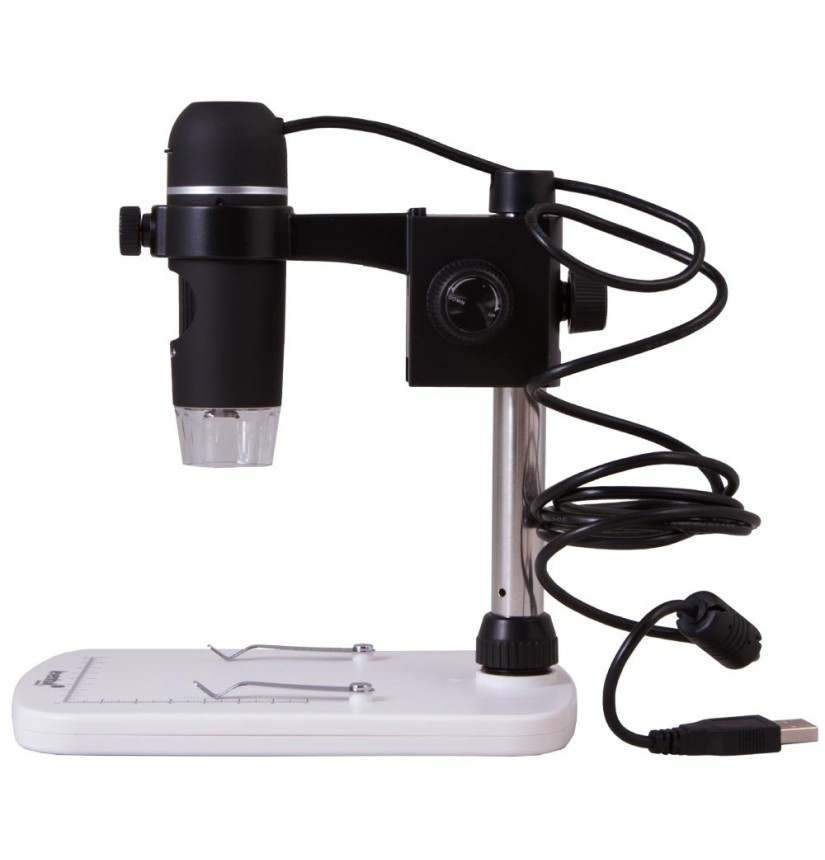

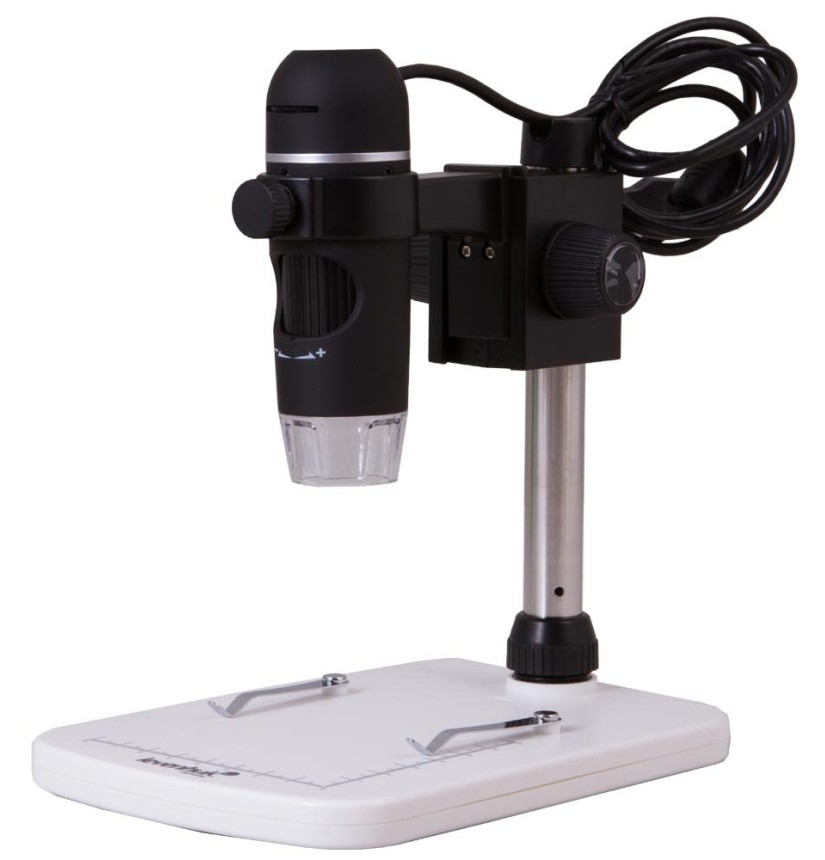

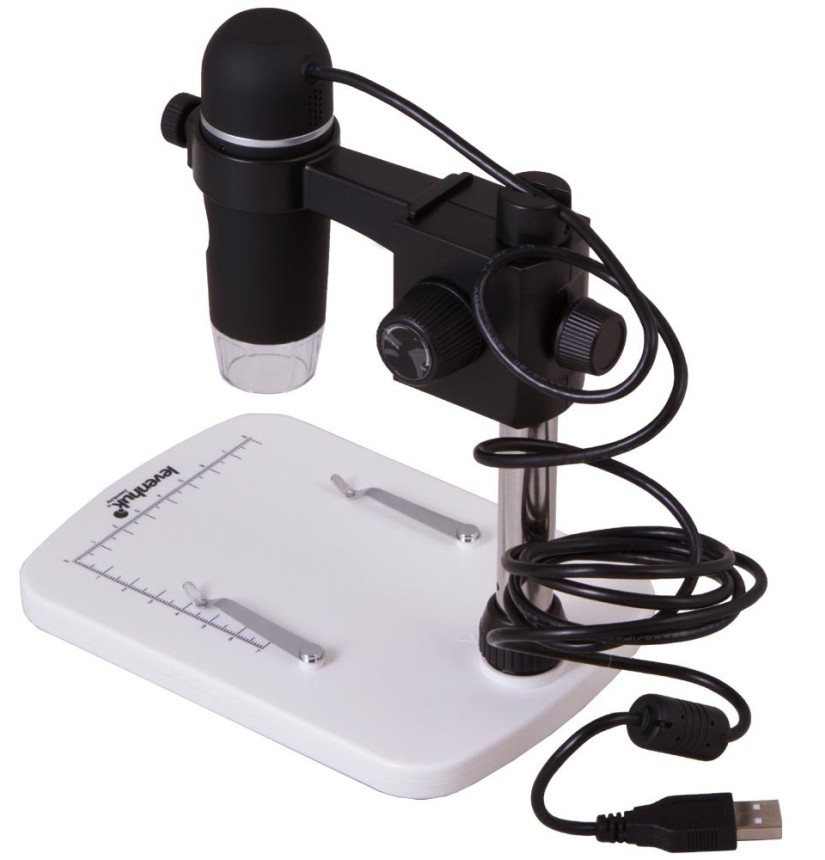

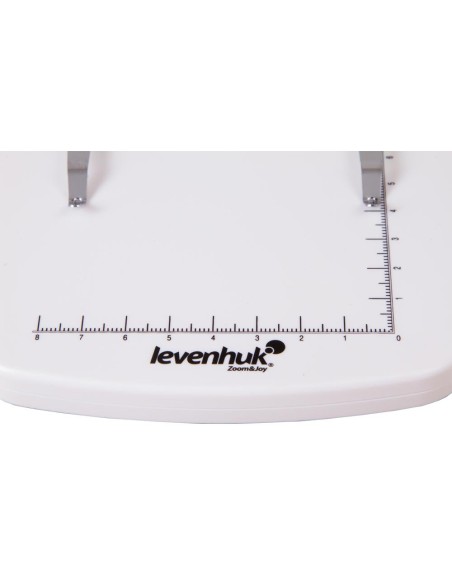

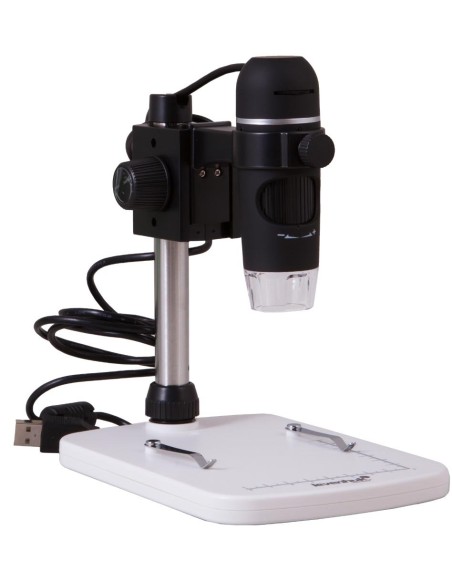

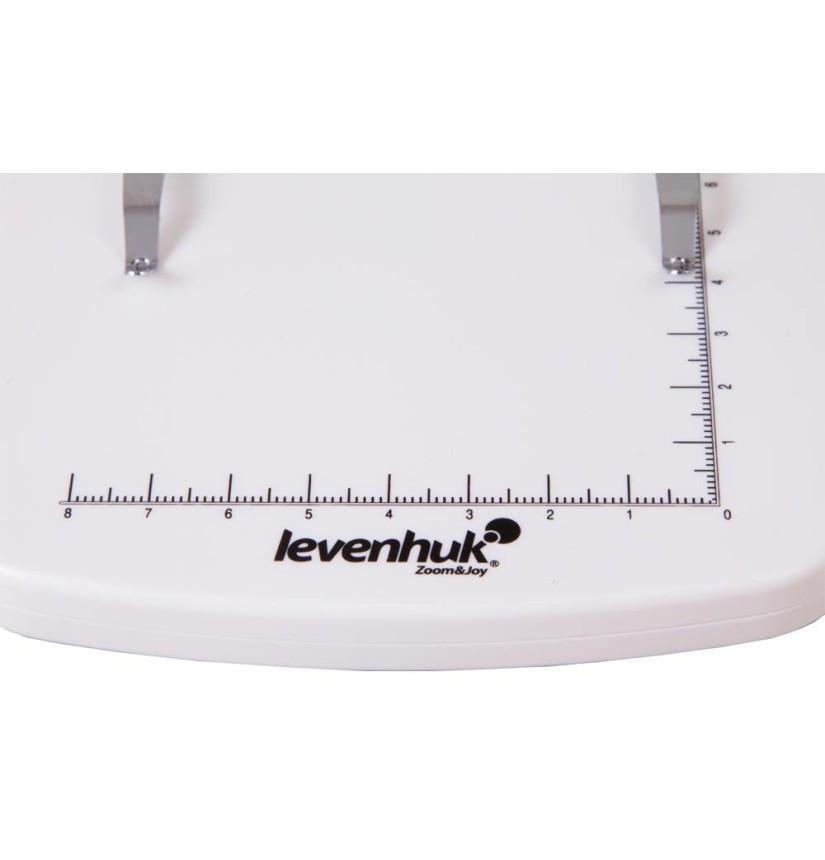

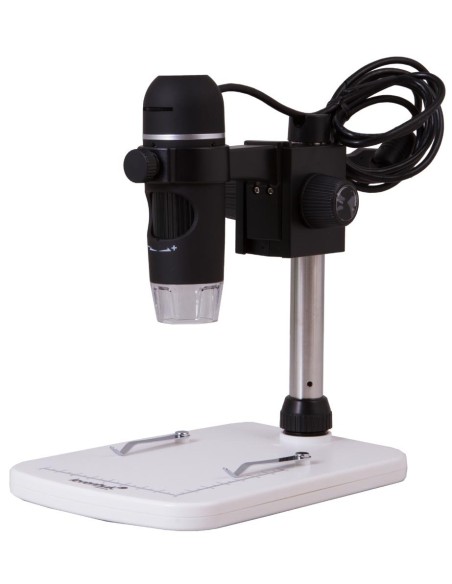

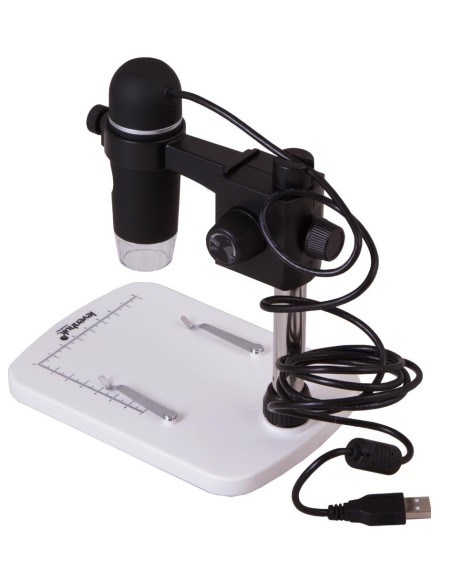

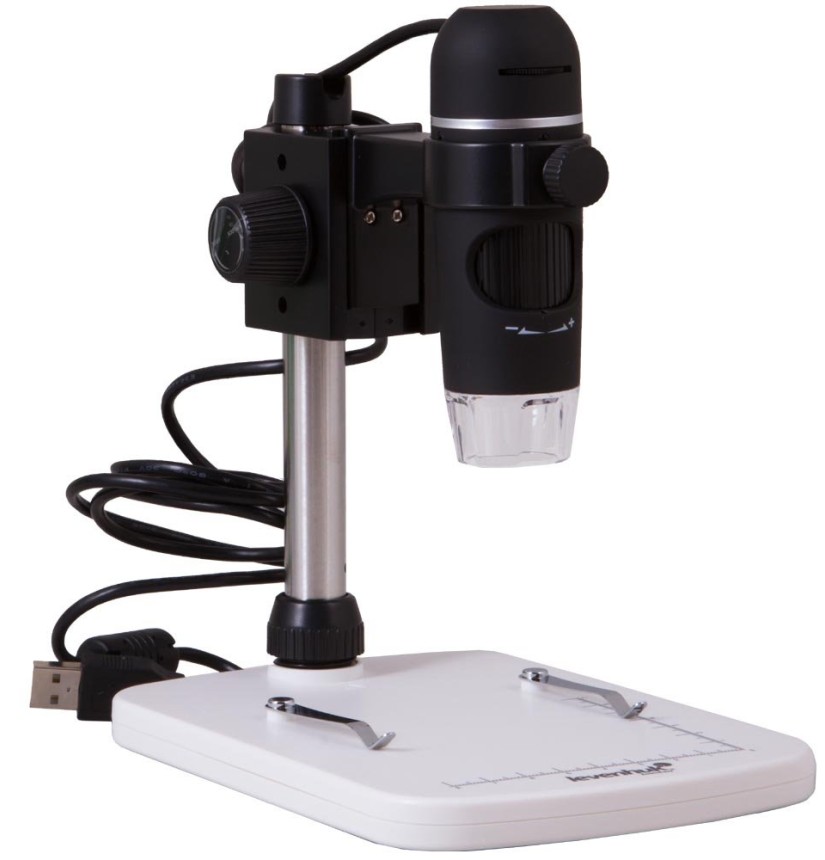

The Levenhuk DTX 90 is a modern, USB-enabled digital microscope designed for high-precision work. The microscope is fitted with a 5 Mpx camera and offers magnification ranging from 10x to 300x. It comes with a special tripod, a specimen stage with a graduated scale (8 cm along the X-axis and 7 cm along the Y-axis) and two levers for securing the specimen beneath the camera.

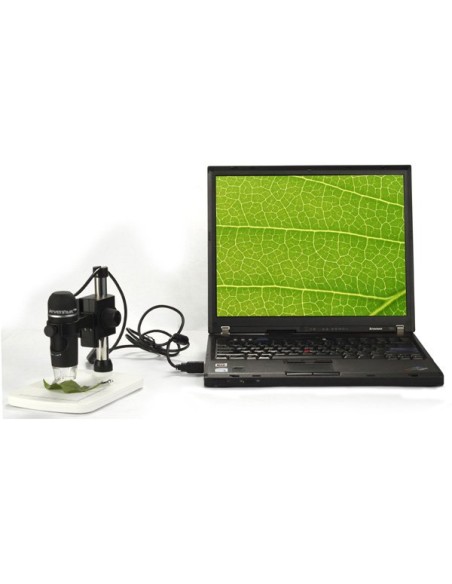

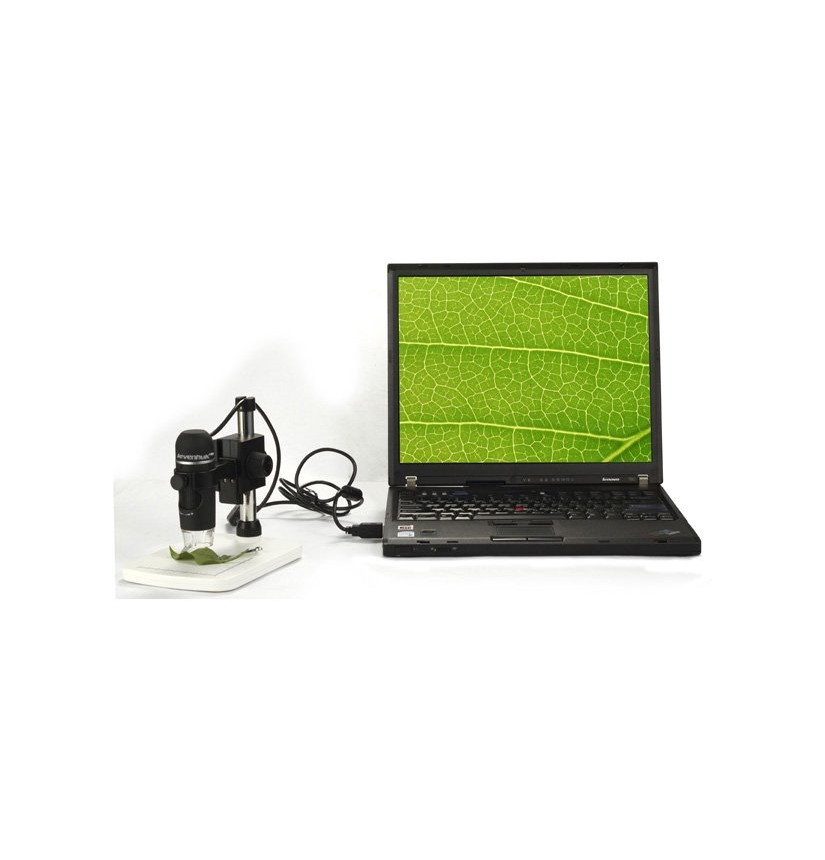

The Levenhuk DTX 90 digital microscope delivers images of the highest quality and resolution. The microscope connects to a PC via a standard USB 2.0 cable. Thanks to the user-friendly image processing software included in the kit, you can observe samples and process the captured images. In addition to the image processing functionality, which allows you to capture and edit images and videos, the software also enables you to measure linear dimensions, perimeters, radii and various angles of the samples under observation.

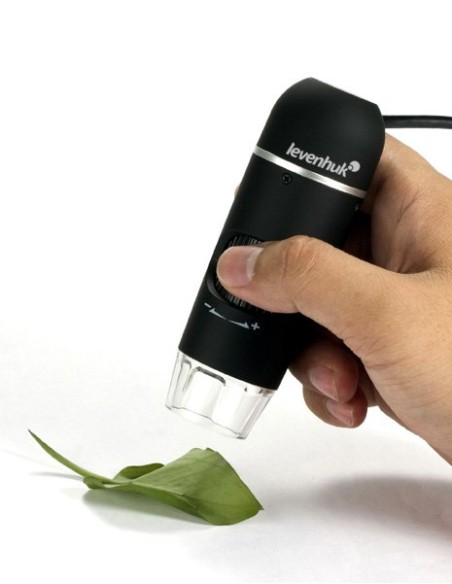

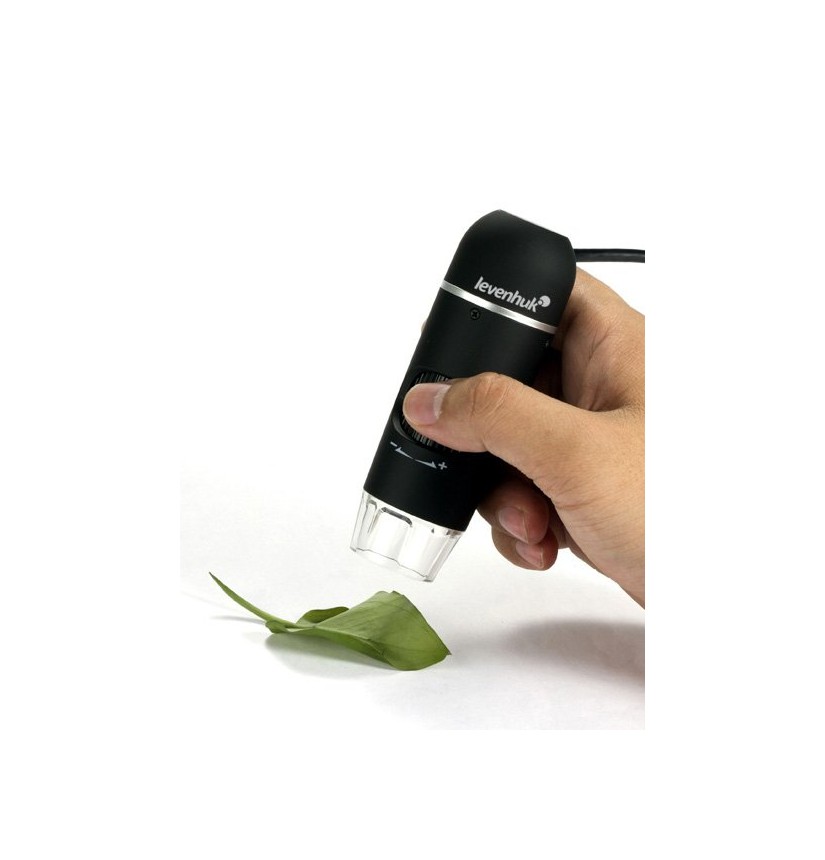

The Levenhuk DTX 90 is extremely easy to use and requires no special knowledge or skills. Thanks to its compact size, this microscope is particularly well-suited for home use. If necessary, you can detach the digital camera and use it without the tripod.
The rubber coating on the microscope body makes it pleasant to the touch, provides a comfortable grip and prevents it from slipping out of your hand.
Features:
- Removable 5 Mpx digital camera
- USB power supply

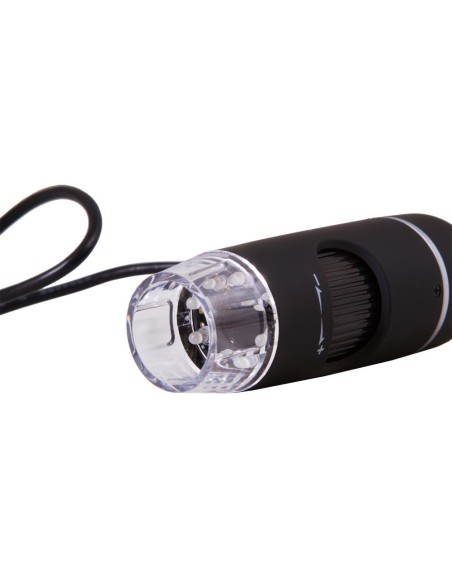

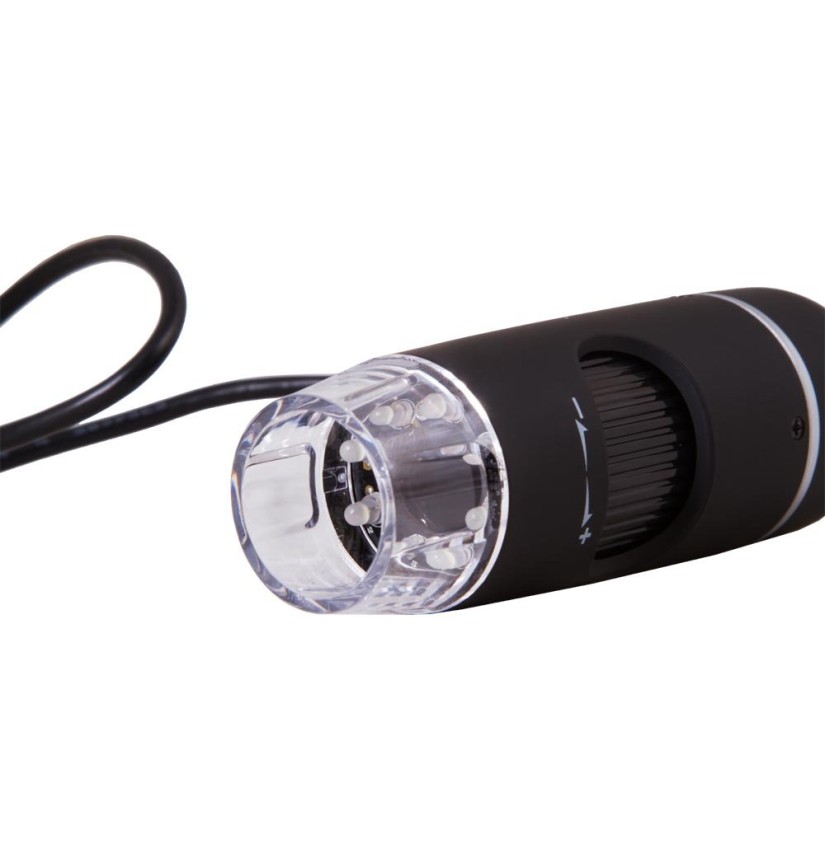

- 8 white LEDs with brightness control
- Capable of taking photos and videos
- Equipped with specialised software for measuring linear dimensions, areas, angles and radii of the samples under study
- Very wide range of applications
- Ease of use
- Compatible with Windows and Mac OS

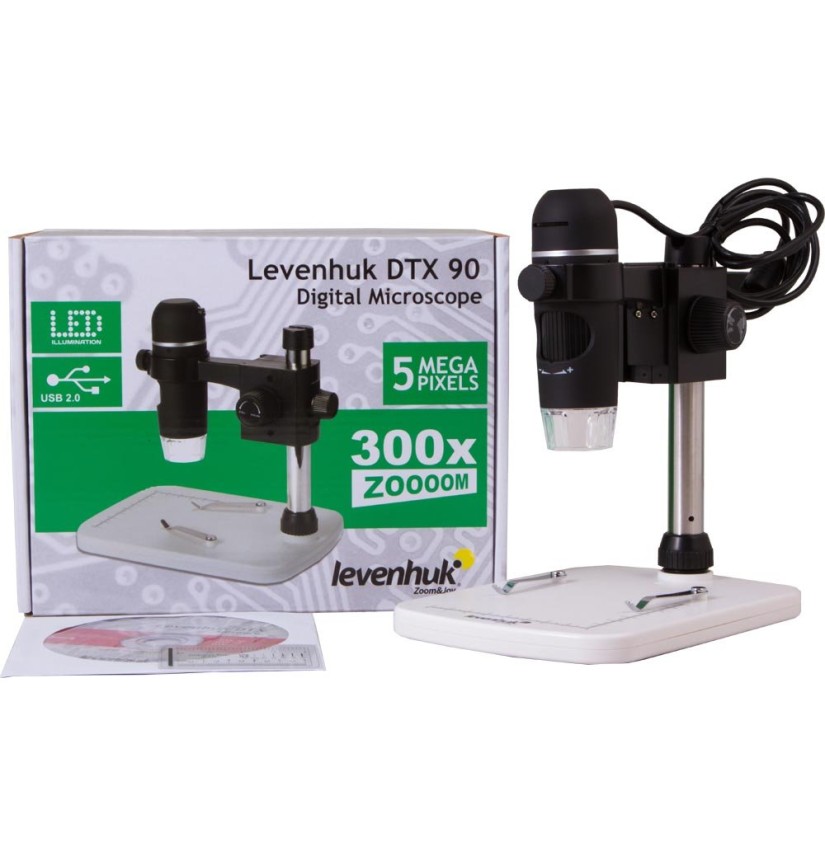

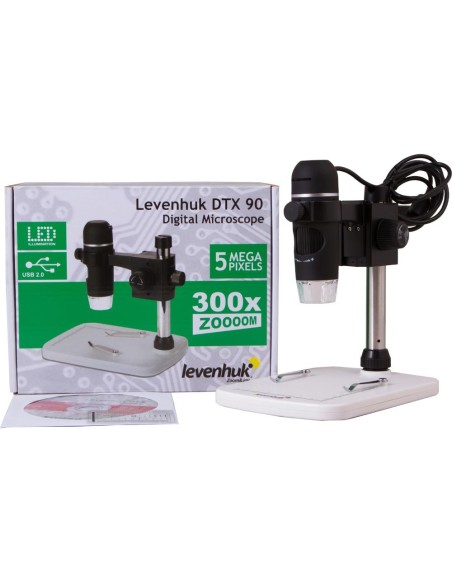

The kit includes:
- Levenhuk DTX 90 microscope
- Professional tripod
- Specimen stage with graduated scale
- Calibration scale
- Software CD
- USB cable
- User manual and lifetime warranty
Tips for using the software:
To ensure the programme works correctly, only launch the installed application when the microscope is connected to a PC and you are ready to begin observations.
The Levenhuk DTX 90 digital microscope is not compatible with external digital cameras.
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| Package dimensions (WxDxH), cm | 14x22x17 |
| Shipping weight, | 0.92 |
| Type | digital |
| Head | digital display/PC monitor |
| Optical material | optical glass |
| Magnification, x | 10–300 |

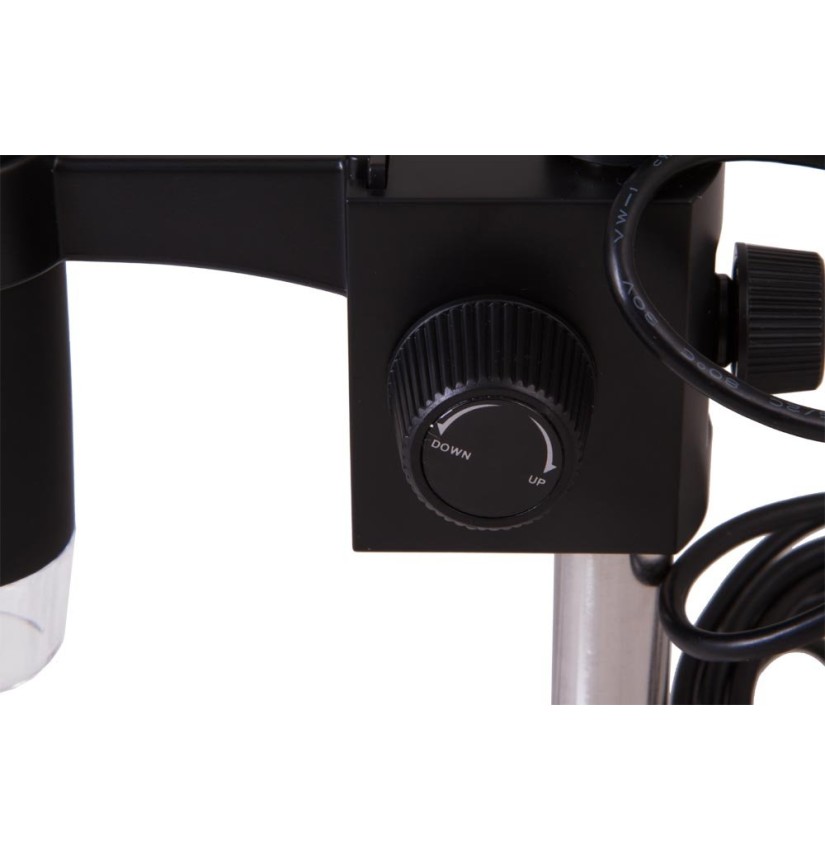

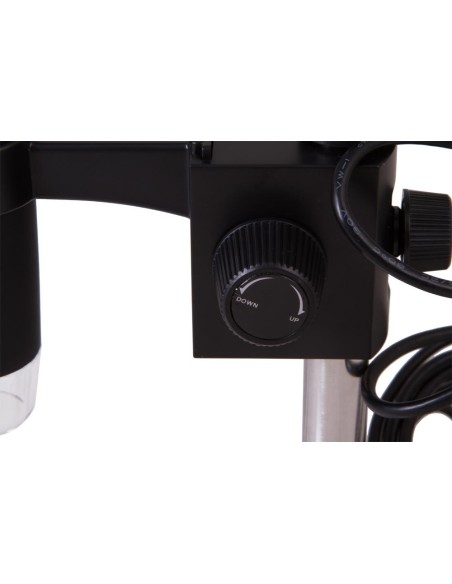

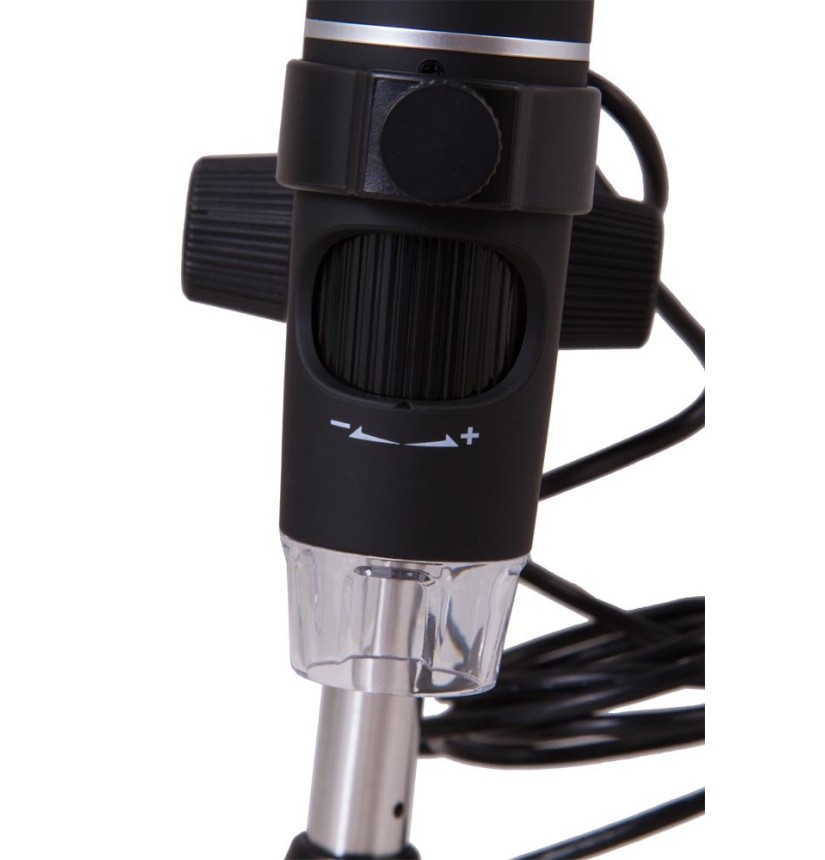

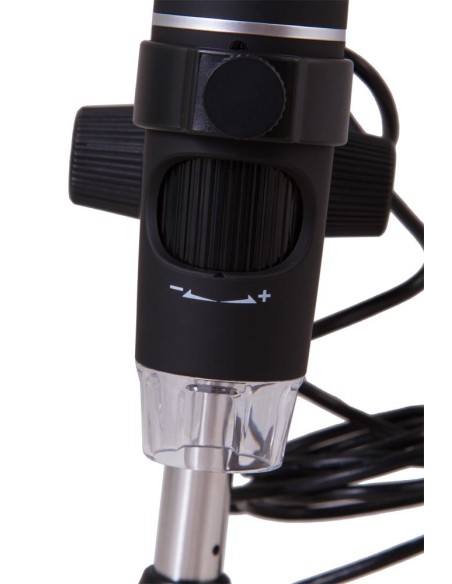

| Focus | manual, ranging from 0 mm to 150 mm |
| Body | rubber-coated, black |
| Illumination | LED |
| Brightness adjustment | True |
| Power supply | 5 V via USB 2.0 cable |
| Megapixels | 5.0 |
| Video recording | Yes |
| Software, drivers | photo and video editing software with object measurement functionality |
| Output | USB 2.0 |
| System requirements | OS: Windows XP/Vista/7/8/10, Mac OS X 10.6–10.10; 1.8 GHz Intel P4 or higher, 512 MB RAM, 64 MB graphics card, USB 2.0, CD-ROM |
| User level | Beginners |
| Image | *.jpeg, 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024 |
| Video format | *.avi, 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024 |
| Application | for applied research, laboratory/medical |
| Lighting position | top |
| Search method | bright-field |
