We are proud to present the Discovery range of optical instruments, manufactured by Levenhuk and sponsored by Discovery.

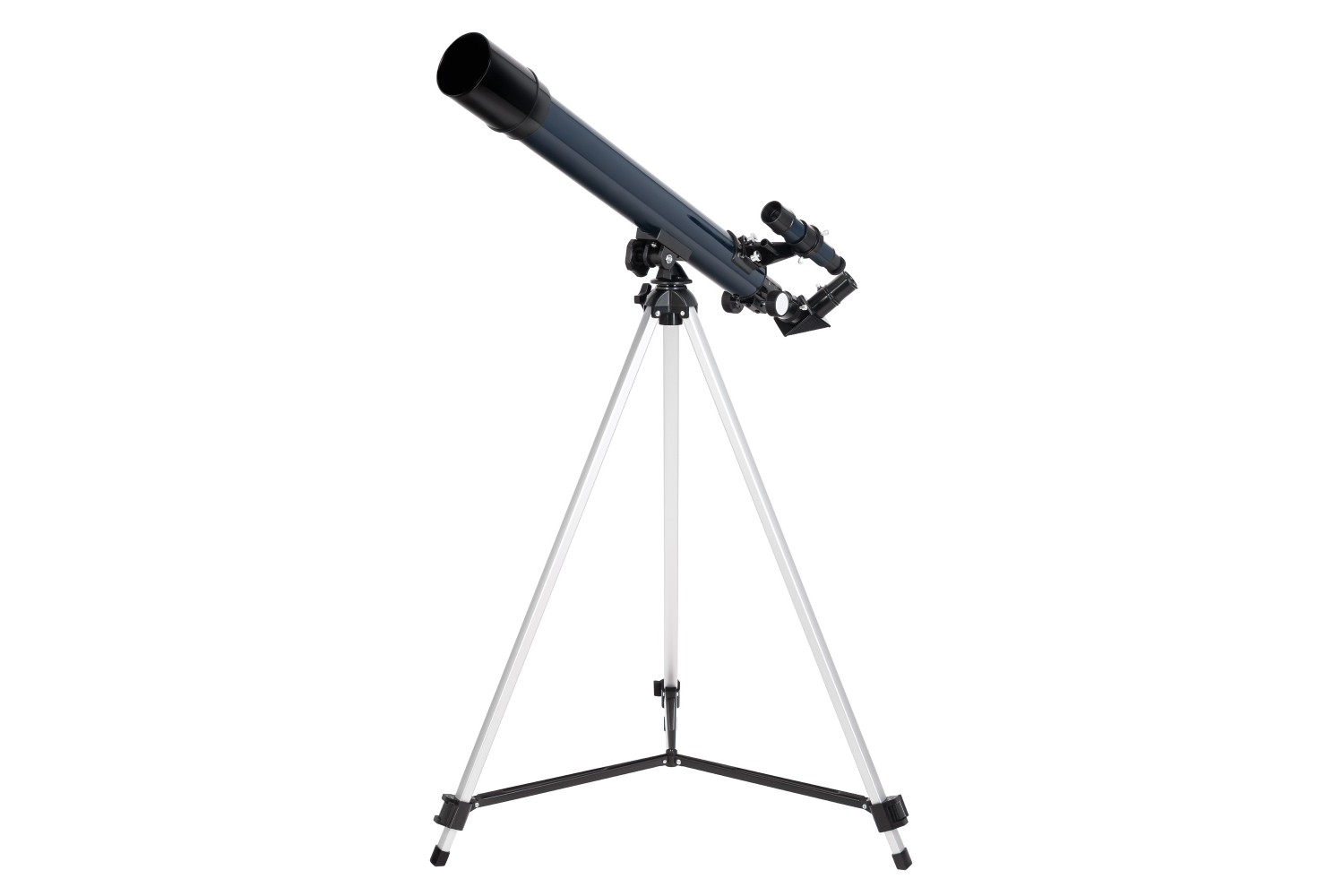

The Discovery Spark 506 AZ telescope with educational book is an achromatic refractor designed for beginners. It is an easy-to-use instrument. It is also ideal for taking your first steps into the world of astronomy and for observing the Moon. As well as its practical applications, this instrument allows you to expand your theoretical knowledge too! The telescope, in fact, comes with a colourful educational book about space. During the day, the telescope can easily be converted into a terrestrial telescope for studying natural landscapes and objects on the horizon.
The optics are made of glass, so the telescope produces clear and bright images. The achromatic optical design and the anti-reflective coating on the lenses improve image quality by minimising optical aberrations. A classic altazimuth mount is used to aim the telescope, which can be operated easily by users of any skill level. The mount is fitted to a sturdy, height-adjustable aluminium tripod. This allows every member of the family to find a comfortable position from which to observe the stars.
One of the Discovery Spark 506 AZ’s strengths is its extensive set of accessories. In addition to the telescope, the colourful gift box contains two eyepieces with different focal lengths, a 3x Barlow lens and other accessories. The illustrated educational book ‘Space: Not Empty After All’ will answer the many questions of any budding space explorer, providing interesting information about various celestial bodies.
Key features:
- Telescope with altazimuth mount and simple controls
- Optical configuration: achromatic refractor
- Glass optics with anti-reflective coating
- Set of accessories for immediate observations
- An informative guide to space
The kit includes:
- Telescope tube
- 6 mm H eyepiece
- 20 mm H eyepiece
- 5x24 optical finder
- 90° mirrored diagonal
- 3x Barlow lens
- Altazimuth mount
- Aluminium tripod
- Educational book ‘Space: Empty or Not Empty?’
- User manual and warranty certificate
| Brand | Discovery |
| Warranty, years | 10 |
| EAN | 4620137483604 |
| Package dimensions (WxDxH), cm | 77x23x12 |
| Shipping weight, kg | 2.46 |
| Separator | Discovery Spark 506 AZ telescope with book |
| Optical design | refractor |
| Optical scheme | achromatic |
| Optical material | optical glass |
| Lens coating | anti-reflective |
| Objective lens diameter (aperture), mm | 50.0 |
| Focal length, mm | 600 |
| Maximum usable magnification, x | 100.0 |
| Aperture ratio | f/12 |
| Resolution threshold, arcseconds | 12 |
| Limiting apparent magnitude | 10.59 |
| Eyepieces | Н6 mm (100x), H20 mm (30x) |
| Eyepiece barrel diameter, in | 0.965 |
| Barlow lens | 3x |
| Optical | optical, 5x24 |
| Focuser | rack and pinion |
| Tripod | aluminium |
| Tripod height (adjustable), mm | 630–1130 |
| Telescope control | Manual |
| Mount | altazimuth |
| Optical tube mounting method | screws |
| Optical tube material | metal |
| User level | beginners |
| Level of difficulty for assembly and installation | extremely simple |
| Object observed | planets of the Solar System, terrestrial objects |
