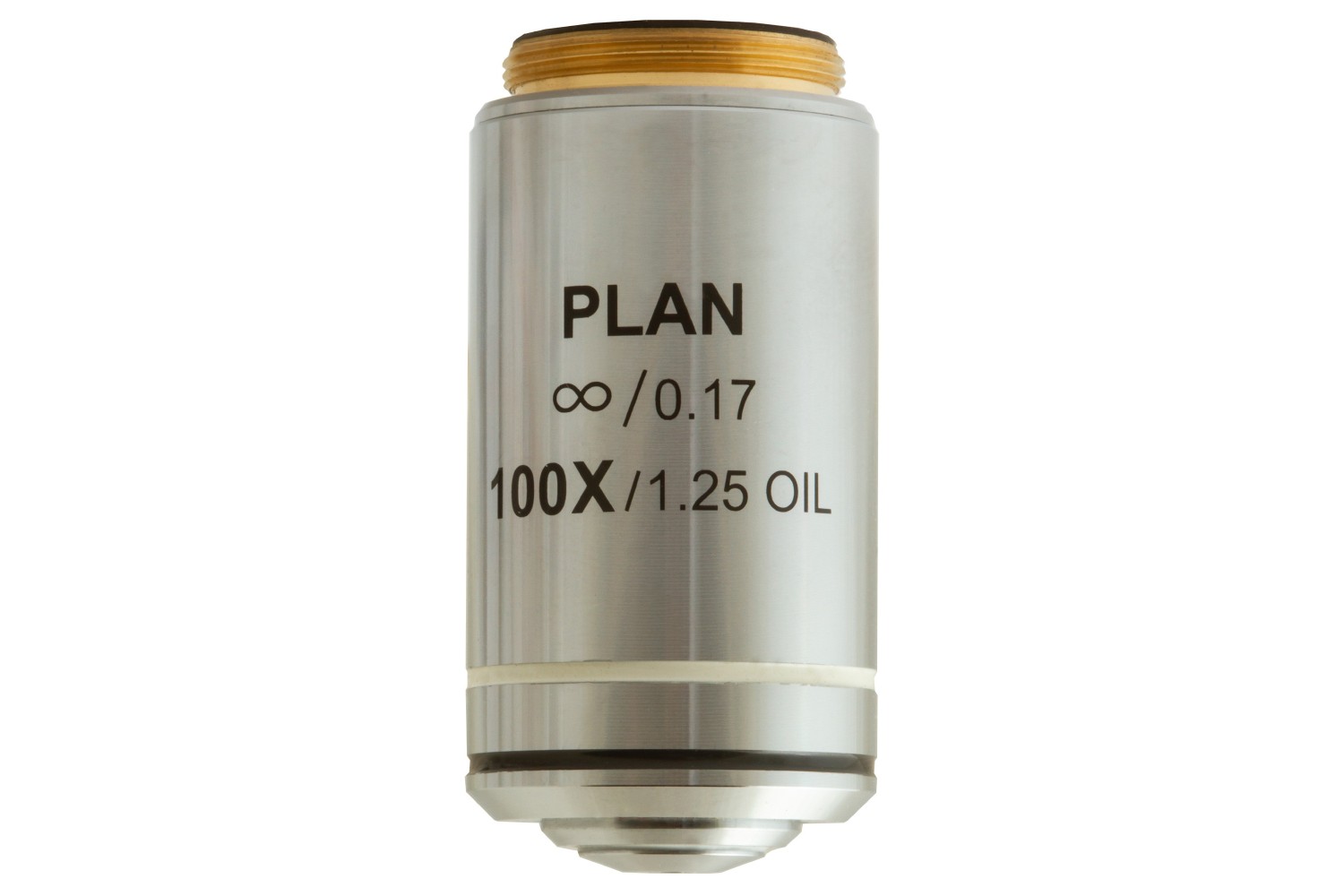

The Levenhuk MED 100x infinity-corrected planachromatic objective is an accessory designed for laboratory microscopes. It is designed for infinity-corrected optical systems and enables high-precision, high-magnification observation. It offers a magnification of 100x. Plan-achromatic optics perfectly correct field curvature by flattening the field of view. This enables the delivery of sharp, high-quality images free from spherical or chromatic aberrations. The objective can be used for standard ‘dry’ observations. In addition, it allows for observations using oil immersion.
The objective lenses are made of glass, and the front lens is protected by a spring-loaded frame. The objective body is made of metal. The Levenhuk MED 100x infinity planachromatic objective is perfect for professional use in microbiology.
The kit includes:
- Objective lens
- Plastic case
| Specifications | |
|---|---|
| Lens material | Optical glass |
| Body material | copper |
| Optical design | planachromatic |
| Magnification, x | 100 |
| Aperture | 1.25 |
| Working distance, mm | 0.25 |
| Parfocal distance, mm | 180 |
| Cover glass thickness, mm | 0.17 |
| Compatible tube length, mm | infinite |
| Thread type | WJ 4/5”*1/36” |
| Spring-loaded mechanism | yes |
| Oil immersion | yes |
| Brand | Levenhuk Inc., USA |
| Warranty, years | 2 |
| EAN | 0753215775422 |
| Package dimensions (LxWxH), cm | 3.5 x 6 x 3.5 |
| Shipping weight, kg | 0.1 |
