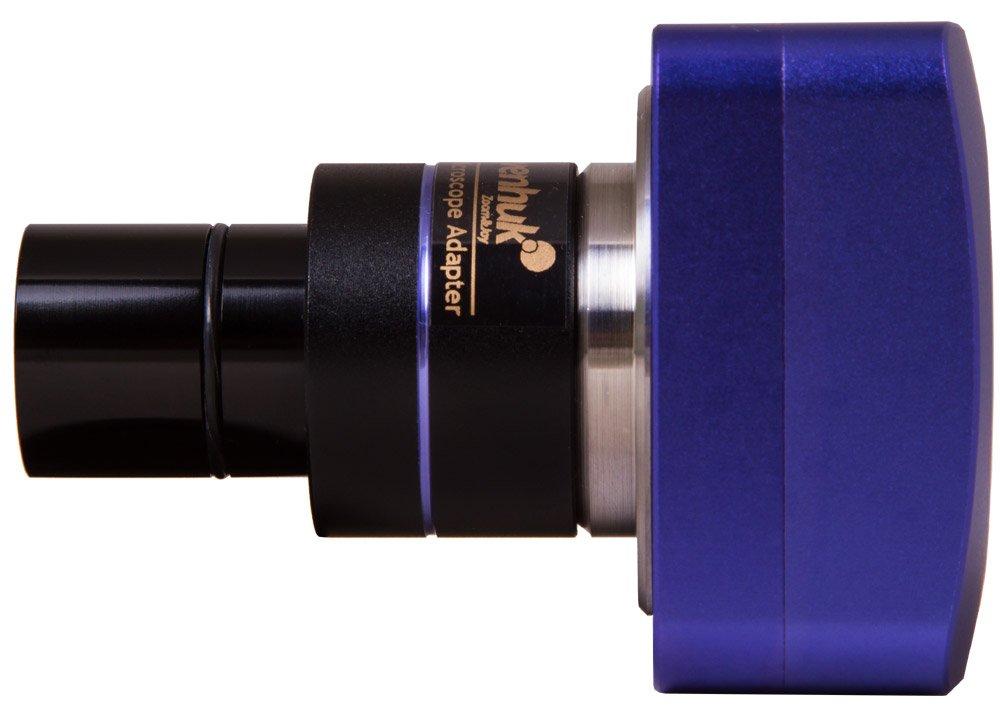

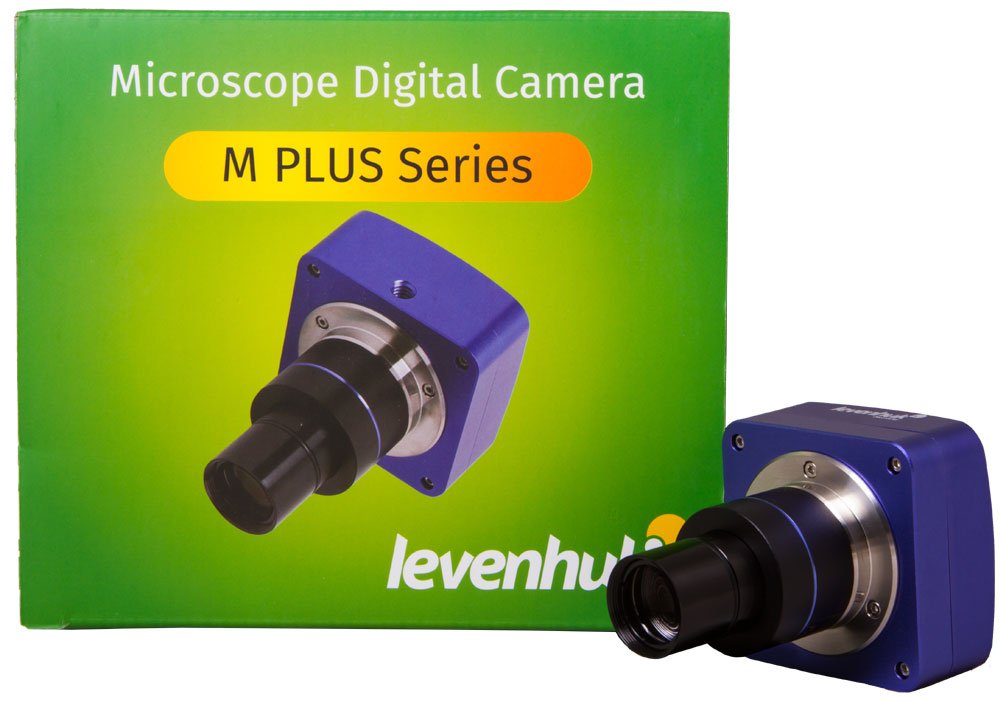

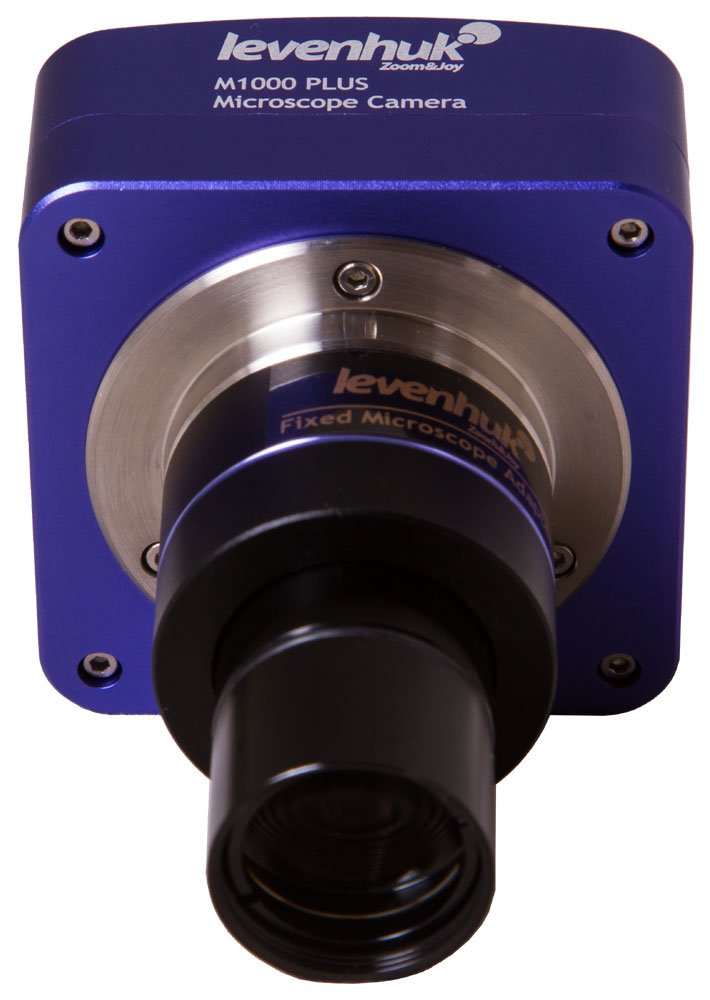

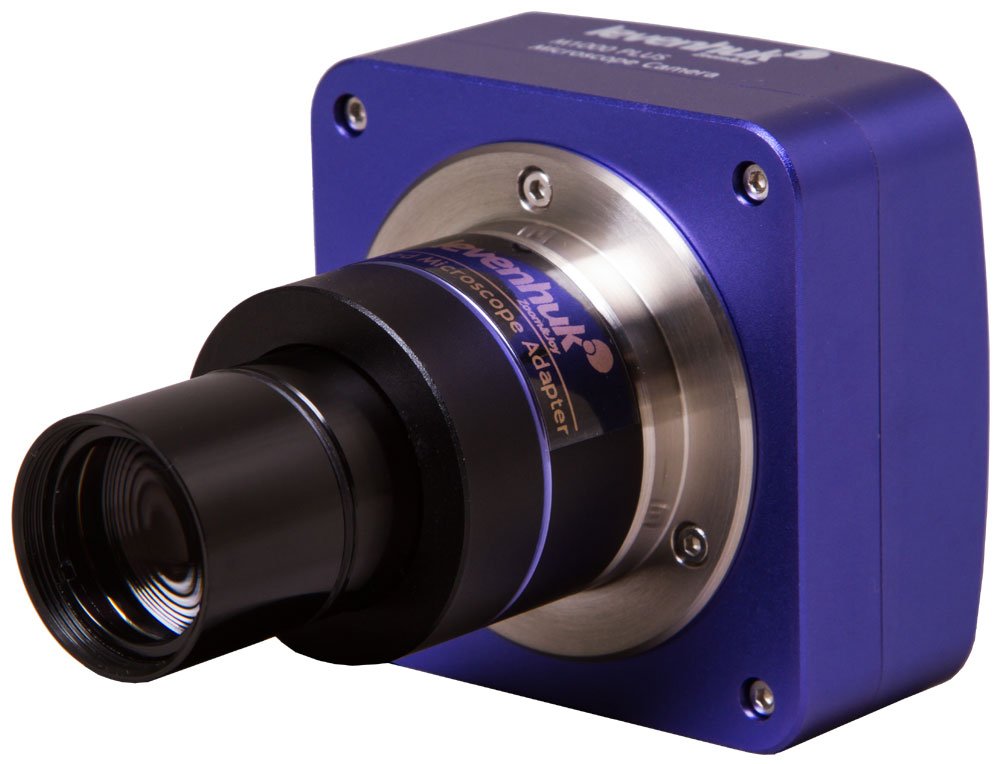

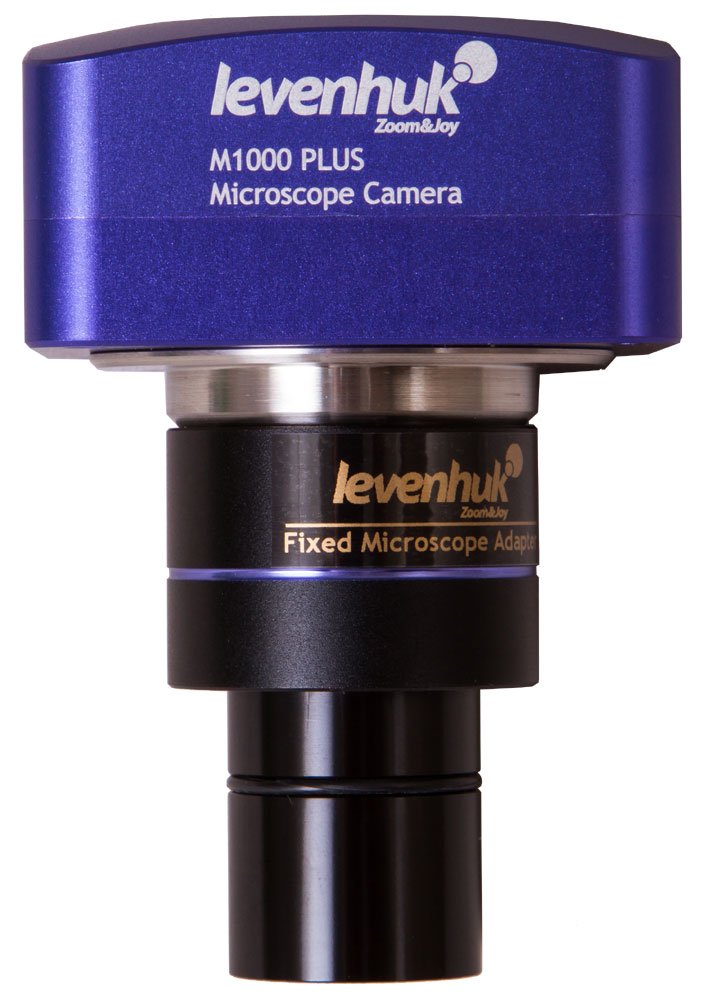

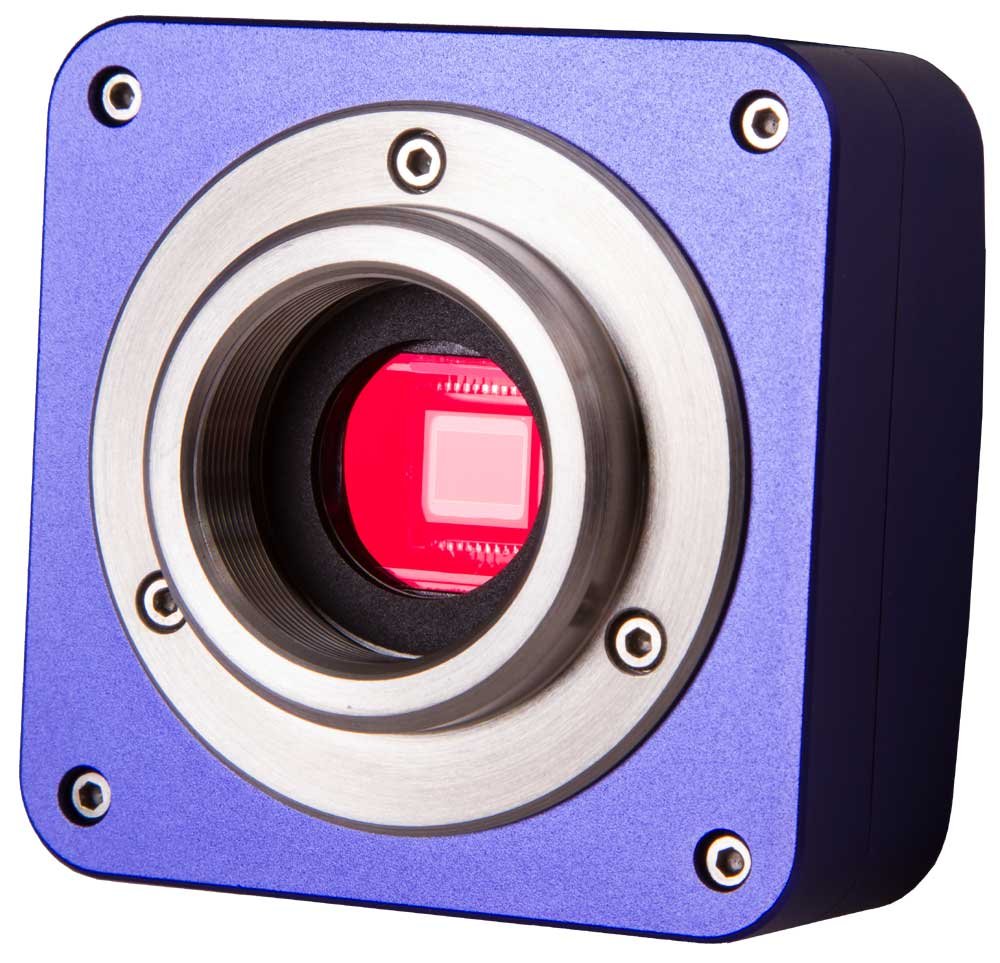

The Levenhuk M1000 PLUS 10-megapixel digital camera is a powerful accessory for taking photographs of the micro world. It allows you to take photographs with a resolution of up to 3584x2748 pixels. You can also record smooth, colourful videos, share photos of interesting moments from your research with like-minded people, and stream videos of your studies. The camera is compatible with biological and stereomicroscopes of any make.

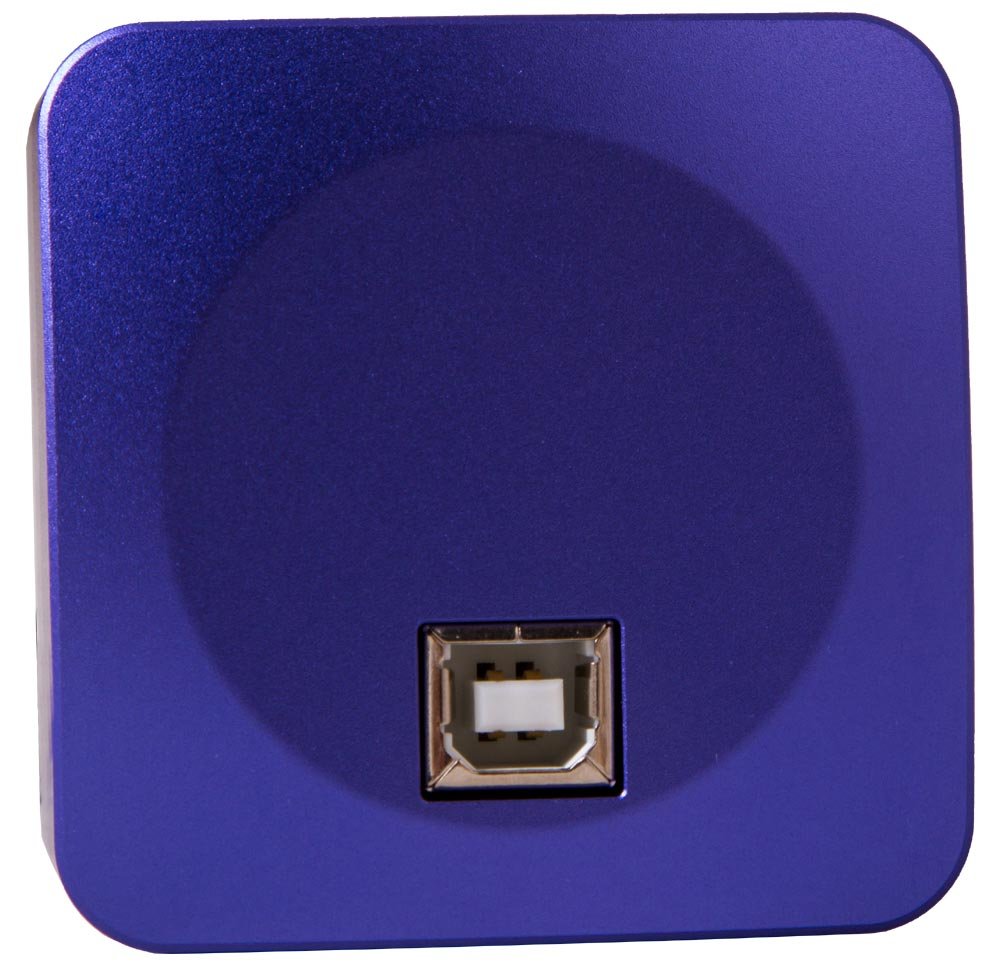

This camera can be fitted into an eyepiece tube of any diameter: the necessary adaptors are included in the kit. A standard USB cable is used to connect the device to a computer. To process the captured images, use the special Levenhuk software (the CD is included).
The Levenhuk M1000 PLUS digital camera is suitable for both an introduction to the world of microphotography and professional work with samples.
The kit includes a CD with special software that allows you to edit previously saved images, zoom in, crop them, adjust the contrast, etc.
To ensure the best possible performance from your new camera, please ensure that your computer meets the system requirements specified by the manufacturer. Compatible operating systems include Mac, Linux and Windows. A USB 2.0 port is required to establish a connection. If the software does not work on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of the Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese and Turkish.
The Levenhuk digital camera is compatible with microscopes fitted with an optical tube with a diameter of 23.2 mm. Furthermore, the camera can be mounted on optical tubes with diameters of 30 and 30.5 mm using adaptors included in the kit.

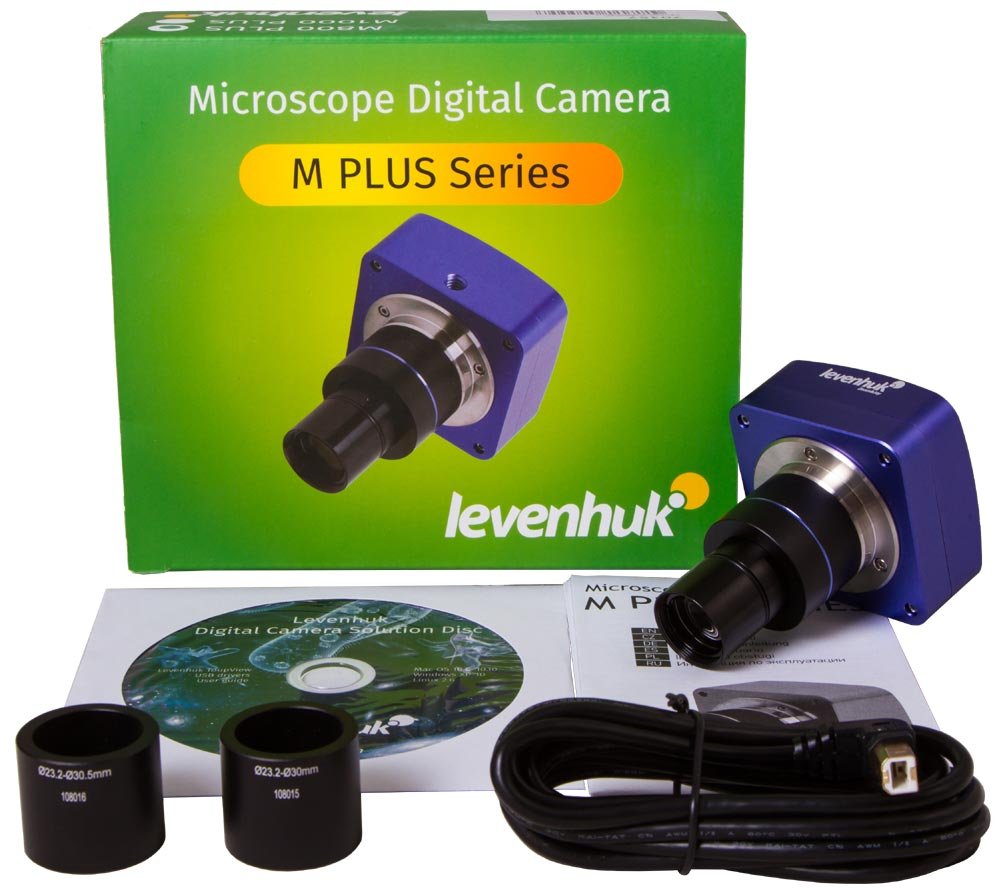

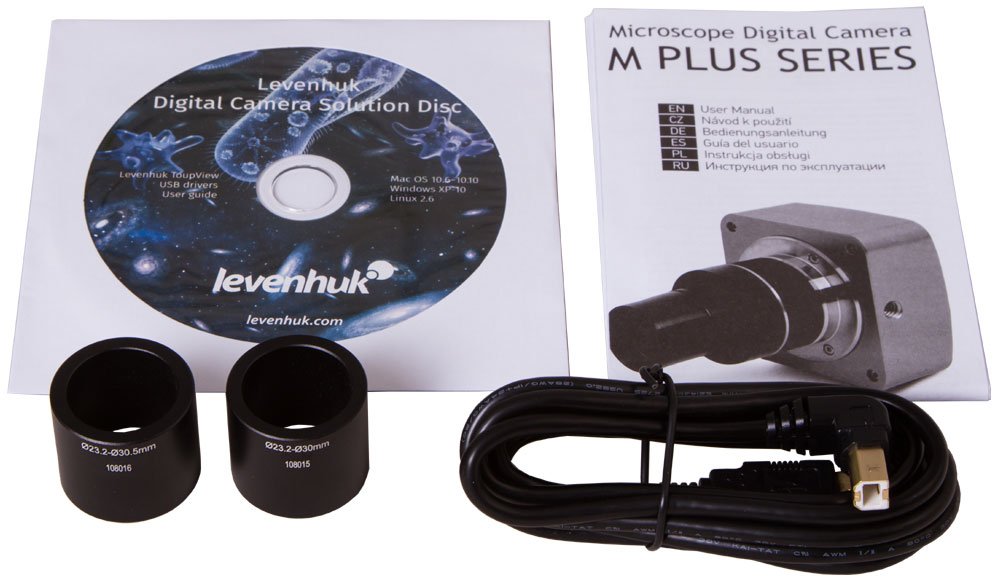

The kit includes:
- Levenhuk digital microscope camera
- Adapter (23.2 mm)
- 2 microscope adapters for different objective tube diameters (23.2–30 mm and 23.2–30.5 mm)
- USB cable for connection to a PC or laptop and power supply
- Installation CD containing the Levenhuk image editing software and the necessary drivers
- User manual and lifetime warranty
| Specifications | |
| Maximum resolution | 3584x2748 |
| Megapixels | 10 |
| Sensor | 1/2.3" CMOS |
| Pixel size | 1.67 x 1.67 |
| Sensitivity, V/lux.sec @ 550 nm | 0.31 |
| Exposure time, ms | 0.4–2000 |
| Video recording | Yes |
| Frame rate, frames per second @ resolution | 1.9@3584×2748 8@1792×1374 27@896×684 |
| Dynamic range, dB | 65.2 |
| Application | 23.2 mm diameter optical tube, instead of the standard eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | Recording: *.wmv, *.avi, *.h264 (Windows 8 or later), *.h265 (Windows 10 or later) |
| Spectral range, nm | 380–650 (built-in infrared filter) |
| Exposure method | electronic progressive shutter |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure control |
| USB specifications | USB 2.0, 480 Mb/sec. |
| System requirements | Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32-bit and 64-bit), 2.8 GHz Intel Core 2 CPU or higher, at least 2 GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C; 14... 122°F |
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| Package dimensions (LxWxH), cm | 6x17x15 |
| Shipping weight, | 0.53 |
