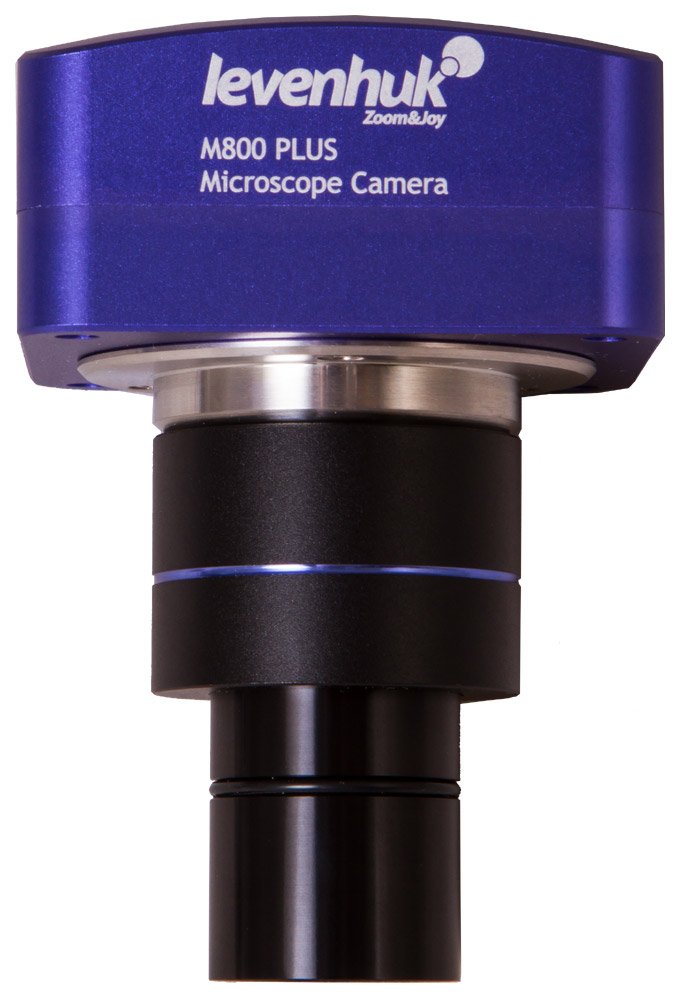

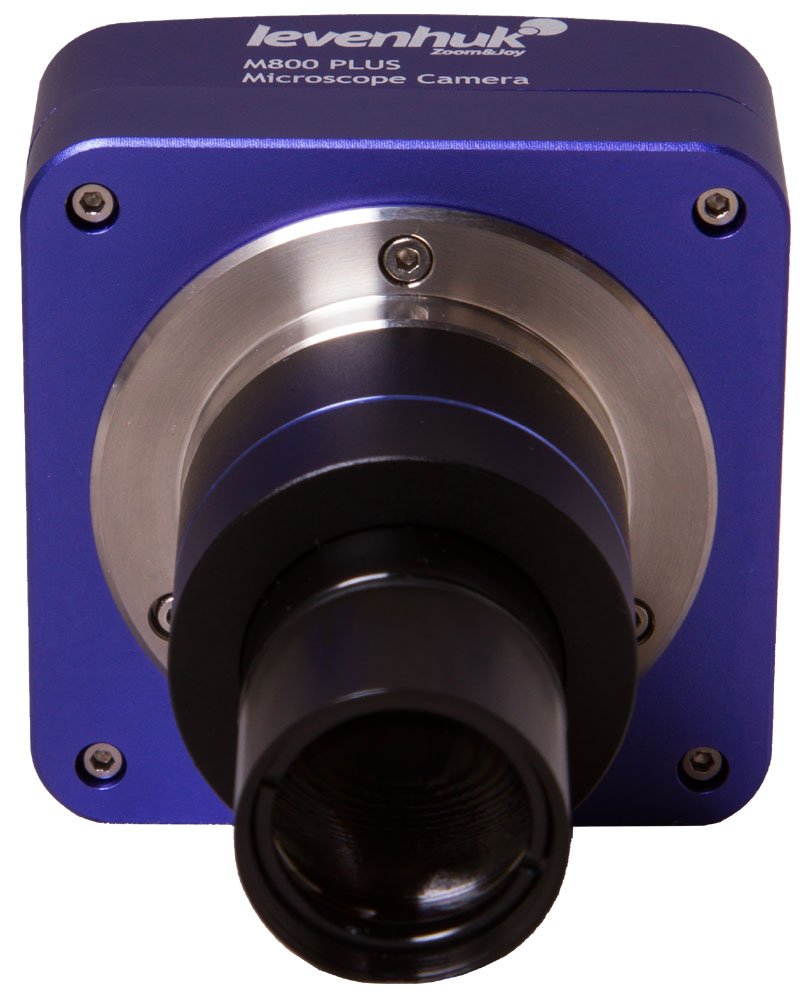

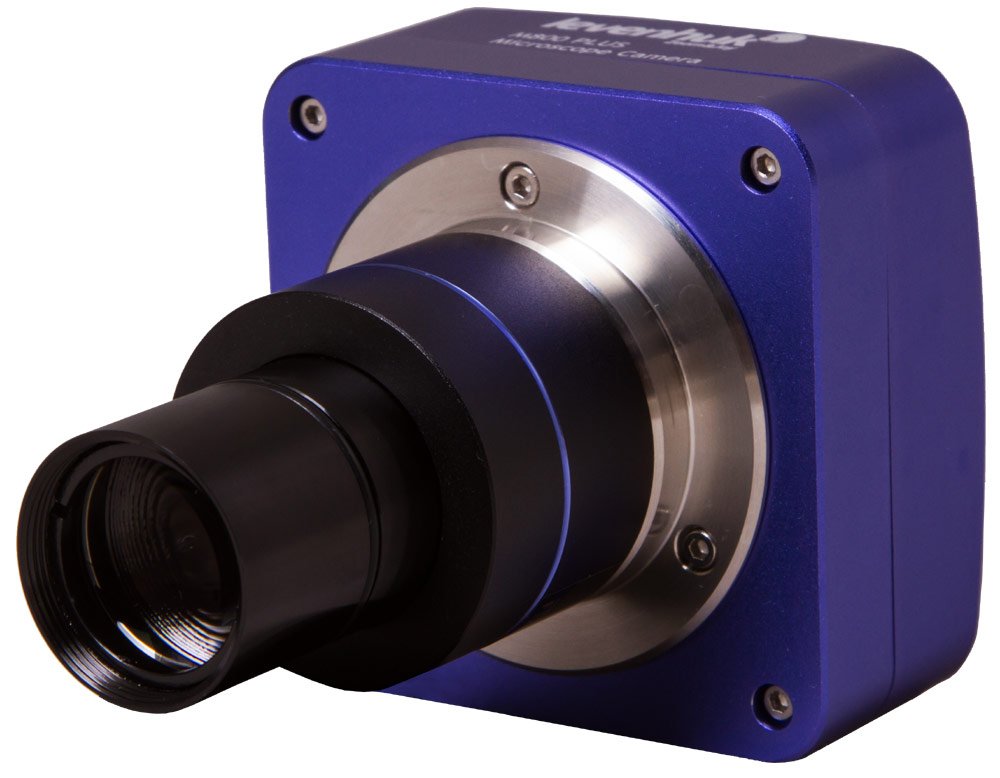

The Levenhuk M800 PLUS digital microscope camera has been designed for professional work with microscope specimens. The camera offers a range of options for taking photographs and recording videos. The 8-megapixel sensor provides the camera with an image resolution of 3264x2448 pixels and high-quality video at 30 frames per second. The Levenhuk M800 PLUS camera is suitable for hobbies, study and work.

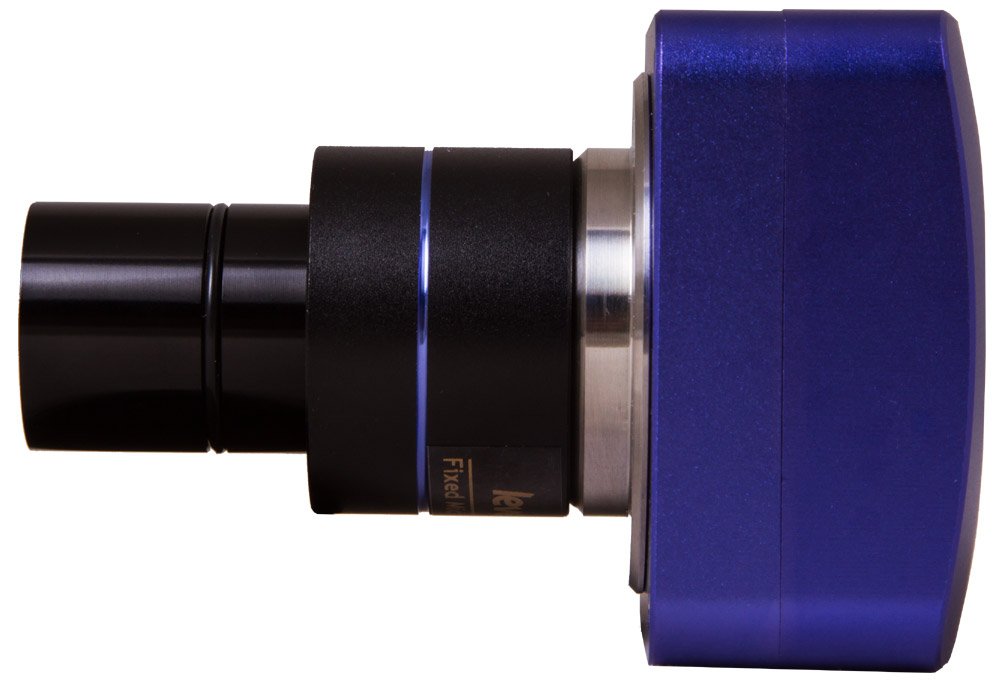

The camera is fitted in place of an eyepiece on a microscope and can be used as a digital eyepiece. Once the special software included in the device’s package has been installed, the camera can transmit the image to a computer in real time. The software allows you to select the shooting mode and edit images and videos after recording.
The Levenhuk M800 PLUS digital camera is compatible with microscopes of all makes. The adaptors included in the kit allow you to fit the camera onto eyepiece tubes of different diameters. This means you won’t need to buy anything extra to use the camera with different microscopes.
The kit includes a CD with specialised software that allows you to edit previously saved images, zoom in, crop them, adjust the contrast, etc.
To ensure the best possible performance from your new camera, please ensure that your computer meets the system requirements specified by the manufacturer. Compatible operating systems include Mac, Linux and Windows. A USB 2.0 port is required to establish a connection. If the software does not work on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of the Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese and Turkish.
The Levenhuk digital camera is compatible with microscopes fitted with an optical tube with a diameter of 23.2 mm. Furthermore, the camera can be mounted on optical tubes with diameters of 30 and 30.5 mm using adaptors included in the kit.

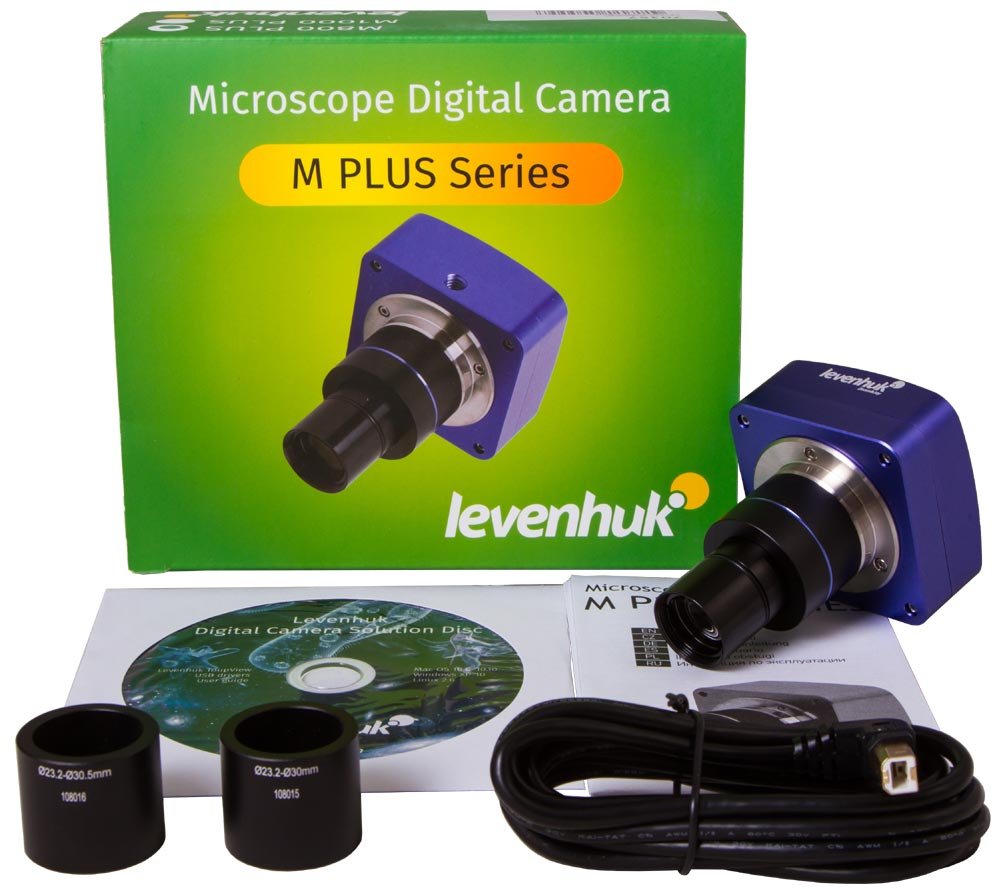

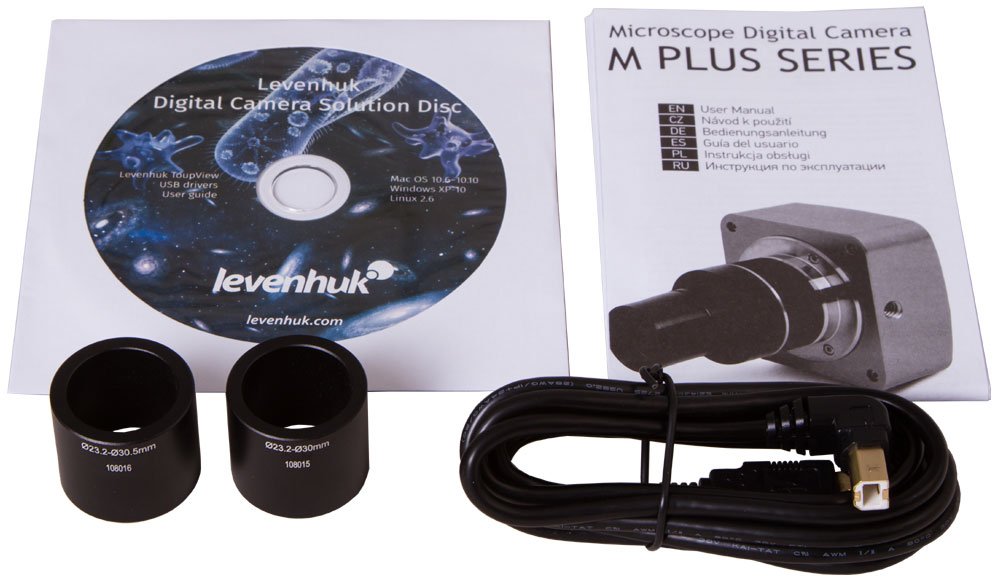

The kit includes:
- Levenhuk digital microscope camera
- Adapter (23.2 mm)
- 2 microscope adapters for different objective tube diameters (23.2–30 mm and 23.2–30.5 mm)

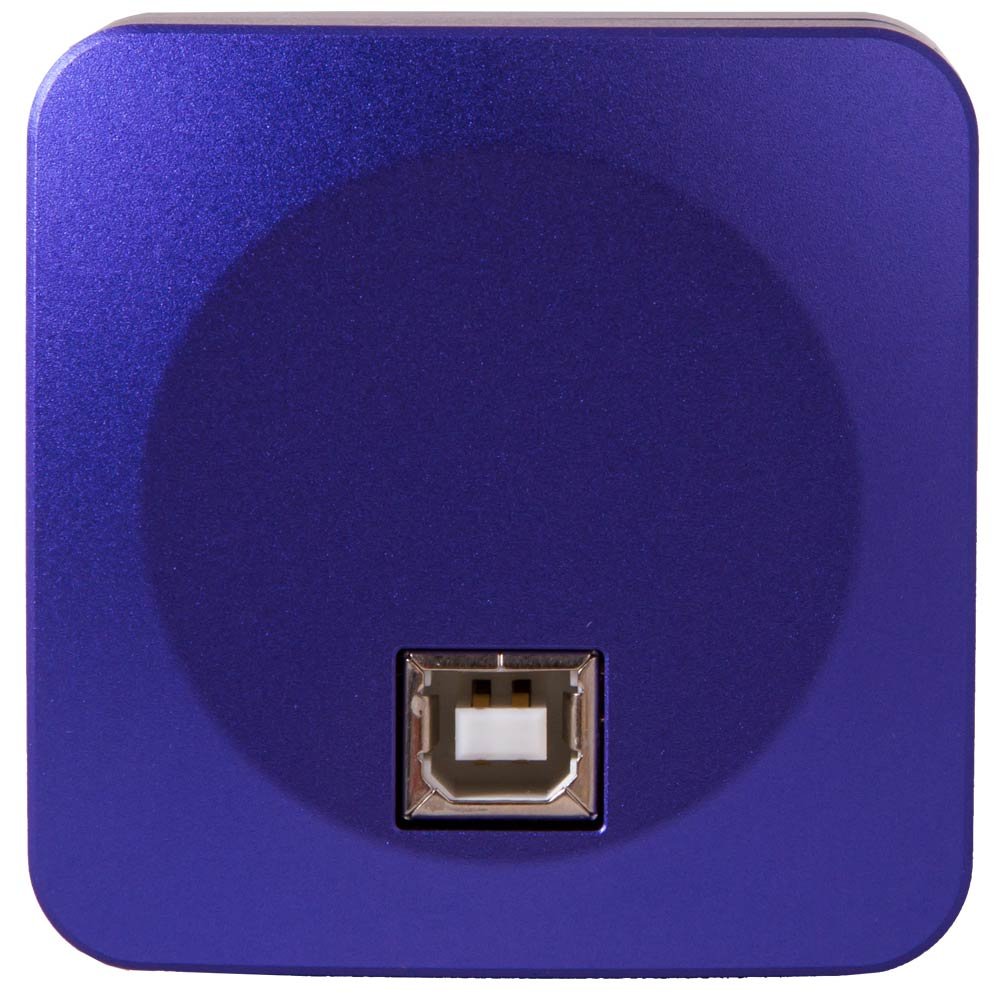

- USB cable for connection to a PC or laptop and power supply
- Installation CD containing the Levenhuk image editing software and the necessary drivers
- User manual and lifetime warranty
| Specifications | |
| Maximum resolution | 3264x2448 |
| Megapixels | 8 |

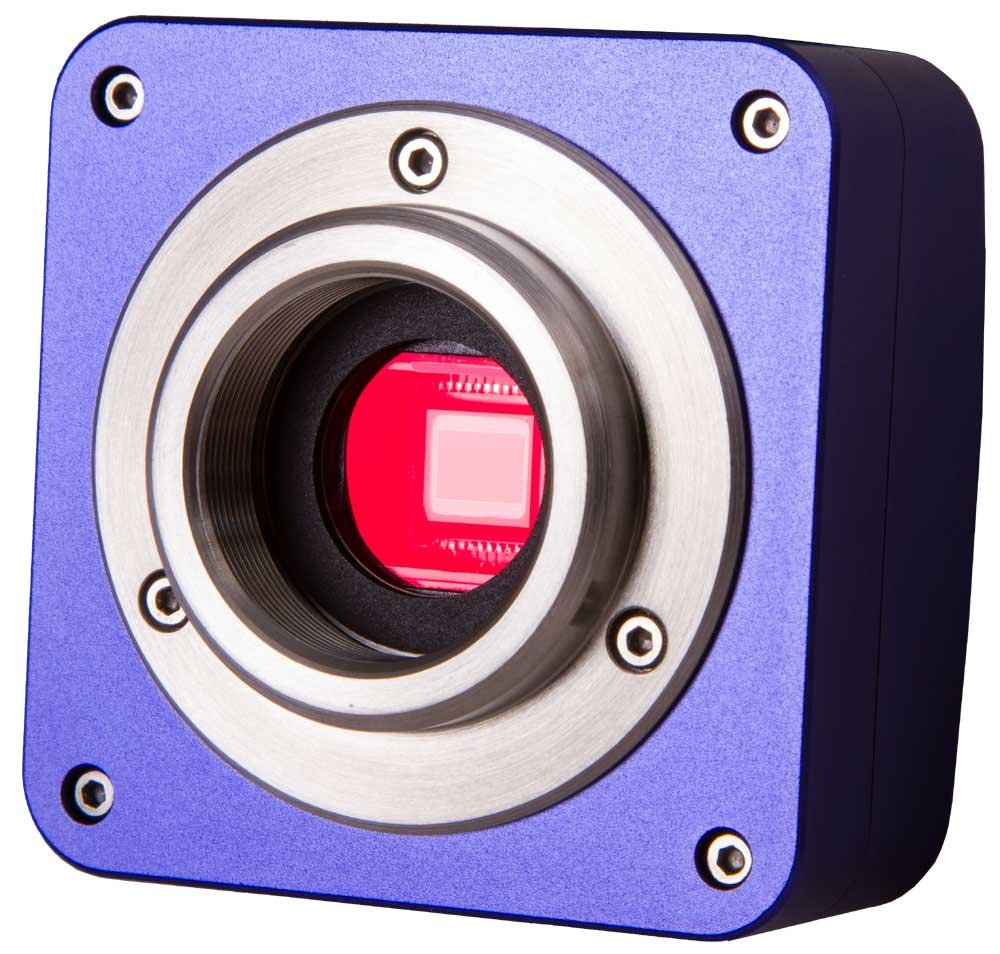

| Sensor | 1/2.5" CMOS |
| Pixel size | 1.67 x 1.67 |
| Sensitivity, V/lux.sec @ 550 nm | 0.31 |
| Exposure time, ms | 0.4–2000 |
| Video recording | Yes |
| Frame rate, frames per second @ resolution | 1.9@3264x2448 8@1600x1200 27@800x600 |
| Dynamic range, dB | 65.2 |
| Application | 23.2 mm diameter optical tube, instead of the standard eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | Recording: *.wmv, *.avi, *.h264 (Windows 8 or later), *.h265 (Windows 10 or later) |
| Spectral range, nm | 380–650 (built-in infrared filter) |
| Exposure method | electronic progressive shutter |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure control |
| USB specifications | USB 2.0, 480 Mb/sec. |
| System requirements | Mac OS 10.12, Linux Ubuntu 14.04, Windows XP/Vista/7/8/10 (32-bit or 64-bit), Intel Core 2 CPU or later; 2 GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C; 14... 122°F |
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| Package dimensions (LxWxH), cm | 6x17x15 |
| Shipping weight, | 0.54 |
