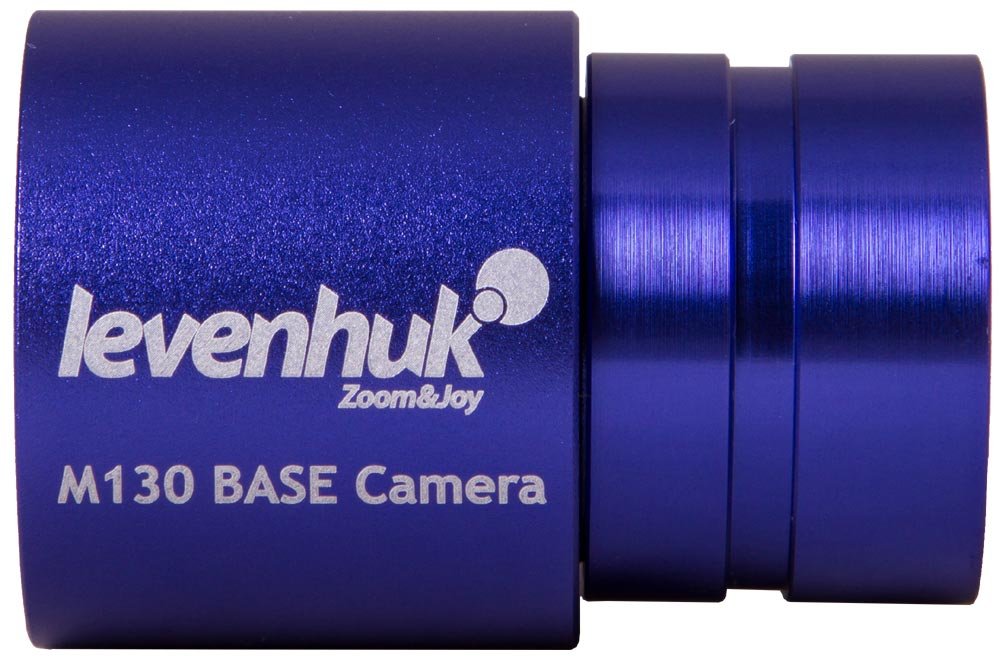

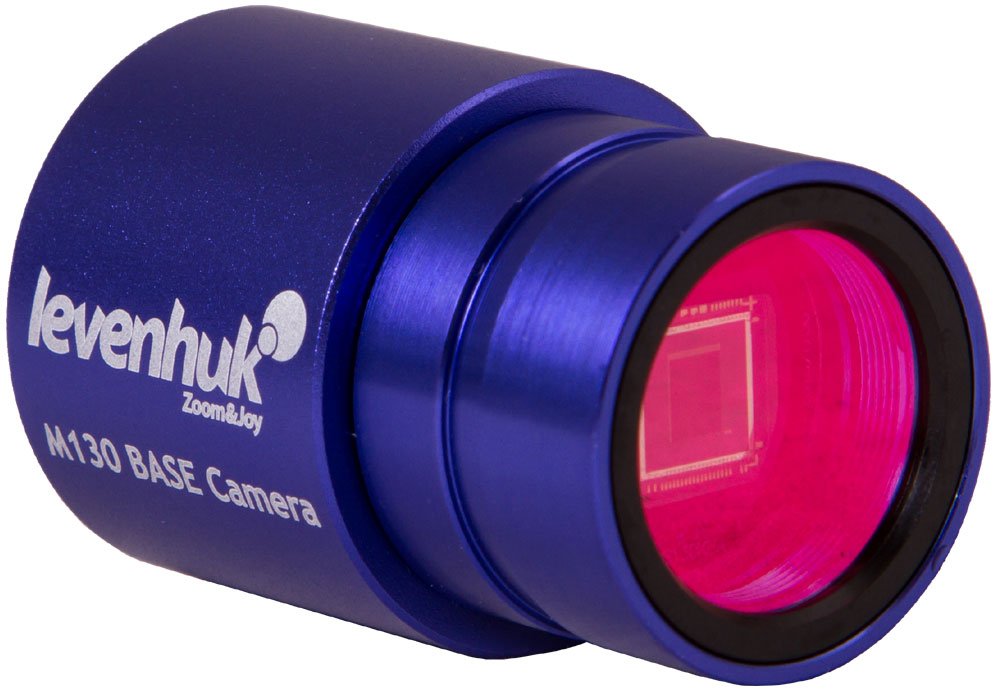

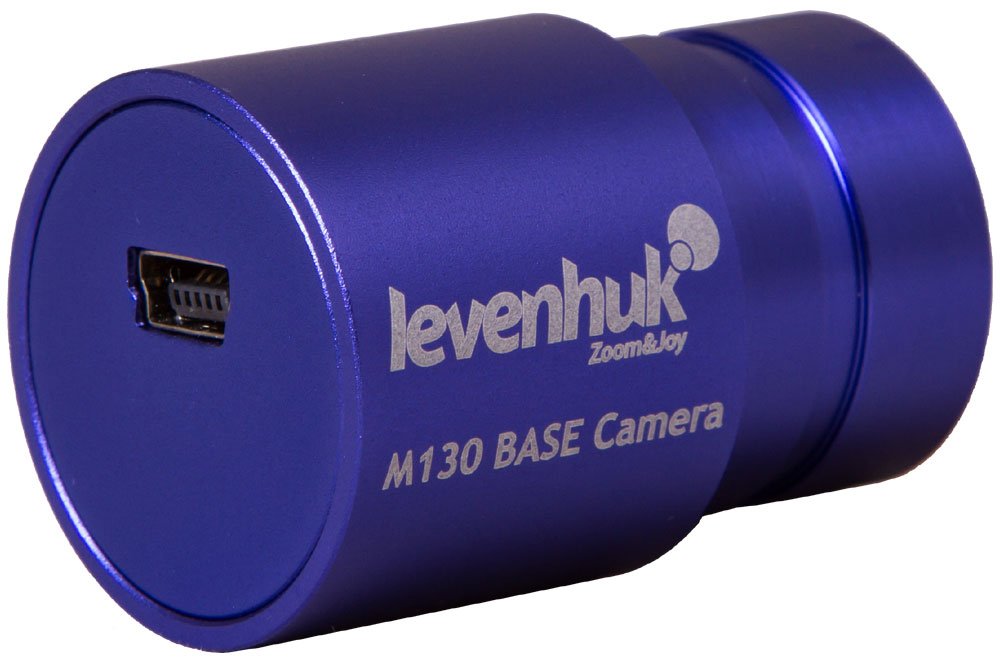

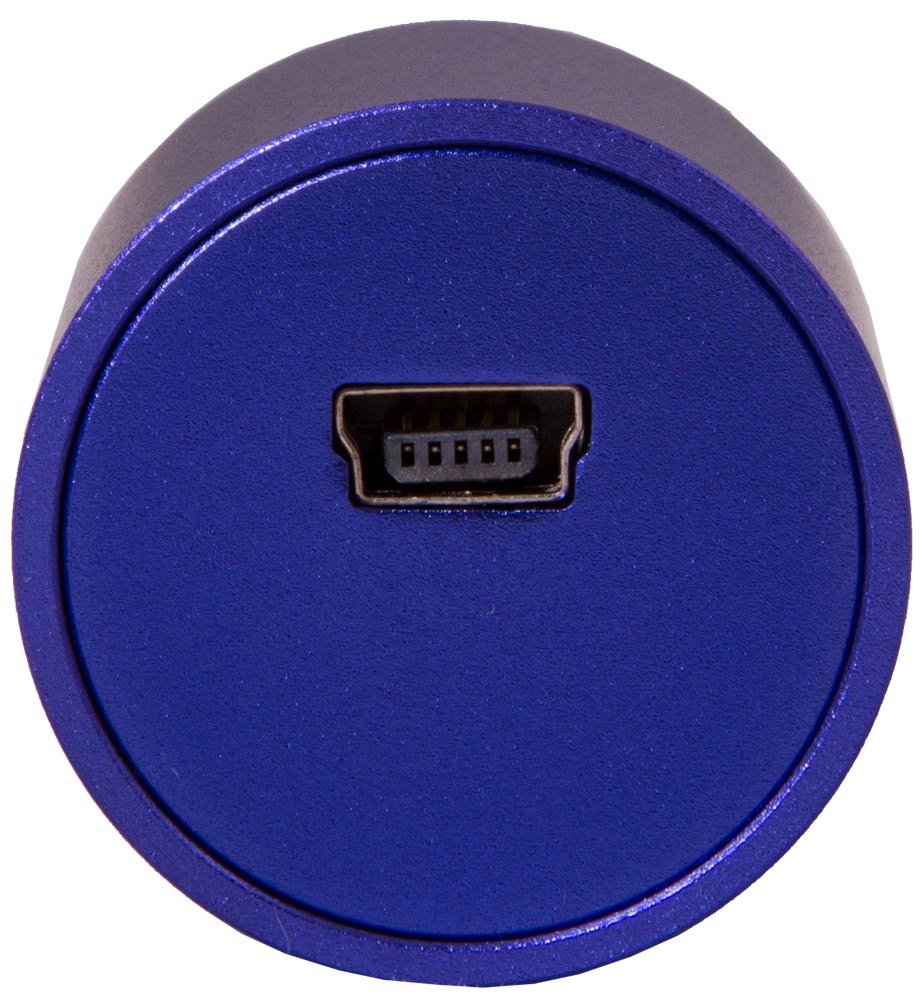

The Levenhuk M130 BASE digital camera has been designed specifically for microscopes. It allows you to take photos and videos and transfer the images to a computer screen. The camera will be a valuable aid in micro-research; with its help, you will be able to create photographic archives of your observations and record educational videos. The Levenhuk M130 BASE digital camera is an excellent choice for presentations and lessons in schools. It is also suitable for home use.
The 1.3 MP camera allows you to take photographs with a resolution of 1280x1024 pixels. The maximum frame rate is 12.5 frames per second. To select a suitable shooting mode, connect the camera to your computer via a USB cable and install the software included in the pack. This specialised software allows you to choose the video resolution, crop images and adjust brightness and contrast.

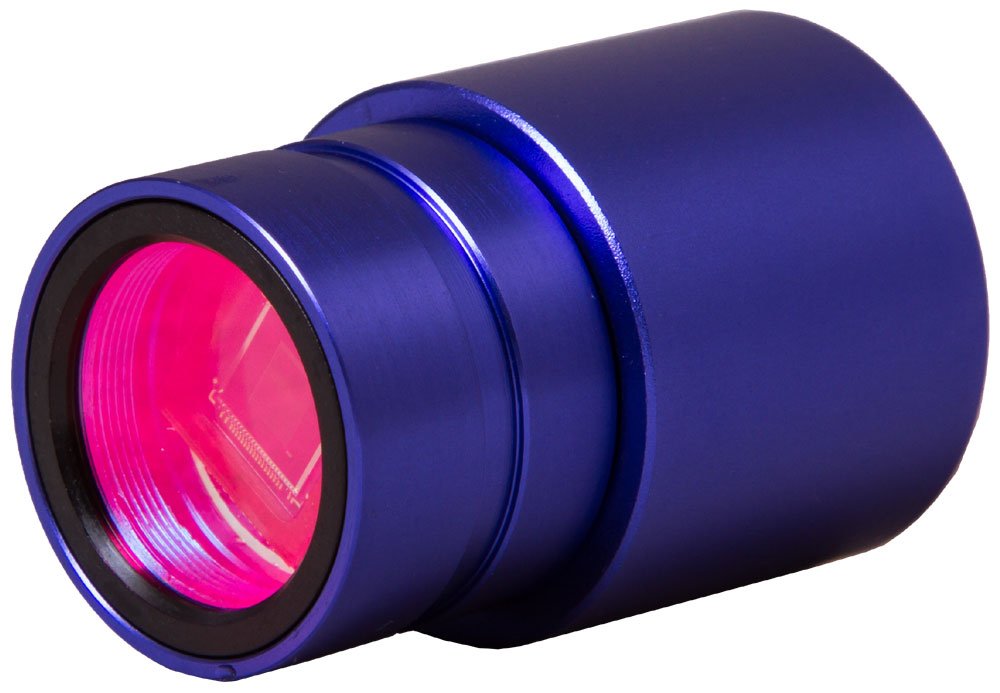

The Levenhuk M130 BASE digital camera can be mounted on a biological or stereomicroscope. The camera is compatible with eyepieces 23.2 mm in diameter. For eyepieces of other diameters, you can use special adapters (sold separately).
The kit includes a CD with special software that allows you to edit previously saved images, zoom in, crop them, adjust the contrast, etc.
To ensure the best possible performance from your new camera, please ensure that your computer meets the system requirements specified by the manufacturer. Compatible operating systems include Mac, Linux and Windows. A USB 2.0 port is required to establish a connection. If the software does not work on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of the Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese and Turkish.

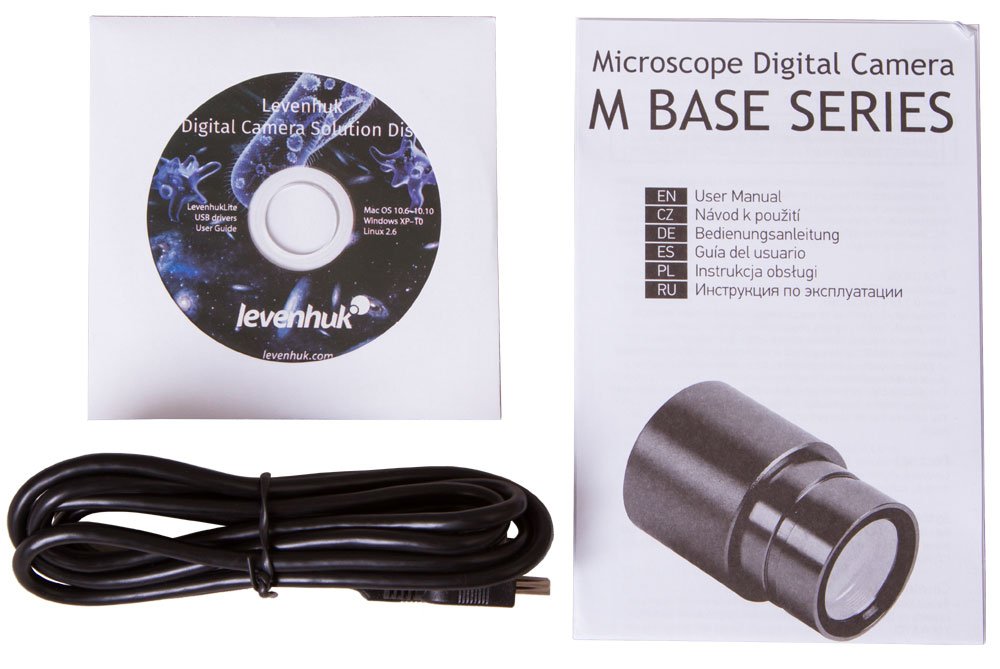

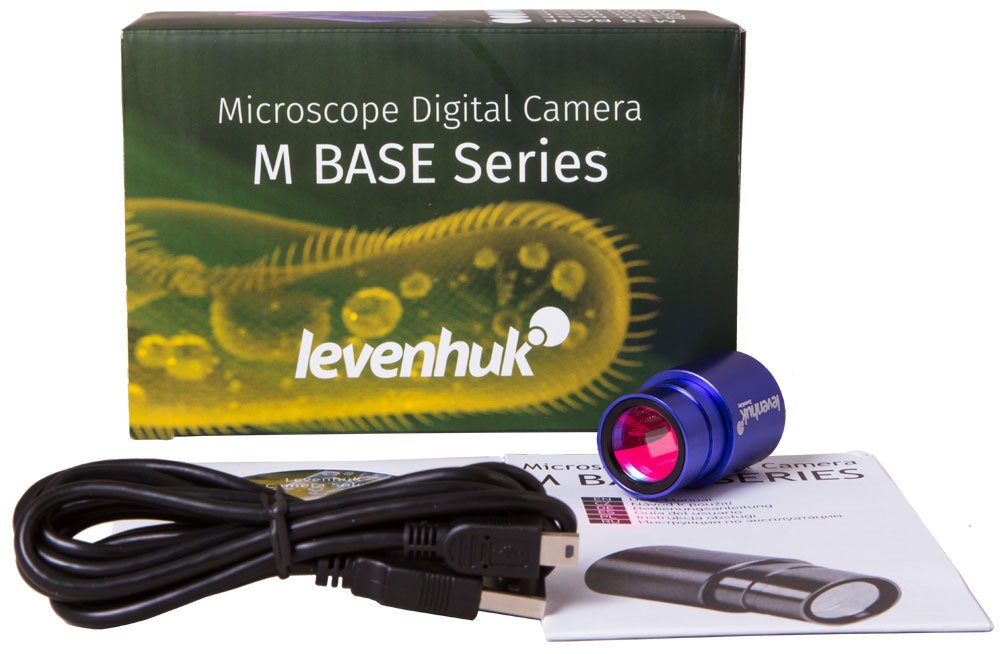

The kit includes:
- Levenhuk digital microscope camera
- USB cable for connection to a PC or laptop and power supply
- Installation CD containing the Levenhuk image-editing software and the necessary drivers
- User manual and lifetime warranty
| Specifications | |
| Maximum resolution | 1280x1024 |
| Megapixels | 1.3 |

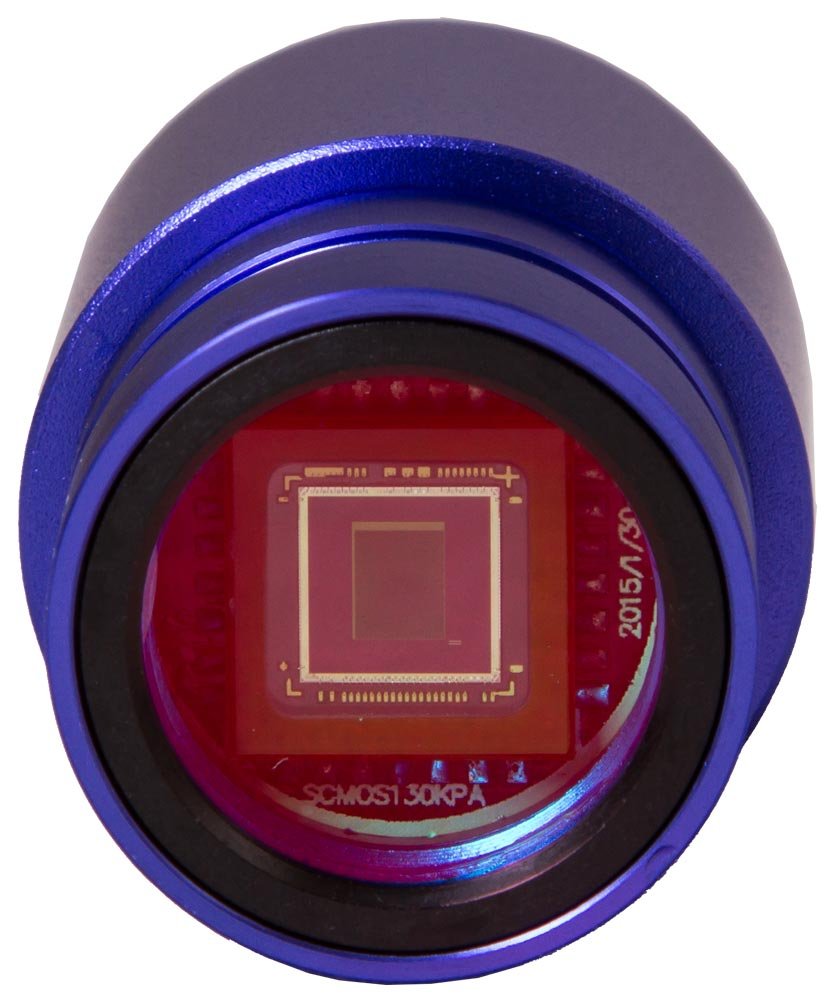

| Sensor | 1/3" CMOS |
| Pixel size | 3.6 × 3.6 |
| Exposure time, ms | automatic |
| Video recording | yes |
| Sensitivity, V/lux·s @ 550 nm | 7.5@1280x1024 12.5@1024x768 12.5@800x600 |
| Application | 23.2 mm diameter optical tube, instead of the standard eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | Recording: *.wmv, *.avi, *.h264 (Windows 8 or later), *.h265 (Windows 10 or later) |
| Spectral range, nm | 380–650 nm (built-in infrared filter) |
| Exposure method | electronic progressive shutter |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure control |
| USB specifications | USB 2.0, 480 Mb/sec. |
| System requirements | Mac OS 10.12, Linux Ubuntu 14.04, Windows 7/8/10 (32-bit or 64-bit), Intel Core 2 CPU or later; 2 GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C; 14... 122°F |
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| Package dimensions (LxWxH), cm | 6x14x9.5 |
| Shipping weight, | 0.17 |
