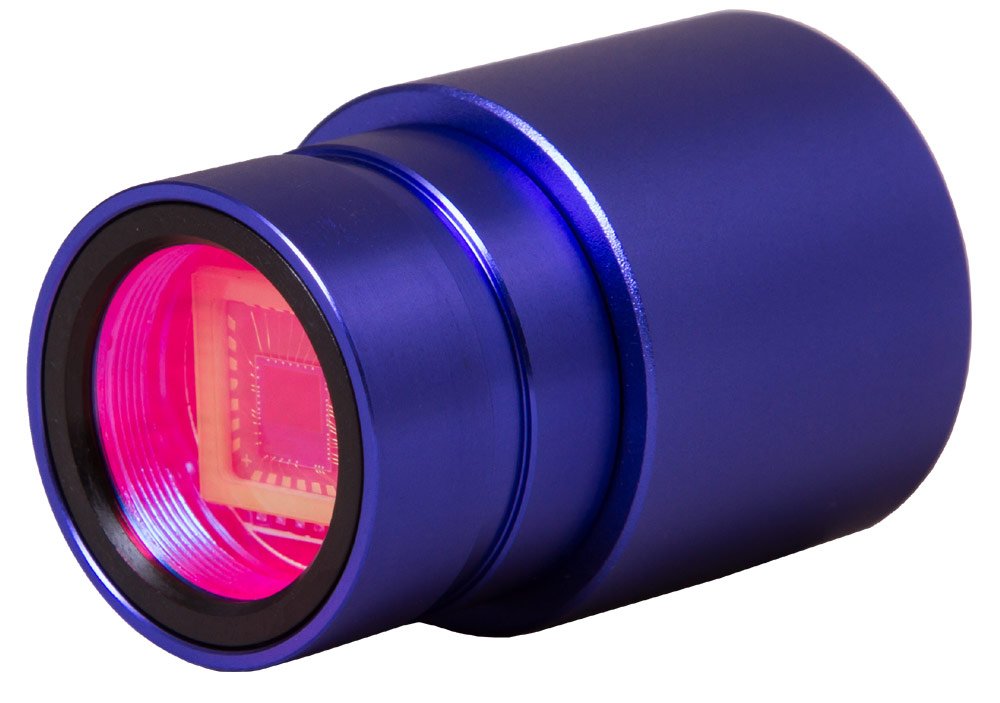

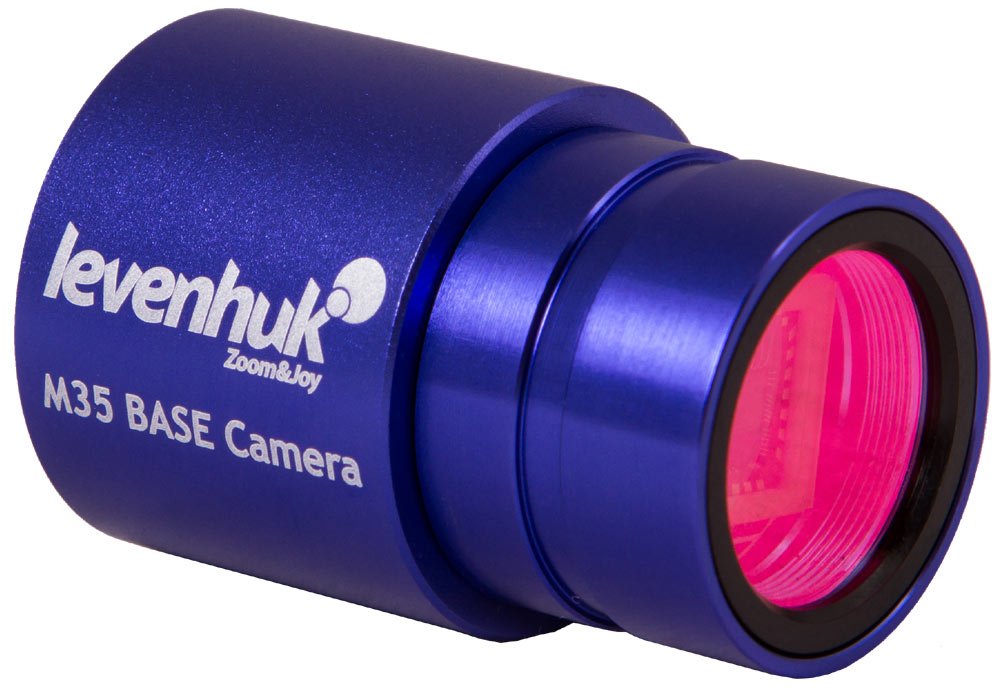

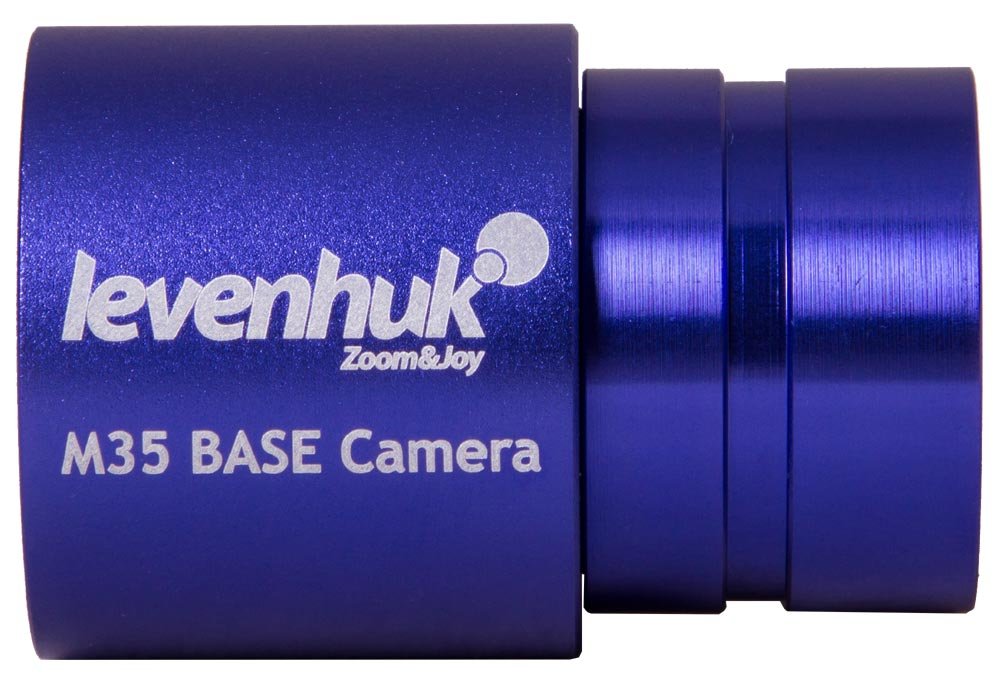

The Levenhuk M35 BASE digital camera will transform your microscope into a modern digital device. Once you have fitted the camera to a microscope and connected it to a computer, you can take photos of samples, record videos of your research and share your discoveries with friends and like-minded people.
This 0.3 MP camera allows you to take photographs with a resolution of 640x480 pixels. Images can be enhanced using the special Levenhuk image processing software included in the kit. This camera is compatible with all microscopes fitted with 23.2 mm diameter eyepieces. It can also be fitted to microscopes with eyepieces of different diameters using an adapter (sold separately).
The Levenhuk M35 BASE digital camera is an excellent choice for getting started in the world of microphotography and for creating online broadcasts and presentations. Suitable for biology students and beginners.
The kit includes a CD with specialised software that allows you to edit previously saved images, zoom in, crop them, adjust the contrast, etc.
To ensure the best possible performance from your new camera, please ensure that your computer meets the system requirements specified by the manufacturer. Compatible operating systems include Mac, Linux and Windows. A USB 2.0 port is required to establish a connection. If the software does not work on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of the Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese and Turkish.

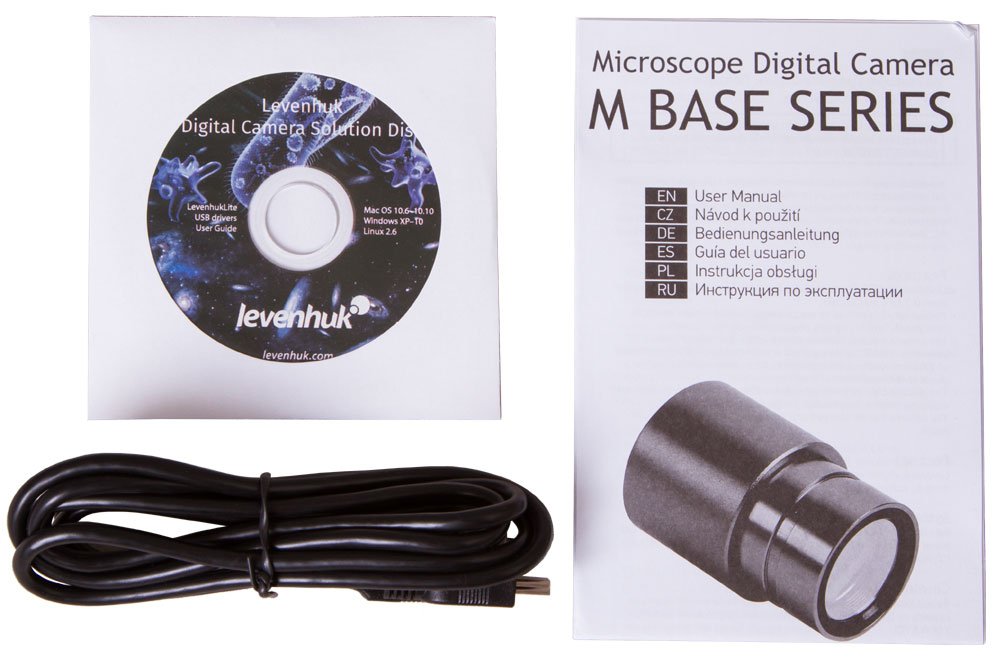

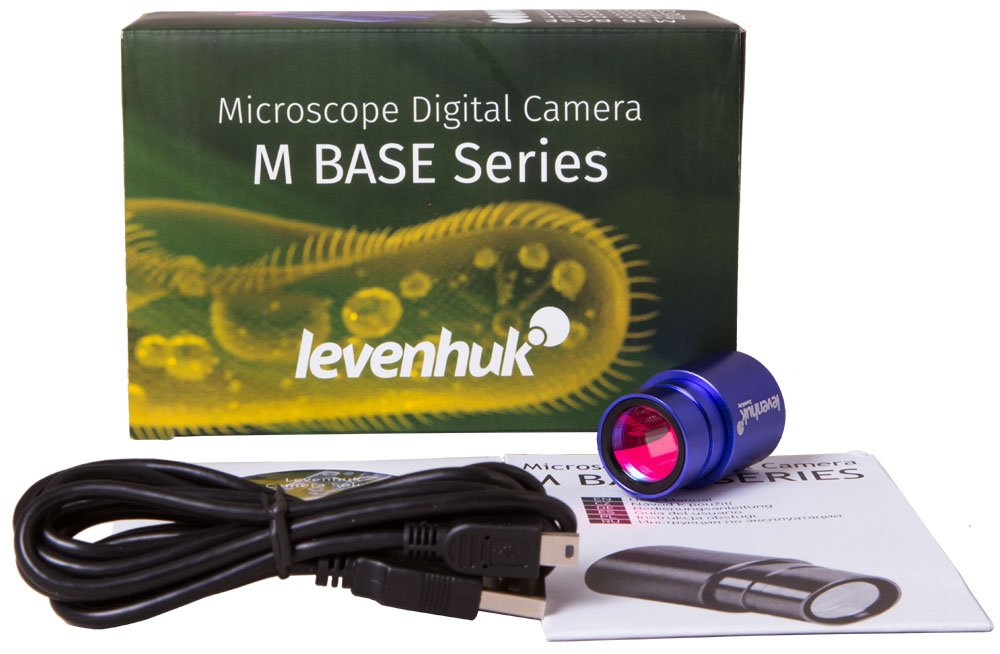

The kit includes:
- Levenhuk digital microscope camera
- USB cable for connection to a PC or laptop and power supply
- Installation CD containing the Levenhuk image-editing software and the necessary drivers
- User manual and lifetime warranty
| Specifications | |
| Maximum resolution | 640x480 |
| Megapixels | 0.3 |

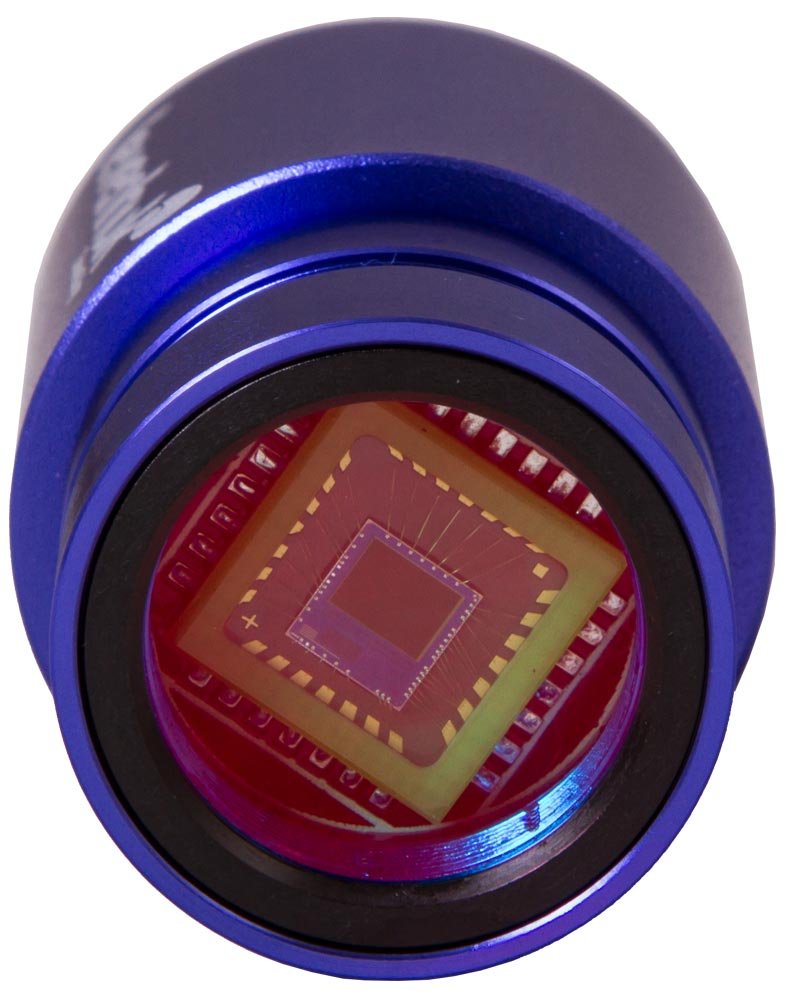

| Sensor | 1/4" CMOS |
| Pixel size | 5.6×5.6 |
| Exposure time, ms | automatic |
| Video recording | yes |
| Sensitivity, V/lux.sec @ 550 nm | 30@640x480 |
| Application | 23.2 mm diameter optical tube, instead of the standard eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | Recording: *.wmv, *.avi, *.h264 (Windows 8 or later), *.h265 (Windows 10 or later) |
| Spectral range, nm | 380–650 nm (built-in infrared filter) |
| Exposure method | electronic progressive shutter |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure control |
| USB specifications | USB 2.0, 480 Mb/sec. |
| System requirements | Mac OS 10.12, Linux Ubuntu 14.04, Windows 7/8/10 (32-bit or 64-bit), Intel Core 2 CPU or later; 2 GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C; 14... 122°F |
| Brand | Levenhuk Inc., USA |
| Warranty, years | Lifetime |
| Package dimensions (LxWxH), cm | 6x14x9.5 |
| Shipping weight, | 0.17 |
