The Levenhuk ZOOM 1B microscope is an instrument capable of a large working distance. It is practical for studying geological samples, jewellery, biological specimens, textiles, electronic circuit boards and small mechanisms. This microscope can also be used for hobbies as well as for professional activities, such as workshops or watchmaking laboratories.

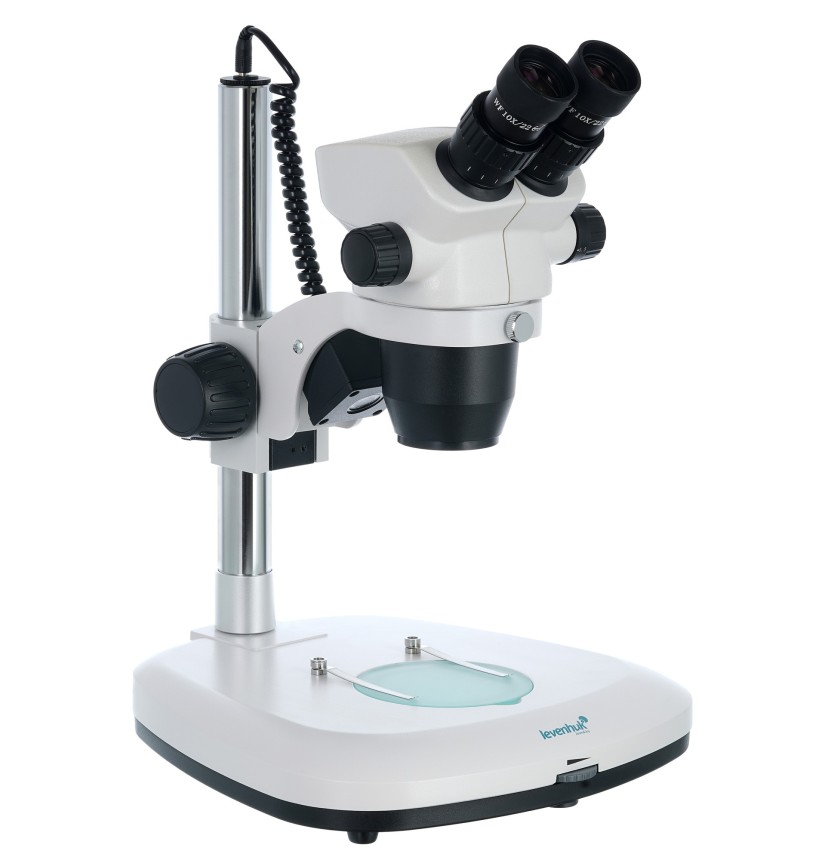

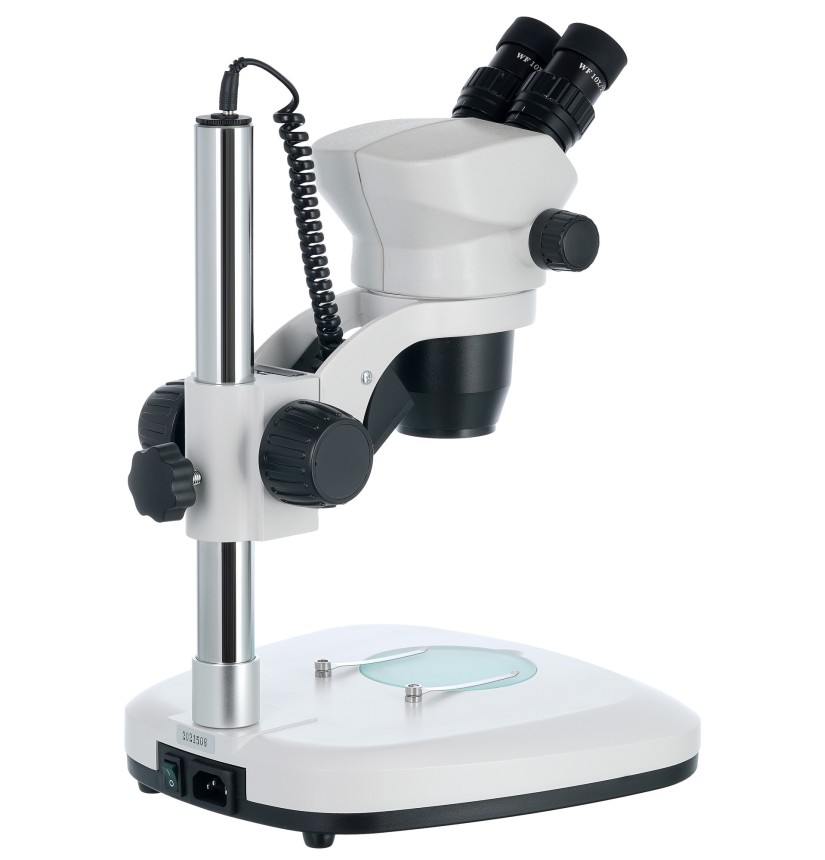

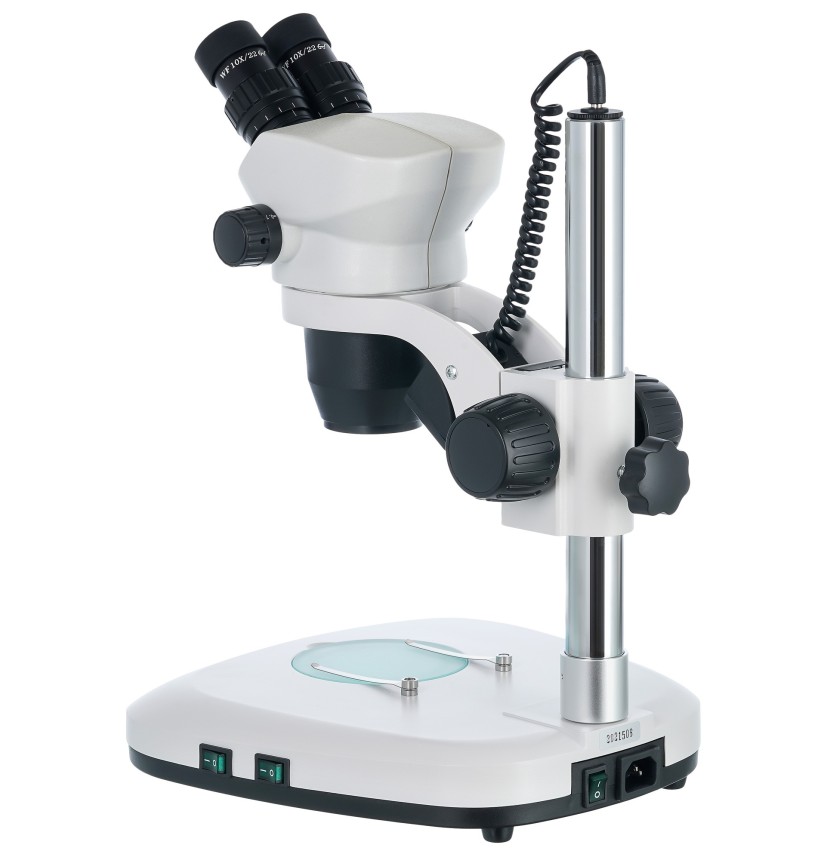

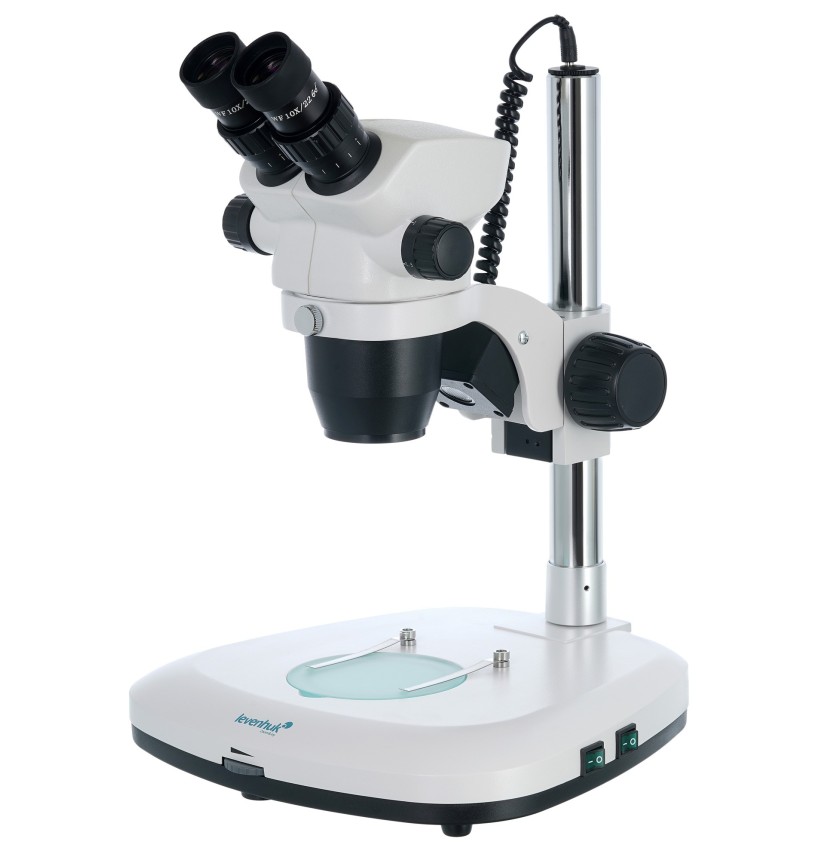

In terms of design, the microscope consists of a base, a vertical stand and an optical head. It is possible to make observations with both eyes, the head is slightly inclined and can be rotated 360°. The kit includes two wide-field eyepieces with 10x magnification. The optical scheme is completed by a zoom objective, thanks to which the magnification of the microscope can be changed continuously and not in discrete steps. The total magnification range varies from a factor of 7 to a factor of 45. Coarse focusing is available.

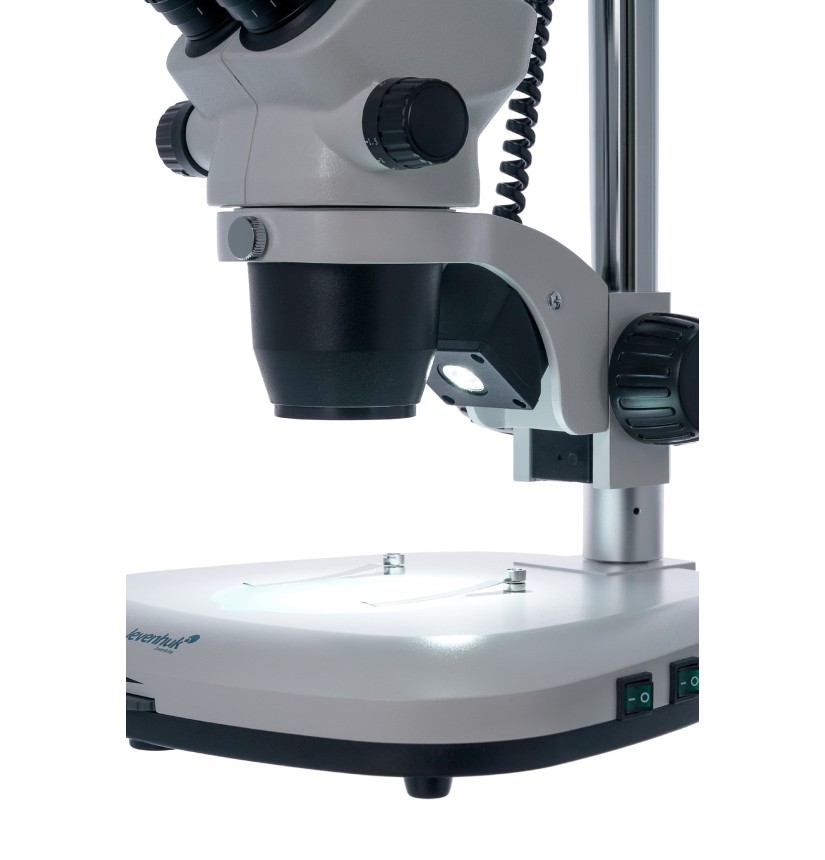

The microscope is equipped with two light sources: two LED lights, top and bottom. This allows the study of samples of any degree of transparency. Brightness adjustment makes it easy to choose the optimum illumination level for the study of each sample. The light is powered by the AC mains.
The body of the microscope is made of metal, which makes it durable and strong.
Features:
- Stereoscopic imaging (3D)
- Variable magnification between a factor of 7 and a factor of 45
- Binocular head can be rotated and tilted 45°.
- Large working distance: 235 mm
- Combined LED lights with brightness control and AC mains-powered

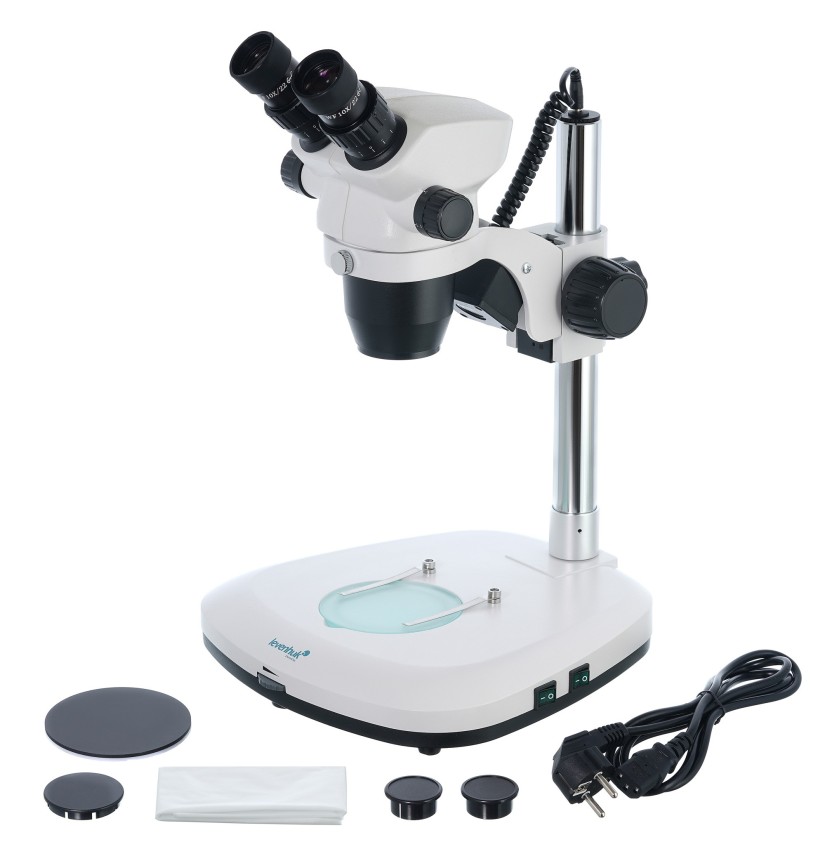

Kit includes:
- Microscope

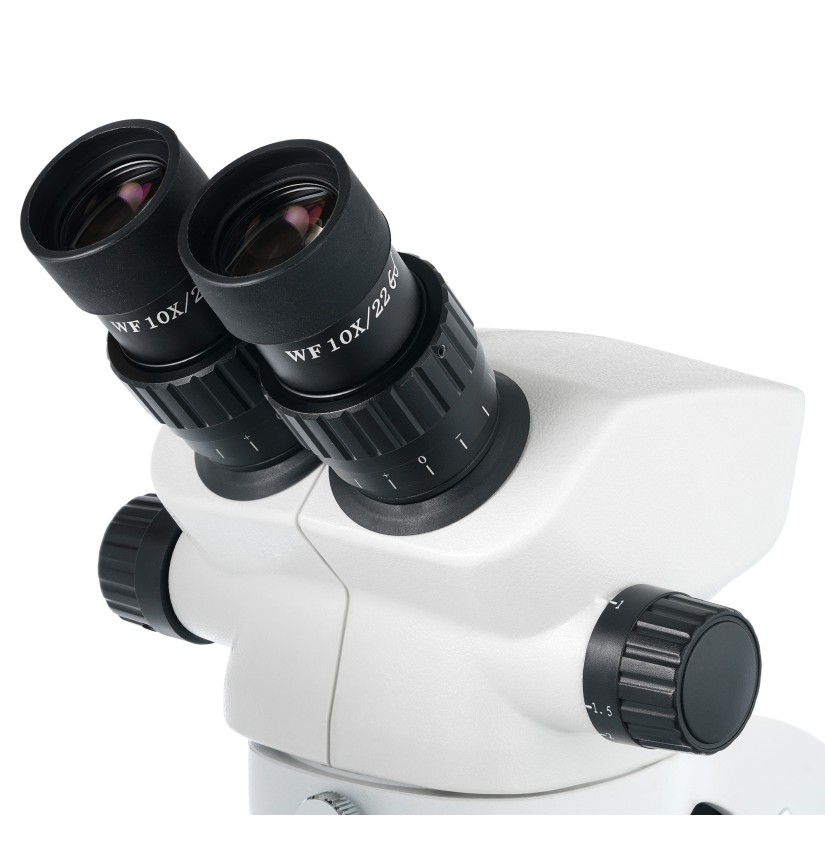

- WF10x eyepieces with eyecups (2 pcs.)
- Zoom lens: 0.7-4.5x

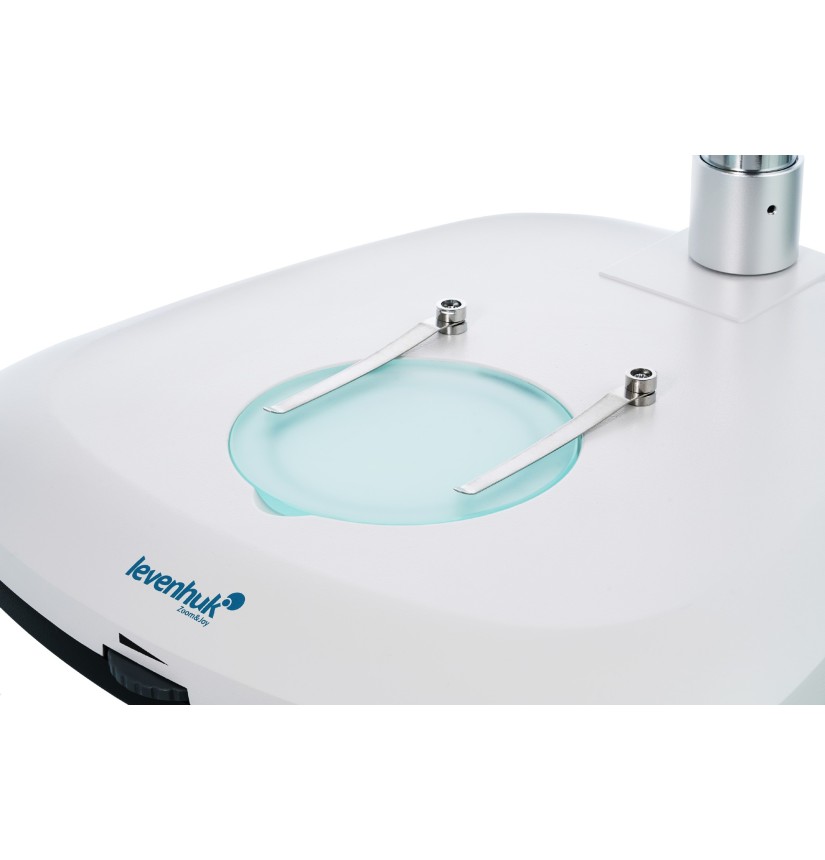

- Satin-finished glass stage
- Double-sided plate, white and black
- Power cable with AC adapter
- Dust cover
- User manual and lifetime warranty
Attention: Please refer to the specifications table for information on the correct mains voltage. Never attempt to connect a 110 V device to a 220 V outlet, or vice versa, without using a voltage converter. Please note that the mains voltage in the USA and Canada is 110 V, while in most European countries it is 220-240 V.
| Brand | Levenhuk Inc., USA |
| Warranty, years | lifetime |
| EAN | 0753215775224 |
| Packaging size (WxDxH), cm | 45x34.5x37 |
| Shipping weight, kg | 5.62 |
| Type | stereo/instrumental |
| Head | binocular |
| Optics material | optical glass |
| Nozzle | 360° swivel |
| Head tilt angle | 45° |
| Magnification, x | 7-45 |
| Eyepiece tube diameter, mm | 30.0 |
| Eyepieces | WF10x/22 mm (2 pcs.) |
| Objectives | 0.7-4.5x (zoom) |
| Working distance, mm | 235 |
| Interpupillary distance, mm | 48-75 |
| Table, mm | Ø95 |
| Range of movement of the table, mm | fixed |
| Table features | with clamps, two plates: white and black double-sided and frosted glass |
| Eyepiece dioptric adjustment, diopters | ±5 |

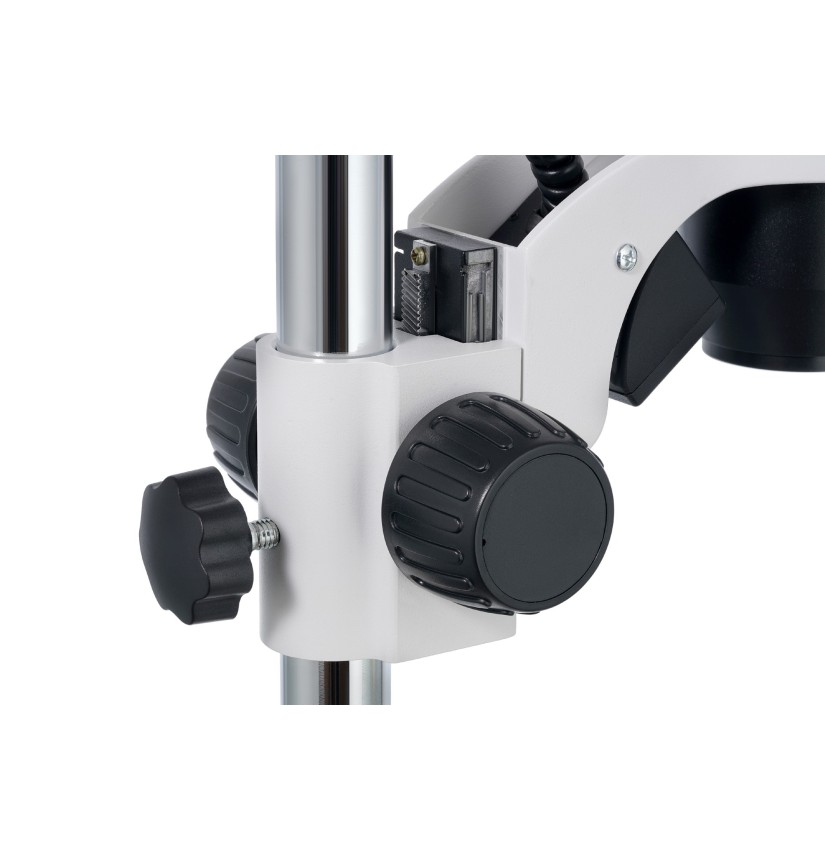

| Focus | coarse (50 mm) |
| Body | metal |
| Illumination | LED |
| Brightness adjustment | True |
| Power supply | 220 V/50 Hz |
| Type of light source | upper: 3 W LED, lower: 2 W LED |
| Operating temperature range, °C | 5-35 |
| User level | beginners, experienced users |
| Difficulty level assembly and installation | easy |
| Application | for applied research |
| Position lighting | combined |
| Search method | clear field |
