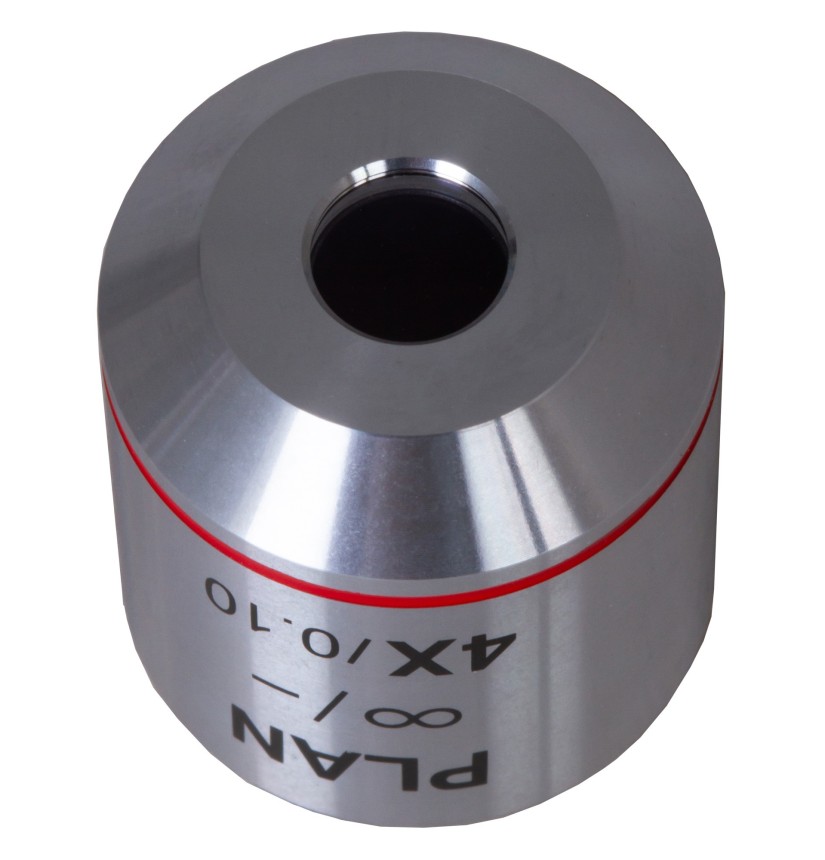

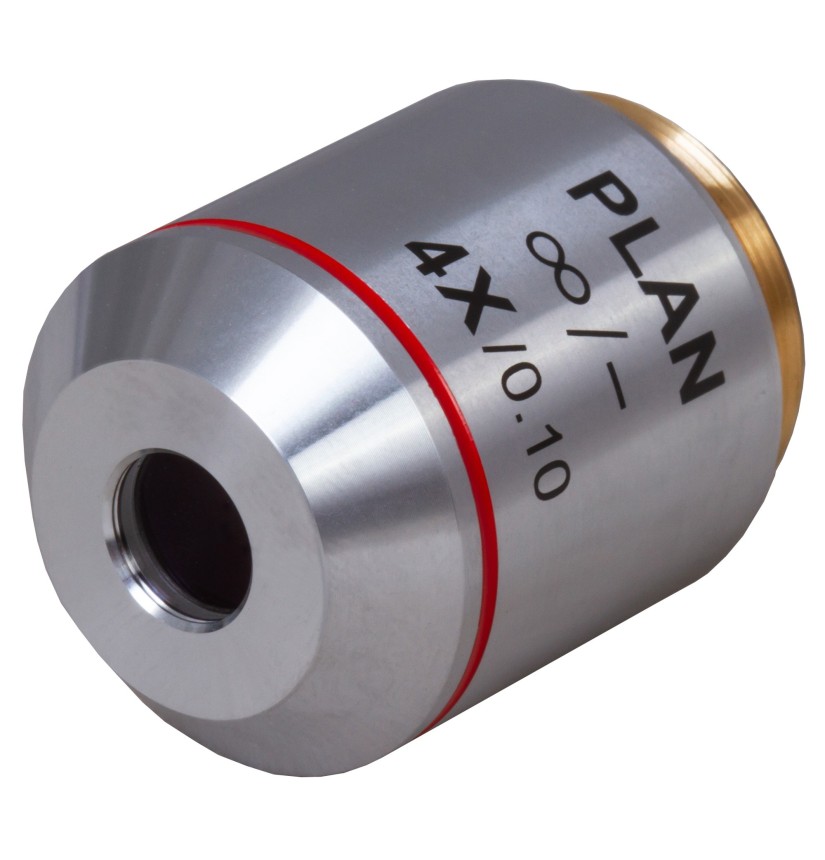

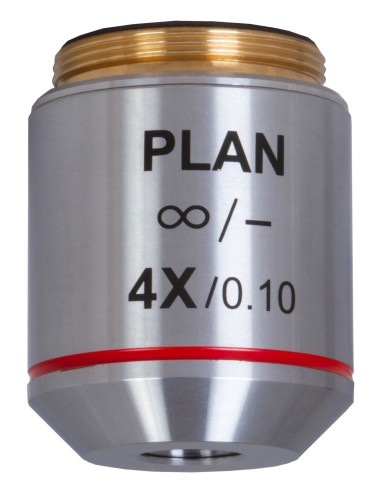

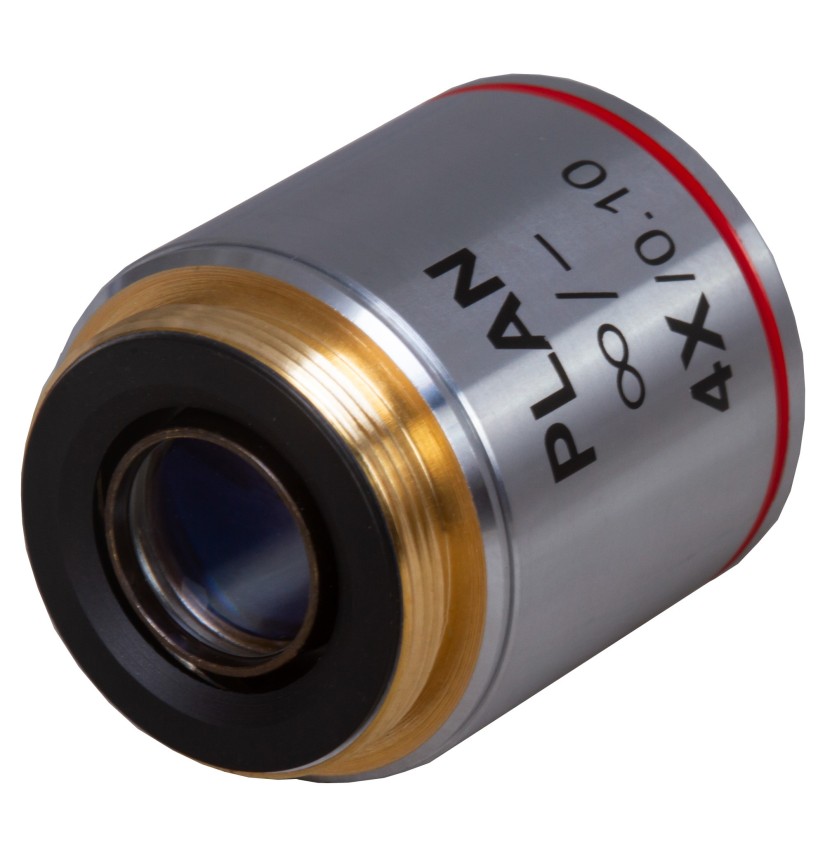

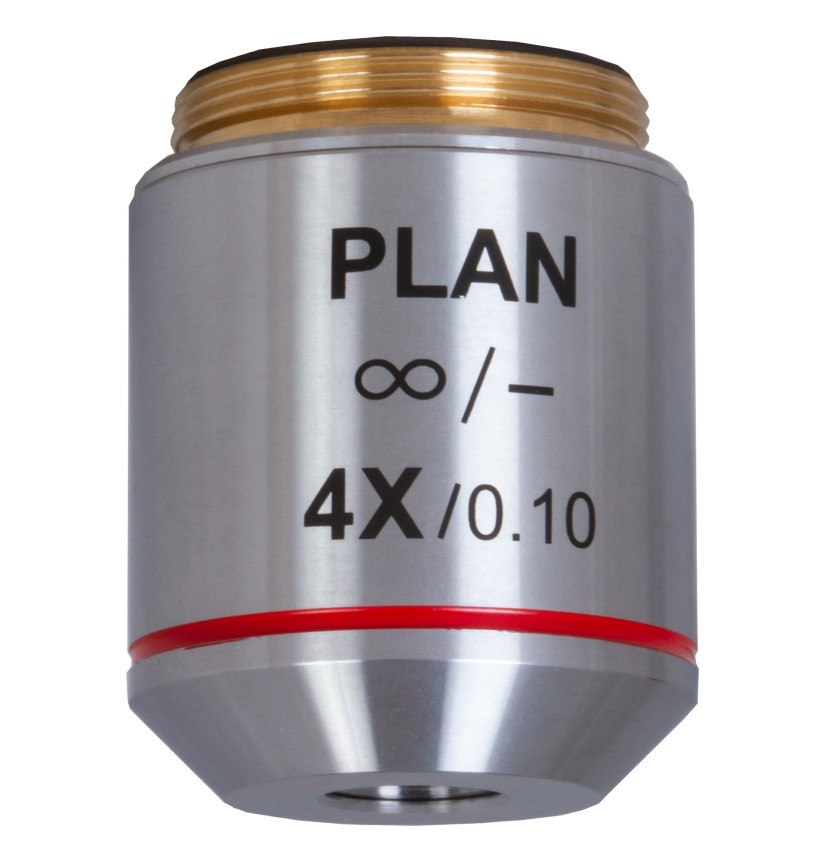

The Levenhuk MED 4x planachromatic infinity objective is designed especially for infinity-corrected microscopes (whose optical tube length is not finite). These are professional optical instruments used in laboratories. The main advantage of an infinity-corrected optical system is the possibility of installing additional elements, such as polarisers.
The Levenhuk MED 4x infinity planachromatic objective offers 4x magnification, reproduces planar images over the entire field of view and increases the contrast of the transmitted image. It features glass optics and a metal body.
The kit includes:
- Lens
- Plastic case
| Specifications | |
|---|---|
| Lens material | optical glass |
| Body material | copper |
| Optical scheme | planachromatic |
| Magnification, x | 4 |
| Aperture | 0,1 |
| Working distance, mm | 19,37 |
| Parfocal distance, mm | 180 |
| Slide cover thickness, mm | 0,17 |
| Compatible tube length, mm | infinite |
| Thread type | WJ 4/5"*1/36" |
| Spring mechanism | no |
| Oil immersion | no |
| Brand | Levenhuk Inc., USA |
| Warranty, years | 2 |
| EAN | 0753215775378 |
| Packaging size (WxDxH), cm | 3.5x6x3.5 |
| Shipping weight, kg | 0.08 |
